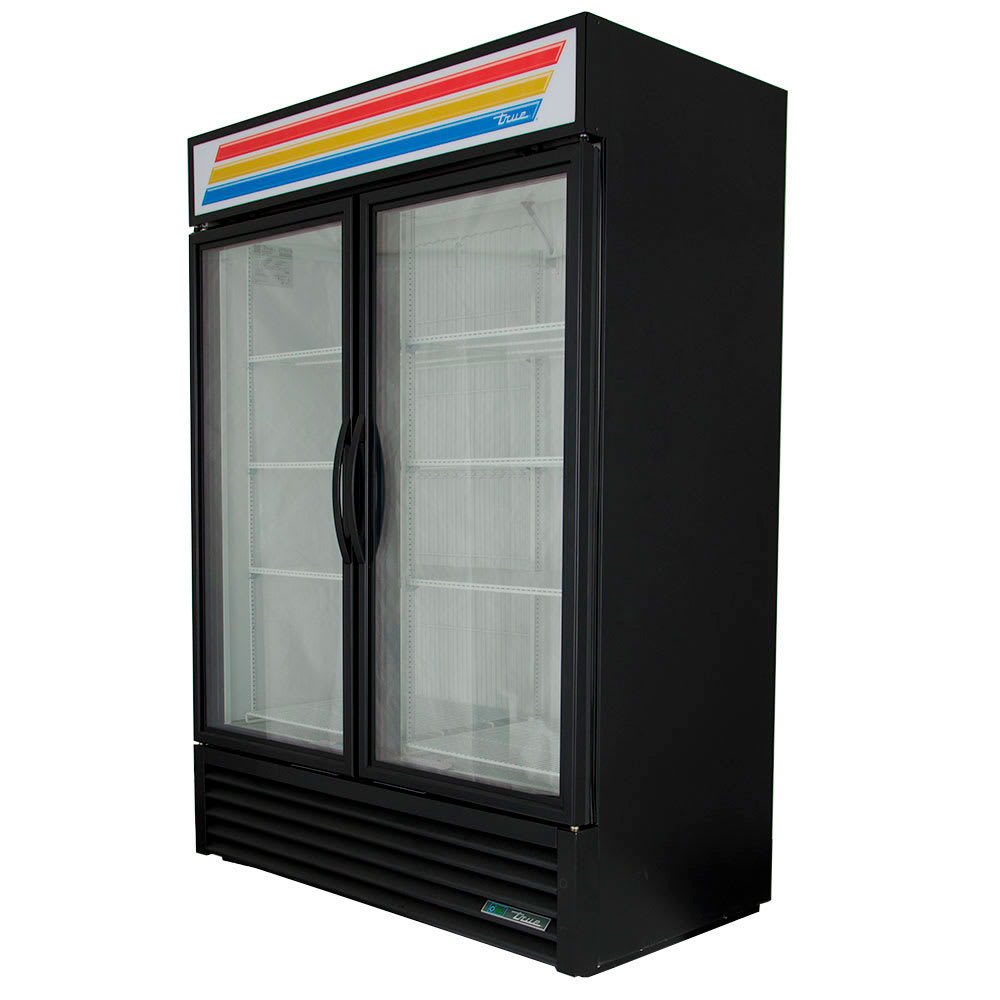

True GDM-49F-HC~TSL01 54" Two-Section Display Freezer w/ Swinging Doors - Bottom Mount Compressor, Black, 115/208-230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 598-GDM49FBK • MPN: GDM-49F-HC~TSL01 BLK
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price Increase Update
Retail Price: $6,090.43

Image may not depict product color, inclusions or accessories.

True Refrigeration GDM-49F-HC~TSL01 Description

True Refrigeration

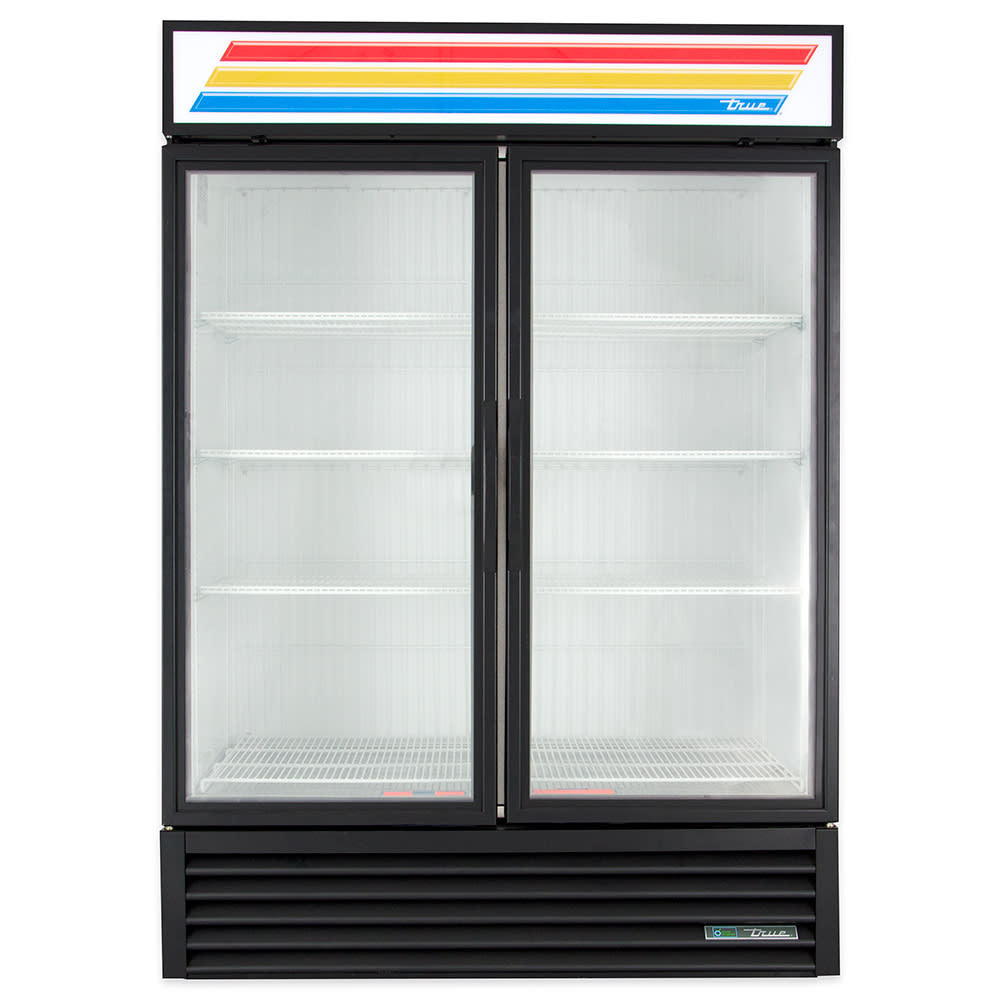

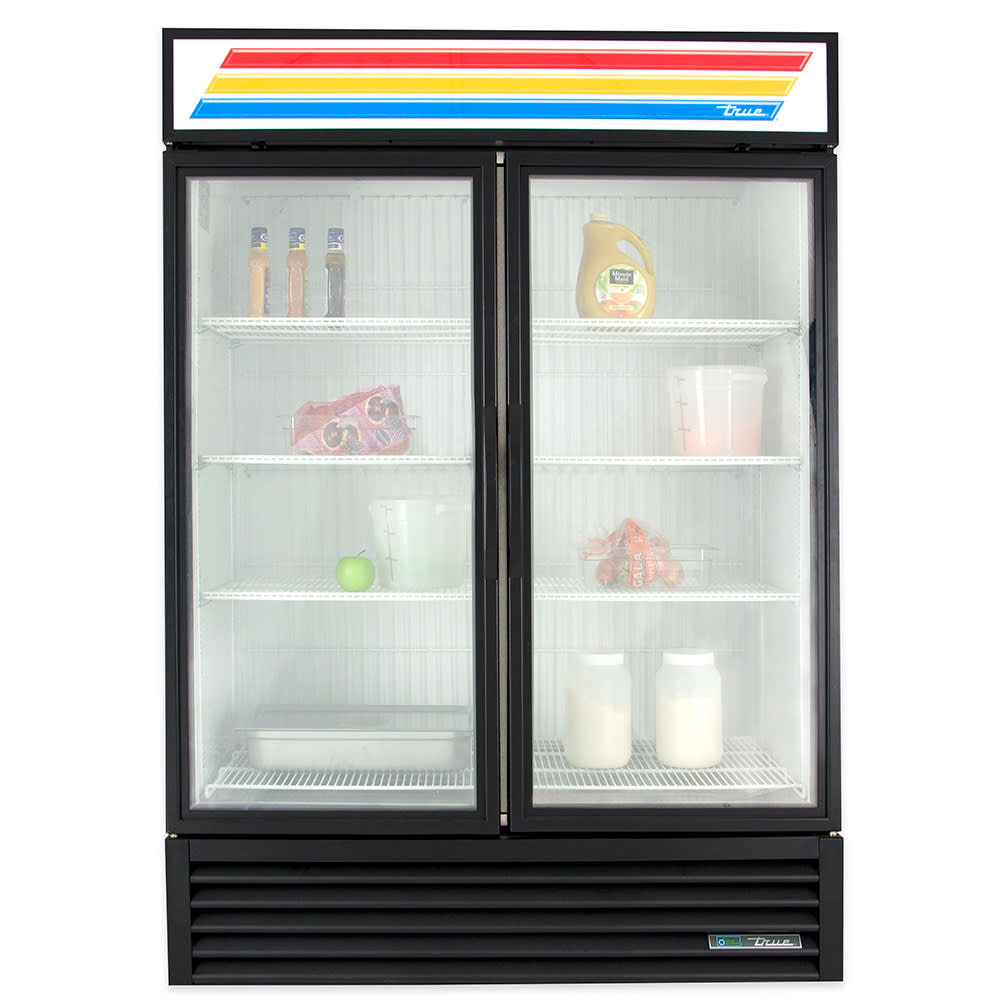

The True GDM-49F-HC~TSL01 two-section freezer merchandiser has a non-peeling, non-chipping black powder-coated exterior. This freezer display merchandiser's colorful, illuminated sign panel catches customer attention, increasing impulse sales of packaged frozen dinners and other convenience foods. Sturdy, aluminum frames support triple-pane glass doors with easy-grip handles and a self-closing feature. Magnetic door gaskets help maintain a constant -10 degrees Fahrenheit to keep frozen food and ice cream solid.

This glass door display case has a bottom-mounted condensing unit that is accessible for maintenance and raises merchandise to eye level. A capillary tube system holds and releases the R290 refrigerant, a hydrocarbon option that is environmentally friendly. Evaporator coils are coated with epoxy to resist corrosion, while its floor rack and backguard enhance airflow. To keep stabilize the freezer on uneven floors, leg levelers are included.

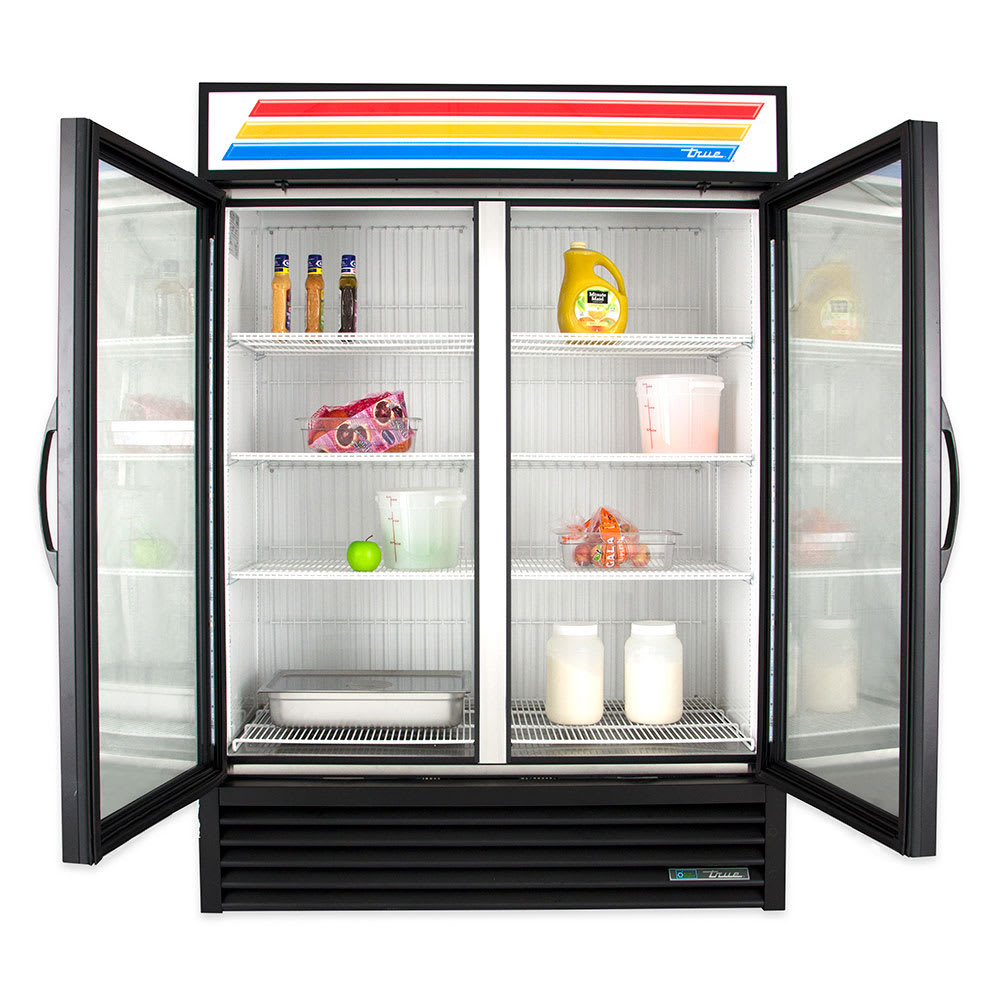

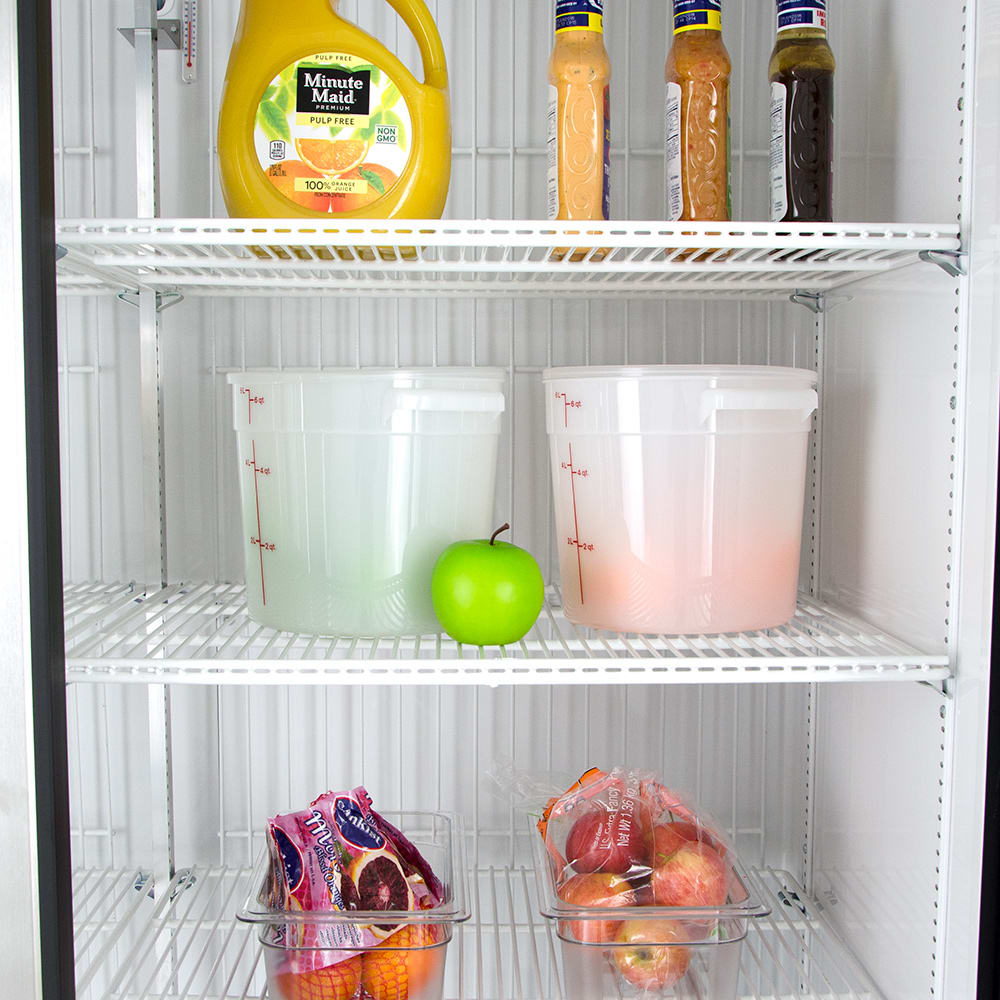

In the cabinet, eight adjustable shelves display product, which is completely visible with LED lights and a bright white interior. Equipped with an automatic defrost system, the True GDM-49F-HC~TSL01 two-section freezer display case eliminates ice buildup, starting based on a time clock and finishing when the temperature is at the right level. Evaporator and condenser fan motors are electronically commutated so they use minimal energy and create little heat as they move air.

Product Details

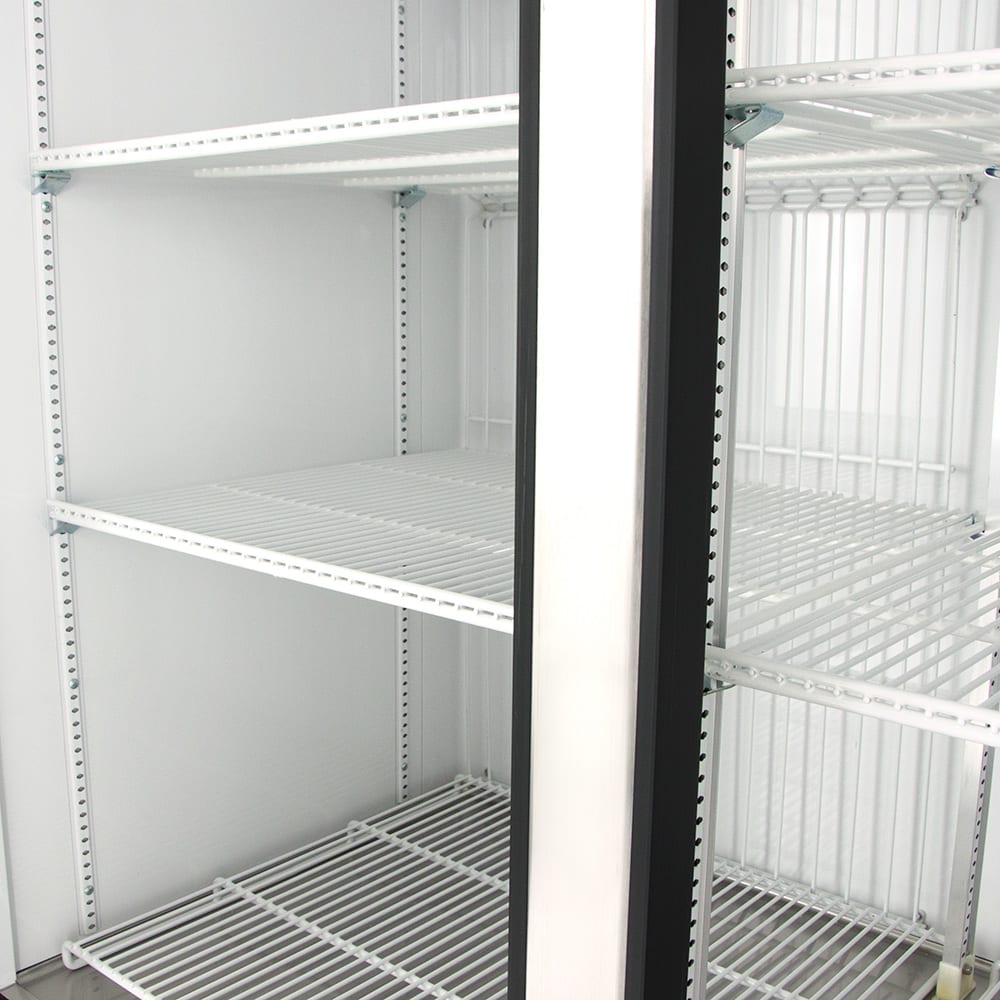

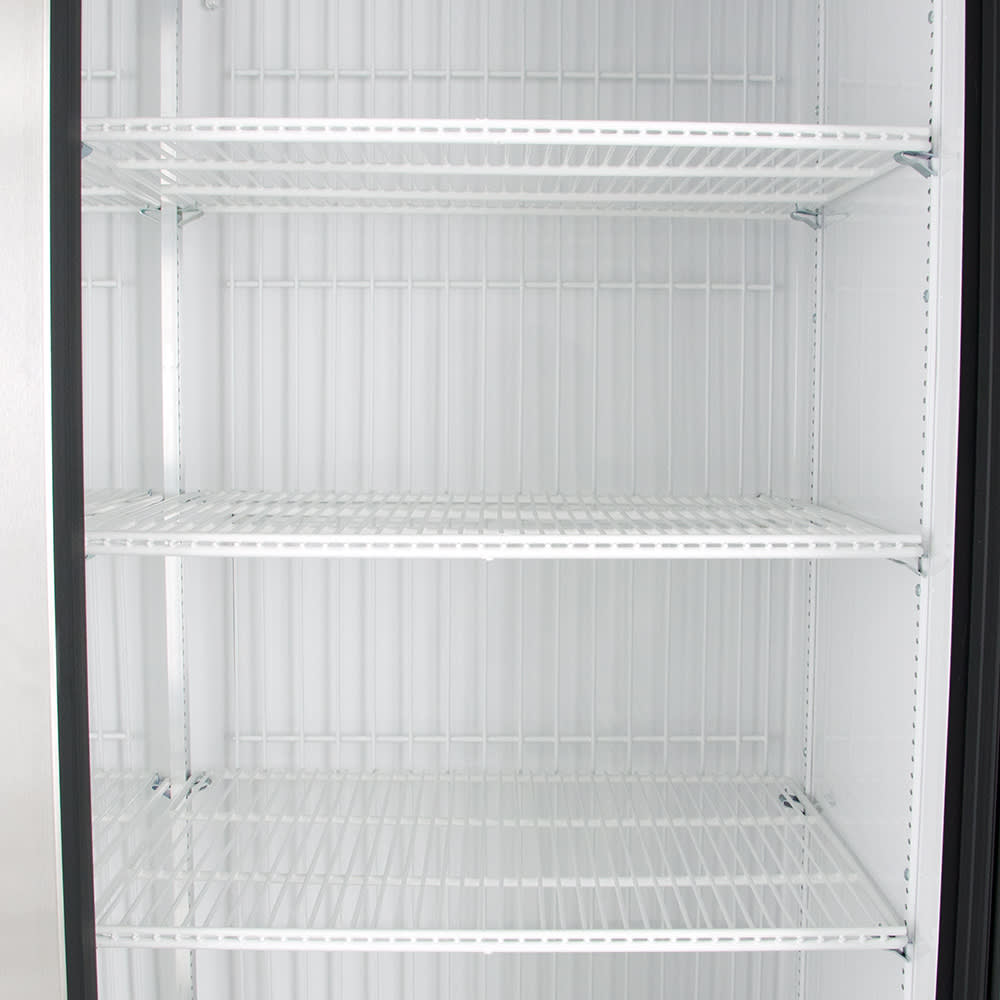

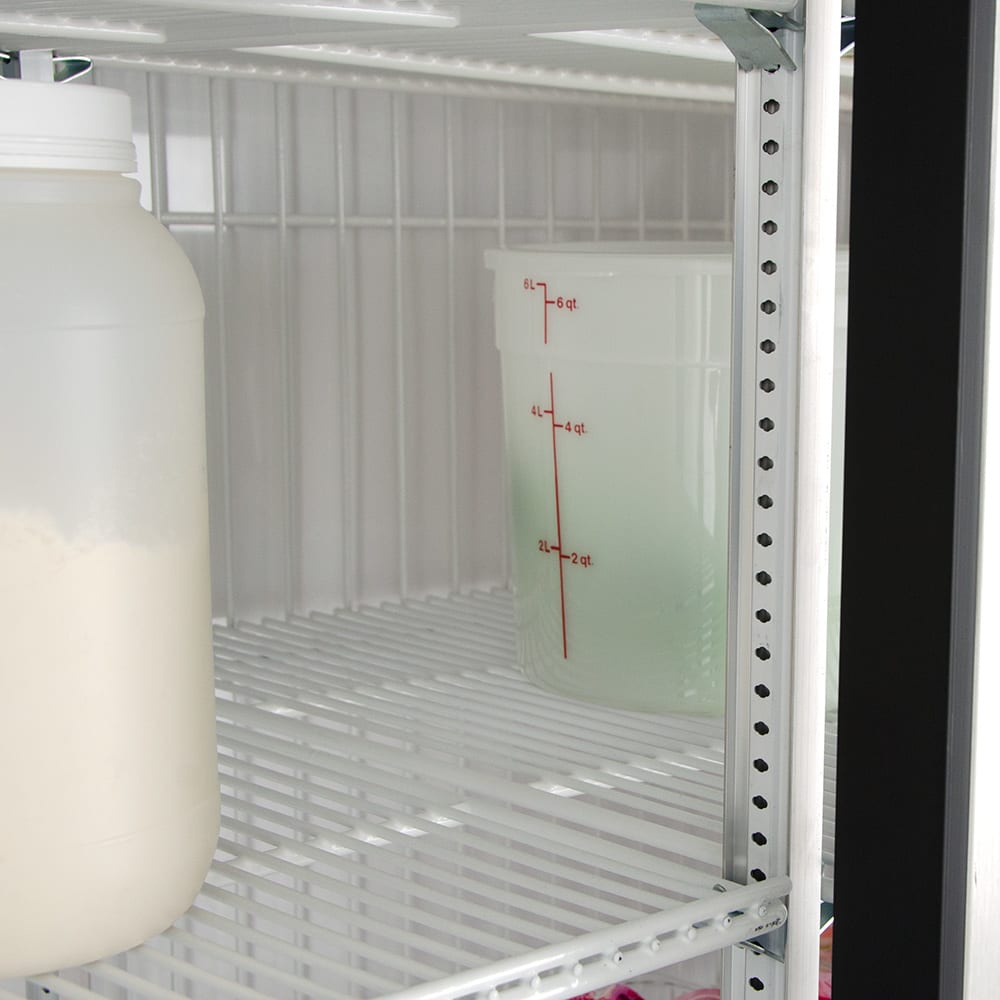

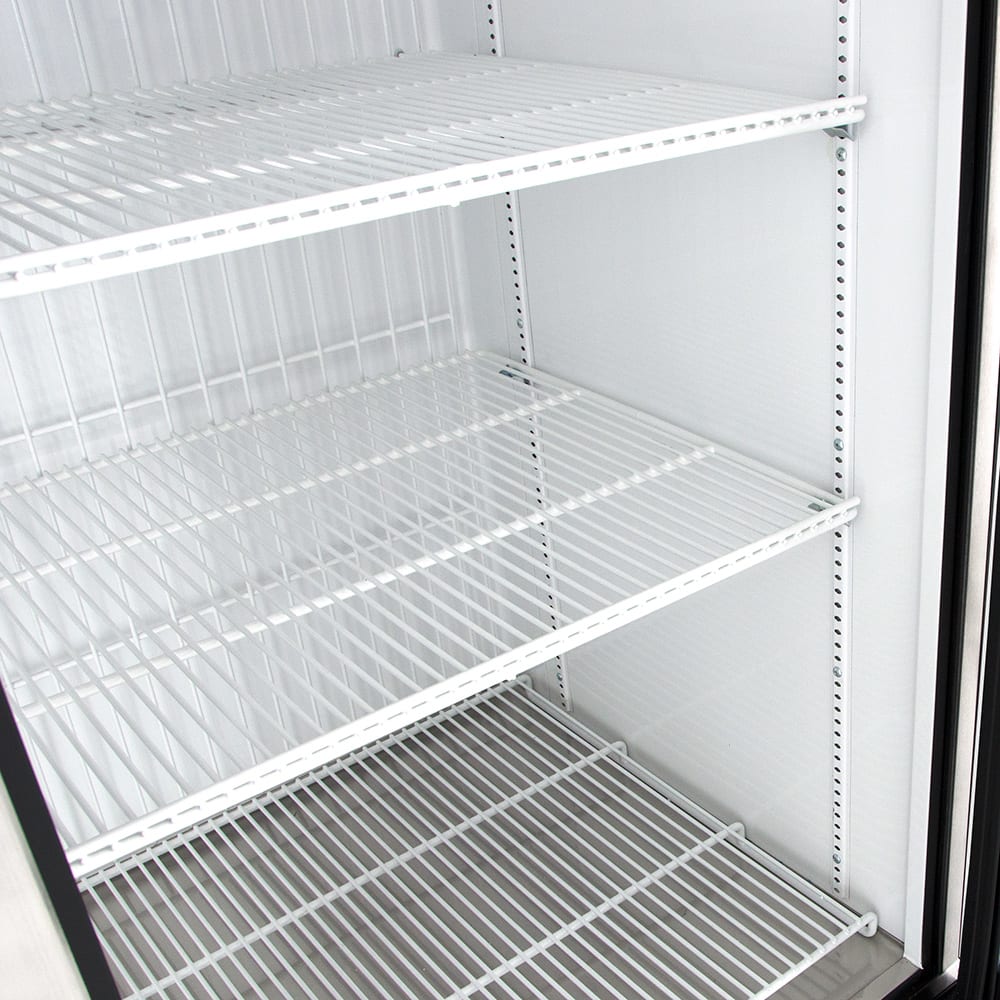

  • 8 PVC-coated wire shelves are adjustable on 12-in. increments

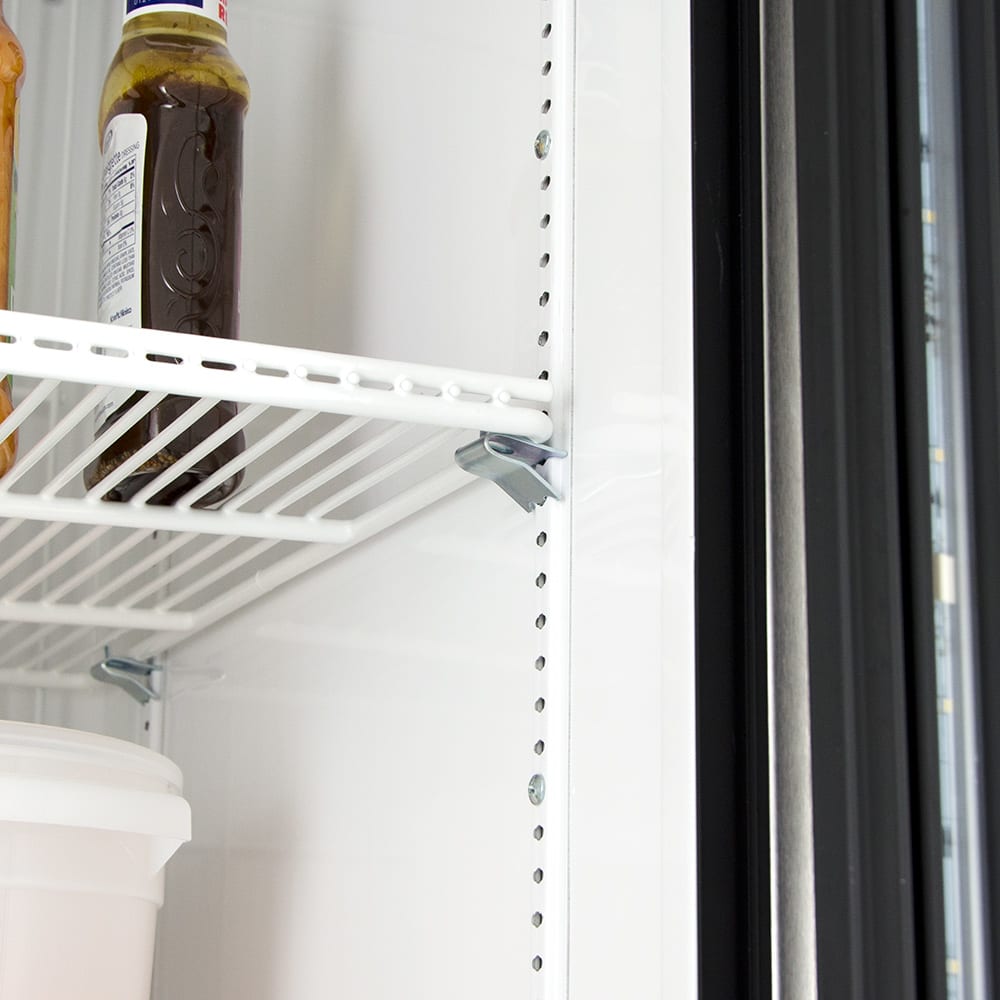

  • 4 chrome-plated shelf clips for each shelf
  • LED interior lights ensure stored items are visible
  • 2 triple-pane, thermal-insulated glass doors keep cold air inside the cabinet

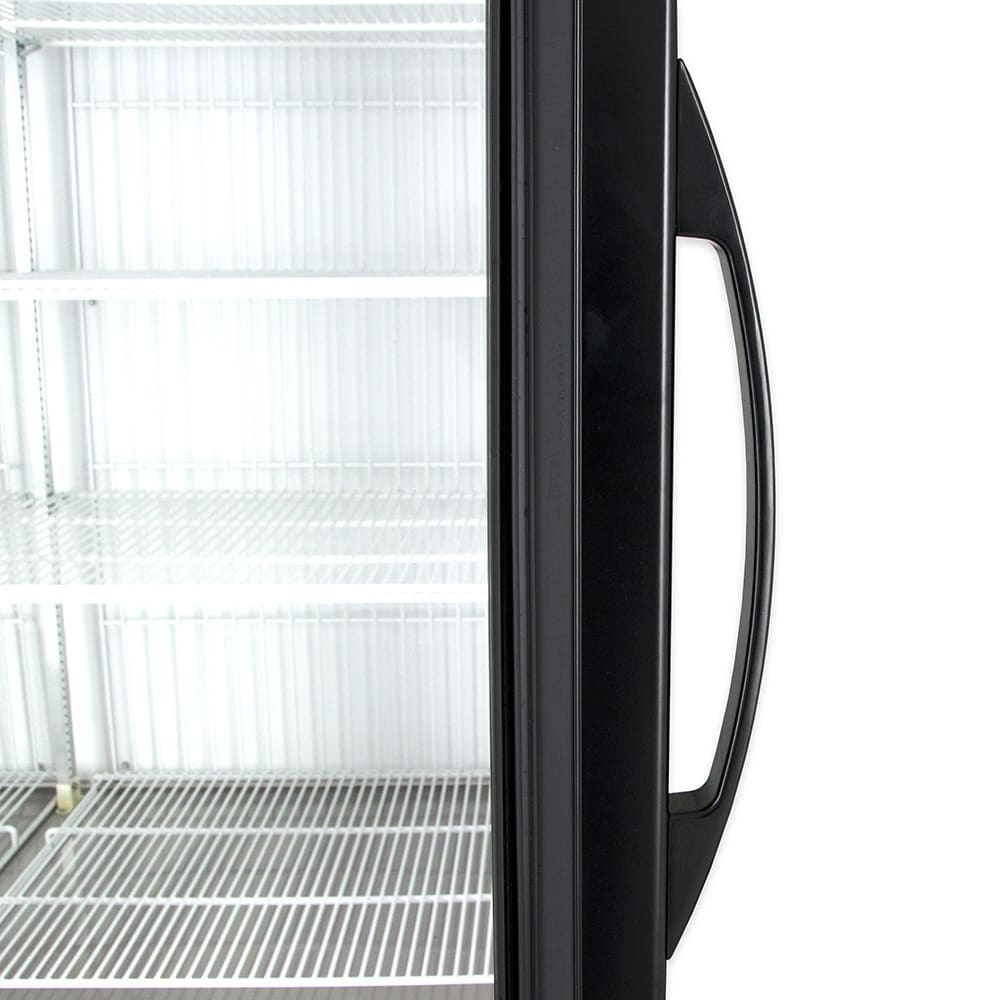

  • Each door has a 12-in. handle
  • Self-closing doors help keep cold air inside

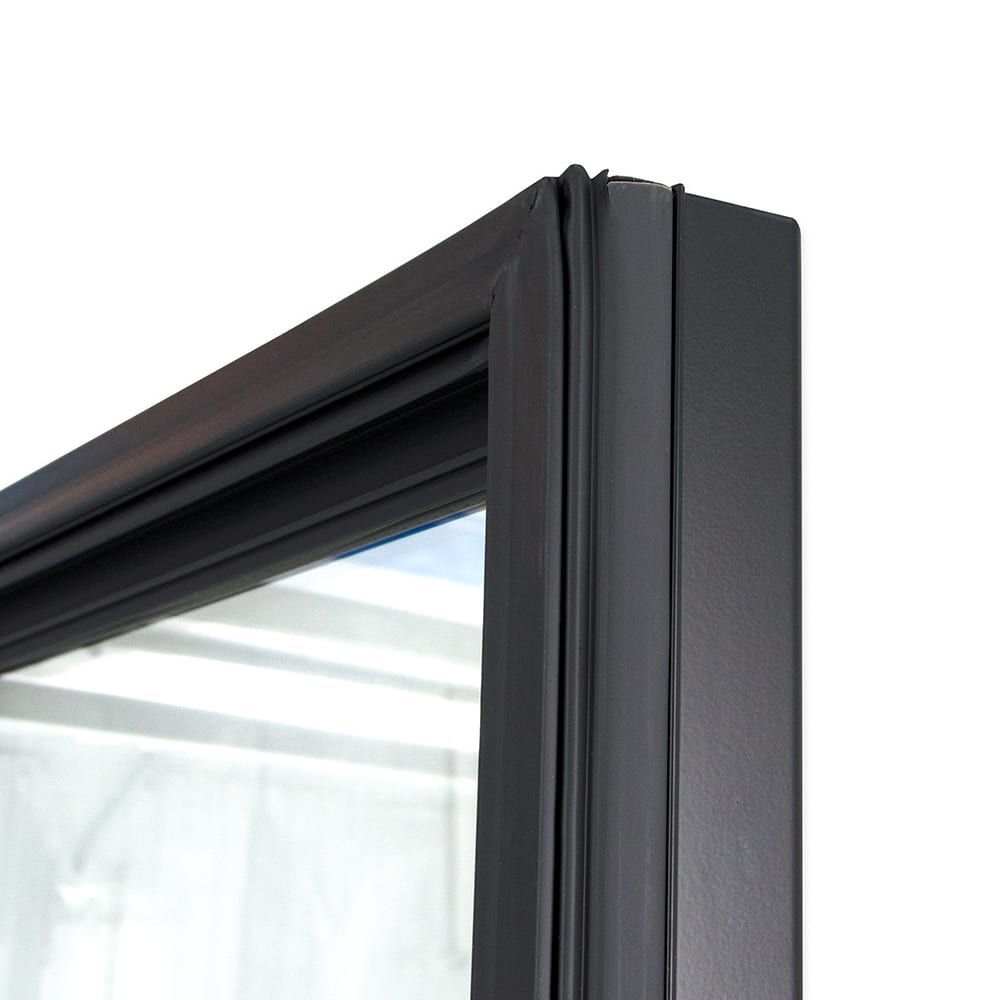

  • Magnetic door gasket is removable without tools for cleaning

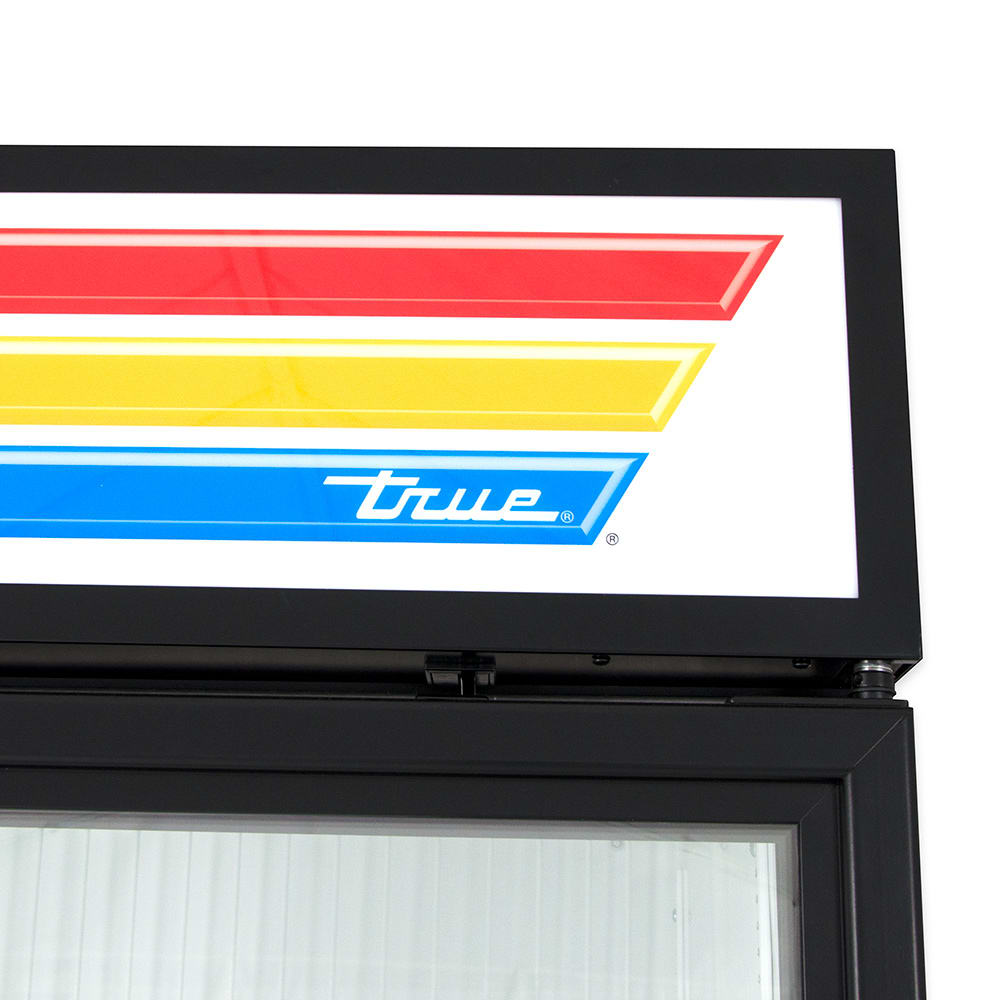

  • Exterior sign panel lights up to grab customer attention
  • Backguard and floor rack improve air flow
  • UL-EPH and cULus listed; ENERGY STAR certified
  • Made with innovation in the U.S.

Refrigeration System

  • Epoxy-coated evaporator is protected against corrosion
  • Evaporator and condenser fan motors move a more consistent volume of air, producing less heat, reducing the consumption of energy, and providing reliability
  • Self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant
  • Operating temperature: -10 degrees F

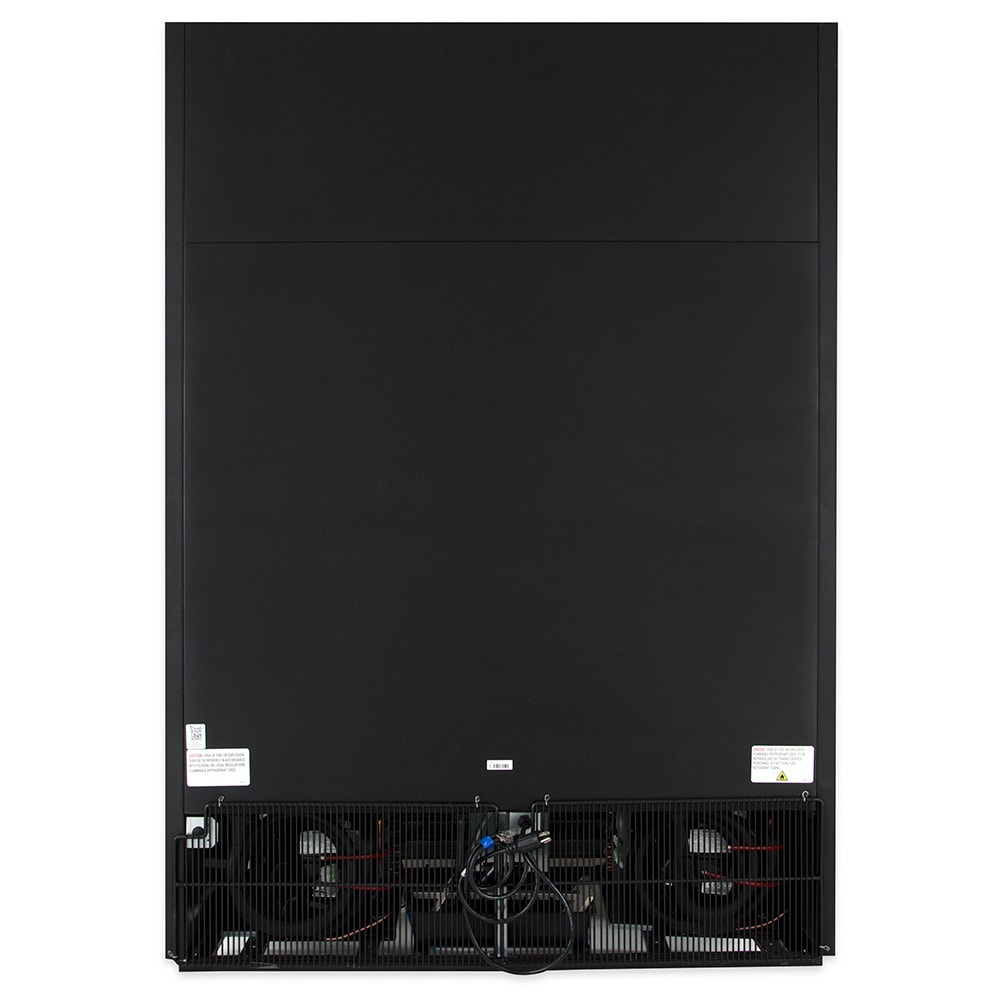

  • Bottom-mounted condensing unit simplifies cleaning
  • Automatic defrost system is time initiated and temperature terminated

Durable Construction

  • Non-peeling, non-chipping black powder-coated exterior is permanent and durable against heavy-duty use
  • White aluminum interior liner with stainless steel floor is durable
  • Entire cabinet has foamed-in-place, polyurethane insulation that keeps cool air inside
  • Heavy-duty steel frame rail is black powder-coated for corrosion protection and has leg levelers for stabilization

Dimensions & Utilities

  • Shelves: 24916 in. W x 2034 in. D
  • Overall: 5418 in. W x 3112 in. D x 7858 in. H
  • 12.3 A, 34 HP
  • 115, 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 14-20P plug

Check out our freezer merchandisers guide for in-depth information on units like this.

Product Features

True Manufacturing gdm49fbk Features

Freezer Merchandiser, two-section, True standard look version 01, -10° F, (8) shelves, black powder coated steel exterior, white interior with stainless steel floor, (2) triple-pane thermal glass hinged door, LED interior lights, R290 Hydrocarbon refrigerant, 3/4 HP, 115/208-230v/60/1, 12.3 amps, NEMA 14-20P, UL EPH Classified, MADE IN USA, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration GDM-49F-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Exterior Width 54
Sections 2
Door Design Swing
Air Intake Front
Compressor Location Bottom
Warranty 3-year Parts & Labor; 5-year Compressor
Cubic Feet 49
Special Features LED Lighting
Also Known As GDM-49F, TRUE GDM-49F, TRUGDM49F, GDM49F, 890GDM49F, 675-090, GDM-49F-HC-LD
Phase 1
Hertz 60
Voltage 115/208/230
Product Display Freezer
Product Type Commercial Refrigeration
Weight 630.00
True GDM-49F-HC~TSL01 Certifications
  • UL
  • NSF
