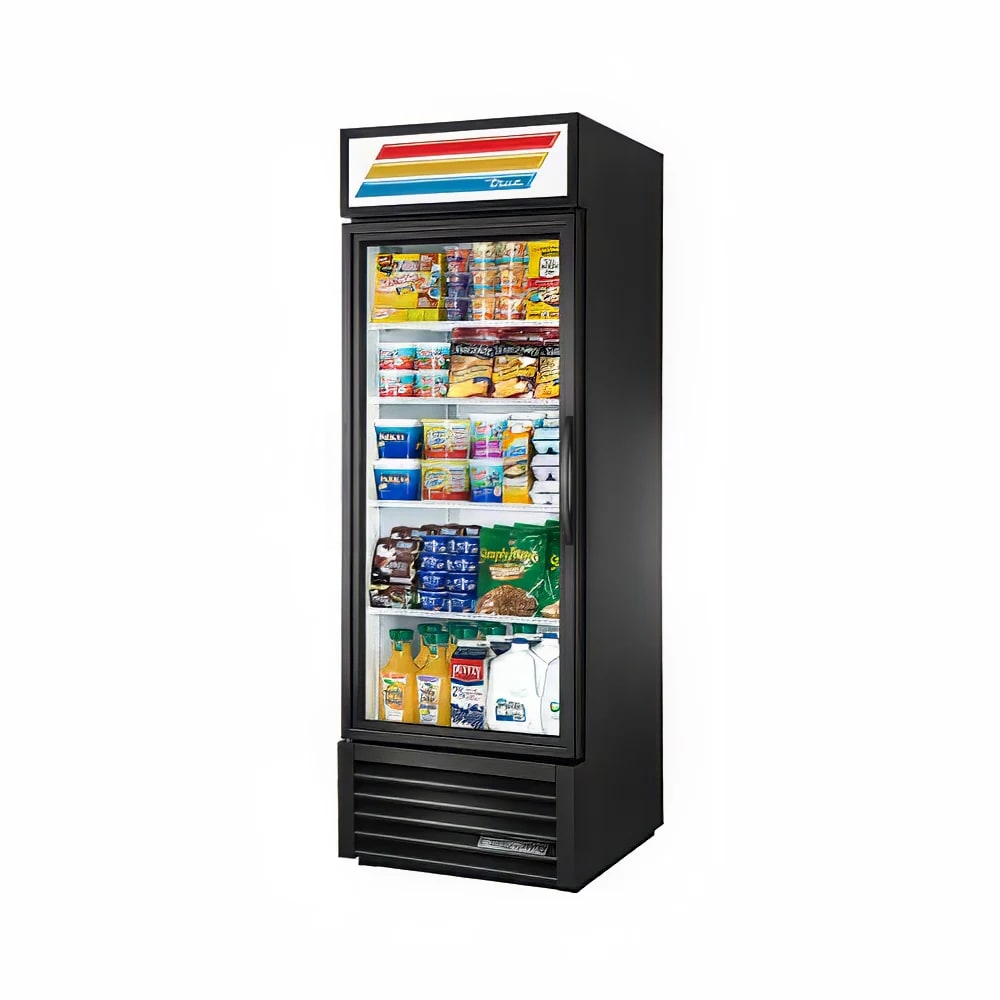

True GDM-23-HC~TSL01 27" GDM Series One Section Glass Door Merchandiser - (1) Left Hinged Door, Black, 115v

The True GDM-23-HC~TSL01 one-section glass door merchandiser is hinged on the left, so it opens on the right. Customers can see into the cabinet through its double-paned, thermal-insulated door since it is made of glass. It features a 12-inch-long extruded handle that enables the door to open smoothly. When staff are loading product into the cabinet, cold air is not lost because the door closes on its own. The removable magnetic door gaskets also keep cold air from escaping.

The black laminated vinyl exterior will not peel or chip since it is both durable and permanent, and its coloration hides dents and scratches. A white aluminum liner brightened by LED lights enables customers to see the stored items. Durable and quick cleaning, its stainless steel interior floor features a built-in drain for leaks or spills. The True GDM-23-HC~TSL01 LH one-section glass door merchandiser has high-density, foamed-in-place polyurethane insulation that gives the cabinet structure and keeps cold air inside. To support the unit on uneven floors, its black powder-coated steel frame rail resists corrosion and comes with leg levelers.

Reducing energy use and extending the unit's life, the condensing coil is kept clean using a reverse condensing fan motor. When the compressor is started, the fan operates in reverse for 20 seconds to rid the coil of dirt and debris. Along with this feature, routine preventative maintenance ensures the unit maintains proper product temperatures.

Product Details

• Temperature range: 33-38 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant to provide cool temperatures
• High-capacity, balanced refrigeration system maintains even temperatures
• Condenser and evaporator fan motors provide a consistent volume of air, producing less heat and reducing energy consumption
• Reverse condensing fan motor operates for 20 seconds after the compressor starts to keep the condensing coil clean
• Bottom-mounted condensing unit supports maintenance
• Epoxy-coated evaporator resists corrosion
• Exterior sign panel lights up to grab the attention of customers
• LED interior lighting shows off products
• Clean-out drain is built into the interior floor for quick cleaning
• 4 heavy-duty, PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• Each shelf has 4 chrome-plated shelf clips

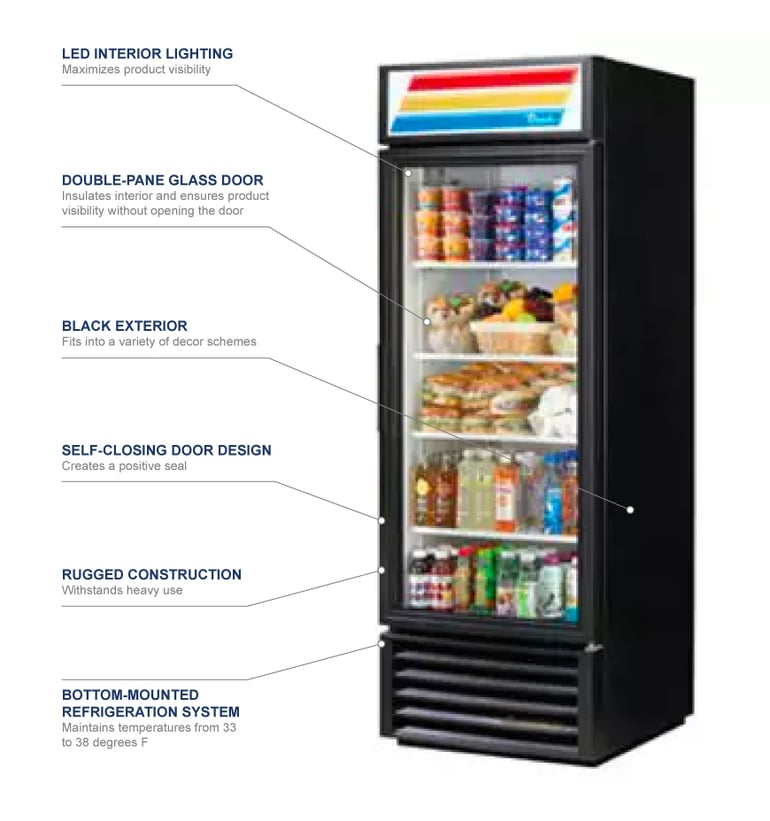

Product Features

Durable Construction

• Black laminated vinyl exterior hides scratches and dents
• White aluminum liner brightens the interior for a clean appearance
• Stainless steel floor is durable
• Environmentally friendly polyurethane insulates the entire cabinet to keep cold air in and provides structure since it is foamed in place
• Black powder-coated steel frame rail is corrosion resistant and has leg levelers for uneven floor installation

Glass Door

• Left-hinge opens on the right
• Double-pane, thermal-insulated glass door has an extruded aluminum frame
• 12-in. extruded handle gives customers a strong grip
• Less cold air is lost due to the self-closing door
• Magnetic door gasket can be removed for cleaning and replacing
• Gasket keeps cold air from escaping through the door frame

Dimensions & Utilities

• Shelves: 22⁹⁄₁₆ in. L x 23¹⁄₄ in. D
• Overall: 27 in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 5.4 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration GDM-23-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, one-section, True standard look version 01, (4) shelves, (1) Low-E thermal glass hinged door, LED interior lights, powder coated steel exterior, white aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration GDM-23-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
