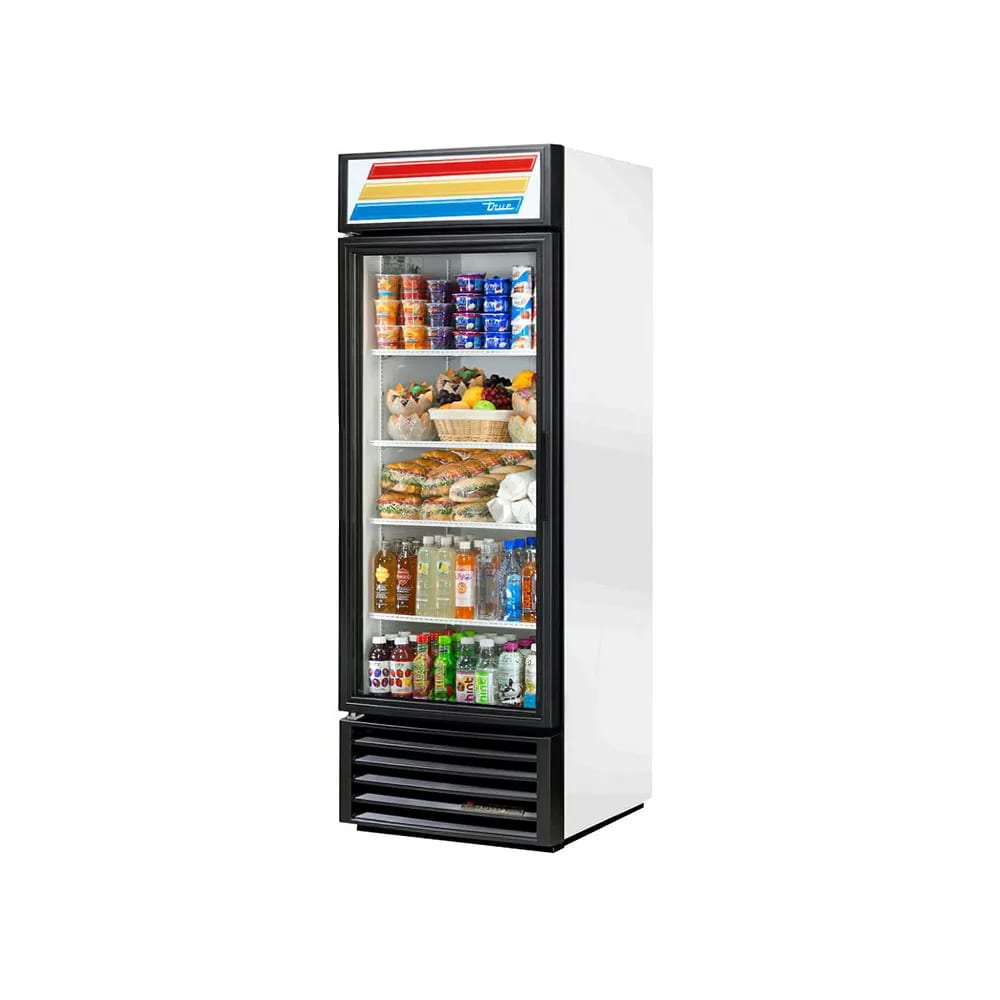

True GDM-23-HC~TSL01 27" GDM Series One Section Glass Door Merchandiser - 1 Left Hinged Door, White & Black, 115v
$3,245.93 /Each
Selected Color: White
Selected Hinge: Left Hinge
True Refrigeration GDM-23-HC~TSL01 Description
The True GDM-23-HC~TSL01 glass door merchandiser is equipped with low-emissivity glass, which provides visibility without sacrificing energy efficiency or refrigerator performance. Foamed-in-place polyurethane insulation keeps product chilled, and the white vinyl laminate exterior resists chipping and peeling. Its interior is lined with durable white aluminum, and its floor is made of stainless steel.
Featuring left-side hinges, this merchandiser's door opens on the right and closes by itself with magnetic gaskets that create an airtight seal. Its 12-inch handle offers a sturdy grip. To hold product, the cabinet's four PVC-coated wire shelves can be adjusted in 1⁄2-inch increments. This unit has LED lights that illuminate the interior and an exterior panel that can hold signage (signs are sold separately).
This merchandiser's factory-balanced refrigeration system has large components designed to maintain temperatures between 33 and 38 degrees Fahrenheit. Operating with more energy efficiency than traditional equipment, fan motors push steady volumes of air over the condenser and evaporator coils. The True GDM-23-HC~TSL01 is built with a bottom-mounted condensing unit that provides access to critical components.
To keep the condensing coil clean, the fan motor operates in reverse for 20 seconds when the compressor is started. By keeping the coil free of dust, dirt, and debris, the unit will run more efficienty and use less energy. This feature along with routine maintenance lengthens the unit's lifespan in a high-volume enviornment.
- Exterior sign panel is illuminated and compatible with a number of sign options (each sold separately)
- Interior is illuminated by safety-shielded LED lights
- Includes 4 PVC-coated wire shelves
- Each shelf is adjustable in 1⁄2-in. increments for customized holding
- Exterior of the cabinet is finished with chip- and peel-proof white vinyl laminate
- Interior is lined with white aluminum
- Cabinet is insulated with polyurethane insulation
- Frame rail is welded and black-powder coated for durability
- Leg levelers are attached to the frame rail so that the unit can be installed level on uneven floors
- Clean-out drain is located in cabinet floor for quick cabinet cleaning
- R290 hydrocarbon refrigerant is more energy efficient and environmentally friendly than traditional refrigerants
- Self-contained, factory-engineered refrigeration system maintains steady cabinet temperatures through large evaporator and condenser coils
- Temperature range: 33-38 degrees F
- Electronically commutated condenser and evaporator fan motors move consistent volumes of air while requiring less energy and producing less heat than traditional technologies
- Reverse condensing fan motor removes dirt and debris from the condensing coil
- Condensing unit sits at the bottom of the equipment cabinet, raising the bottom merchandise shelf to a no-stoop level for customer convenience
- Epoxy-coated evaporator is designed for a lifetime of rust resistance
- Opens on the right
- Low-emissivity thermal glass door is designed to resist heat transfer and maintain energy efficiency while showcasing held products
- 12-in. extruded aluminum handle provides a comfortable grip
- Door is mounted on a self-closing hinge to prevent it from being left open
- 1-piece magnetic door gasket can be removed without tools and then cleaned or replaced
- Shelves: 22 9⁄16 in. L x 23 1⁄4 in. D

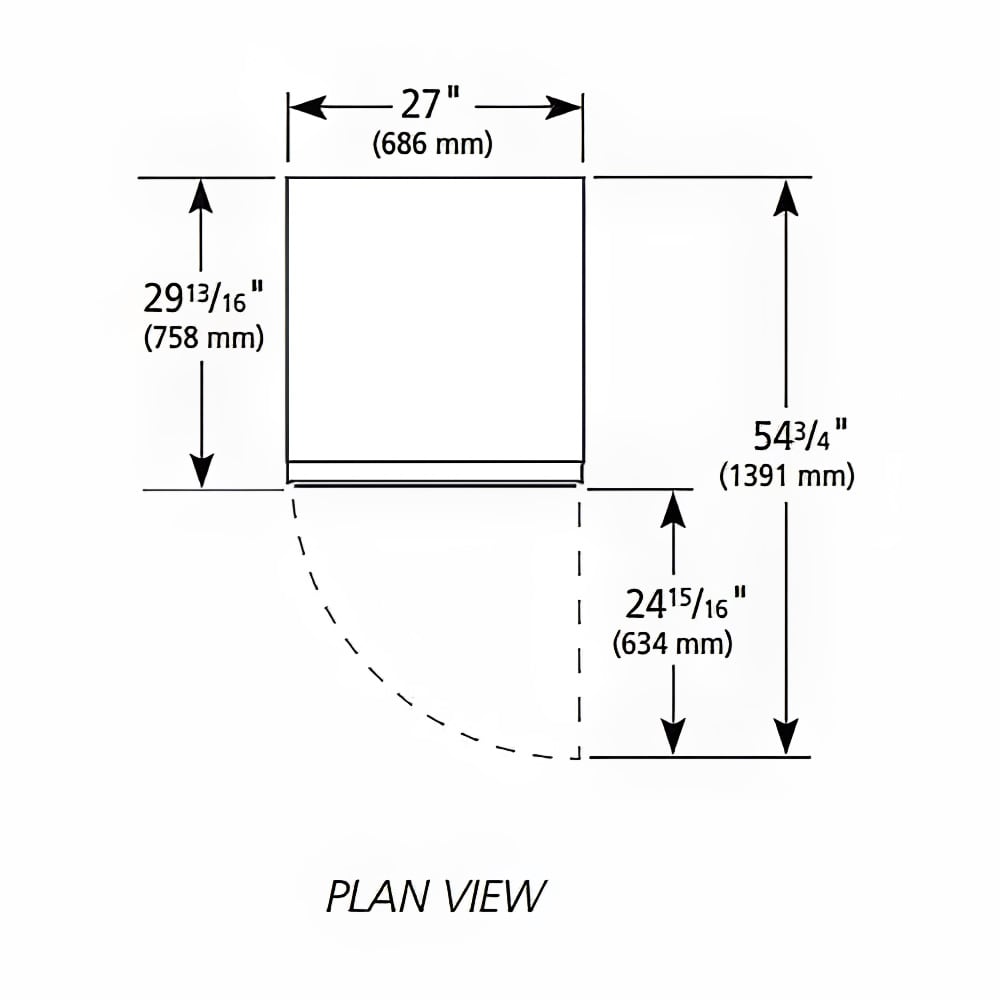

- Overall: 27 in. W x 31 1⁄2 in. D x 78 5⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Not as Shown - Left Hinge
*Free shipping on True Refrigeration GDM-23-HC~TSL01 within the 48 contiguous states.
From The Manufacturer
True Refrigeration GDM-23-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | White |
| Compressor Location | Bottom |
| Cubic Feet | 20.8 |
| Depth (in) | 31.51 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 78.63 |
| Hertz | 60 |
| Hinge Configuration | Left |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | GDM Series |
| Special Features | LED Lighting |
| Special Features | Self Contained |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Weight | 355.00 |
WARNING: Important Prop 65 information for California residents.
- True Refrigeration GDM19TLH
- 5
- 4
- 3
- 2
- 1
Review this product!
It maintains a holding temperature range from 33-38° F.
Yes. The Low-E thermal glass limits heat transfer.
Yes. The PVC-coated shelves adjust in 1⁄2-in. increments.
Yes. The hinged door closes automatically with magnetic gaskets.
Yes. The reverse condensing fan removes coil dust and debris.
Yes. It removes without tools for cleaning or replacement.
Yes. The safety-shielded LED lights illuminate the cabinet.
Yes. The attached leg levelers help level the unit.
Yes, the magnetic door gaskets are removable for cleaning or replacement.
Yes, the shelves are adjustable for different product heights.
Yes, the doors are self-closing.
It plugs into a 115V outlet with a NEMA 5-15P plug.
This merchandiser uses swing doors.
LED lighting illuminates the cabinet interior.
It includes 4 shelves.
It provides 20.8 cu. ft. of refrigerated capacity.
Yes, it has a self-contained refrigeration system.
Yes, it is ENERGY STAR certified.
The doors use Low-E glass to reduce heat transfer.
The refrigeration system uses R290 hydrocarbon refrigerant.
It is C-UL US and UL-EPH certified.
It maintains temperatures from 33-38°F.
The door configuration is left hinged.
