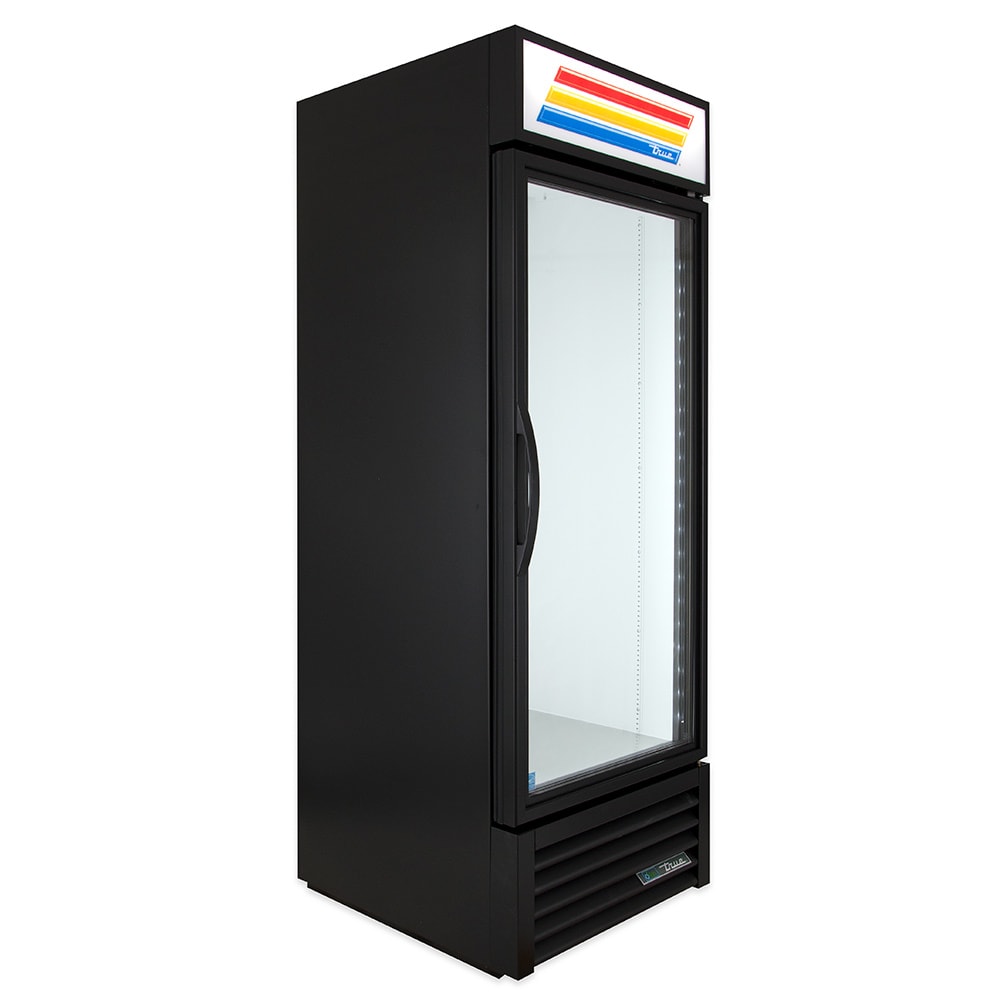

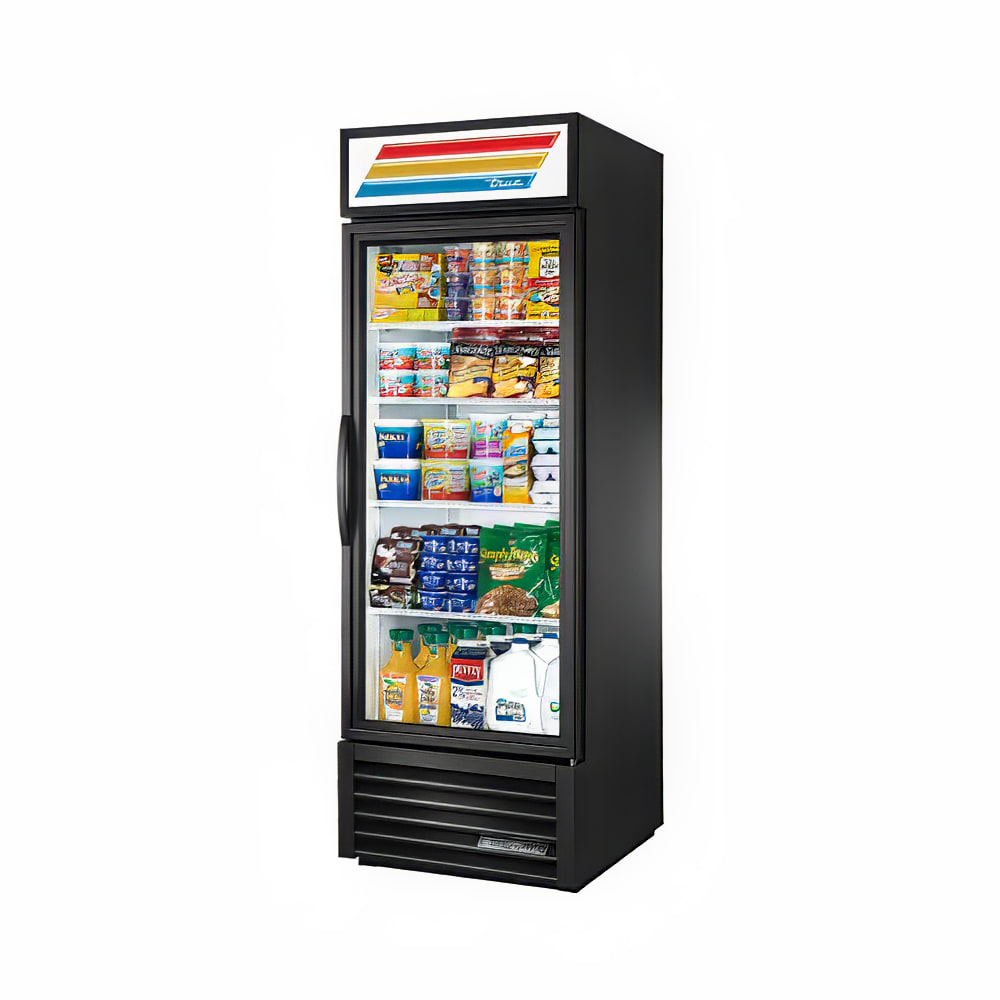

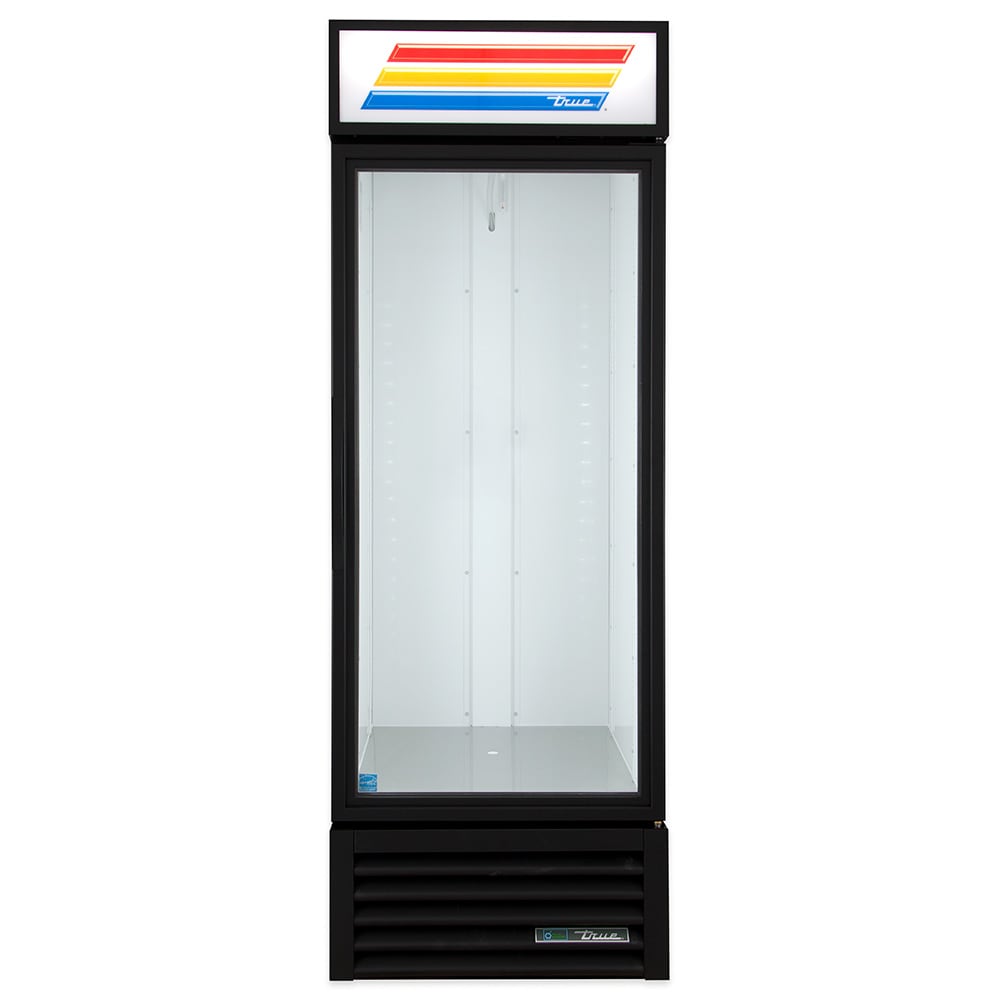

True GDM-23-HC~TSL01 27" One-Section Glass Door Merchandiser w/ Right Hinge Swing Door, Black, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 598-GDM23BK • MPN: GDM-23-HC~TSL01 BLK
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $2,196.11

Selected Color: Black

Stainless Steel

Selected Door Hinge: Right Hinge

Left Hinge
Right Hinge

Image may not depict product color, inclusions or accessories.

True Refrigeration GDM-23-HC~TSL01 Description

True Refrigeration

The True GDM-23-HC~TSL01 one-section glass door merchandiser has a double-pane, thermal-insulated glass door with an aluminum frame for durability. A 12-inch extruded handle on the door makes it easy to open, especially when users are loading it with product. Since the door self-closes, cold air is retained in the cabinet. The magnetic door gasket also keeps cold air from escaping and removes for cleaning and replacing.

The cabinet features a chip-resistant, durable black powder-coated exterior that hides scratches and dents well. The white aluminum interior liner brightens the cabinet, and the stainless steel floor and clean-out drain make cleaning the interior simple. In the cabinet, the four PVC-coated wire shelves are adjustable on 12-inch increments to accommodate various products. LED lighting brightens the interior and enhances product visibility.

The True GDM-23-HC~TSL01 one-section glass door merchandiser comes equipped with a self-contained capillary tube system that uses R290 hydrocarbon refrigerant to keep temperatures cold. A high-capacity, balanced refrigeration system maintains temperatures from 33 to 38 degrees Fahrenheit for the best food preservation. Electronically commutated evaporator and condenser fan motors move a consistent volume of air, producing little heat and reducing the consumption of energy. The bottom-mounted condensing unit is within reach for maintenance and creates a no-stoop lower shelf that raises products slightly so they are more visible.

Product Details

  • 4 heavy-duty, PVC-coated wire shelves are adjustable on 12-in. increments
  • Each shelf comes with 4 chrome-plated shelf clips

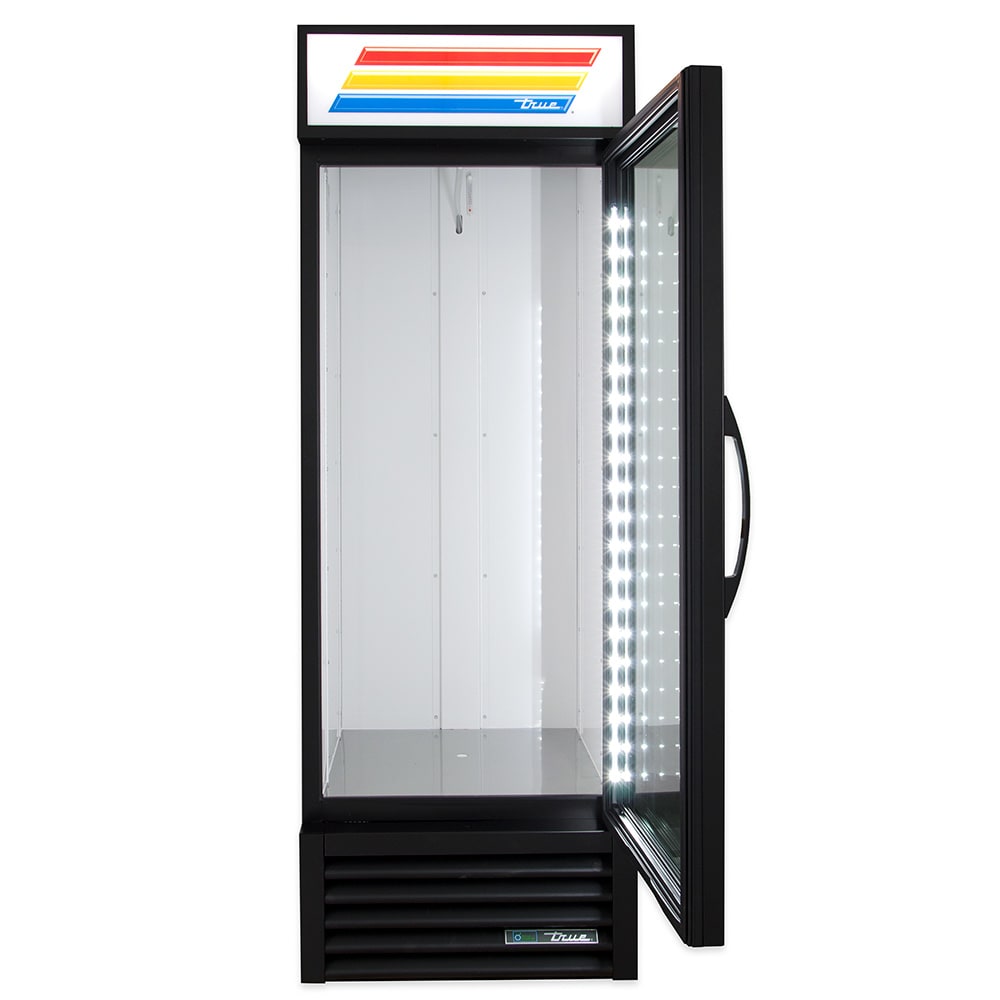

  • LED lighting illuminates the interior and makes products more visible

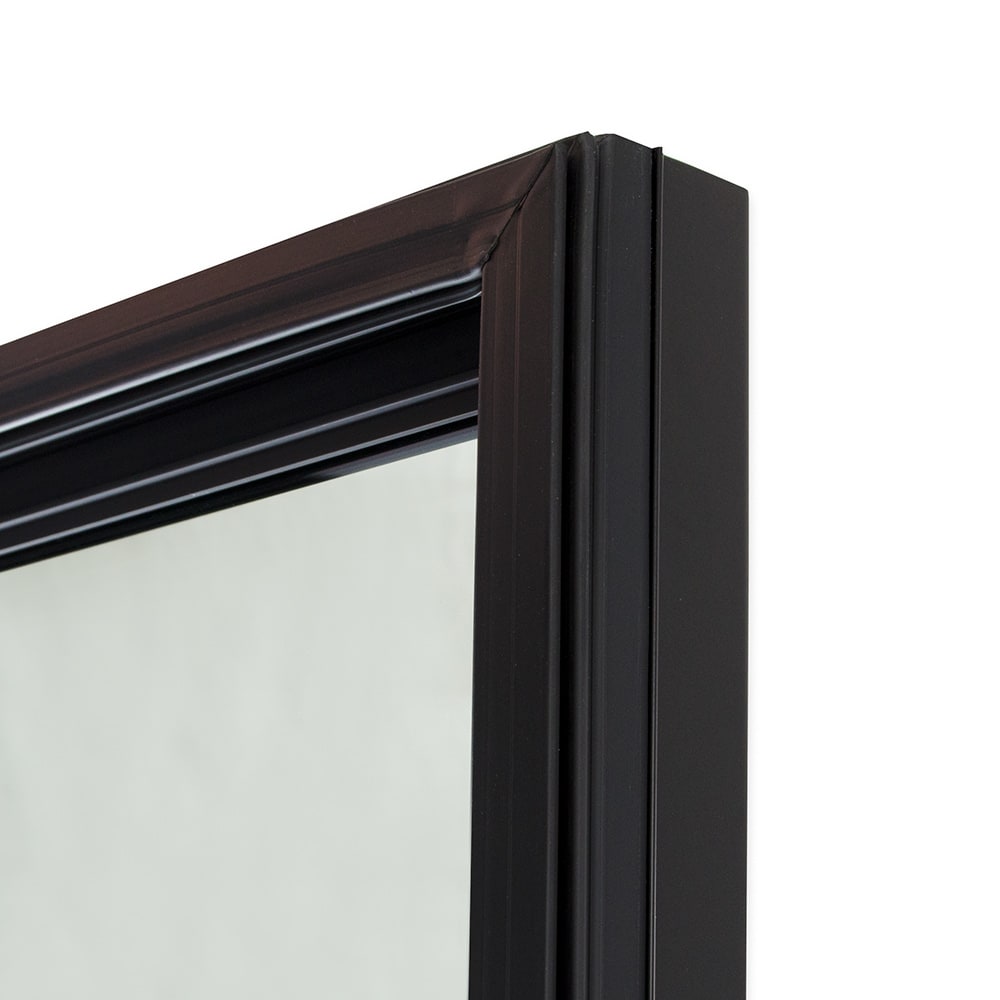

  • Double-pane, thermal-insulated glass door has an extruded aluminum frame for durability
  • Self-closing door helps keep cold air inside
  • Magnetic door gasket keeps cold air from escaping the cabinet and removes for cleaning or replacing

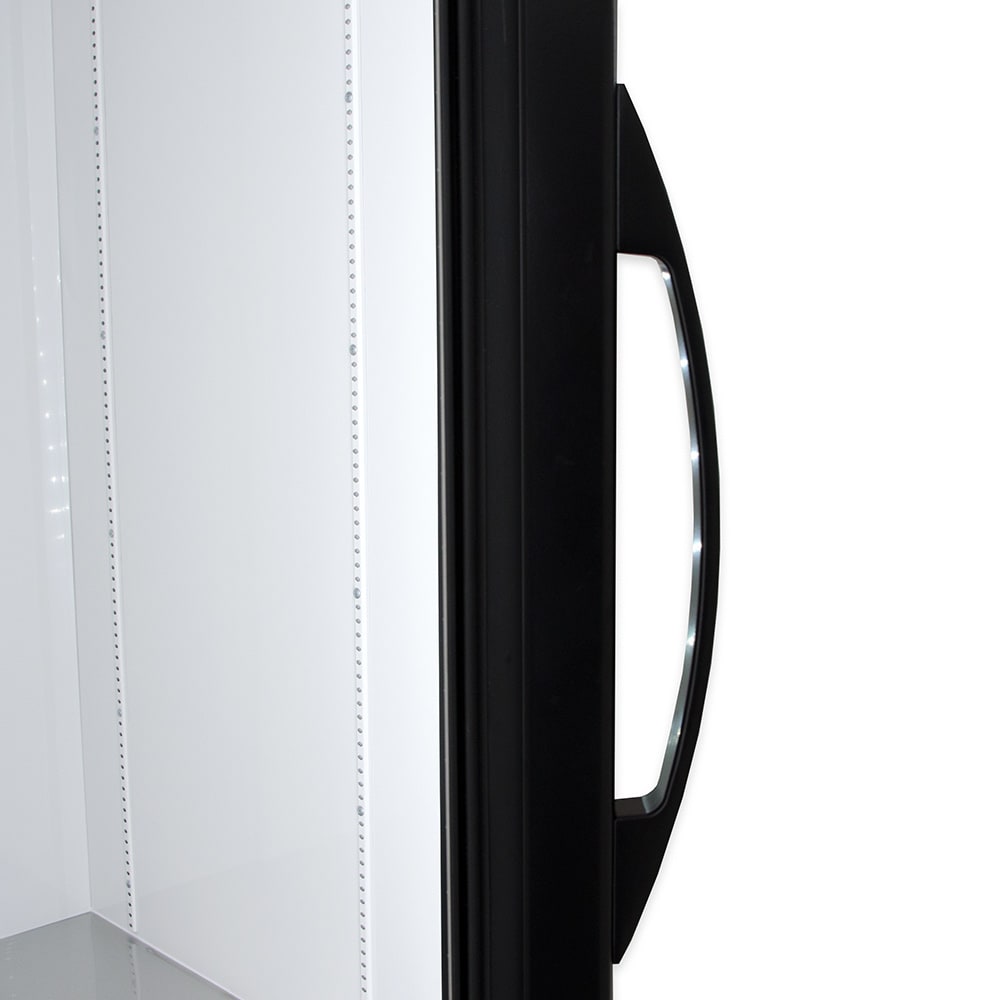

  • 12-in. extruded handle facilitates opening the door for loading

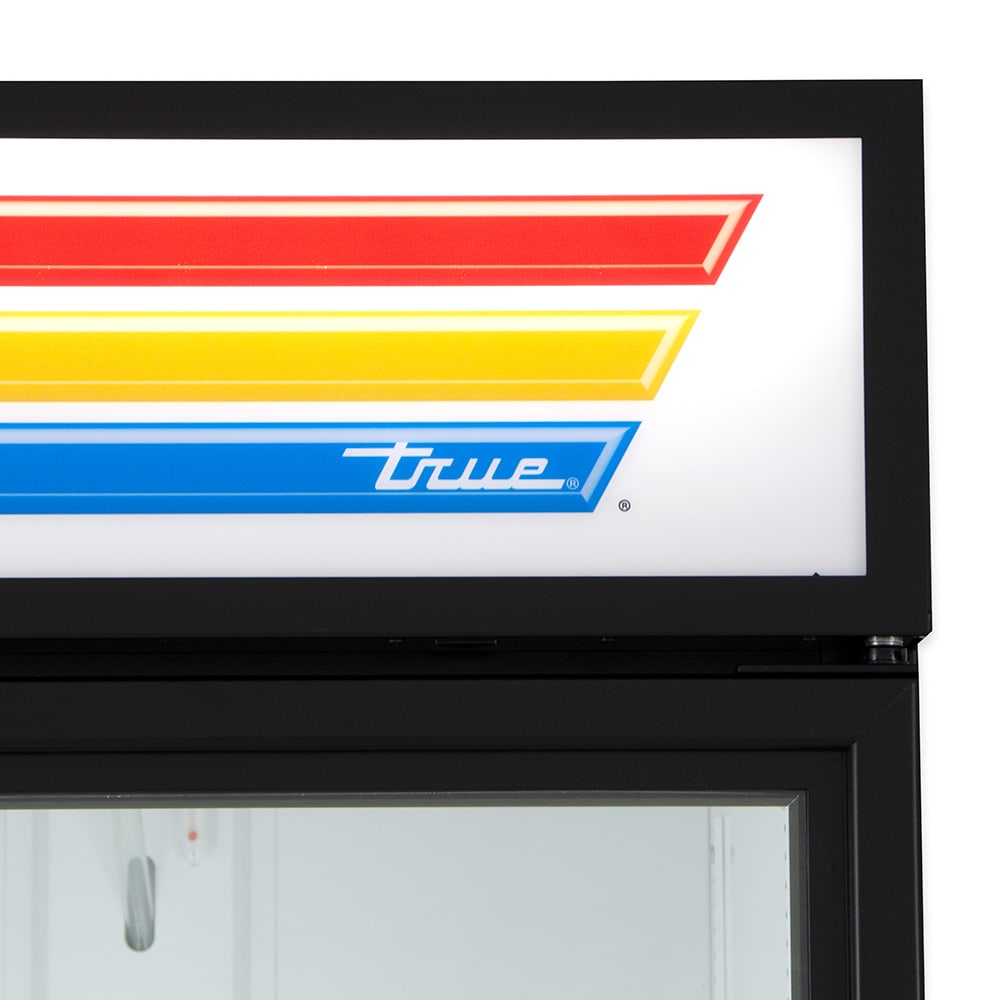

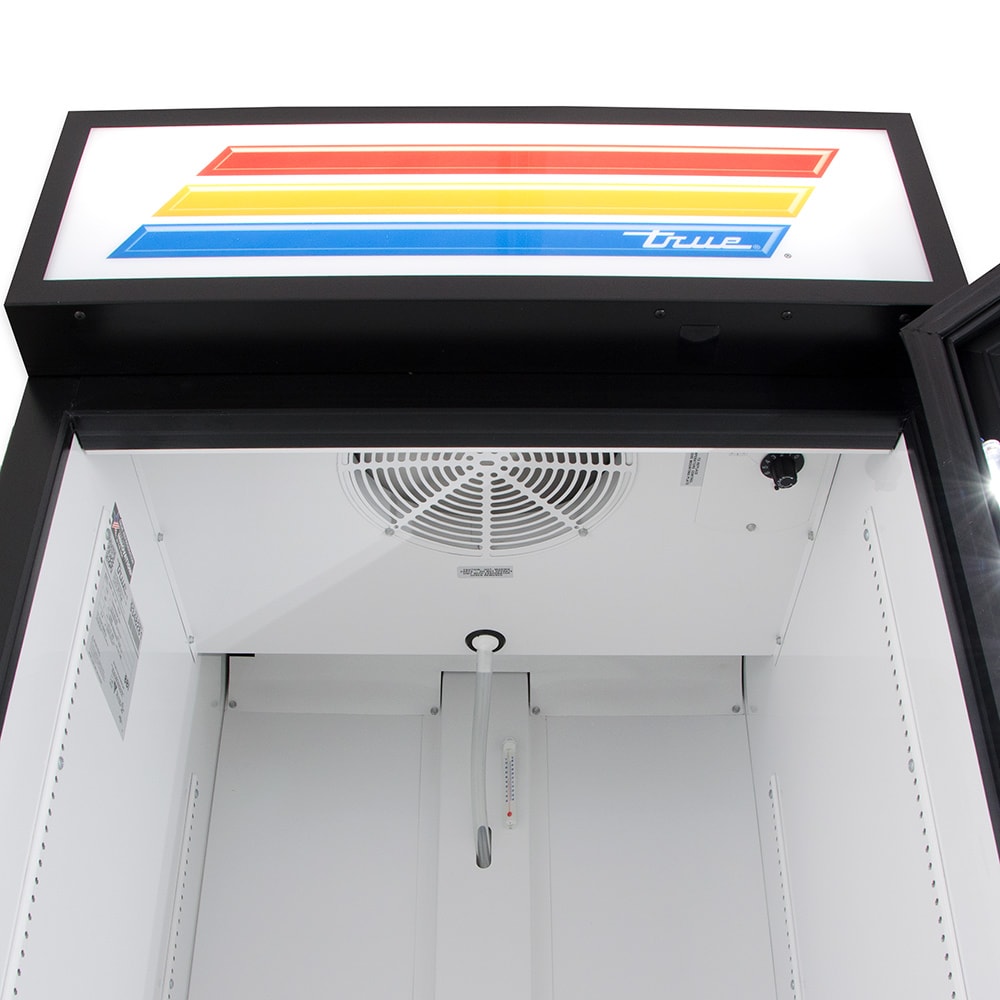

  • Exterior sign panel illuminates to grab the attention of customers

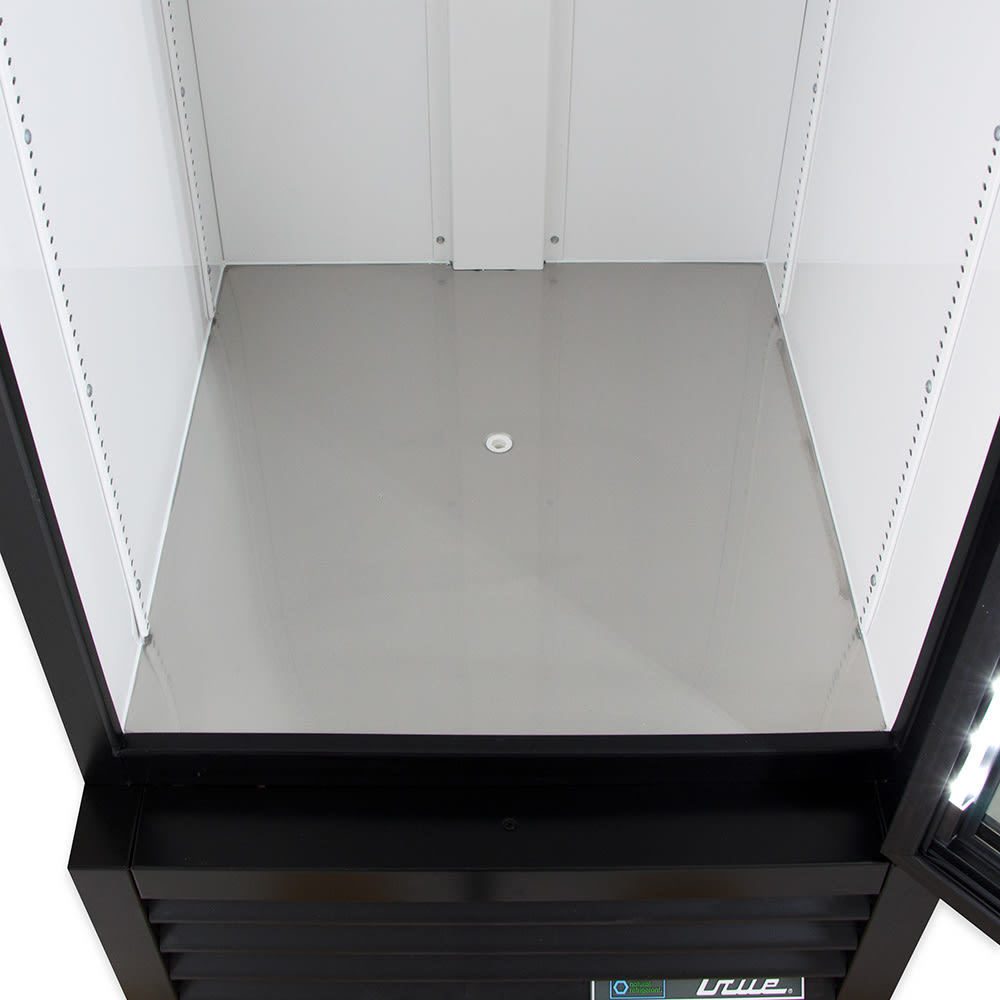

  • Drain built into the stainless steel floor simplifies cleaning the interior
  • NSF-7 compliant for storing and displaying packaged or bottled products
  • CE approved; cULus and UL-EPH listed; ENERGY STAR certified
  • Made with innovation in the U.S.

Product Features

True Manufacturing gdm23bk Features

Cabinet Construction

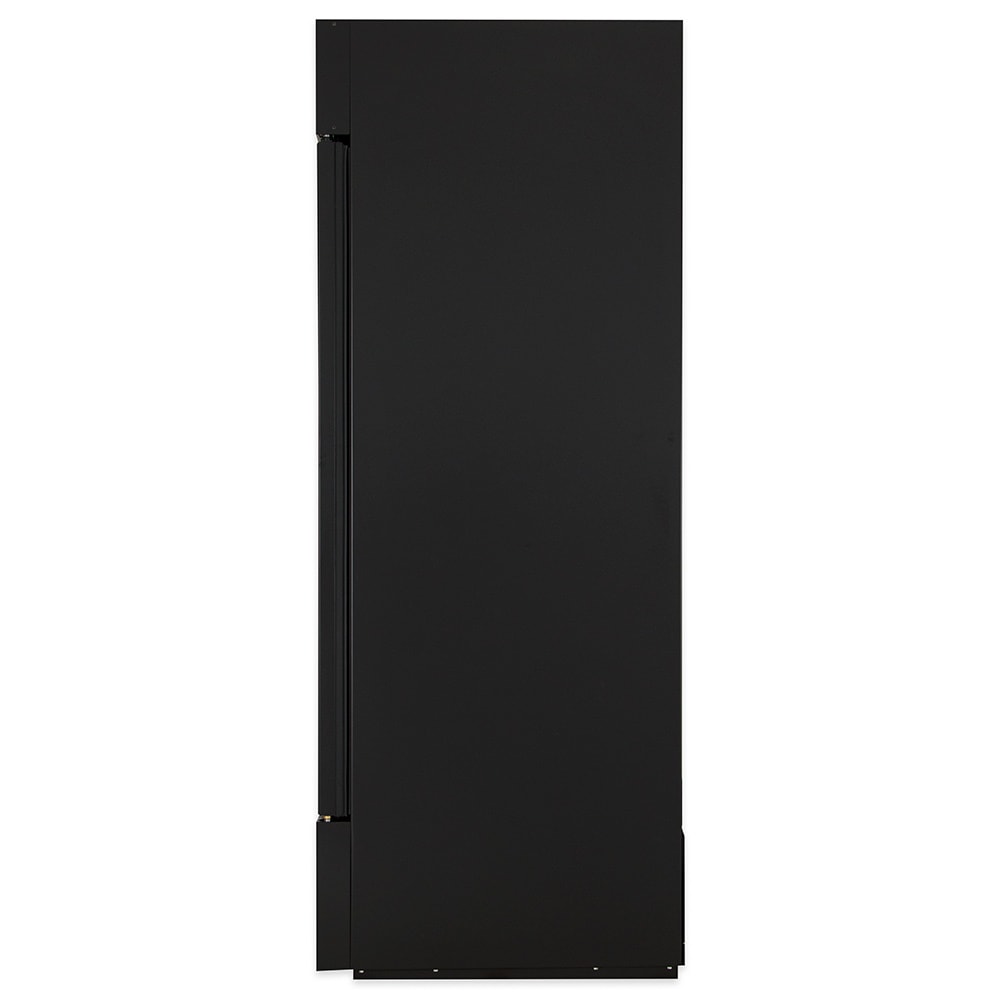

  • Black powder-coated steel exterior hides scratches and dents and will not peel or chip since it is permanent and durable
  • White aluminum interior liner brightens the cabinet
  • Stainless steel floor is durable
  • Entire cabinet is foamed-in-place with polyurethane insulation that keeps cold air inside and gives it structure
  • Heavy-duty steel frame rail is black powder coated to resist corrosion

Refrigeration System

  • Temperature range: 33-38 degrees F
  • Self-contained, capillary tube system uses R290 hydrocarbon refrigerant
  • Balanced, high-capacity refrigeration system maintains even temperatures

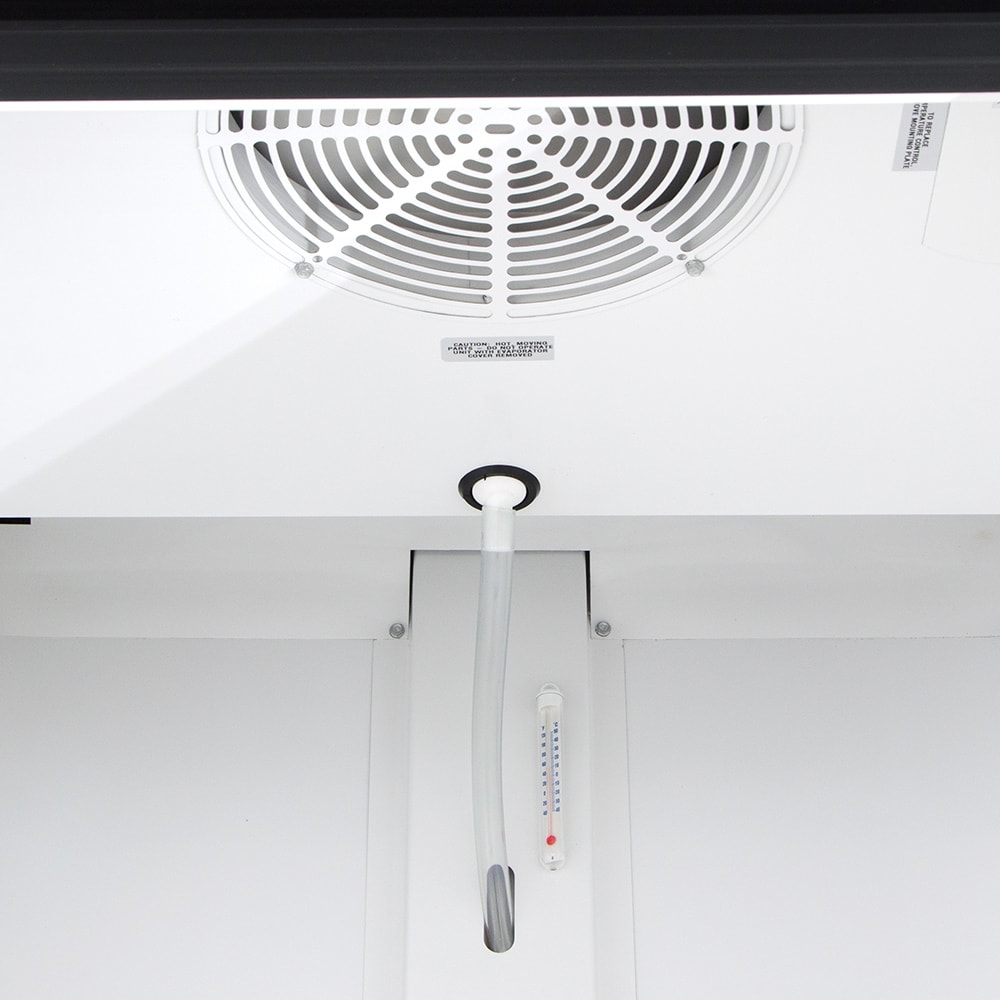

  • Electronically commutated evaporator and condenser fan motors move a consistent volume of air, producing less heat and reducing energy consumption
  • Epoxy-coated evaporator is corrosion resistant

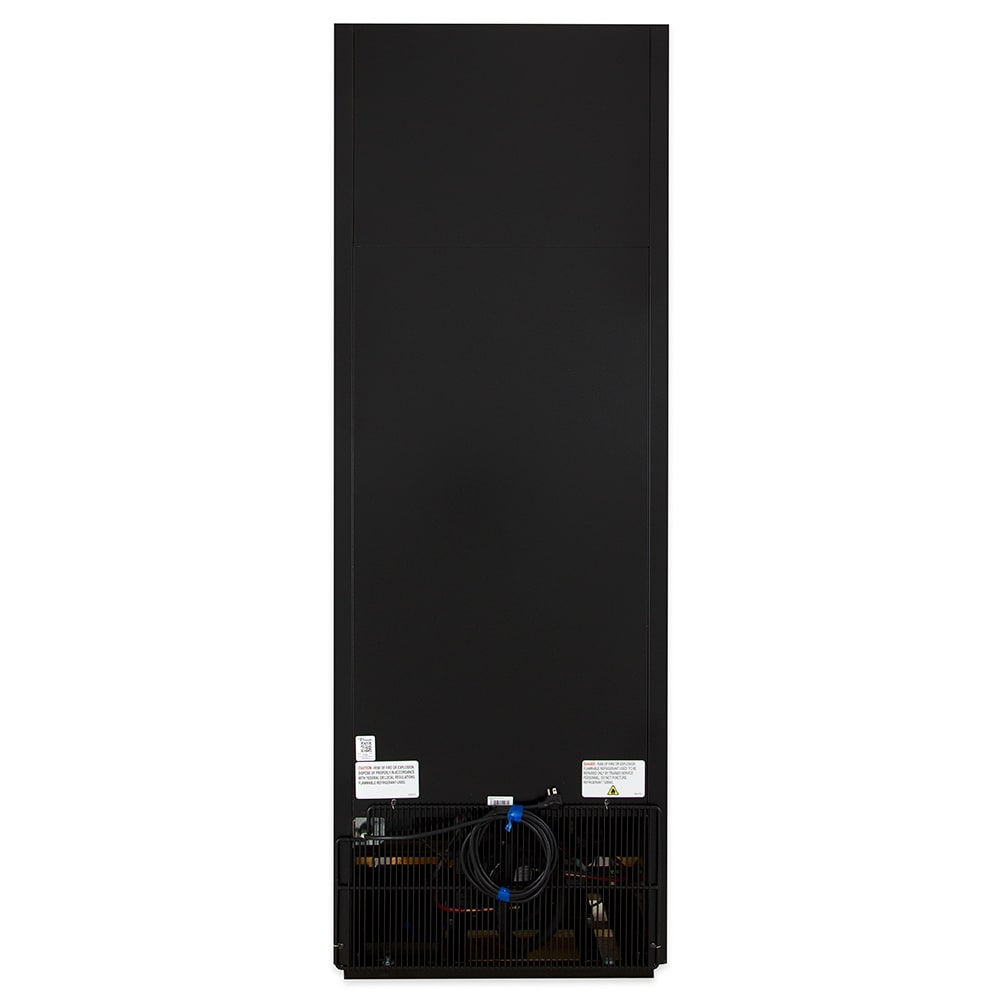

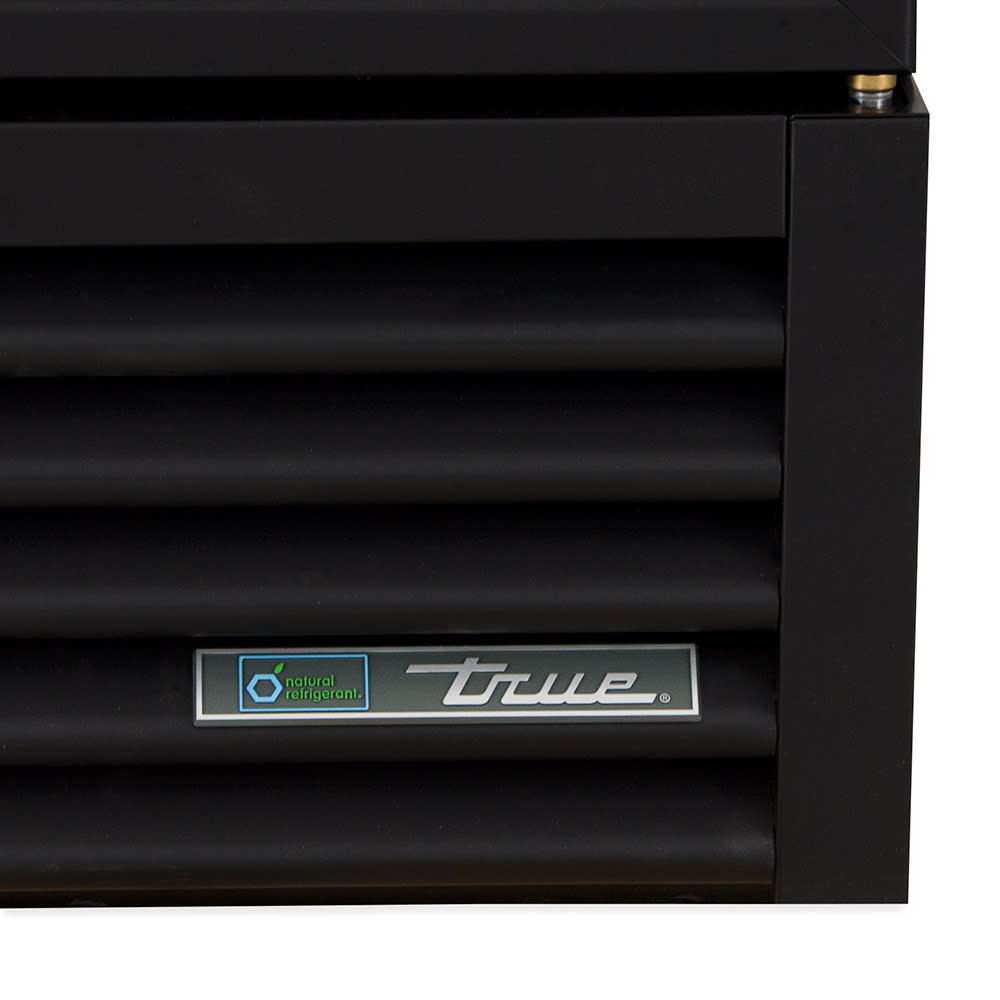

  • Bottom-mounted condensing unit offers easy maintenance access and creates a no-stoop shelf that makes products more visible

Dimensions & Utilities

  • Shelves: 22916 in. W x 2314 in. D
  • Overall: 27 in. W x 3112 in. D x 7858 in. H
  • 5.4 A, 13 HP

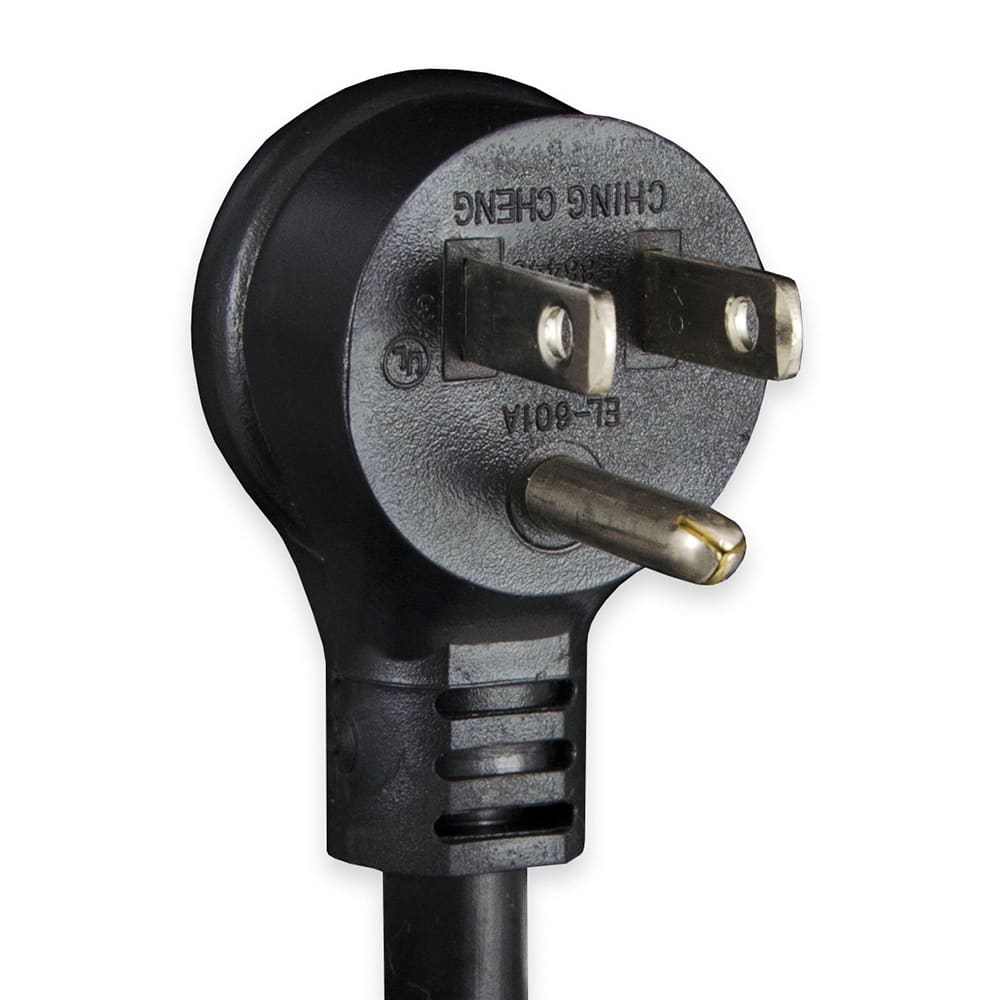

  • 115 V/60 Hz/1 ph, 9-ft. cord NEMA 5-15P plug

For more information on glass door merchandisers, check out this article on refrigerated displays.

Refrigerated Merchandiser, one-section, True standard look version 01, (4) shelves, black powder coated steel exterior, white aluminum interior with stainless steel floor, (1) Low-E thermal glass hinged door, LED interior lights, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, MADE IN USA, ENERGY STARĀ®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration GDM-23-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Also Known As GDM-23BK, TRUGDM23BK, TRUE GDM-23BK, 890GDM23BK, GDM23BK, 675-008, GDM-23-HC-LD, GDM-23-HC
Compressor Location Bottom
Cubic Feet 23
Door Design Swing
Exterior Finish Black
Height (in) 79
Sections 1
Shelving Type Wire
Warranty 3-year Parts & Labor; 5-year Compressor
Width (in) 27
Width (in) Range 21 - 30
Phase 1
Hertz 60
Voltage 115
Product Display Refrigerator
Product Type Commercial Refrigeration
Made in USA Yes
Special Features LED Lighting
Weight 355.00
True GDM-23-HC~TSL01 Certifications
  • UL
  • NSF
  • Energy Star
