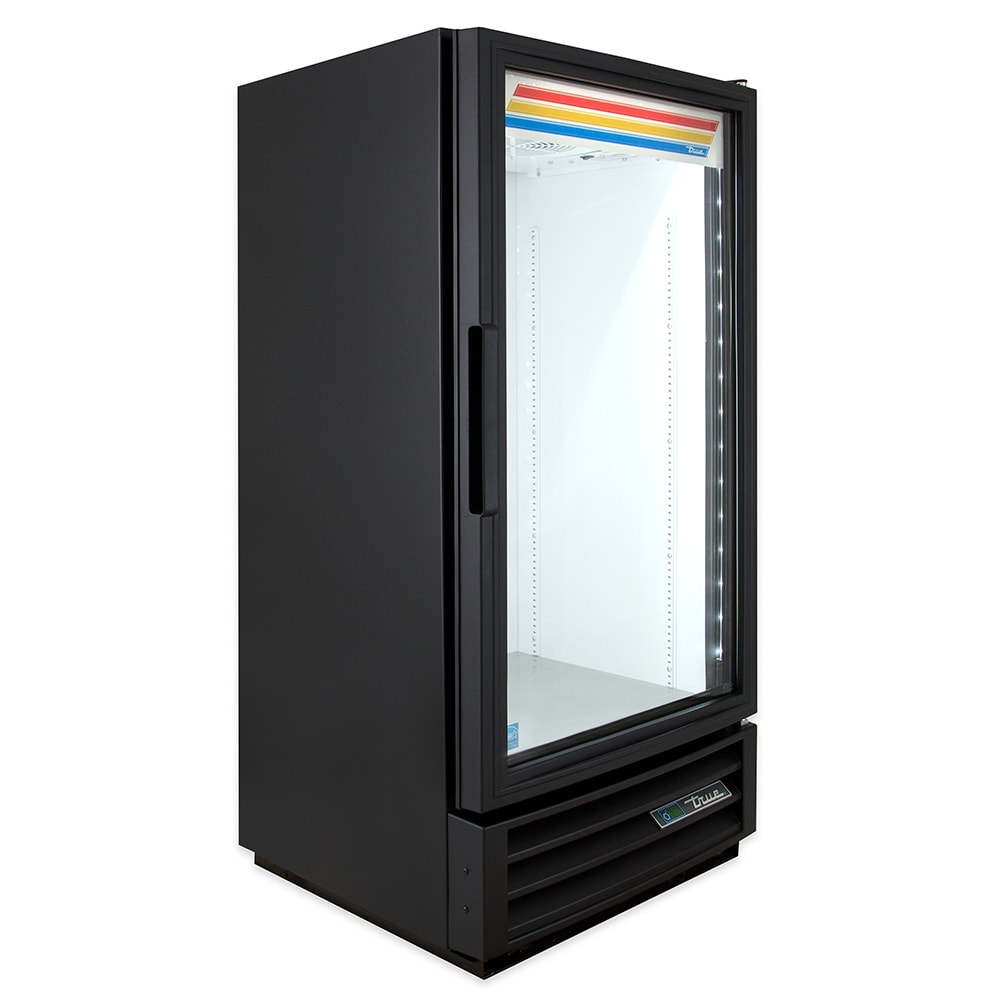

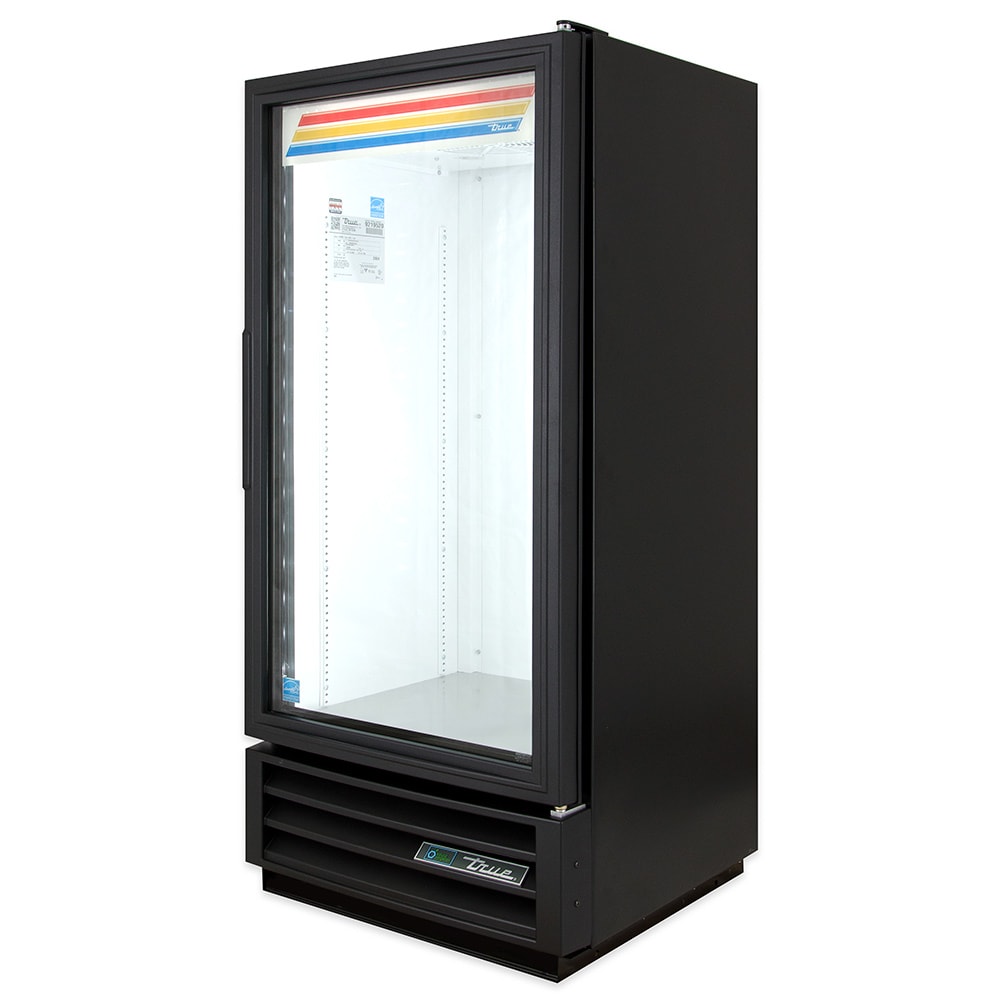

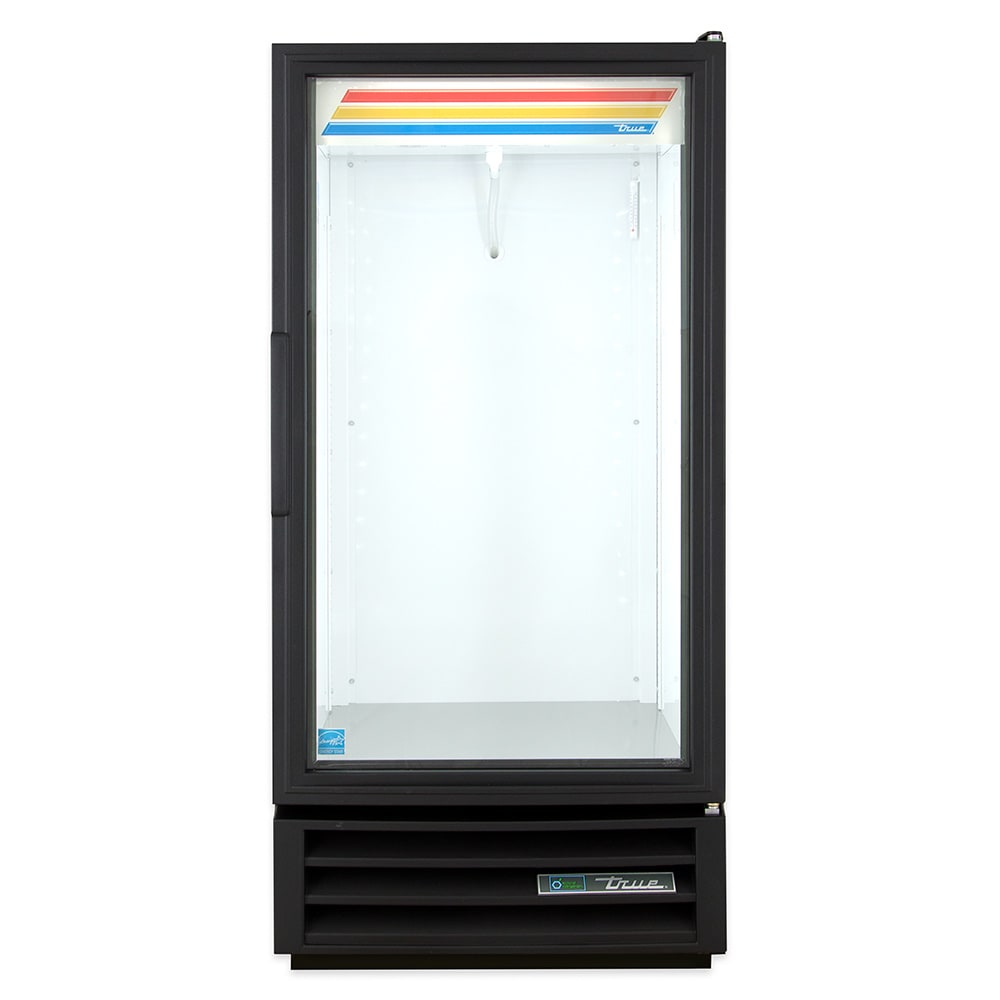

True GDM-10-HC~TSL01 24 7/8" GDM Series One Section Glass Door Merchandiser - (1) Right Hinge Door, Black, 115v

The True GDM-10-HC~TSL01 one-section glass door merchandiser is energy efficient because of its use of double-pane, thermal-insulated glass that reflects UV rays and provides insulation. Since the door self-closes, cold air is kept inside. Improving strength and minimizing energy consumption, the cabinet is foamed in place with polyurethane insulation. A black powder-coated exterior avoids peeling or chipping since it is permanent, and the white aluminum interior liner brightens the cabinet, along with LED interior lights that highlight products. Heavy-duty, PVC-coated shelves hold heavy food products with ease and adjust on ¹⁄₂-inch increments.

Environmentally friendly R290 hydrocarbon refrigerant is used by the self-contained capillary tube system to keep temperatures cool. The refrigeration system maintains even temperatures between 33 to 38 degrees Fahrenheit, while energy consumption is reduced and less heat is produced as the evaporator and condenser fan motors push out a consistent volume of air. To simplify maintenance and cleaning, the True GDM-10-HC~TSL01 one-section glass door merchandiser has a bottom-mounted condenser unit.

The fan motor operates in reverse for 20 seconds after the compressor is started, blowing off excess dirt and debris from the condensing coil. This component along with routine maintenance ensures the coil remains clean, extending the unit's life in a commercial setting.

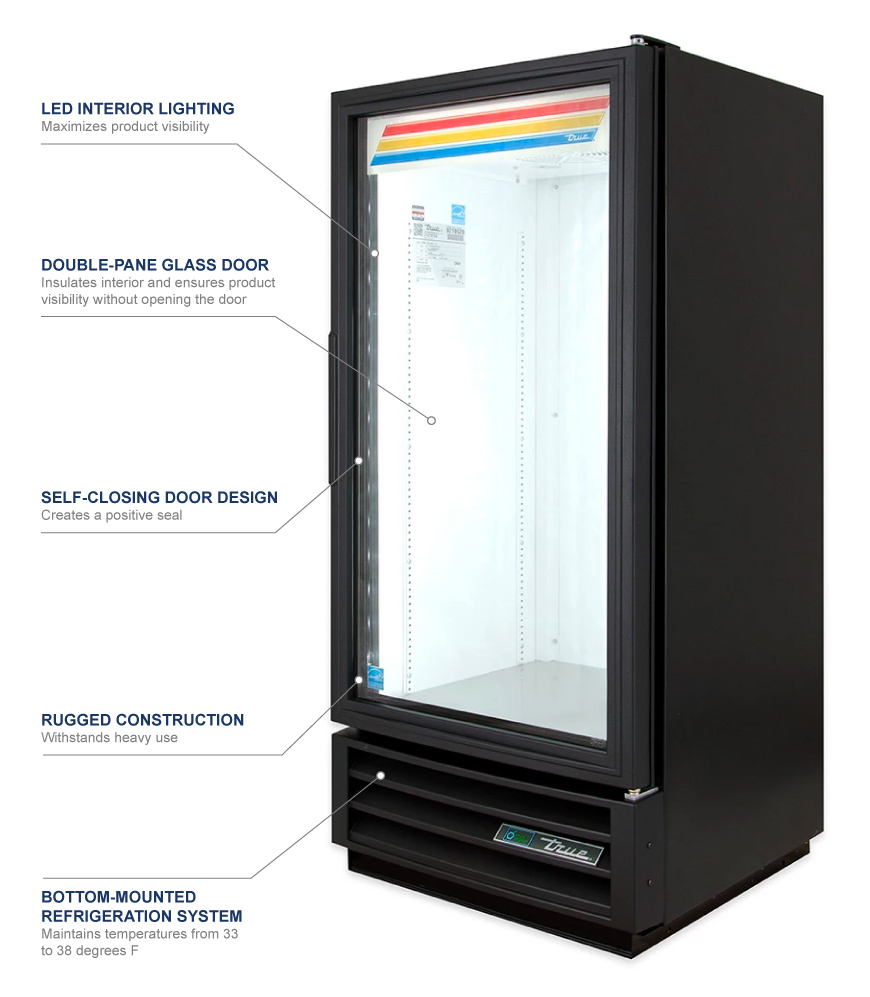

Product Details

• 3 PVC-coated wire shelves include 4 chrome-plated clips each
• Shelves are on ¹⁄₂-in. increments to adjust to various product heights

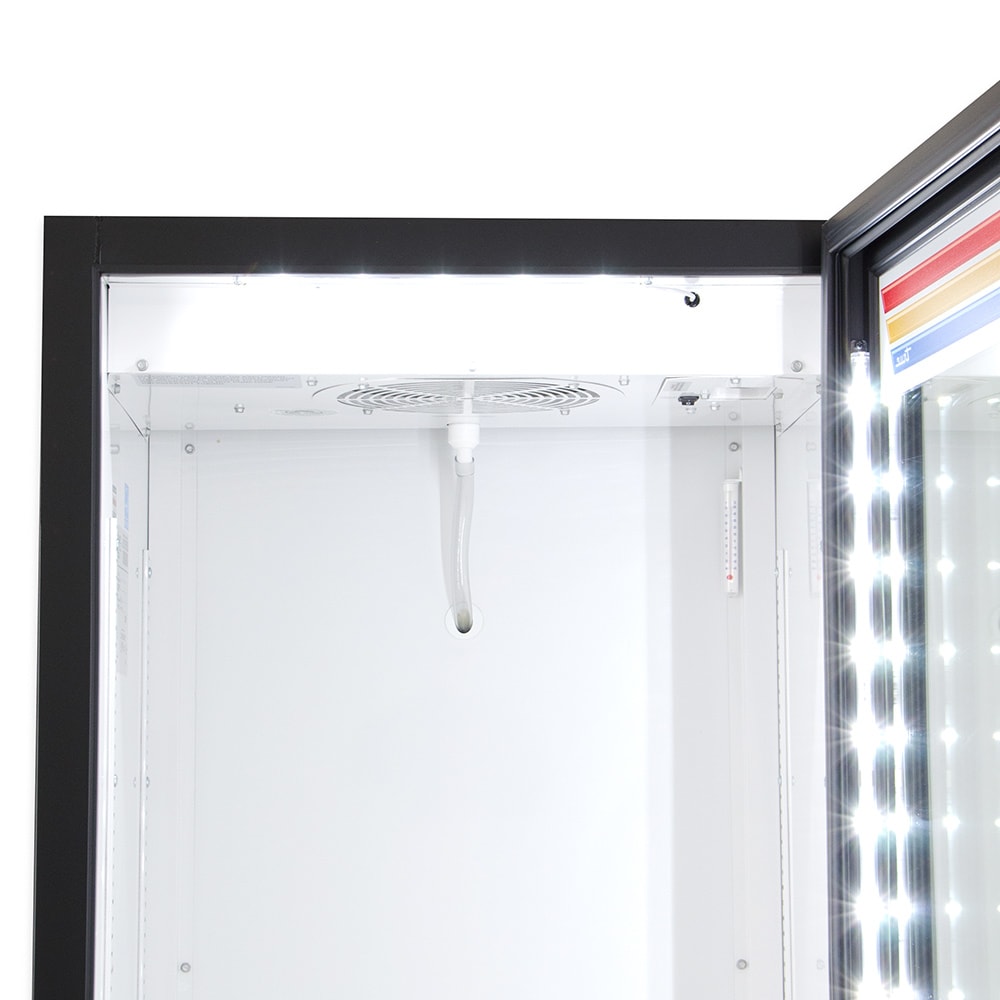

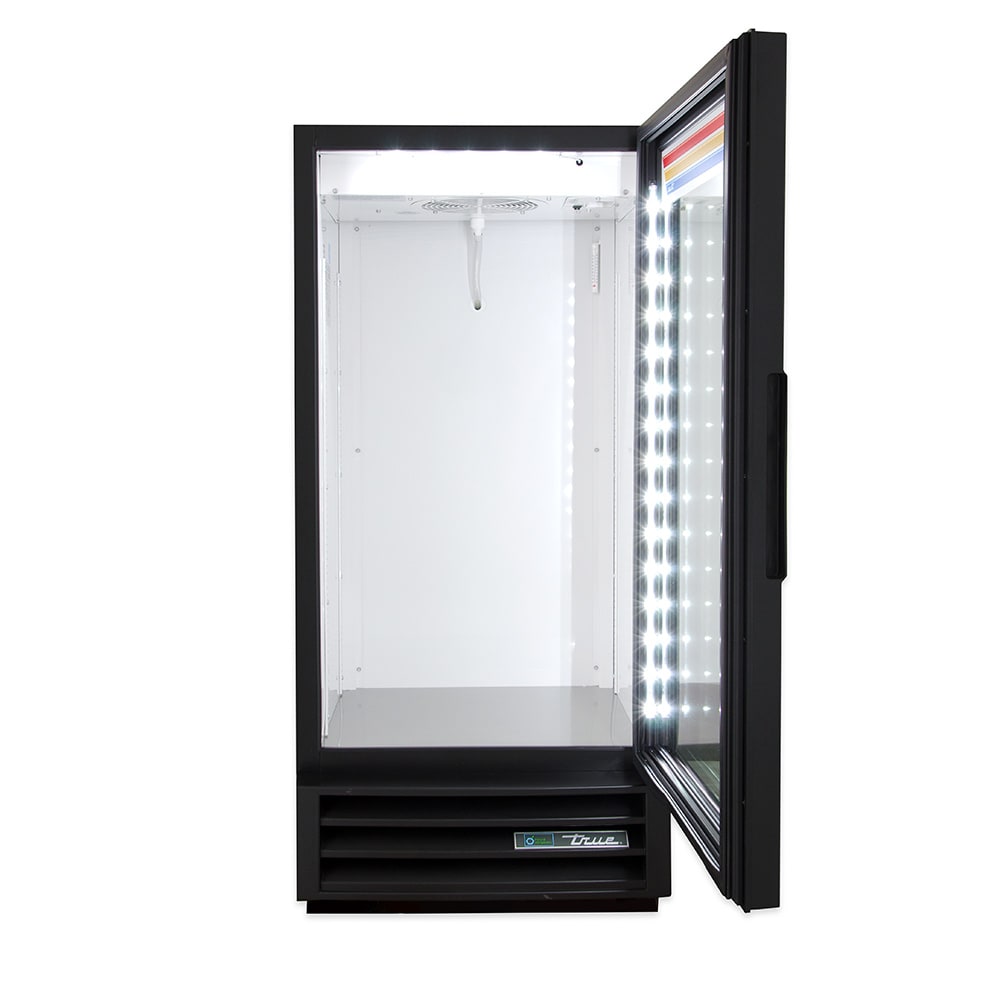

• LED interior lighting ensures products are visible
• Low-E, thermal-insulated, double-pane door provides visibility and holds cold air inside
• Self-closing door has a tension-type closure system that creates a positive seal

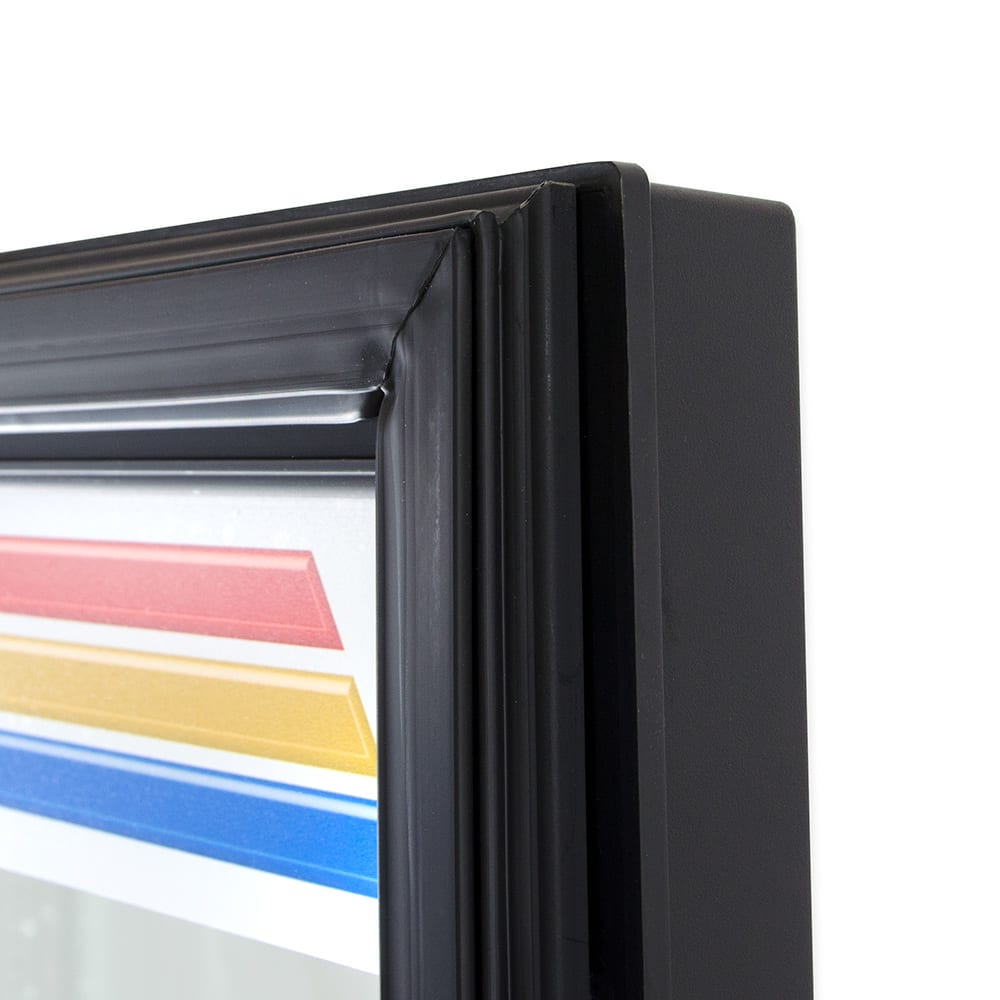

• Magnetic door gasket can be removed without tools for cleaning
• 12-in. door handle

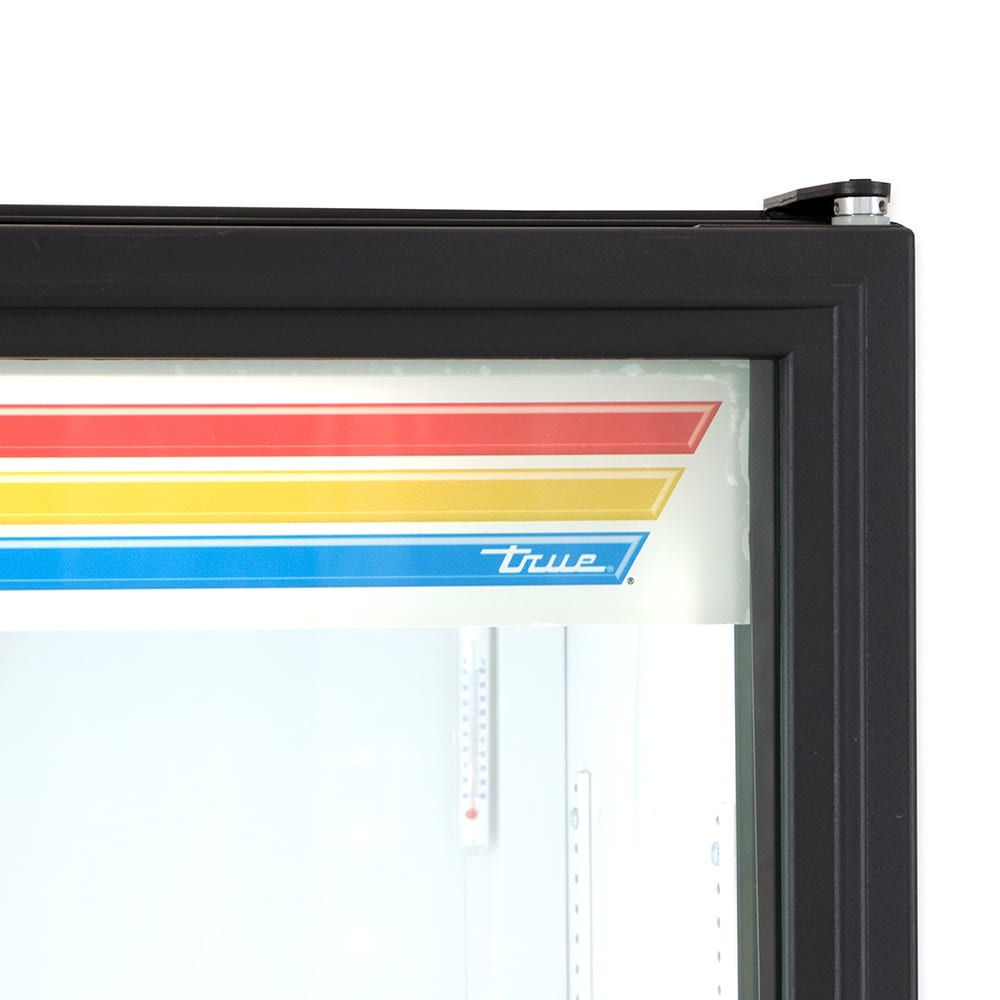

• Door sign decal merchandises displayed items
• Leg levelers enables installation on most uneven floors

Reliable Refrigeration System

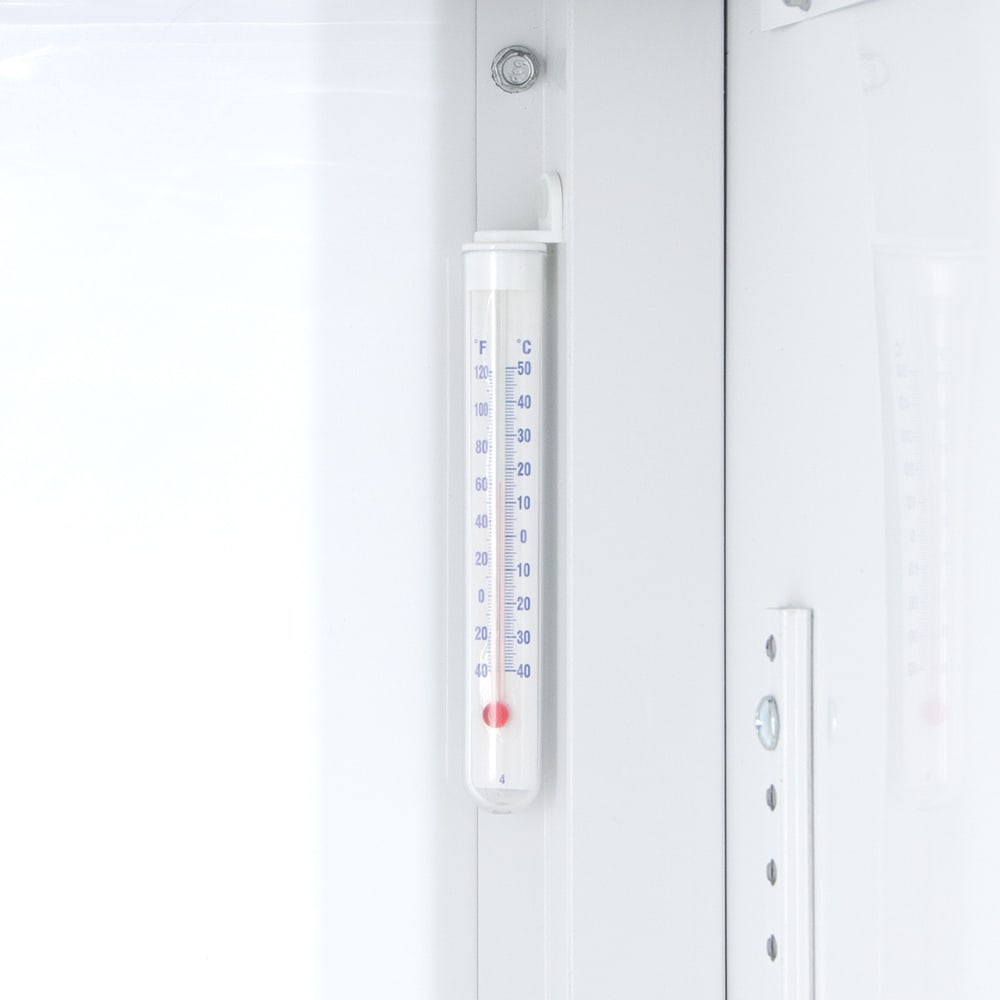

• Temperature range: 33-38 degrees F
• Factory-balanced, oversized system keeps uniform temperatures
• Self-contained capillary tube system operates with R290 hydrocarbon refrigerant

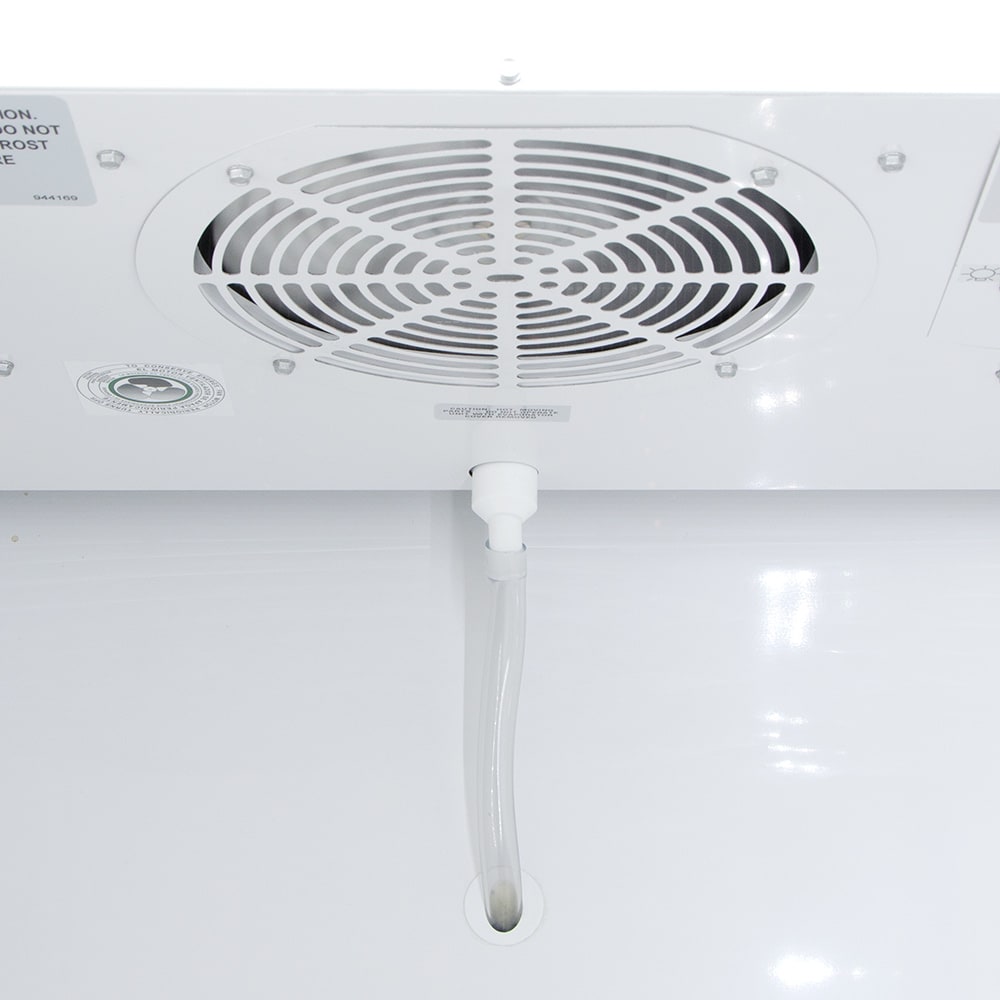

• Evaporator and condenser fan motors produce a consistent volume of air, creating less heat and reducing energy consumption
• Fan motor blows in reverse to keep the condensing coil free of dust and debris
• Evaporator is coated in epoxy to resist corrosion

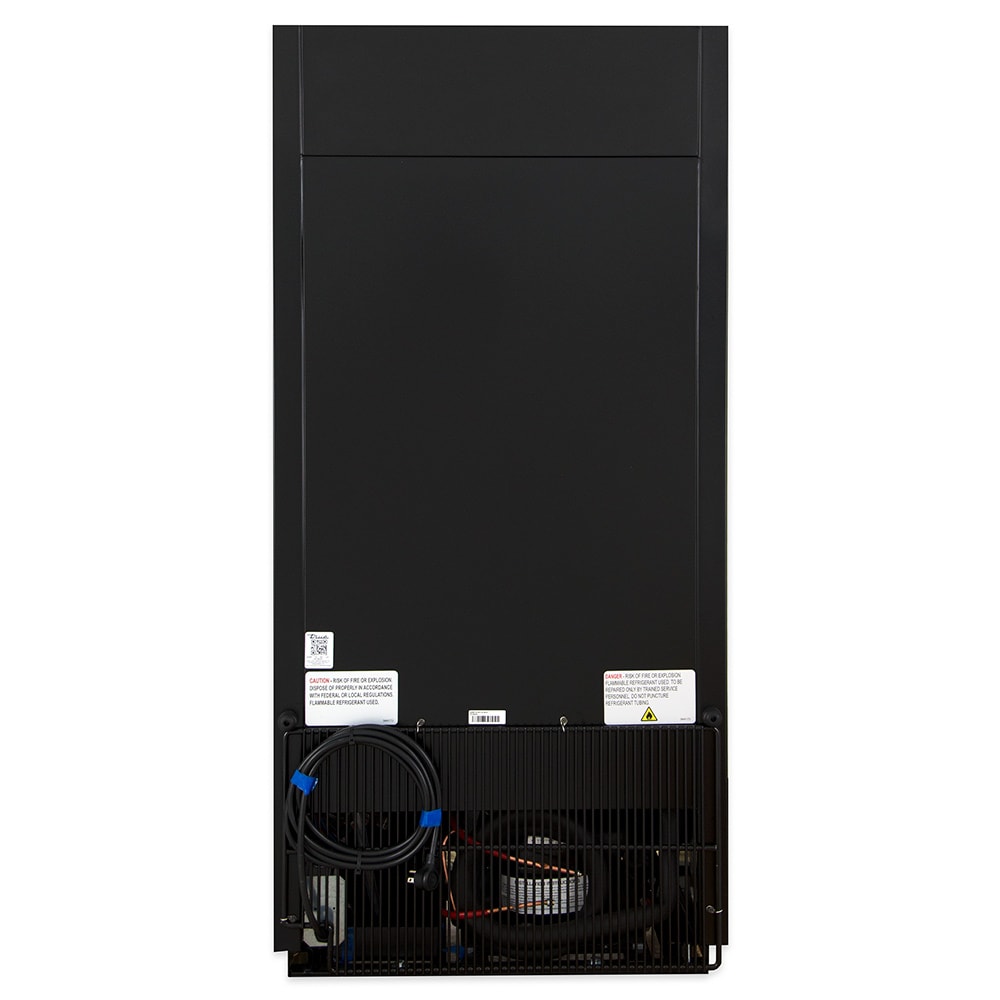

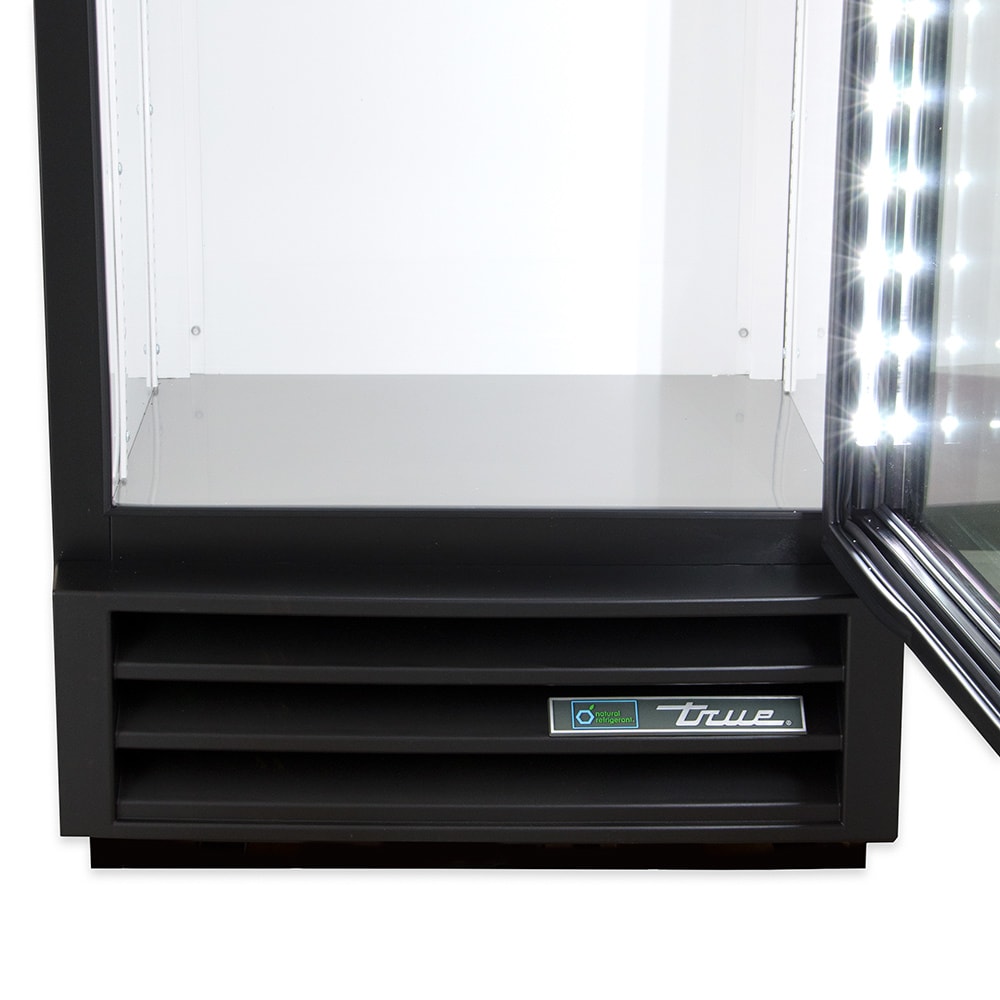

• Bottom-mounted condenser operates in the coolest area

Rugged, Easy-to-Clean Construction

• Polyurethane insulation keeps cold air inside the cabinet and provides structure since it is foamed in place

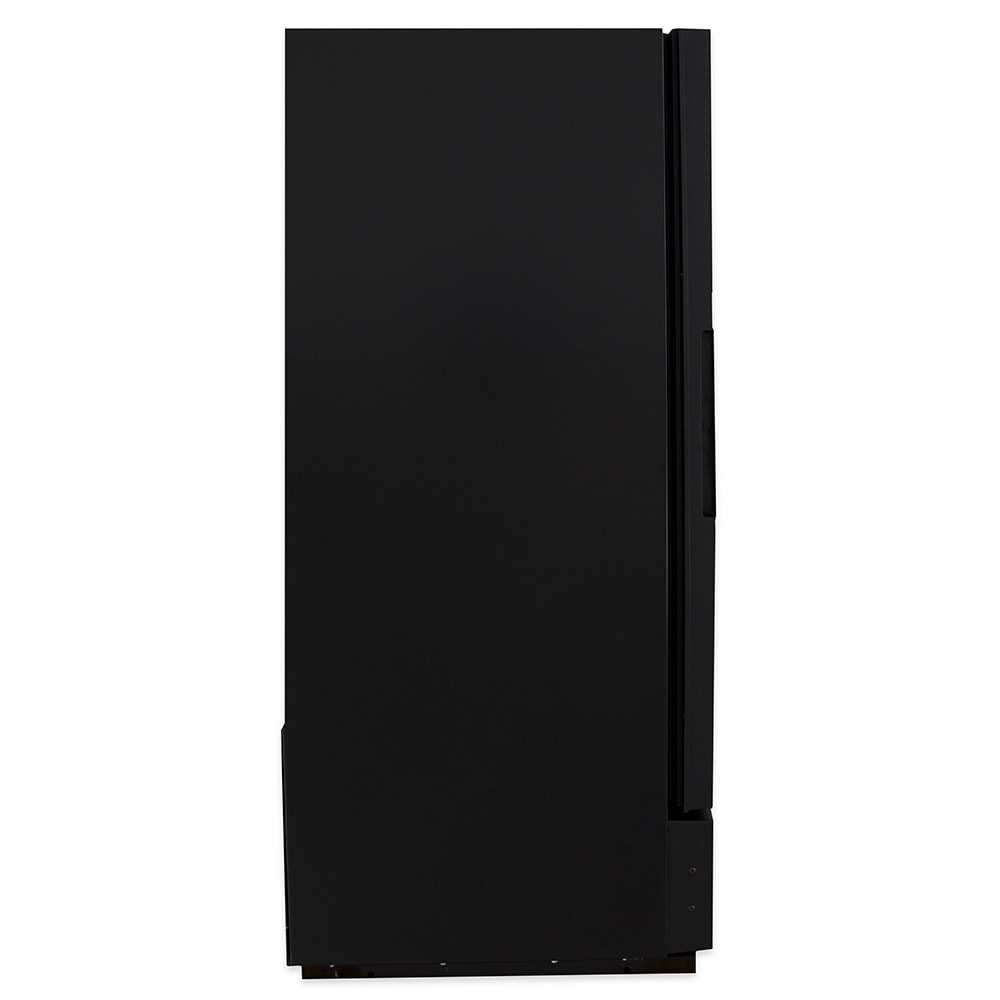

• Black powder-coated exterior is scratch resistant and simplifies cleaning
• Durable, welded steel frame is powder coated to resist corrosion
• White aluminum liner brightens the interior while adding durability
• Stainless steel interior floor facilitates cleaning

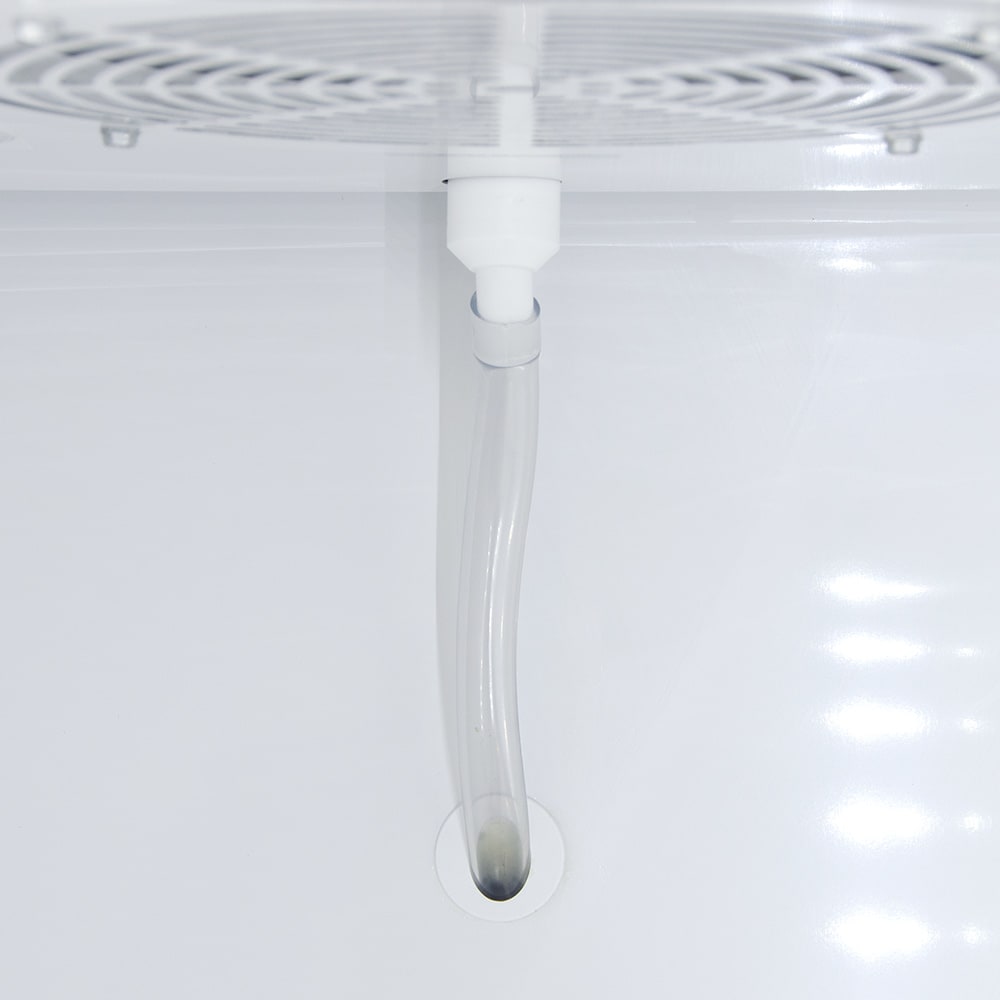

• Drain in the floor eases cleaning

Dimensions & Utilities

• 24⁷⁄₈ in. W x 25¹⁄₈ in. D x 53³⁄₈ in. H
• 2 A, ¹⁄₆ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration GDM-10-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, one-section, (3) shelves, True standard look version 01, powder coated steel exterior, white interior with stainless steel floor, (1) Low-E thermal glass hinged door, LED interior lights, R290 Hydrocarbon refrigerant, reverse condensing fan motor, 1/6 HP, 115v/60/1, 2.0 amps, NEMA 5-15P (depth does not include 1" for rear bumpers), cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration GDM-10-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
