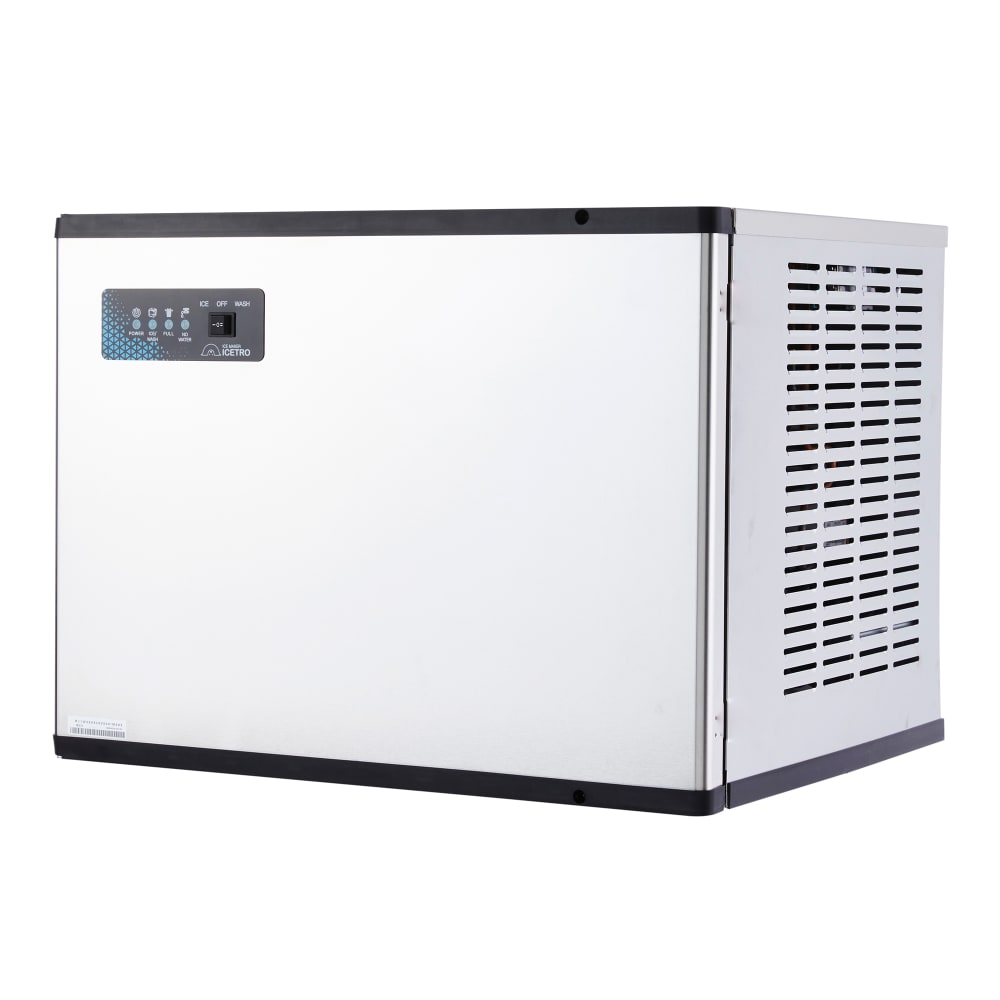

ICETRO IM-0550-AH 30" Maestro Half Cube Ice Machine Head - 551 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $8,220.00
$4,110.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
ICETRO IM-0550-AH Description
Great for establishments selling bagged ice, smoothies, and soft drinks, the ICETRO IM-0550-AH modular ice machine produces half-cube ice. This type of ice measures 1 1⁄8 inches by 3⁄8 of an inch by 7⁄8 of an inch and densely nests in drinks to increase liquid displacement, saving operators money over time When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, this air-cooled, self-contained unit can produce 551 pounds of half-cube ice in 24 hours. So users can monitor ice production, it features a diagnostic panel that displays operational status.
To withstand high-volume back-of-house use, the ICETRO IM-0550-AH ice maker head is built with a durable, rust-resistant 304 stainless steel exterior. Its ABS plastic interior is treated with an antimicrobial agent that inhibits bacterial and microbial growth between regularly scheduled cleanings while reducing slime accumulation. Staff can flip the unit's cleaning switch to start an automatic cleaning cycle, eliminating time-consuming cleaning tasks. Because the water distributor tube, water sump, water curtain, pins, and hangers can be removed, they can be cleaned or serviced as needed; the hinged front door panel provides direct access to key interior components. Overall, this ice maker measures 30 inches wide by 24 4⁄5 inches deep by 22 3⁄5 inches tall and can be used with the ICETRO IB-033 ice storage bin, the ICETRO IB-044 ice storage bin, or the ICETRO IB-M900 ice storage bin (all sold separately).
- Maximum 24-hour production: 551 lbs.
- Produces half-cube ice
- Half-cube ice dimensions: 1 1⁄8 in. x 3⁄8 in. x 7⁄8 in.
- Air-cooled configuration
- Self-contained condenser
- R-404A refrigerant
- Rust-resistant 304 stainless steel exterior
- ABS plastic interior treated with antimicrobial agent

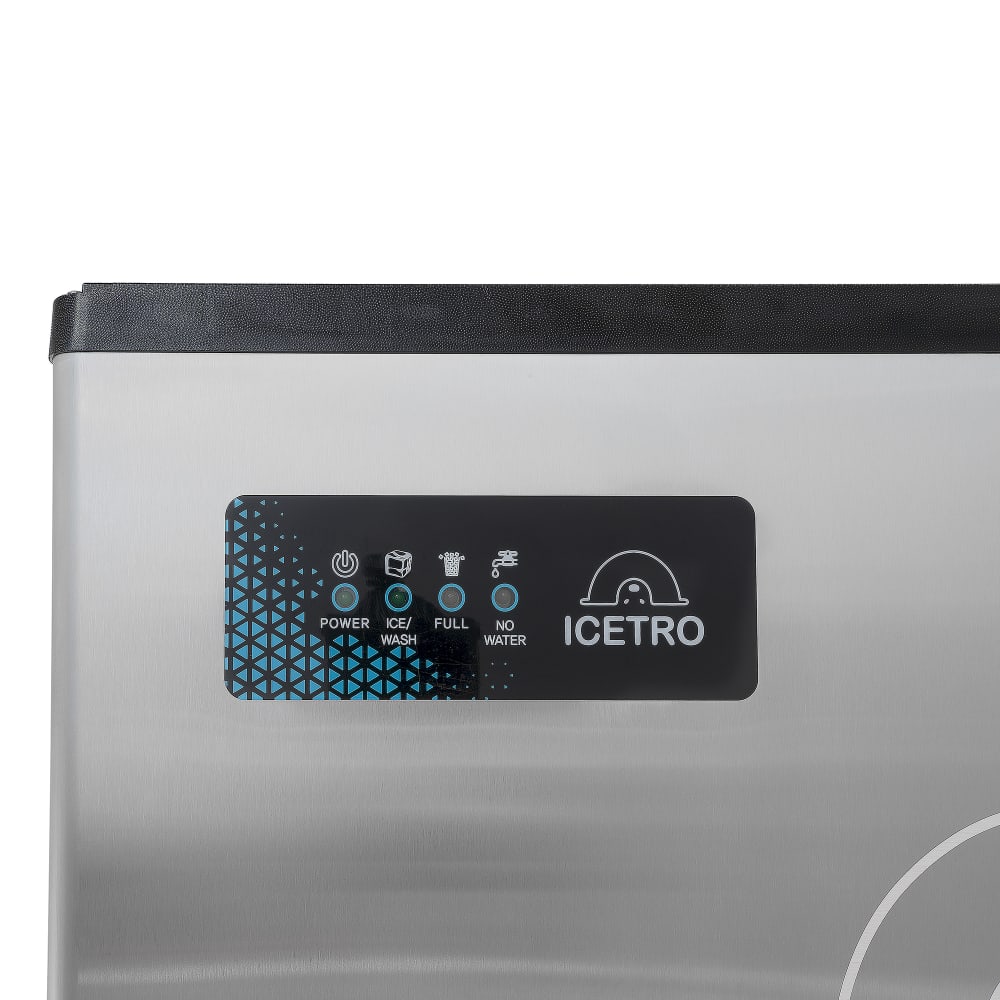

- Diagnostic panel assists with maintenance and service
- Cleaning switch starts automatic cleaning cycle
- Evaporator section reduces airborne bacteria
- Magnetic frame cleanable condenser air filters
- Flush time can be adjusted to minimize scale accumulation
- Removable water distributor tube, water sump, heavy-duty water curtain, pins, and hangers
- Hinged front door panel provides interior component access

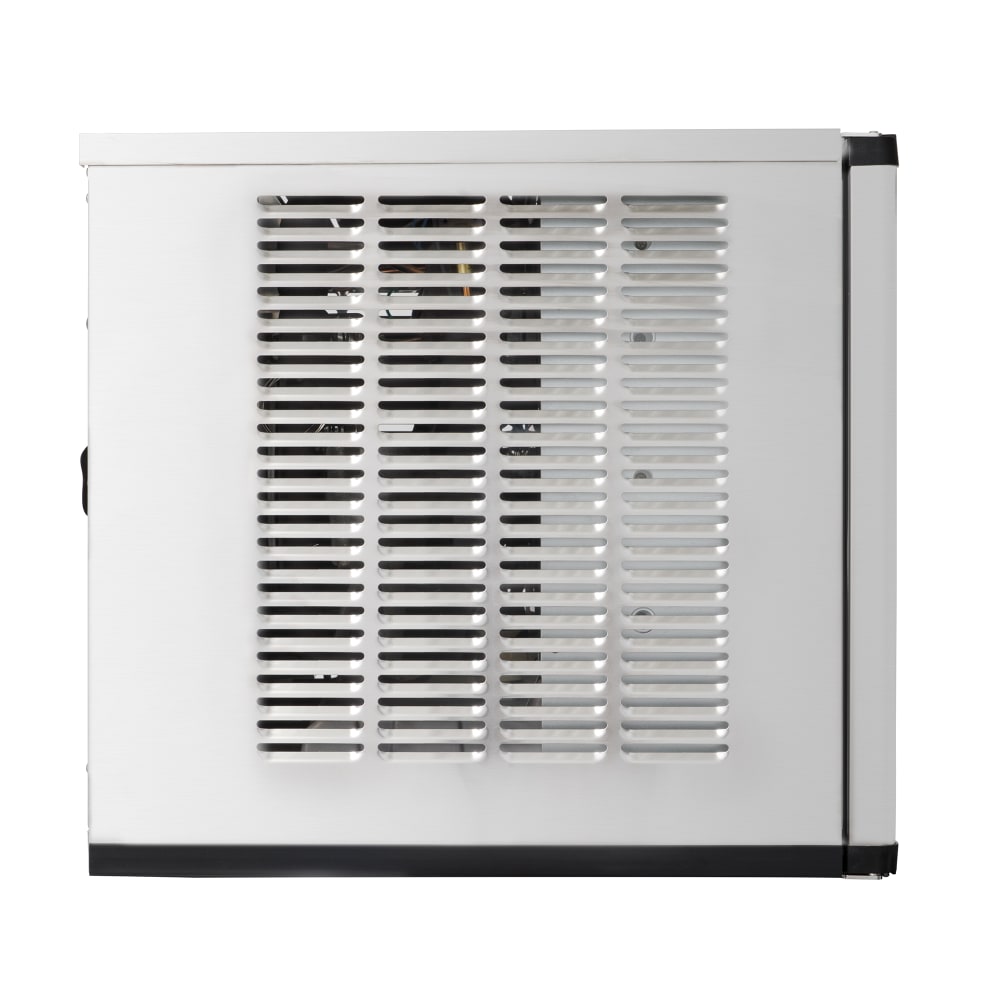

- Vented sides and top
- Can be used with the ICETRO IB-033 ice storage bin, the ICETRO IB-044 ice bin, and the ICETRO IB-M900 ice storage bin (sold separately)
- Compatible with the ICETRO ICEPRO400 water filtration system (not included)
- Operating ambient temperature range: 50-100 degrees F
- Operating water temperature range: 50-90 degrees F
- Operating water pressure range: 20-80 PSI
- 30 in. W x 24 4⁄5 in. D x 22 3⁄5 in. H
- 20 A, 5.91 kW
- 115 V/60 Hz/1 ph
- Electrical connection requires hardwiring on site
*Image may not depict product color, inclusions or accessories.
*Free shipping on ICETRO IM-0550-AH within the 48 contiguous states.
From The Manufacturer
Maestro Modular Ice Maker, cube-style, 30"W, air-cooled, self-contained condenser, production capacity up to 551 lbs/24 hr at 70°/50° (399 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, half-size cubes, 115v/60/1-ph, NEMA 5-15P, CE, cETLus, ETL-Sanitation
Watch a video about this product
ICETRO IM-0550-AH Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | ICETRO |
| 24 Hr. Production (lb) | 551 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.8 |
| Height (in) | 22.6 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Maestro |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 189.00 |
