ICETRO IM-0350-AH/IB-044 367 lb Maestro Half Cube Ice Machine w/ Bin - 440 lb Storage, Air Cooled, 115v

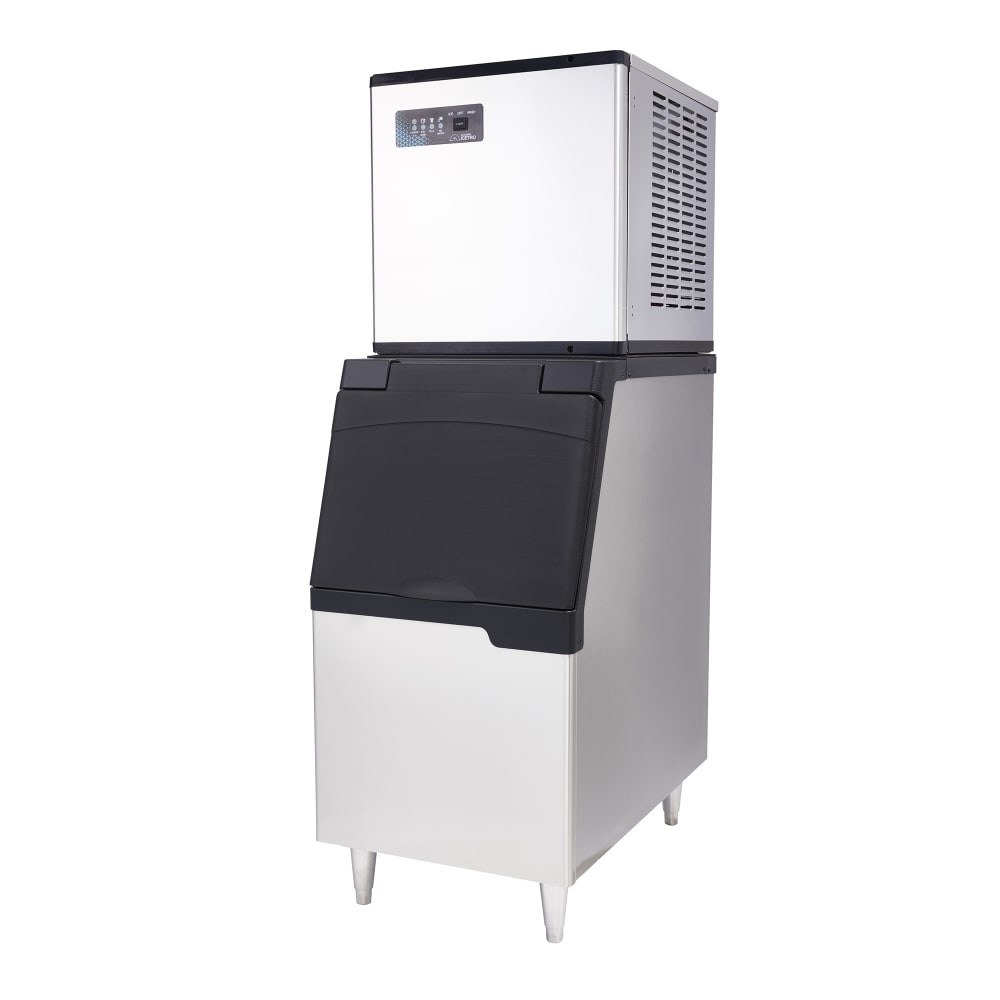

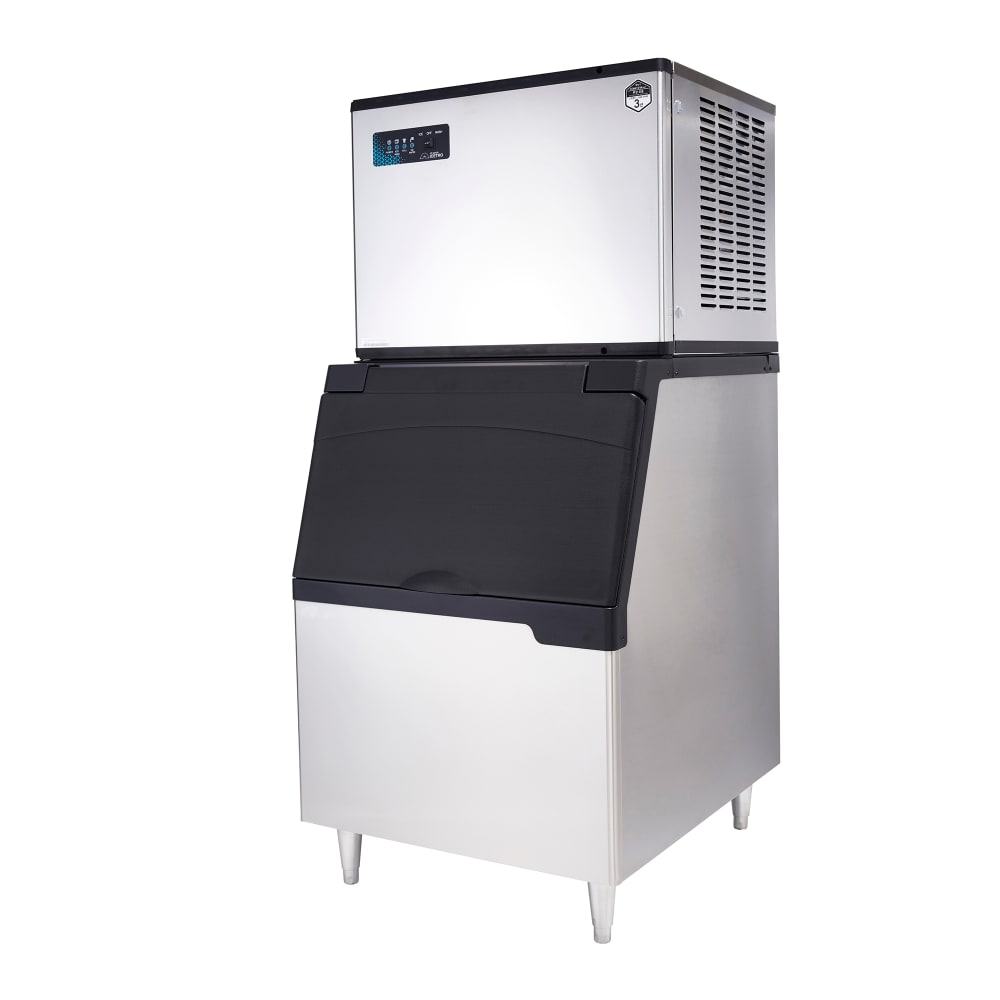

The ICETRO IM-0350-AH/IB-044 Maester ice machine head and bin is a 30-inch-wide by 34³⁄₁₀-inch-deep by 74⁹⁄₁₀-inch-tall unit that can produce 367 pounds of half-cube ice in 24 hours when air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This ice type measures 1¹⁄₈ inches by ³⁄₈ of an inch by ⁷⁄₈ of an inch, displaces more liquid than full-cube ice, and is ideal for bagging, blending, and dispensing. The ice maker head features a self-contained, air-cooled condenser using R-404A refrigerant, and users can monitor the operational status with the diagnostic panel. To maintain a clean interior, it's built with a cleaning switch that can be used to initiate an automatic cleaning cycle, while its ABS plastic interior is treated with an antimicrobial agent that reduces slime buildup and inhibits bacterial growth between cleanings. The water distributor tube, water sump, water curtain, pins, and hangers can be removed, while the hinged front door panel eases access to key interior components.

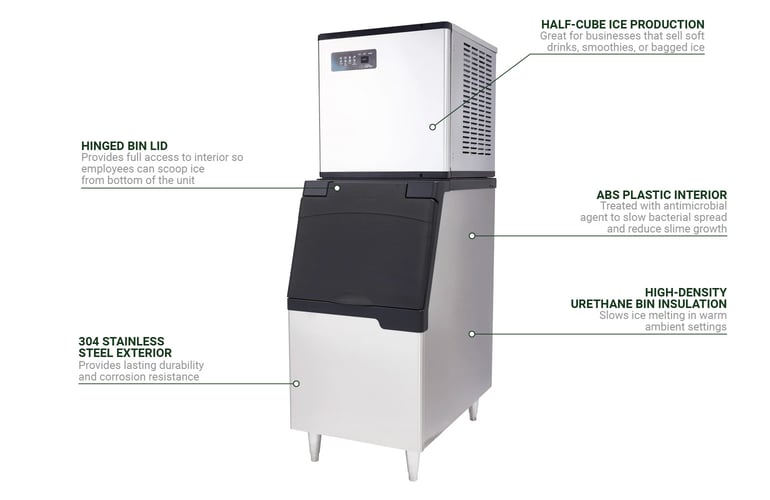

For convenience, the ICETRO IM-0350-AH/IB-044 ice machine with bin can hold 440 pounds of ice. To slow ice melting and reduce product waste, it's insulated with high-density urethane. Its hinged lid provides full interior access so employees can scoop ice from the bottom. While the door is made of ABS plastic, the rest of the exterior is made of high-quality 304 stainless steel—a durable, rust-resistant metal that can simply be wiped clean. This 30-inch-wide by 34³⁄₁₀-inch-deep base is fitted with four stainless steel legs that can be raised from 6³⁄₁₀ inches to 7⁴⁄₅ inches, ensuring the bin remains stable on sloped or uneven flooring.

Ice Maker Details

• Maximum 24-hour production: 367 lbs.
• Produces half-cube ice
• Half-cube ice dimensions: 1¹⁄₈ in. x ³⁄₈ in. x ⁷⁄₈ in.
• Air-cooled unit is self-contained
• R-404A refrigerant
• 304 stainless steel exterior resists rust
• ABS plastic interior treated with antimicrobial agent
• Diagnostic panel simplifies servicing
• Cleaning switch initiates automatic cleaning cycle
• Magnetic frame, cleanable condenser air filters
• Flush time can be adjusted to control scale buildup
• Water distributor tube and water sump can be removed without tools
• Removable heavy-duty water curtain, pins, and hangers
• Hinged front door panel ensures component access
• Vented sides and top
• Evaporator section reduces airborne bacteria
• Can be used with the ICETRO ICEPRO400 water filtration system (not included)
• Operating ambient temperature range: 50-100 degrees F
• Operating water temperature range: 50-90 degrees F
• Operating water pressure range: 20-80 PSI

Ice Bin Details

• 440-lb. ice storage capacity
• 304 stainless steel and ABS exterior
• Top-hinged black door featuring comfort-grip handle
• Simple-to-clean plastic interior
• Insulated with high-density urethane
• Stainless steel feet can be adjusted from 6³⁄₁₀ in. to 7⁴⁄₅ in.

Dimensions & Utilities

• Ice machine head: 30 in. W x 24⁴⁄₅ in. D x 22³⁄₅ in. H
• Ice storage bin: 30 in. W x 34³⁄₁₀ in. D x 52³⁄₁₀ in. H (53⁴⁄₅ in. H when legs are fully raised)
• Overall: 30 in. W x 34³⁄₁₀ in. D x 74⁹⁄₁₀ in. H (76²⁄₅ in. H when legs are fully raised)
• 15 A, 6.25 kW
• 115 V/60 Hz/1 ph
• Electrical connection requires hardwiring on site

Product Features

*Free shipping on ICETRO IM-0350-AH/IB-044 within the 48 contiguous states.

From The Manufacturer

Maestro Modular Ice Maker, cube-style, 30"W, air-cooled, self-contained condenser, production capacity up to 367 lbs/24 hr at 70°/50° (292 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, half-size cubes, 115v/60/1-ph, NEMA 5-15P, CE, cETLus, ETL-Sanitation

Ice Bin, 30" W, approximately 440 lbs storage capacity, top-hinged door, plastic interior, stainless steel exterior, adjustable feet (up to 7.8")

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts
