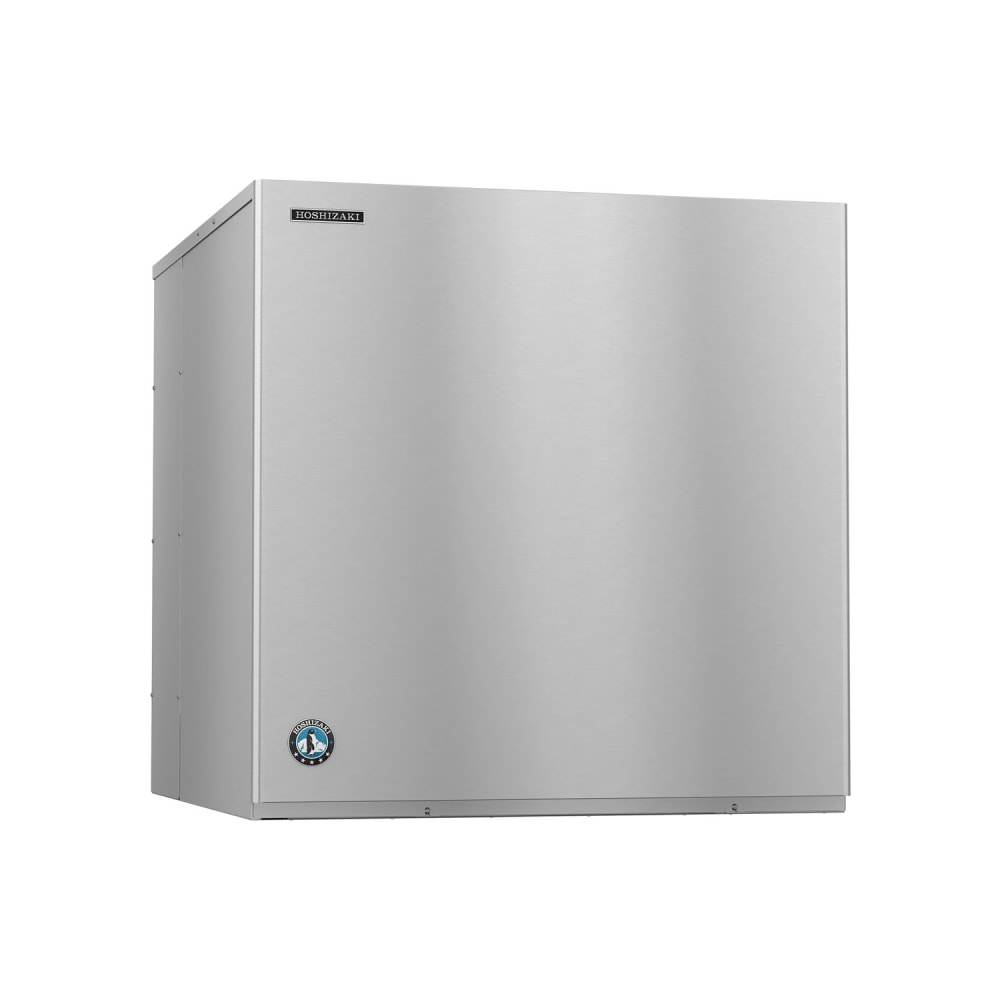

Hoshizaki KMH-2100SRJZ 36" Crescent Cube Ice Machine Head - 2034 lb/24 hr, Remote Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,945.00 /Each
Contact us for details!
Selected Voltage: 208-230V, 1 Phase
| 208-230V, 1 Phase |
| 208-230V, 3 Phase |
Hoshizaki KMH-2100SRJZ Description
The remote, air-cooled system of the Hoshizaki KMH2100SRJZ ice machine head relies on R404A refrigerant, an eco-friendly and efficient hydrocarbon, to maintain optimal temperatures. Under optimal conditions, this unit can produce 2,034 pounds of ice in a 24-hour period. This machine head makes crescent-shaped ice, which can be used at a soft drink station or for keeping food cold on a buffet bar.
To ensure it produces clean, clear ice, the Hoshizaki KMH2100SRJZ ice maker head has an H-GUARD Plus antimicrobial agent that prevents the growth of mold and bacteria in the internal mechanisms. This unit requires a remote condenser, which must be ordered separately, to operate. This product also requires operators to order an ice bin to catch and hold produced ice.
- KM Series
- Remote, air-cooled system
- 2,034-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
- 1,850-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
- Crescent ice cube shape
- Crescent-cube ice size: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
- Durable, stainless steel exterior and evaporator
- H-GUARD Plus antimicrobial agent
- EverCheck™ alert system
- CycleSaver™ design
- Relies on R404A refrigerant
- Requires remote condenser (sold separately)
- Ice bin sold separately
- 22,600 BTU
- "Z" model ice machine must be paired with "Z" model remote condenser
- Ambient temperature holding range: 45-100 degrees F
- Water temperature holding range: 45-90 degrees F
- Water pressure: 10-113 PSIG
- Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
- Water supply requires copper water tubing with a minimum 3⁄8-in. inner diameter
- Drain requires a hard pipe with a minimum 3⁄4-in. inner diameter
- 36 in. W x 40 in. D x 36 7⁄16 in. H
- 15.1 A, 3.75 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KMH-2100SRJZ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 36"W, air-cooled, remote condenser (priced separately), production capacity up to 2034 lb/24 hours at 70°/50° (1850 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 15.1 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)
Watch a video about this product
Hoshizaki KMH-2100SRJZ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 2034 |
| Compressor Type | Remote Cooled |
| Depth (in) | 40 |
| Height (in) | 36.44 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 36 |
| Weight | 415.00 |
