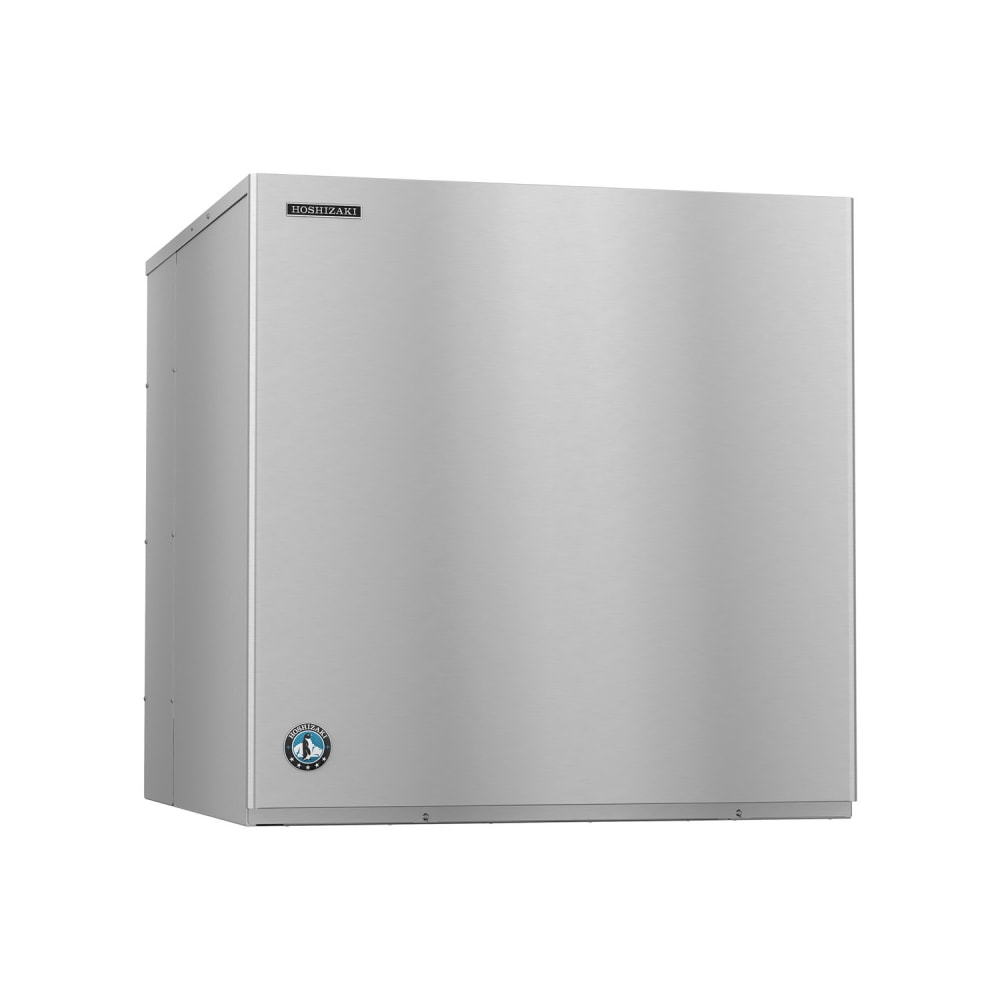

Hoshizaki KMH-2100SRJZ3 36" Crescent Cube Ice Machine Head - 2026 lb/24 hr, Remote Cooled, 208-230v/3ph

KaTom #: 440-KMH2100SRJZ3 • MPN: KMH-2100SRJZ3
  • 440-KMH2100SRJZ3 Primary Thumbnail Image
  • 440-KMH2100SRJZ3 Multiple Thumbnail Image #1
  • 440-KMH2100SRJZ3 Multiple Thumbnail Image #2

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$14,020.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Voltage: 208-230V, 3 Phase

Selected Compressor Type: Remote Cooled

Water CooledWater Cooled
Justin France User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 12-01-2026 to save before the price increases!

Hoshizaki KMH-2100SRJZ3 Description

To facilitate proper air circulation, the Hoshizaki KMH2100SRJZ3 ice machine head requires 6 inches of clearance on both sides, the rear, and above the unit. If the ambient temperature is 7o degrees Fahrenheit and the incoming water temperature is 50 degrees Fahrenheit, this item can produce 2,026 pounds of crescent-shaped ice in a 24-hour period. This unit relies on R404A hydrocarbon refrigerant, which is energy-efficient and environmentally safe.

Made of stainless steel, the Hoshizaki KMH2100SRJZ3 ice maker head can withstand persistent use in a high-traffic environment, as it is resistant to rust, corrosion, and abrasions such as scratches and dents. To keep the internal components free of mold and bacteria, this product is equipped with an H-GUARD Plus antimicrobial agent. This unit requires operators to order a remote condenser and an ice bin, as both items are required to operate the machine head.

  • KM Series
  • Remote, air-cooled system
  • 2,026-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
  • 1,925-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
  • Crescent ice cube shape
  • Crescent-cube ice size: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
  • Exterior and evaporator are made of stainless steel
  • H-GUARD Plus antimicrobial agent
  • EverCheck™ alert system
  • CycleSaver™ design
  • Relies on R404A refrigerant
  • Requires remote condenser (sold separately)
  • Ice bin sold separately
  • 22,900 BTU
  • "Z" model ice machine must be paired with "Z" model remote condenser

  • Ambient temperature holding range: 45-100 degrees F
  • Water temperature holding range: 45-90 degrees F
  • Water pressure: 10-113 PSIG
  • Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
  • Water supply requires copper water tubing with a minimum 3⁄8-in. inner diameter
  • Drain requires a hard pipe with a minimum 3⁄4-in. inner diameter

  • 36 in. W x 40 in. D x 36 7⁄16 in. H
  • 12.5 A, 3.67 kW
  • 208-230 V/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hoshizaki KMH-2100SRJZ3 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Ice Maker, Cube-Style, 36"W, air-cooled, remote condenser (priced separately), production capacity up to 2026 lb/24 hours at 70°/50° (1925 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/3-ph, 12.5 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)
Warranty Icon
3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Watch a video about this product

Hoshizaki KMH-2100SRJZ3 Specifications

Warning Small Important Prop 65 information for California residents.



















Related Categories
0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It produces 2,026 lbs. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

This unit requires 6 in. of clearance on the rear, sides, and top.

— KaTom Foodservice Equipment Specialist

Yes, the EverCheck™ alert system monitors machine status.

— KaTom Foodservice Equipment Specialist

The H-GUARD Plus® antimicrobial agent protects internal components.

— KaTom Foodservice Equipment Specialist

Yes. A compatible ice bin and remote condenser are sold separately.

— KaTom Foodservice Equipment Specialist

The removable panels provide access to service components.

— KaTom Foodservice Equipment Specialist

A stainless steel exterior resists rust, corrosion, and dents.

— KaTom Foodservice Equipment Specialist

It can produce up to 2,026 lb. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

It makes crescent cube ice.

— KaTom Foodservice Equipment Specialist

It measures 36 in. W x 40 in. D x 36 7/16 in. H.

— KaTom Foodservice Equipment Specialist

It uses a remote-cooled condensing system.

— KaTom Foodservice Equipment Specialist

It requires 208/230 V electrical service.

— KaTom Foodservice Equipment Specialist

It uses three-phase power.

— KaTom Foodservice Equipment Specialist

It uses R404A refrigerant.

— KaTom Foodservice Equipment Specialist

It requires a hardwired electrical connection.

— KaTom Foodservice Equipment Specialist

Its listed certifications include ENERGY STAR, NSF, and UL.

— KaTom Foodservice Equipment Specialist

Its exterior is made of stainless steel.

— KaTom Foodservice Equipment Specialist

It requires a 1/2-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

No, this ice machine head is sold without an ice bin.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

Yes, it has an alert system.

— KaTom Foodservice Equipment Specialist

Yes, it requires a separate remote condenser.

— KaTom Foodservice Equipment Specialist
