Hoshizaki KM-901MWJ 30" Crescent Cube Ice Machine Head - 950 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 4 - 8 Business Days
$6,790.00 /Each
Contact us for details!
Similar Products in Stock Now
Hoshizaki KM-901MWJ Description
The Hoshizaki KM-901MWJ ice machine head is ideal for use in a mid-volume establishment because it makes as much as 950 pounds of ice each day, depending on surrounding conditions. It produces crescent cube ice, which has a high ice-to-water ratio that blends well into smoothies and quickly cools glasses of soda and water. To ensure ice has a fresh flavor, the ice maker is equipped with H-Guard Plus&Reg; antimicrobial protection that prevents mildew growth.
Because the Hoshizaki KM-901MWJ ice maker has a self-contained condenser, it takes less labor to install than remote versions. Its condenser is water cooled, so it's more energy efficient than an air-cooled model in establishments that already have a water-circulating chiller system. The unit uses R404A refrigerant, and its exterior is made of strong stainless steel.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 950-lb. daily ice production
- 870-lb. daily AHRI-certified ice production

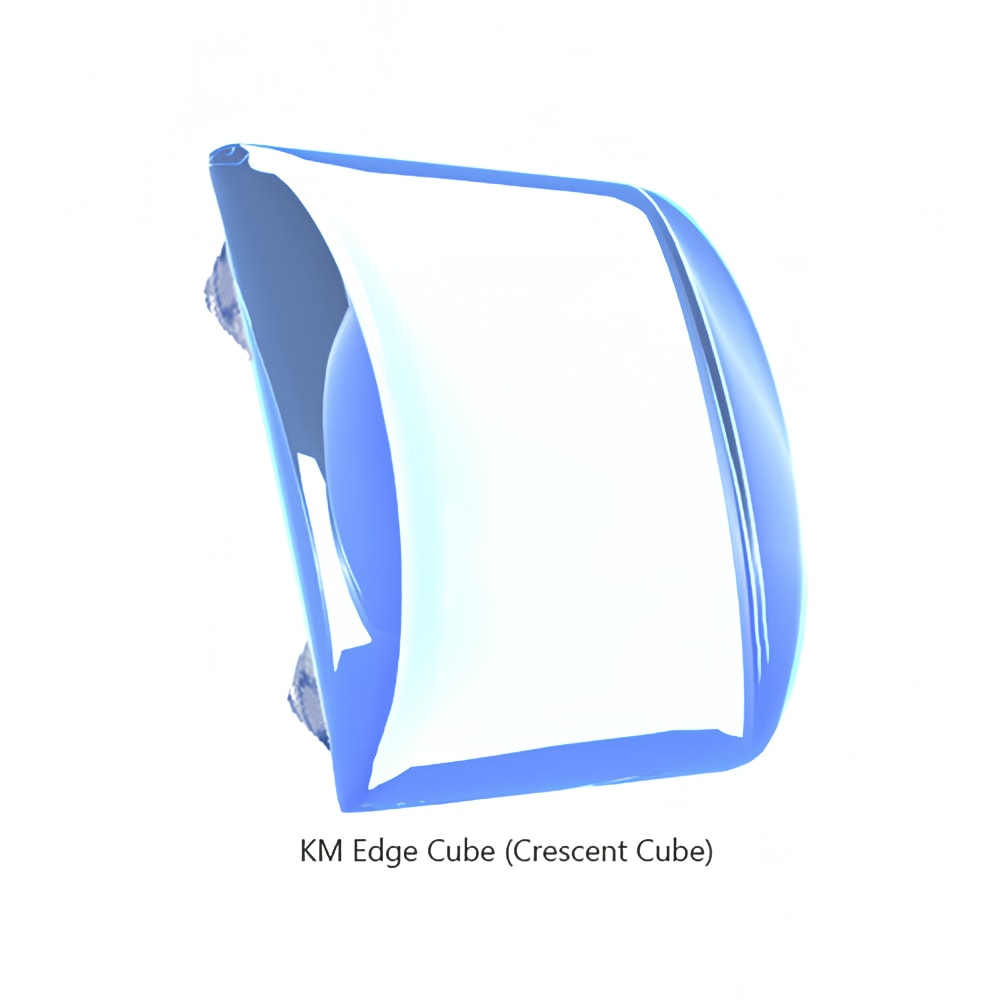

- Makes crescent cube ice
- Ice cube size: 1⁄2 in. W x 11⁄8 in. D x 11⁄2 in. H
- Condenser is self-contained and water cooled
- Uses R404A refrigerant
- EverCheck™ control board helps users diagnose problems
- CycleSaver™ design uses little energy to produce efficient amounts of ice
- Exterior is constructed of durable, attractive stainless steel
- H-Guard Plus antimicrobial agent enhances ice taste
- 12,700-BTU heat transfer capacity
- Ideal ambient temperature range: 45-100 degrees F
- Ideal water temperature range: 45-90 degrees F
- Ideal water pressure range: 10-113 PSIG
- 12-in. clearance required at rear, sides, and top
Product Features

Dimensions & Utilities
- 30 in. W x 273⁄8 in. D x 321⁄2 in. H
- 10 A, 3.6 kW
- 208-230 V/60 Hz/1 ph
*Free shipping on Hoshizaki KM-901MWJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 950 lb/24 hours at 70°/50° (870 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 10.0 amps, NSF, UL
*Image may not depict product color, inclusions or accessories.

Watch a video about this product
Hoshizaki KM-901MWJ Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Hoshizaki |
24 Hr. Production (lb) | 950 |
Compressor Type | Water Cooled |
Depth (in) | 27.38 |
Height (in) | 32.5 |
Ice Type | Crescent Cube |
Voltage | 208/230 |
Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
Width (in) | 30 |
Series | KM EDGE |
Phase | 1 |
Rating | Best |
Product | Ice Machine Heads |
Product Type | Ice Makers & Bins |
Weight | 249.00 |
