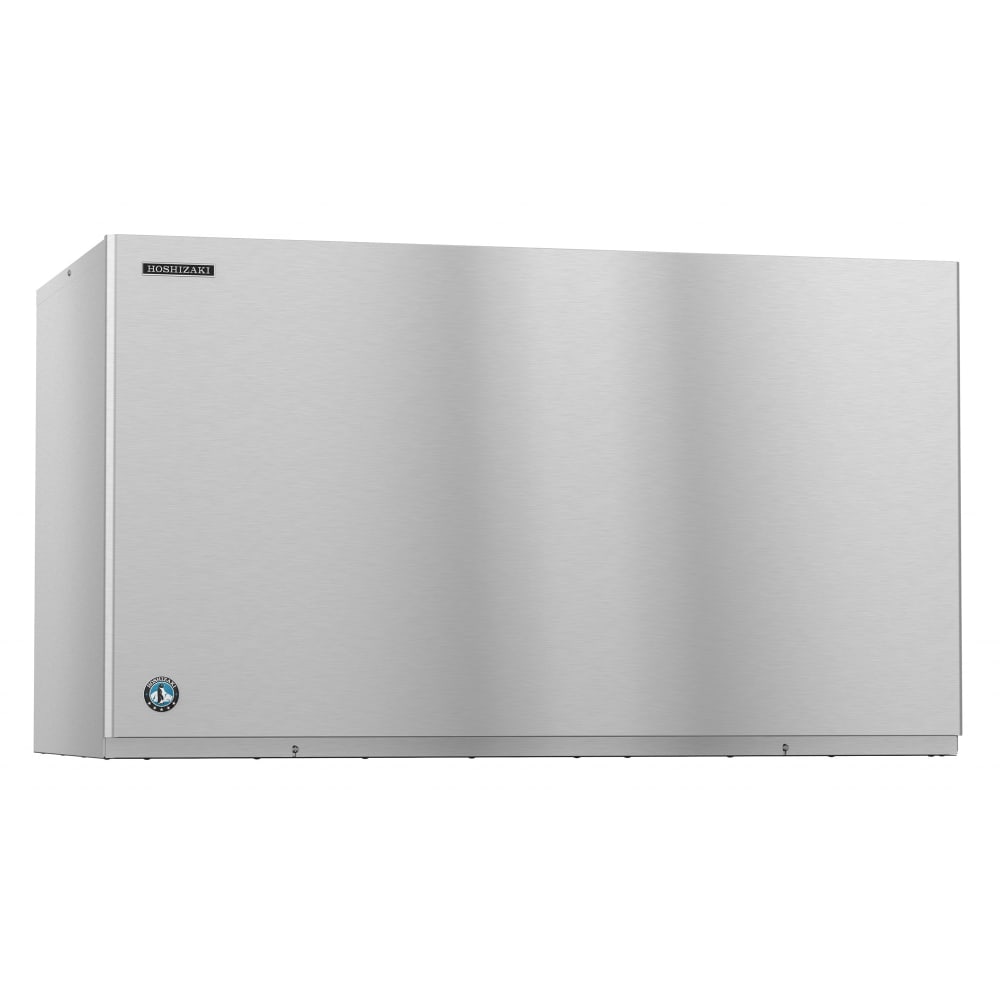

Hoshizaki KM-1601SWJ3 48" Crescent Cube Ice Machine Head - 1671 lb/24 hr, Water Cooled, 208-230v/3ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,990.00 /Each
Contact us for details!
Hoshizaki KM-1601SWJ3 Description
Inhibiting the growth of problematic bacteria, the Hoshizaki KM-1601SWJ3 ice maker is protected with antimicrobial H-Guard Plus®. Its stainless steel construction is resistant to dents, scratches, and stains, and can be wiped clean. Great for soft drinks, this unit produces versatile crescent-cube ice.
The Hoshizaki KM-1601SWJ3 ice machine features a self-contained, water-cooled refrigeration system. Ideal for busy fast food restaurants and high-volume bars, it has a daily production capacity of 1,671 pounds. Alerting users of operational issues, it features an EverCheck™ system.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 1,671-lb. daily ice production
- 1,660-lb. daily AHRI-certified ice production

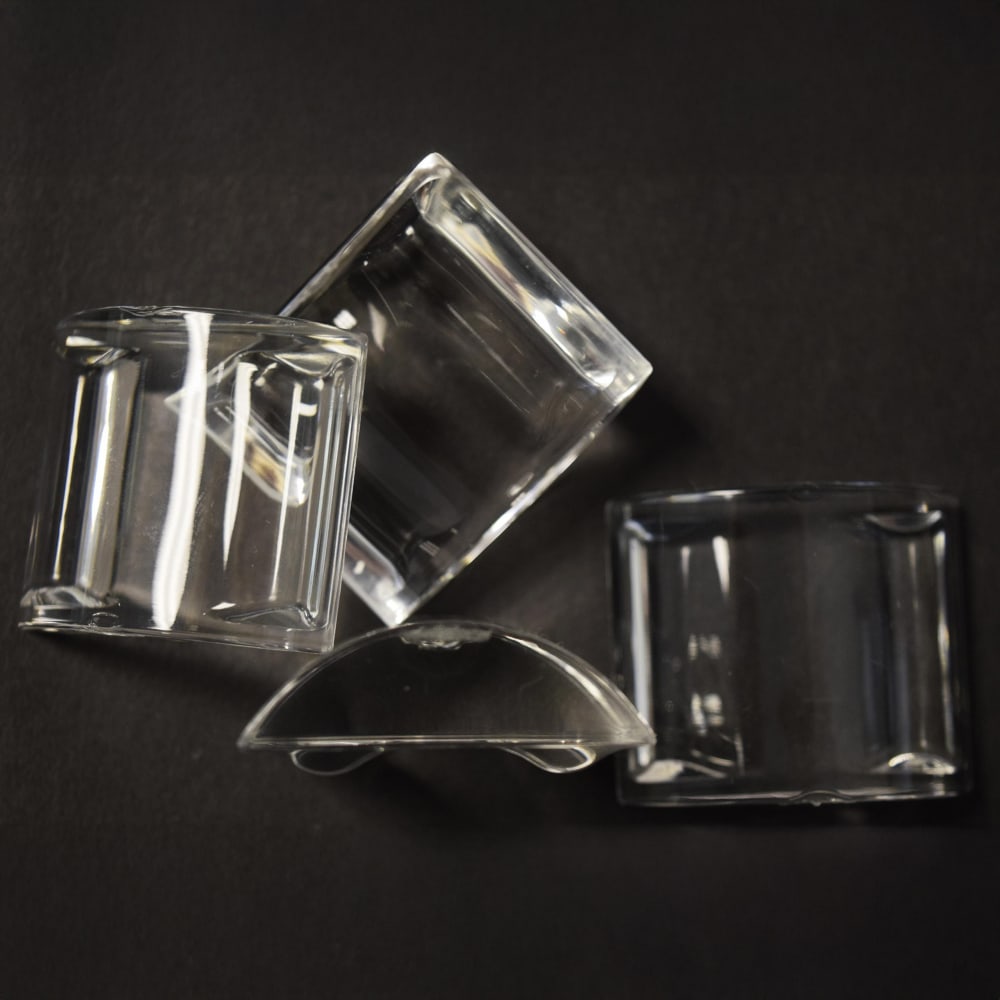

- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- CycleSaver™ design
- Protected with H-Guard Plus antimicrobial agent
- EverCheck alert system
- Stainless steel exterior resists scratching and denting
- Stainless steel evaporator
- Self-contained, water-cooled refrigeration system
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- Uses R-404A refrigerant
- 19,900 BTU heat transfer capacity
- 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- 8.8 A, 3.32 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ3 within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL
Watch a video about this product
Hoshizaki KM-1601SWJ3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1671 |
| Compressor Type | Water Cooled |
| Depth (in) | 27.38 |
| Height (in) | 27.38 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 3 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 360.00 |
