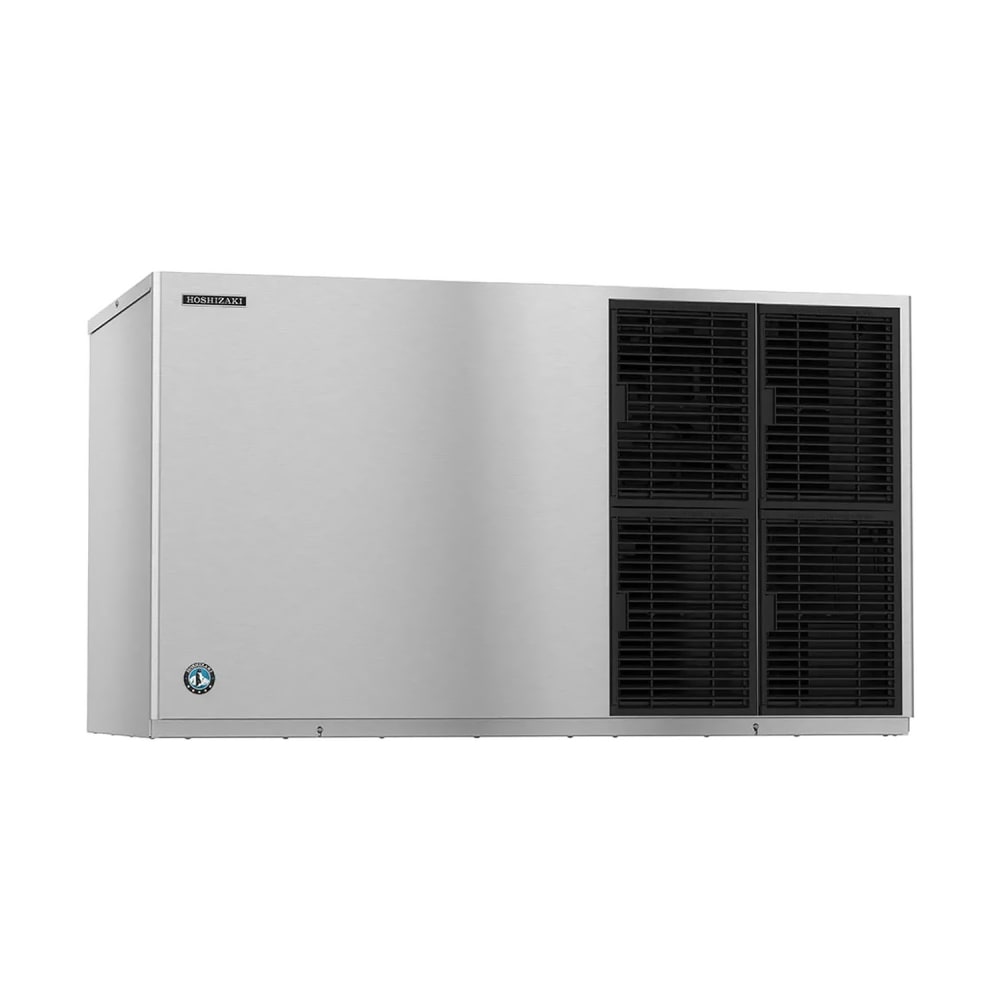

Hoshizaki KM-1601SAJ3 48" Crescent Cube Ice Machine Head - 1513 lb/24 hr, Air Cooled, 208-230v/3ph

KaTom #: 440-KM1601SAJ3 • MPN: KM-1601SAJ3
  • 440-KM1601SAJ3 Primary Thumbnail Image
  • 440-KM1601SAJ3 Multiple Thumbnail Image #1
  • 440-KM1601SAJ3 Multiple Thumbnail Image #2

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$11,180.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Air Cooled

Water CooledWater Cooled Remote CooledRemote Cooled
Justin France User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 12-01-2026 to save before the price increases!

Hoshizaki KM-1601SAJ3 Description

The Hoshizaki KM-1601SAJ3 ice maker is an ideal option for sports bars and other casual dining restaurants, where its crescent cubes can be used with water, iced tea, soft drinks, and other beverages. Helping establishments keep up with the flow of customer traffic, it can make 1,513 pounds of ice a day. If additional ice is needed, its stackable design enables another ice maker to be connected.

With a stainless steel exterior, the Hoshizaki KM-1601SAJ3 crescent ice machine withstands dings and scrapes. Keeping rust or corrosion from contaminating the ice-making water, its evaporator is also stainless steel. To further optimize sanitation, the maker is protected with H-GUARD Plus®, which combats microbial buildup.

Note: This unit must be paired with an ice maker bin or ice dispenser.

  • 1,513-lb. maximum daily ice production
  • 1,414-lb. AHRI-certified daily ice production
  • Air-cooled system
  • Produces crescent ice

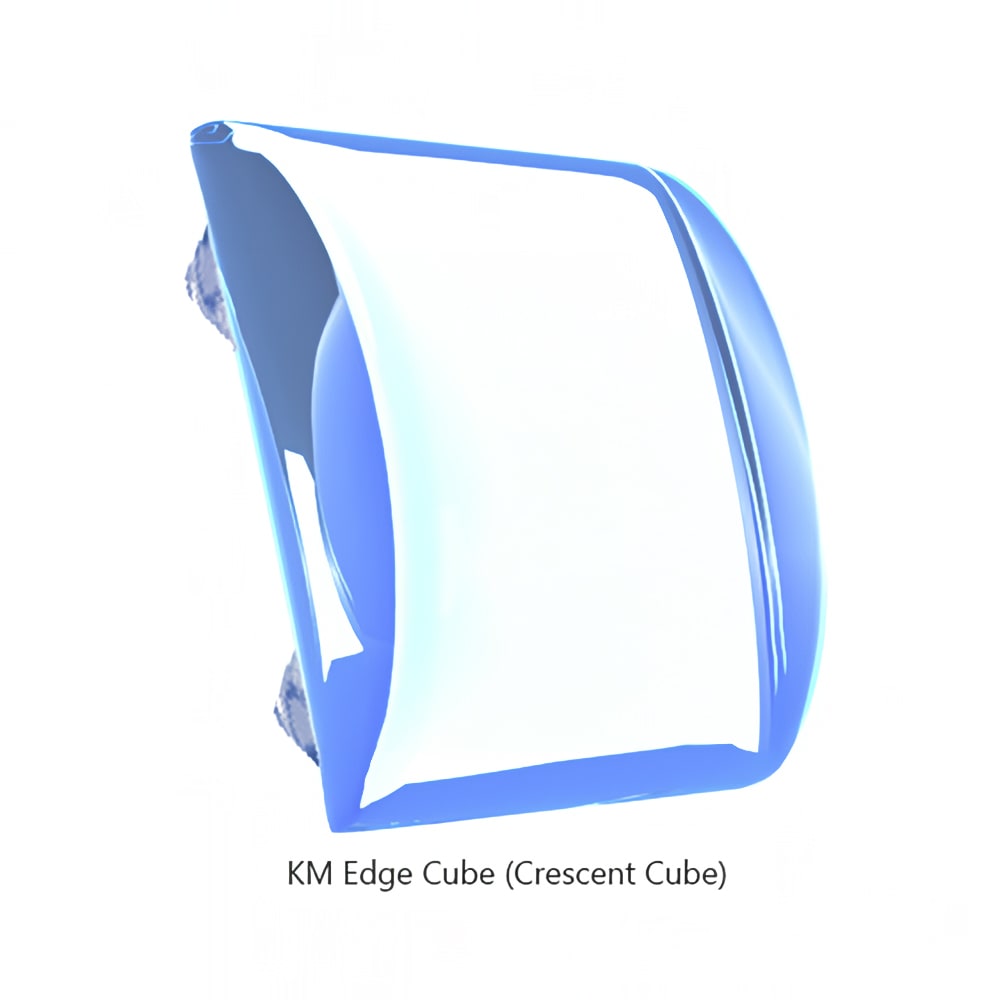

  • Crescent cube size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
  • Durable stainless steel exterior
  • H-GUARD Plus antimicrobial protection
  • EverCheck™ alert system provides notifications as needed
  • Stackable design enables additional ice production
  • Stainless steel evaporator
  • CycleSaver™
  • Ideal ambient air temperature: 45-100 degrees F
  • Ideal incoming water temperature: 45-90 degrees F
  • Ideal incoming water pressure: 10-113 PSI
  • R404A refrigerant
  • 16,400 BTU heat transfer capacity
  • Ideal clearances: 9 in. at top, sides, and back

  • 48 1⁄4 in. W x 27 7⁄16 in. D x 27 3⁄8 in. H
  • 12.9 A, 4.4 kW
  • 208-230 V/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hoshizaki KM-1601SAJ3 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1414 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 12.9 amps, NSF, UL
Warranty Icon
3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Watch a video about this product

Hoshizaki KM-1601SAJ3 Specifications

Warning Small Important Prop 65 information for California residents.

Replacement for the Following Item
  • Hoshizaki KM1601SAH3
Equivalent Items












Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It can produce up to 1,513 lb. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

It makes crescent cube ice.

— KaTom Foodservice Equipment Specialist

It measures 48 1/4 in. W x 27 7/16 in. D x 27 3/8 in. H.

— KaTom Foodservice Equipment Specialist

It uses an air-cooled condensing system.

— KaTom Foodservice Equipment Specialist

It requires 208/230 V electrical service.

— KaTom Foodservice Equipment Specialist

It uses three-phase power.

— KaTom Foodservice Equipment Specialist

It uses R404A refrigerant.

— KaTom Foodservice Equipment Specialist

It requires a hardwired electrical connection.

— KaTom Foodservice Equipment Specialist

Its listed certifications include AHRI, NSF, and UL.

— KaTom Foodservice Equipment Specialist

Its exterior is made of stainless steel.

— KaTom Foodservice Equipment Specialist

It requires a 1/2-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

No, this ice machine head is sold without an ice bin.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

Yes, this ice machine head supports stacking.

— KaTom Foodservice Equipment Specialist

Yes, it has an alert system.

— KaTom Foodservice Equipment Specialist
