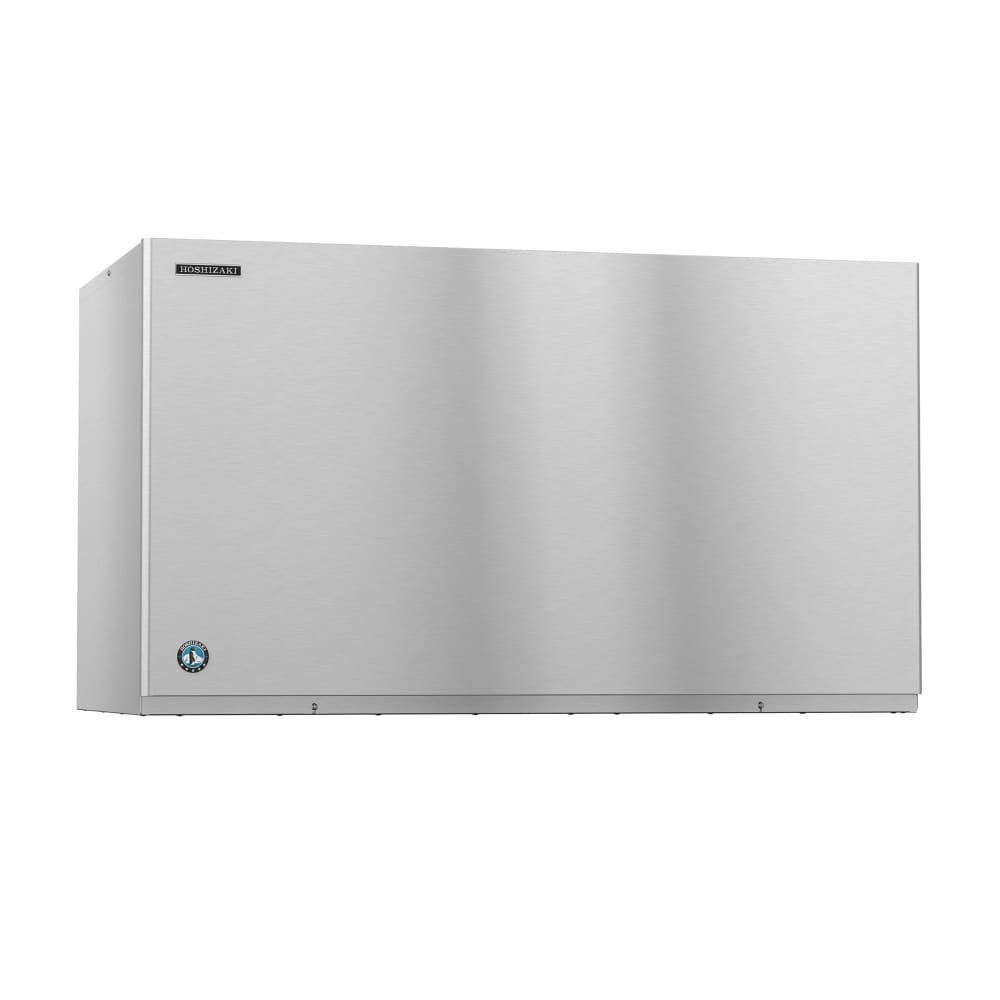

Hoshizaki KM-1601SRJZ3 48" Crescent Cube Ice Machine Head - 1635 lb/24 hr, Remote Cooled, 208-230v/3ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,840.00 /Each
Contact us for details!
Attention: Order by 12-01-2026 to save before the price increases!
Hoshizaki KM-1601SRJZ3 Description
The Hoshizaki KM1601SRJZ3 ice machine head produces crescent cube style ice using an air-cooled system that utilizes R404A hydrocarbon refrigerant. This unit is constructed of stainless steel to resist rust, corrosion, and dents. Its durable construction can withstand heavy use, and an H-GUARD Plus antimicrobial agent ensures the internal mechanisms stay free of mold and bacteria.
To enable proper air circulation, the Hoshizaki KM1601SRJZ3 ice maker head requires 9 inches of clearance above the unit, at the rear, and on both sides. This item requires a remote condenser and an ice bin to catch and hold produced ice, both of which are sold separately. Under ideal conditions, this unit can produce up to 1,635 pounds of ice every 24 hours.

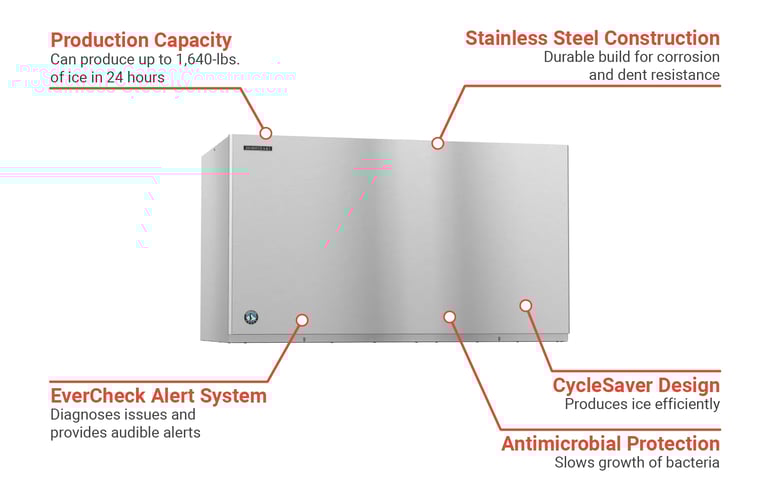

- KM Series
- Remote, air-cooled system
- 1,635-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
- 1,600-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
- Individual crescent ice cube shape
- Crescent-cube ice size: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
- Durable, stainless steel exterior
- H-GUARD Plus antimicrobial agent
- EverCheck™ alert system
- CycleSaver™ design
- R404A refrigerant
- Requires remote condenser (sold separately)
- Ice bin not included
- 20,000 BTU
- "Z" model ice machine must be paired with "Z" model remote condenser
- Ambient temperature holding range: 45-100 degrees F
- Water temperature holding range: 45-90 degrees F
- Water pressure: 10-113 PSIG
- Clearances: 9-in. on both sides, 9-in. in rear, and 9-in. above
- Water supply requires copper water tubing with a minimum 3⁄8-in. inner diameter
- Unit requires hard drain pipe with a minimum 3⁄4-in. inner diameter
- 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- 12.8 A, 4.14 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SRJZ3 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki KM-1601SRJZ3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1635 |
| Compressor Type | Remote Cooled |
| Depth (in) | 27.38 |
| Height (in) | 27.38 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 3 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 335.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM1601SRJ3
- 5
- 4
- 3
- 2
- 1
Review this product!
It can produce up to 1,635 lb. of ice per 24 hours.
It makes crescent cube ice.
It measures 48 in. W x 27 3/8 in. D x 27 3/8 in. H.
It uses a remote-cooled condensing system.
It requires 208/230 V electrical service.
It uses three-phase power.
It uses R404A refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include ENERGY STAR, NSF, and UL.
Its exterior is made of stainless steel.
It requires a 1/2-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
Yes, it has an alert system.
Yes, it requires a separate remote condenser.
