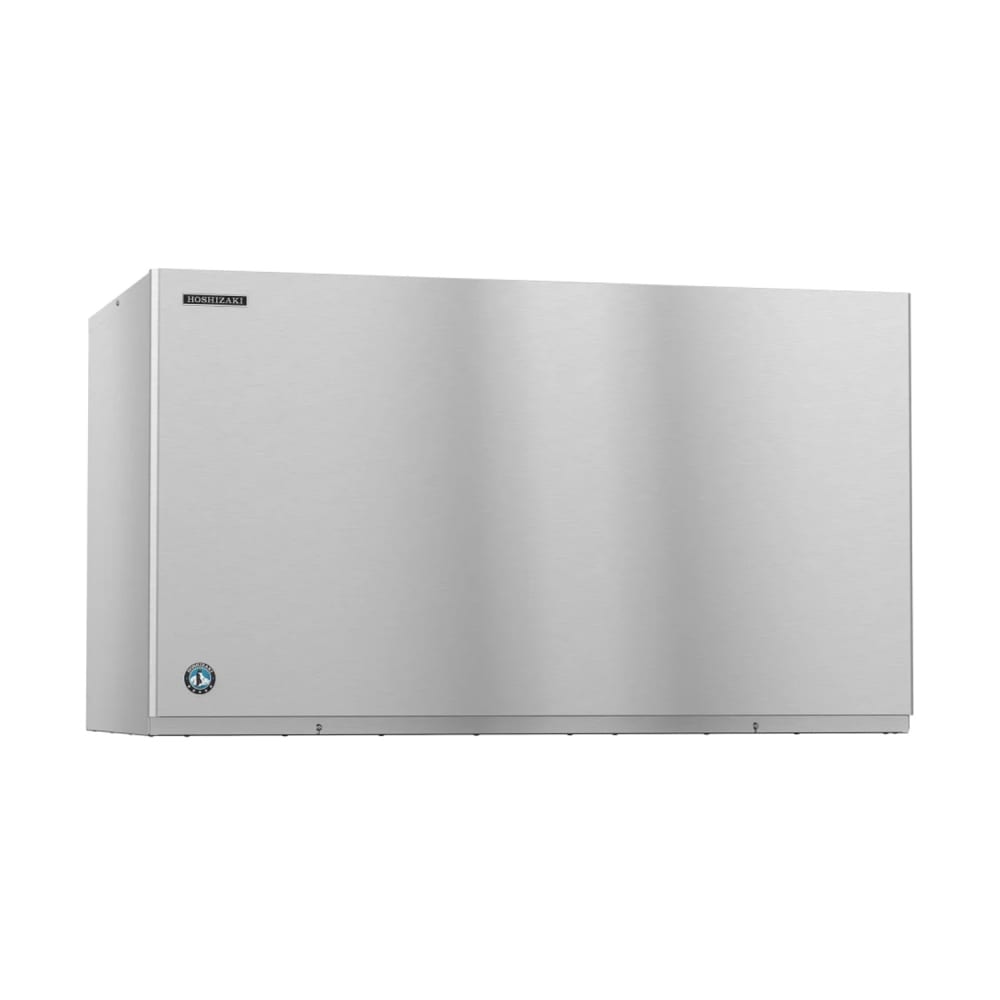

Hoshizaki KM-1601SWJ3 48" Crescent Cube Ice Machine Head - 1671 lb/24 hr, Water Cooled, 208-230v/3ph

KaTom #: 440-KM1601SWJ3 • MPN: KM-1601SWJ3
  • 440-KM1601SWJ3 Primary Thumbnail Image
  • 440-KM1601SWJ3 Multiple Thumbnail Image #1
  • 440-KM1601SWJ3 Multiple Thumbnail Image #2
Free Shipping Item

$10,990.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Water Cooled

Remote CooledRemote Cooled Air CooledAir Cooled
Justin France User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 12-01-2026 to save before the price increases!

Hoshizaki KM-1601SWJ3 Description

Inhibiting the growth of problematic bacteria, the Hoshizaki KM-1601SWJ3 ice maker is protected with antimicrobial H-Guard Plus®. Its stainless steel construction is resistant to dents, scratches, and stains, and can be wiped clean. Great for soft drinks, this unit produces versatile crescent-cube ice.

The Hoshizaki KM-1601SWJ3 ice machine features a self-contained, water-cooled refrigeration system. Ideal for busy fast food restaurants and high-volume bars, it has a daily production capacity of 1,671 pounds. Alerting users of operational issues, it features an EverCheck™ system.

Note: This unit must be paired with an ice maker bin or ice dispenser.

  • 1,671-lb. daily ice production
  • 1,660-lb. daily AHRI-certified ice production
  • Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
  • CycleSaver™ design
  • Protected with H-Guard Plus antimicrobial agent
  • EverCheck alert system
  • Stainless steel exterior resists scratching and denting
  • Stainless steel evaporator
  • Self-contained, water-cooled refrigeration system
  • Ideal ambient temperature range: 45-100 degrees F
  • Ideal incoming water temperature range: 45-90 degrees F
  • Ideal incoming water pressure: 10-113 PSIG
  • Uses R-404A refrigerant
  • 19,900 BTU heat transfer capacity

  • 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
  • 8.8 A, 3.32 kW
  • 208-230 V/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hoshizaki KM-1601SWJ3 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL
Warranty Icon
3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Watch a video about this product

Hoshizaki KM-1601SWJ3 Specifications

Warning Small Important Prop 65 information for California residents.



















Related Categories
0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It can produce up to 1,671 lb. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

It makes crescent cube ice.

— KaTom Foodservice Equipment Specialist

It measures 48 in. W x 27 3/8 in. D x 27 3/8 in. H.

— KaTom Foodservice Equipment Specialist

It uses a water-cooled condensing system.

— KaTom Foodservice Equipment Specialist

It requires 208/230 V electrical service.

— KaTom Foodservice Equipment Specialist

It uses three-phase power.

— KaTom Foodservice Equipment Specialist

It uses R404A refrigerant.

— KaTom Foodservice Equipment Specialist

It requires a hardwired electrical connection.

— KaTom Foodservice Equipment Specialist

Its listed certifications include AHRI, NSF, and UL.

— KaTom Foodservice Equipment Specialist

Its exterior is made of stainless steel.

— KaTom Foodservice Equipment Specialist

It requires a 1/2-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

No, this ice machine head is sold without an ice bin.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

Yes, this ice machine head supports stacking.

— KaTom Foodservice Equipment Specialist

Yes, it has an alert system.

— KaTom Foodservice Equipment Specialist
