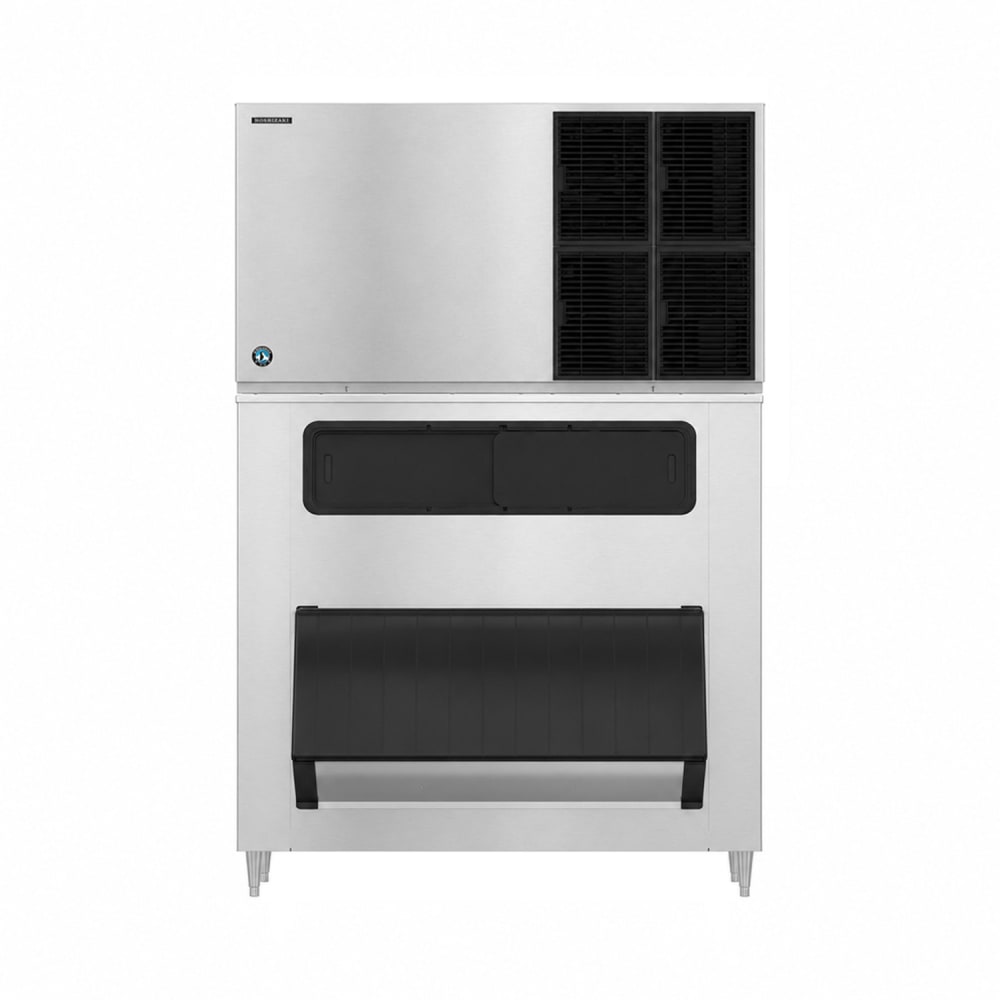

Hoshizaki KM-1601SAJ/B-1300SS 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,075.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Voltage: 208-230V, 1 Phase
| 208-230V, 1 Phase |
| 208-230V, 3 Phase |
Hoshizaki KM-1601SAJ/B-1300SS Description
Depending on external conditions, the Hoshizaki KM-1601SAJ/B-1300SS ice maker and bin can produce as much as 1,513 pounds of ice in 24 hours. It makes crescent cube ice, which is ideal for serving in sodas in casual restaurants and using in blended drinks. Because of its built-in antimicrobial agent, this unit makes ice in sanitary conditions, while its condenser is self-contained and air cooled with R404A refrigerant.
When ice has been made, it is stored in the Hoshizaki KM-1601SAJ/B-1300SS ice machine with bin, which is insulated with polyurethane to minimize ice loss and increase energy efficiency. Lined with a polyethylene liner and equipped with a sealed door gasket, the bin resists the accumulation of bacteria.
- 1,513-lb. maximum daily ice production
- 1,433-lb. AHRI-certified daily ice production
- Makes individual crescent cube ice
- Crescent cube ice size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
- Made of stainless steel
- H-Guard Plus antimicrobial agent helps prevent bacterial growth
- Users know when the unit requires maintenance with the EverCheck™ alert system
- Air-cooled condenser uses R404A refrigerant
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 1,304-lb. storage capacity
- Bin walls, bottom, and door are insulated to preserve ice
- Sealed door gasket reduces airborne contaminants inside the bin
- Baffle design makes ice accessible
- Pouch-style door prevents condensation and spills
- Users can perform inspections and thermal breaks with the view window
- Unit's height can be adjusted with 6-in. stainless steel legs
- 82-oz. ice scoop included
- Scoop protected with H-Guard Plus antimicrobial
-
Ice Maker
-
48 1⁄4 in. W x 27 7⁄16 in. D x 27 3⁄8 in. H
-
15.9 A
-
208-230 V/60 Hz/1 ph
-
Ice Bin
-
48 in. W x 41 in. D x 66 3⁄16 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SAJ/B-1300SS within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1433 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL
Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SAJ/B-1300SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1513 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1304 |
| Compressor Type | Air Cooled |
| Depth (in) | 41 |
| Height (in) | 93.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 680.00 |
