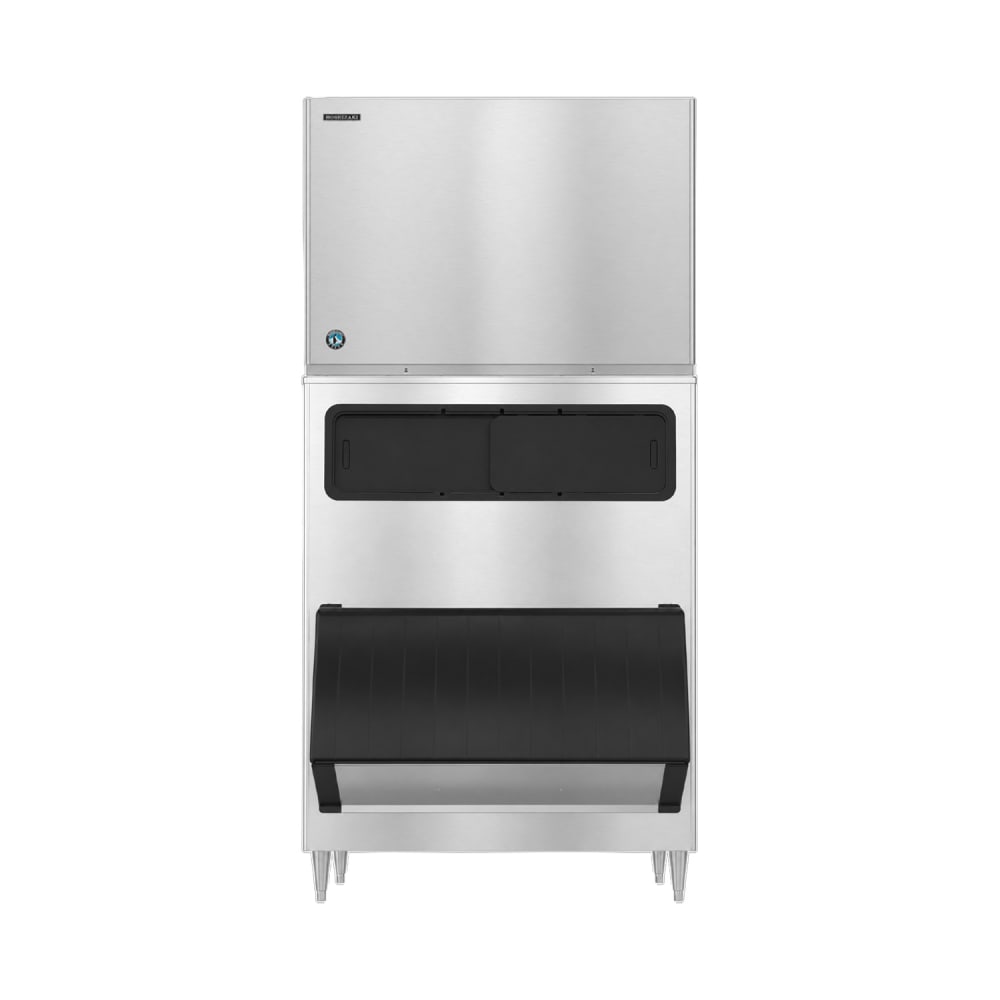

Hoshizaki KM-1601SWJ/B-1300SS 1660 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,105.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1601SWJ/B-1300SS Description
To keep the unit running smoothly and efficiently, the Hoshizaki KM-1601SWJ/B-1300SS ice machine/bin combo features an EverCheck™ system to alert users to operational issues. Ideal for high-volume establishments, it produces as much as 1,660 pounds of crescent cube ice per day. This versatile style can be used to blend smoothies, cool cocktails, or serve in soft drinks.
The Hoshizaki KM-1601SWJ/B-1300SS ice maker with bin utilizes CycleSaver™ technology to conserve energy by running fewer cycles. The bin is lined with seamless polyethylene to eliminate crevices that could harbor bacteria. To enable visibility, it is designed with top-view windows.
- 1,660-lb. daily ice production
- 1,650-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Stainless steel exterior resists rusting, denting, and scratching
- CycleSaver runs fewer cycles to reduce energy consumption
- Self-contained, water-cooled refrigeration system
- Stainless steel evaporator
- EverCheck alert system indicates operational issues
- Antimicrobial H-Guard Plus® inhibits harmful bacterial growth
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- Uses R-404A refrigerant
- 21,300-BTU heat transfer capacity
- 1,304-lb. ice storage capacity
- 82-oz. ice scoop included
- Sturdy stainless steel exterior
- Polyethylene interior liner provides sanitary storage
- Top view windows offer visibility
- 6-in. adjustable stainless steel legs
- Hinged bottom door
- Foamed-in-place polyurethane insulation maintains ideal temperatures
- Sealed door gasket reduces contamination risks from airborne bacteria
- Scoop and bin protected with H-Guard Plus antimicrobial agent
- Ice machine: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- Ice bin: 48 in. W x 41 in. D x 66 3⁄16 in. H
- 13.6 A, 3.3 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ/B-1300SS within the 48 contiguous states.
From The Manufacturer

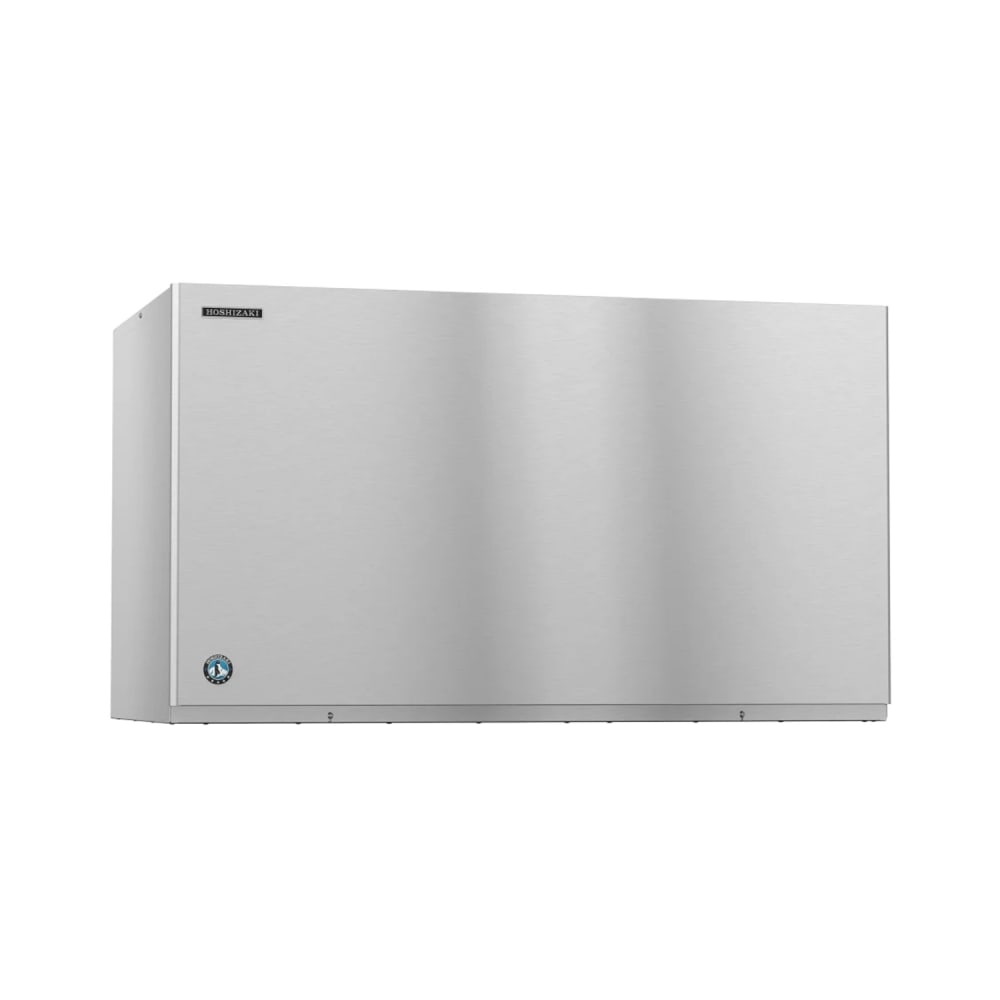

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1660 lb/24 hours at 70°/50° (1650 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.6 amps, NSF, UL

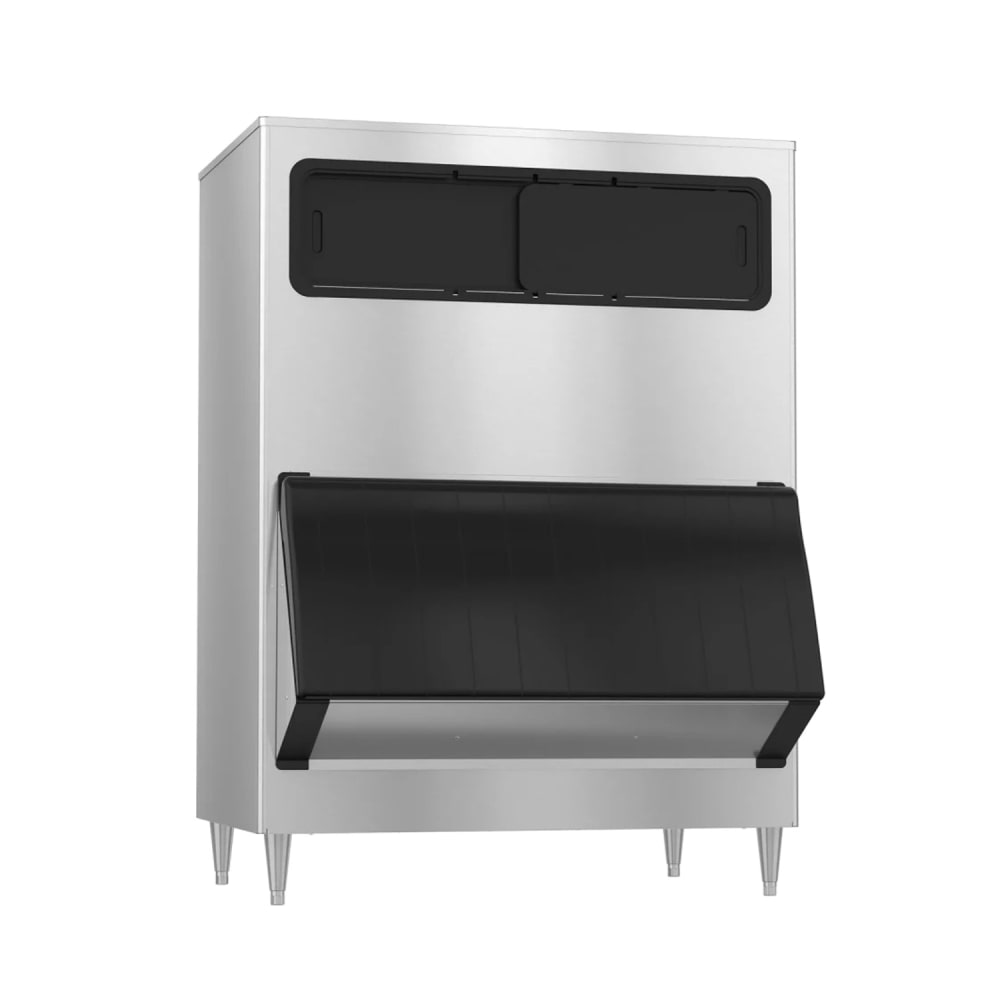

Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ/B-1300SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1660 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1304 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 93.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 725.00 |
