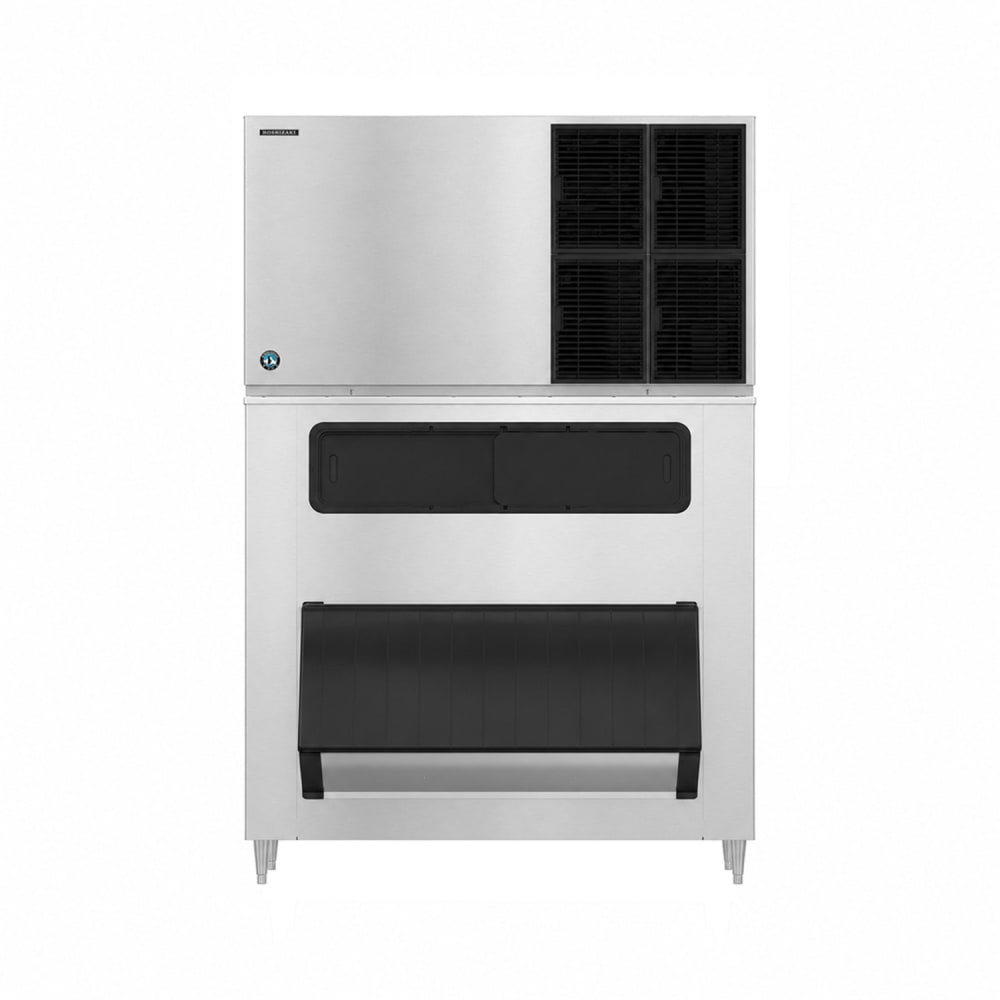

Hoshizaki KM-1601SAJ3/B-1300SS 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,365.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Voltage: 208-230V, 3 Phase
| 208-230V, 3 Phase |
| 208-230V, 1 Phase |
Hoshizaki KM-1601SAJ3/B-1300SS Description
The Hoshizaki KM-1601SAJ3/B-1300SS ice machine makes crescent cubes, which is an excellent beverage complement for diners, burger joints, sports bars, and other casual restaurant venues. Since it is air-cooled, it uses drawn air instead of plumbed water to cool itself. To keep up with high customer traffic, the ice maker produces 1,513 pounds of ice daily.
Providing establishments a sizable amount of storage space, the Hoshizaki KM-1601SAJ3/B-1300SS crescent ice maker’s ice storage bin holds 1,304 pounds of ice. The bin’s polyethylene liner enhances unit sanitation, as does its H-GUARD Plus® antimicrobial defense. A set of 6-inch legs give staff members space to reach underneath the machine and perform cleaning duties.
- 1,513-lb. maximum daily ice production
- 1,414-lb. AHRI-certified daily ice production
- Air-cooled condenser
- Produces crescent-style ice
- Crescent cube size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
- Stainless steel evaporator
- EverCheck™ alert system uses beeps to diagnose issues
- CycleSaver™ design can produce as much ice as similar units in less cycles
- Stackable design
- Durable stainless steel exterior
- H-GUARD Plus antimicrobial protection
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water pressure: 10-113 PSI
- Ideal incoming water temperature: 45-90 degrees F
- R404A refrigerant
- 16,400 BTU heat transfer capacity
- Ideal clearances: 9 in. at top, sides, and back
- 41.2-cu.-ft. capacity
- 1,304-lb. bin capacity
- Insulated pouch style door reduces condensation
- Baffle design promotes ice accessibility
- Seamless polyethylene bin liner
- H-GUARD Plus protects bin from microbe buildup
- Foamed-in-place polyurethane insulation
- Viewing windows display ice bin contents
- Resilient stainless steel construction
- Includes 82-oz. scoop with H-GUARD Plus antimicrobial agent
- 6-in. stainless steel legs
- Ice machine: 48 1⁄4 in. x 27 7⁄16 in. x 27 3⁄8 in.
- Ice bin: 48 in. W x 41 in. D x 66 in. H
- 12.9 A, 4.4 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SAJ3/B-1300SS within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1414 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 12.9 amps, NSF, UL
Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SAJ3/B-1300SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1513 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1304 |
| Compressor Type | Air Cooled |
| Depth (in) | 41 |
| Height (in) | 93.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 680.00 |
