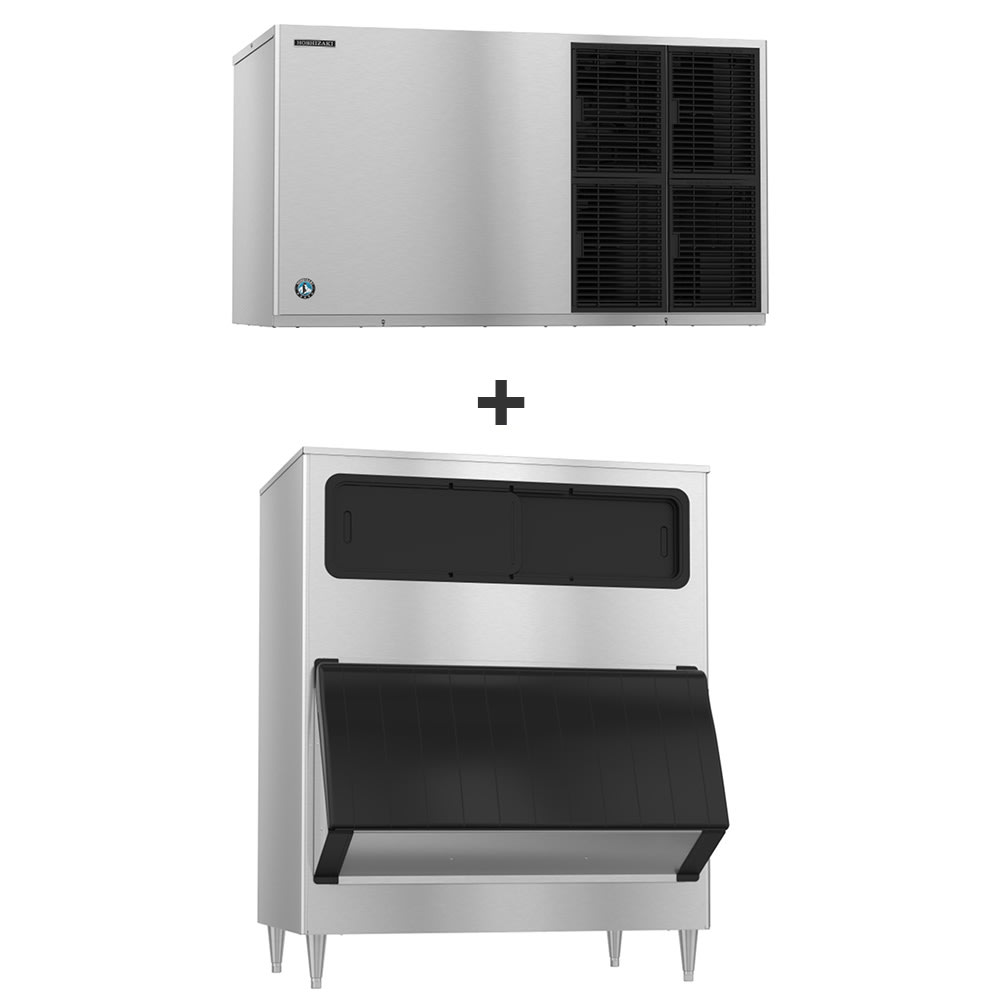

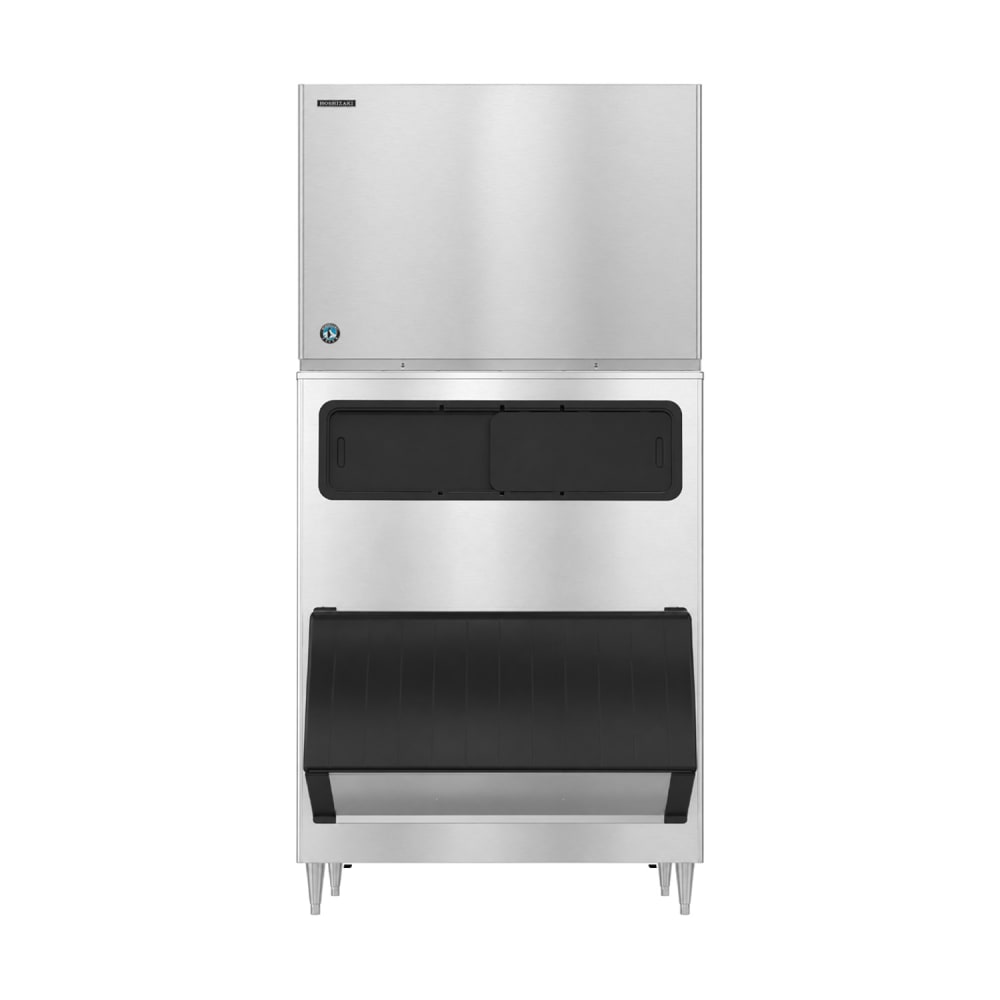

Hoshizaki KM-1601SWJ3/B-1300SS 1671 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-1601SWJ3/B-1300SS ice machine/bin combo produces as much as 1,660 pounds of crescent cube ice in a single day. This ice style is ideal for everything from blending into smoothies to serving cocktails. After the ice is produced, it is stored in an accompanying bin with a capacity of 1,304 pounds to provide users with access to plenty of ice for all their daily needs.

The Hoshizaki KM-1601SWJ3/B-1300SS features an EverCheck™ alert system to notify users of operational problems. To maintain fresh, clean ice, its antimicrobial H-Guard Plus® protects against bacterial growth. Preventing ice from melting, the bin is insulated with foamed-in-place polyurethane.

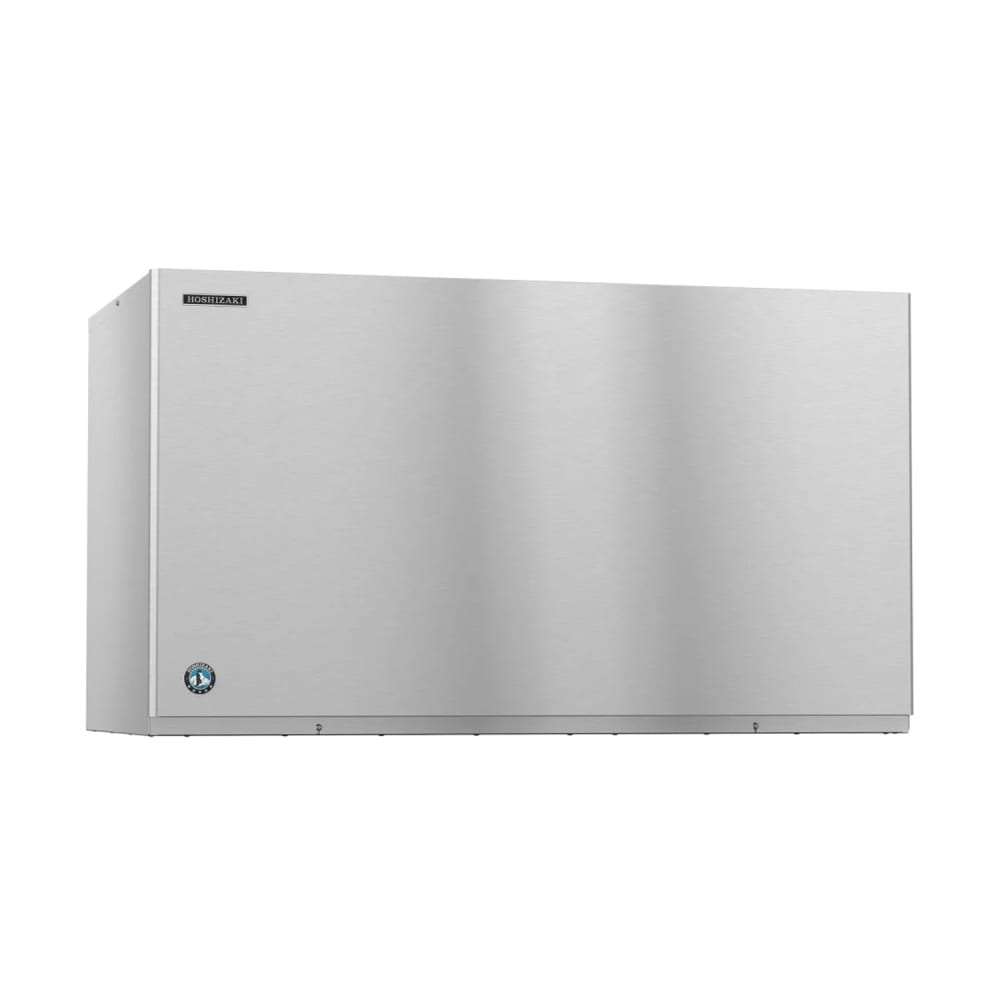

Ice Machine Details

• 1,660-lb. daily ice production
• 1,650-lb. daily AHRI-certified ice production
• Crescent cube ice size: 1¹⁄₂ in. x 1¹⁄₈ in. x ¹⁄₂ in.
• H-Guard Plus inhibits bacterial growth
• Self-contained, water-cooled refrigeration system
• Sturdy stainless steel exterior
• Stainless steel evaporator
• Efficient CycleSaver™ technology
• EverCheck system alerts users to operating issues
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• Uses R-404A refrigerant
• 19,900-BTU heat transfer capacity

Product Features

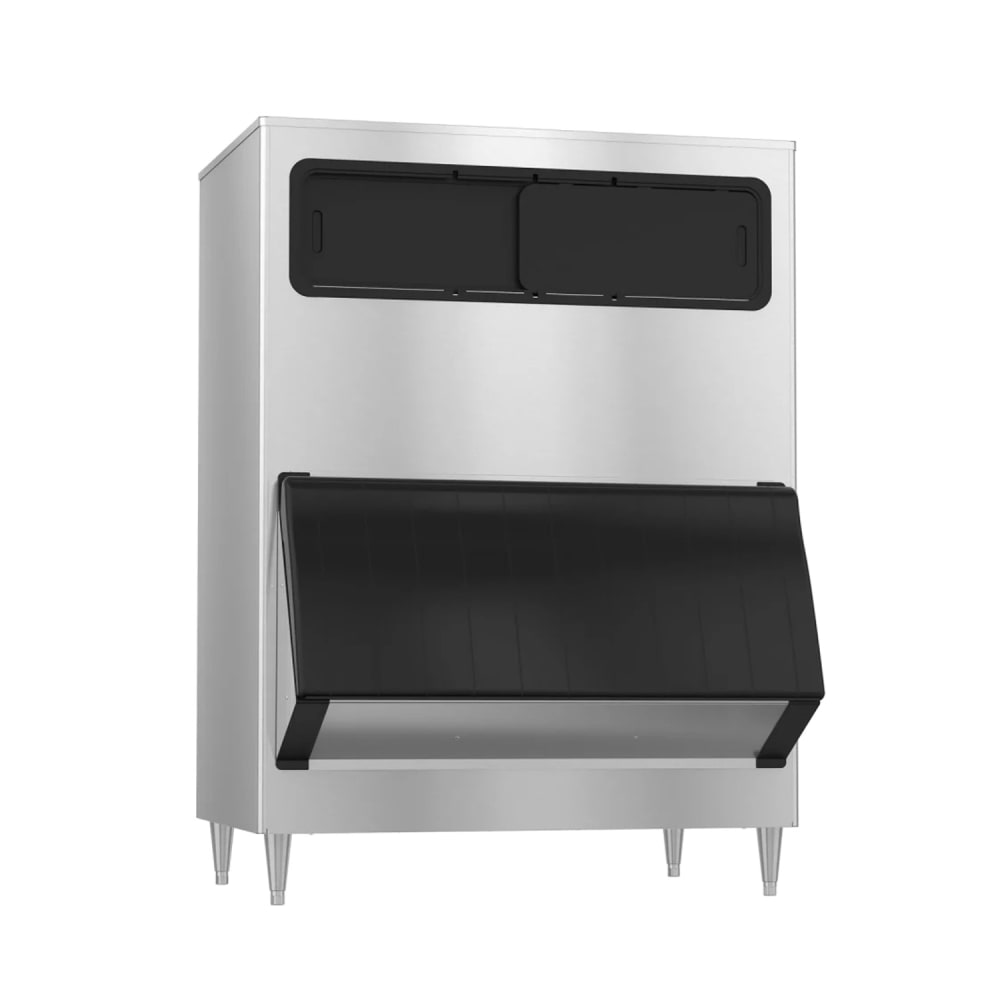

Ice Bin Details

• 1,304-lb. ice storage capacity
• Hinged bottom door
• Sanitary polyethylene interior liner
• Top view windows for visibility
• Rust-resistant stainless steel exterior
• 6-in., adjustable stainless steel legs
• Sealed door gasket reduces risk of contamination from airborne bacteria
• Foamed-in-place polyurethane insulation maintains ideal temperatures
• 82-oz. ice scoop included
• Scoop and bin protected with antimicrobial H-Guard Plus

Dimensions & Utilities

• Ice machine: 48 in. W x 27³⁄₈ in. D x 27³⁄₈ in. H
• Ice bin: 48 in. W x 41 in. D x 66³⁄₁₆ in. H
• 8.8 A, 3.32 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1601SWJ3/B-1300SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1601SWJ3/B-1300SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
