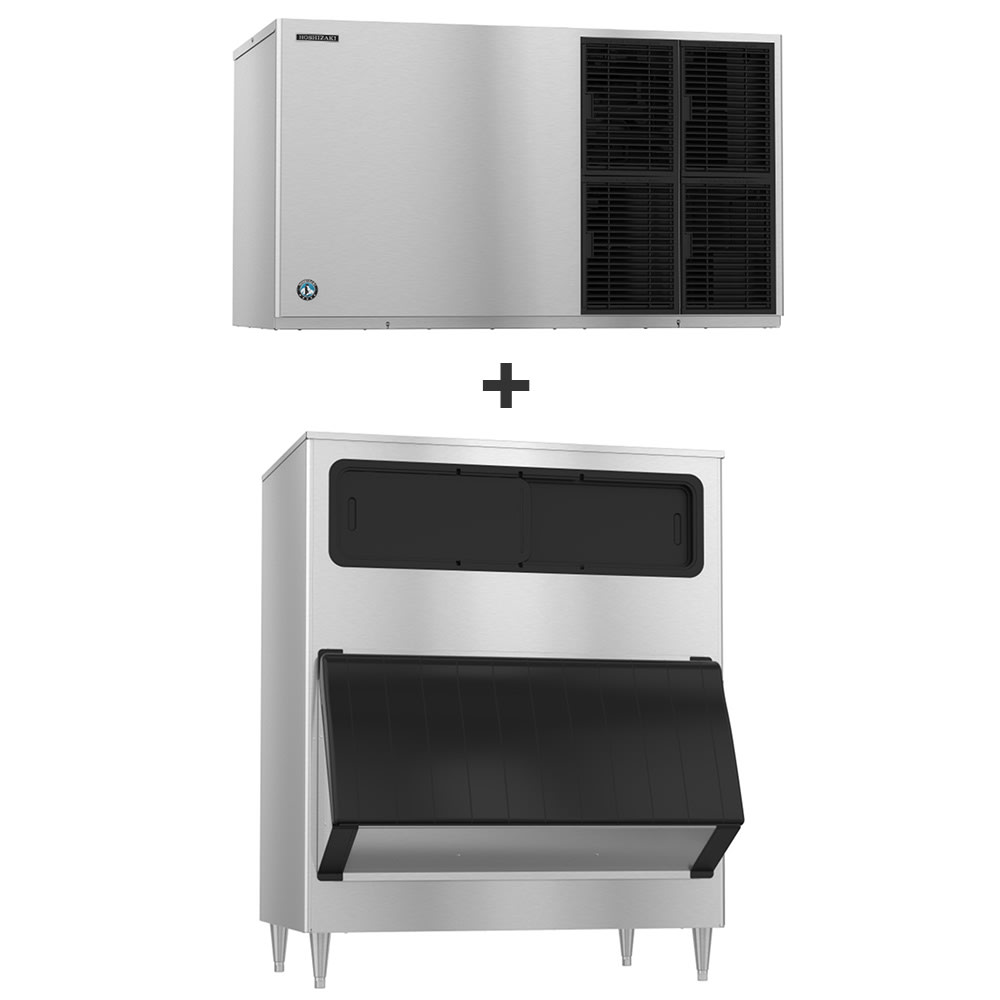

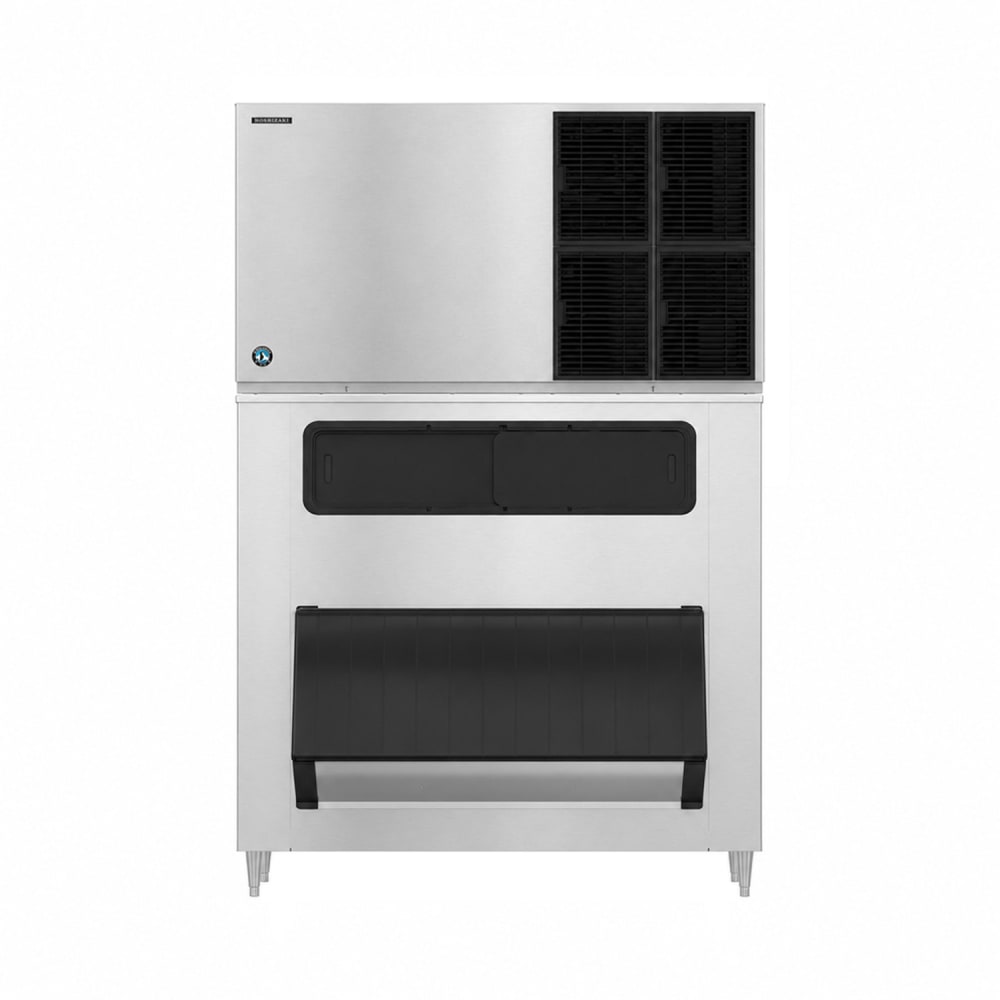

Hoshizaki KM-1601SAJ/B-1150SS 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 208-230v

Depending on temperature conditions, the Hoshizaki KM-1601SAJ/B-1150SS ice maker and bin can produce as much as 1,513 pounds of ice in 24 hours. Its antimicrobial agent keep the interior sanitary, while the stainless steel exterior is durable and can be wiped clean. The self-contained condenser is air cooled and uses R404A refrigerant to make large quantities of crescent cube ice.

After ice is made, it is held in the Hoshizaki KM-1601SAJ/B-1150SS ice machine with bin that stores as much as 1,148 pounds of ice, which helps restaurants keep up with high demand during the dinner rush. Its exterior is made of sleek stainless steel, and the included ice scoop helps maintain sanitary conditions with an antimicrobial agent.

Ice Maker Details

• 1,513-lb. maximum daily ice production
• 1,433-lb AHRI-certified daily ice production
• Makes individual crescent cube ice
• Crescent cube ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Exterior and evaporator are made of stainless steel
• H-Guard Plus antimicrobial agent helps kill bacteria
• EverCheck™ alert system lets users know when the unit requires maintenance
• Self-contained, air-cooled condenser uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG

Product Features

Ice Bin Details

• 1,148-lb. storage capacity
• Included ice scoop is equipped with antimicrobial agent
• Polyethylene bin liner maintains sanitary storage
• Sealed door gasket deters airborne bacteria
• Energy efficiency and ice preservation is provided by polyurethane insulation in all bin walls and bottom
• Baffle design makes ice accessible
• Includes universal top kit
• Users can inspect ice through the view window
• Mounted on adjustable 6-in. legs
• Insulated pouch-style door prevents spills and condensation

Dimensions & Utilities

• Ice Maker
• 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 27³⁄₈ in. H
• 15.9 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 41 in. D x 60³⁄₁₆ in. H

*Free shipping on Hoshizaki KM-1601SAJ/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1433 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1601SAJ/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
