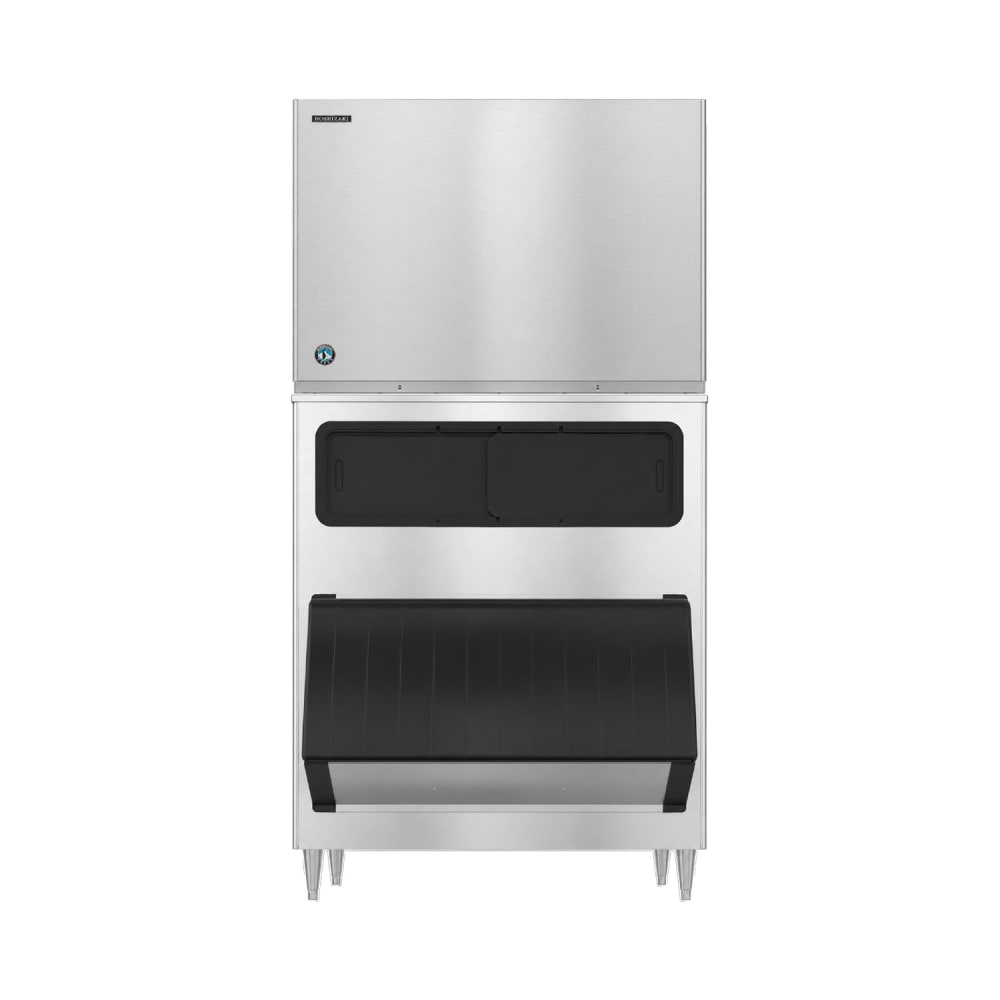

Hoshizaki KM-1601SWJ/B-1150SS 1660 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$15,930.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1601SWJ/B-1150SS Description
The Hoshizaki KM-1601SWJ/B-1150SS ice machine/bin combo features CycleSaver™ technology that enhances durability and conserves energy by reducing the number of cycles it must run. Suitable for high-volume bars and busy fast restaurants, it has a maximum production capacity of 1,660 pounds. With a stainless steel exterior, this unit is durable and long lasting.
Protected with an antimicrobial agent, the Hoshizaki KM-1601SWJ/B-1150SS ice maker is resistant to harmful bacterial growth. To enable users to monitor the fill level, its included bin features top windows, and it is insulated with foamed-in-place polyurethane to prevent ice melting. Facilitating ice retrieval, it comes with an 82-ounce scoop.
- 1,660-lb. daily ice production
- 1,650-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Stainless steel exterior resists corrosion
- CycleSaver system conserves energy and lengthens unit lifespan
- Antimicrobial H-Guard Plus® inhibits harmful bacterial growth
- Self-contained, water-cooled refrigeration system
- Stainless steel evaporator
- EverCheck™ system alerts to operating issues
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 21,300-BTU heat transfer capacity
- Uses R-404A refrigerant
- 1,148-lb. ice storage capacity
- 82-oz. ice scoop included
- Dent-resistant stainless steel exterior
- Polyethylene interior liner provides sanitary storage
- Foamed-in-place polyurethane insulation
- Top view windows enable employees to monitor fill level
- 6-in. adjustable stainless steel legs
- Hinged bottom door
- Sealed door gasket reduces risk of contamination from airborne bacteria
- Scoop and bin protected with H-Guard Plus antimicrobial agent
- Ice machine: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- Ice bin: 48 in. W x 41 in. D x 60 3⁄16 in. H
- 13.6 A, 3.3 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ/B-1150SS within the 48 contiguous states.
From The Manufacturer

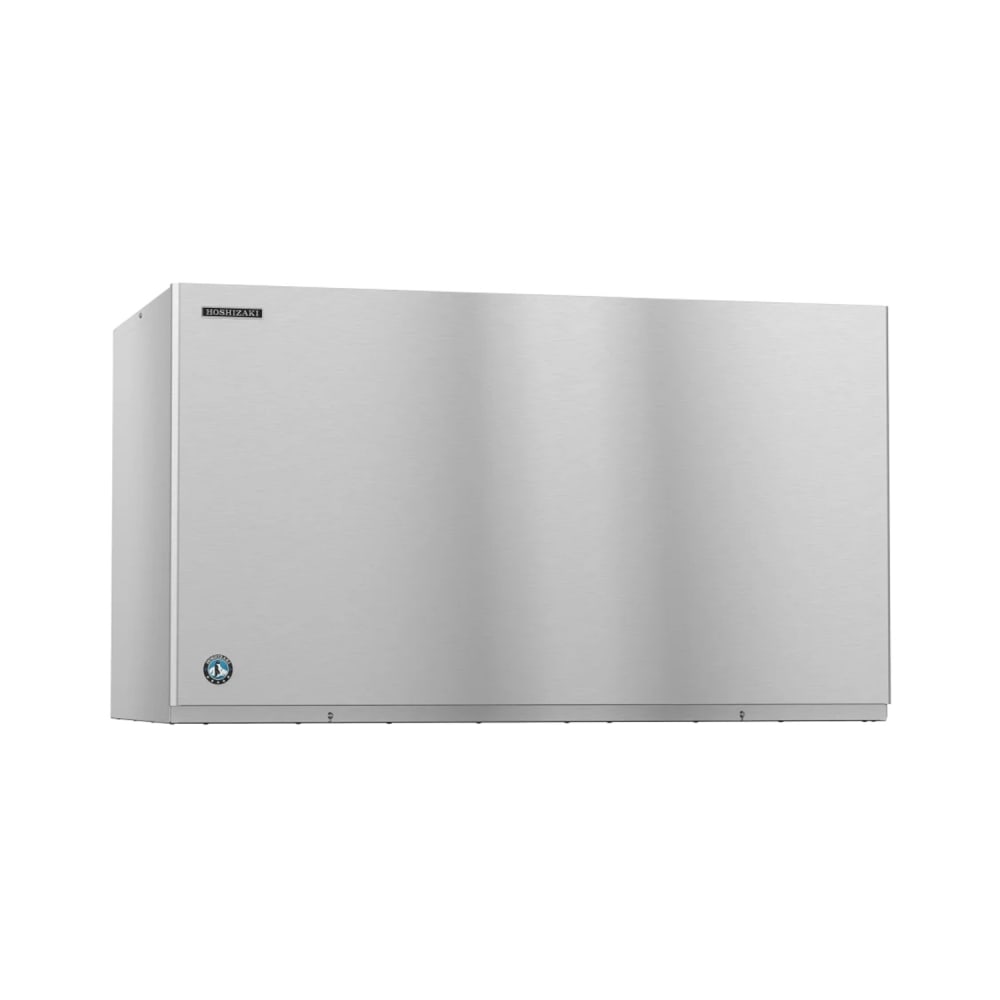

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1660 lb/24 hours at 70°/50° (1650 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.6 amps, NSF, UL

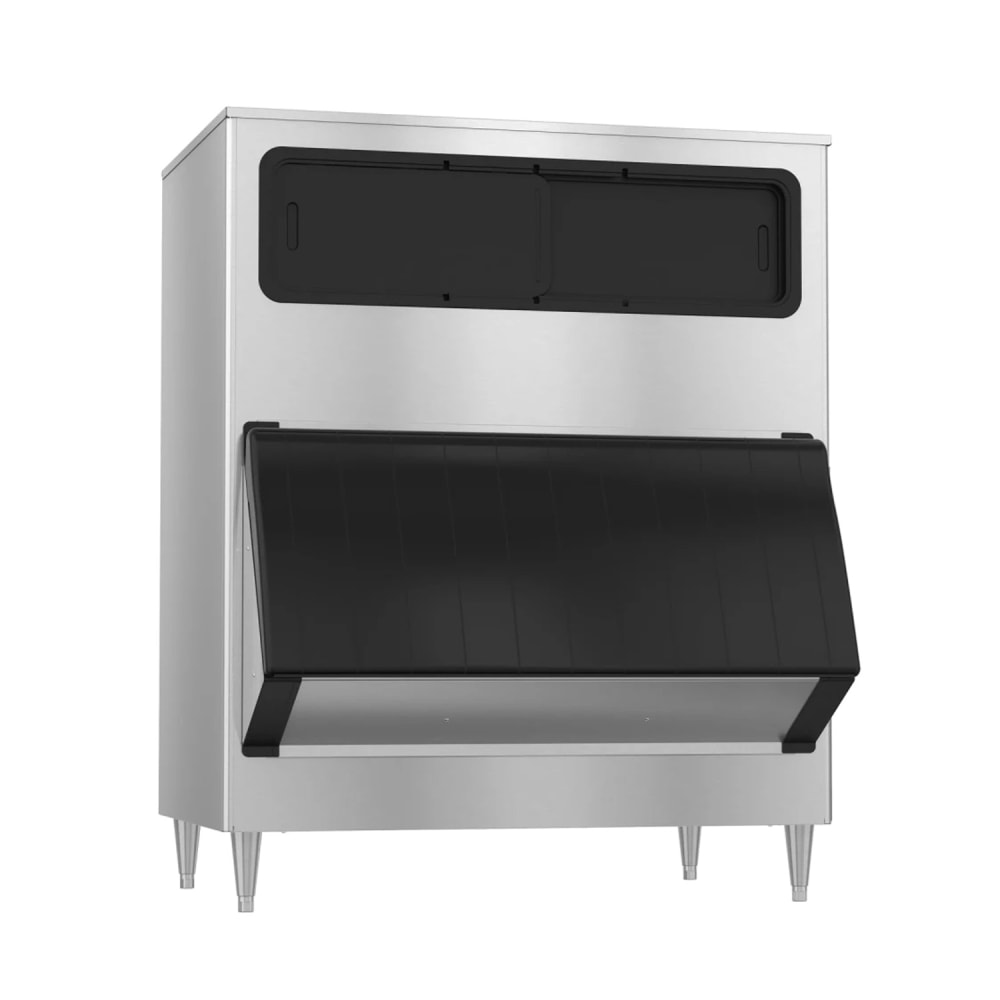

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ/B-1150SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1660 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1148 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 87.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 705.00 |
