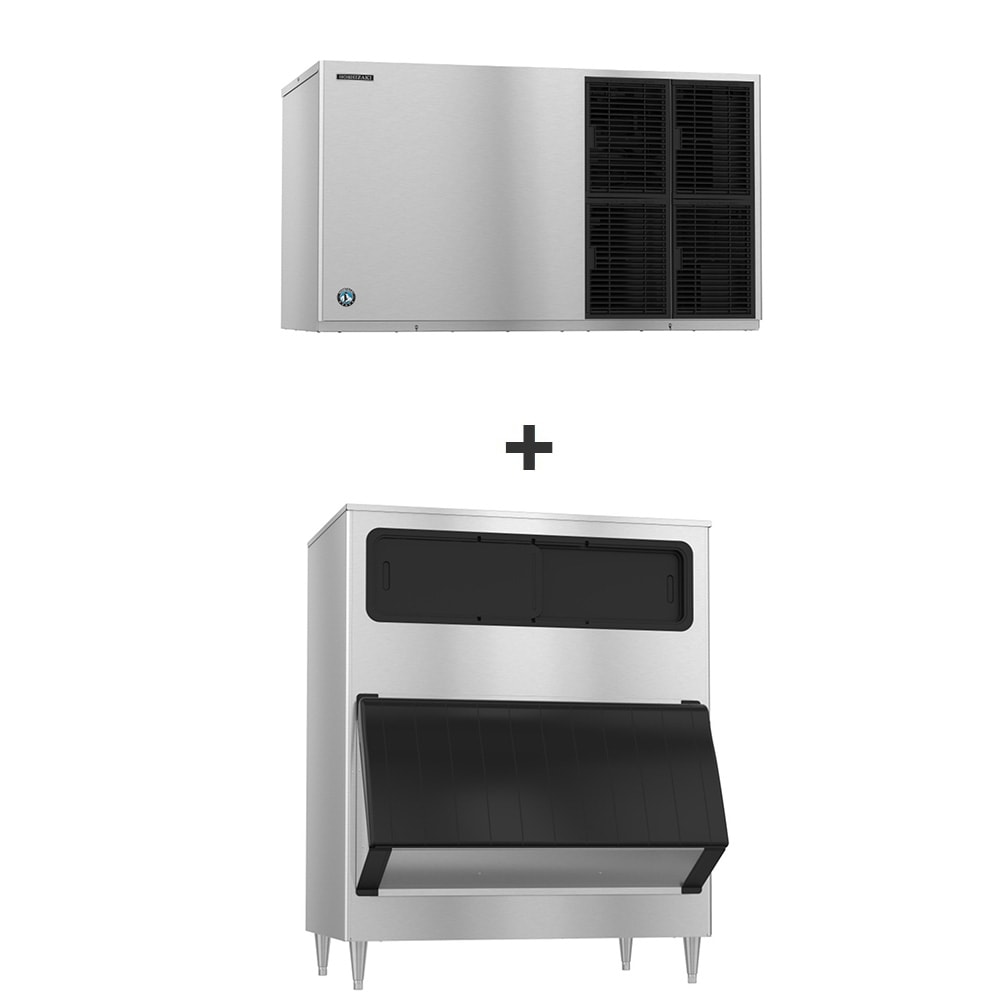

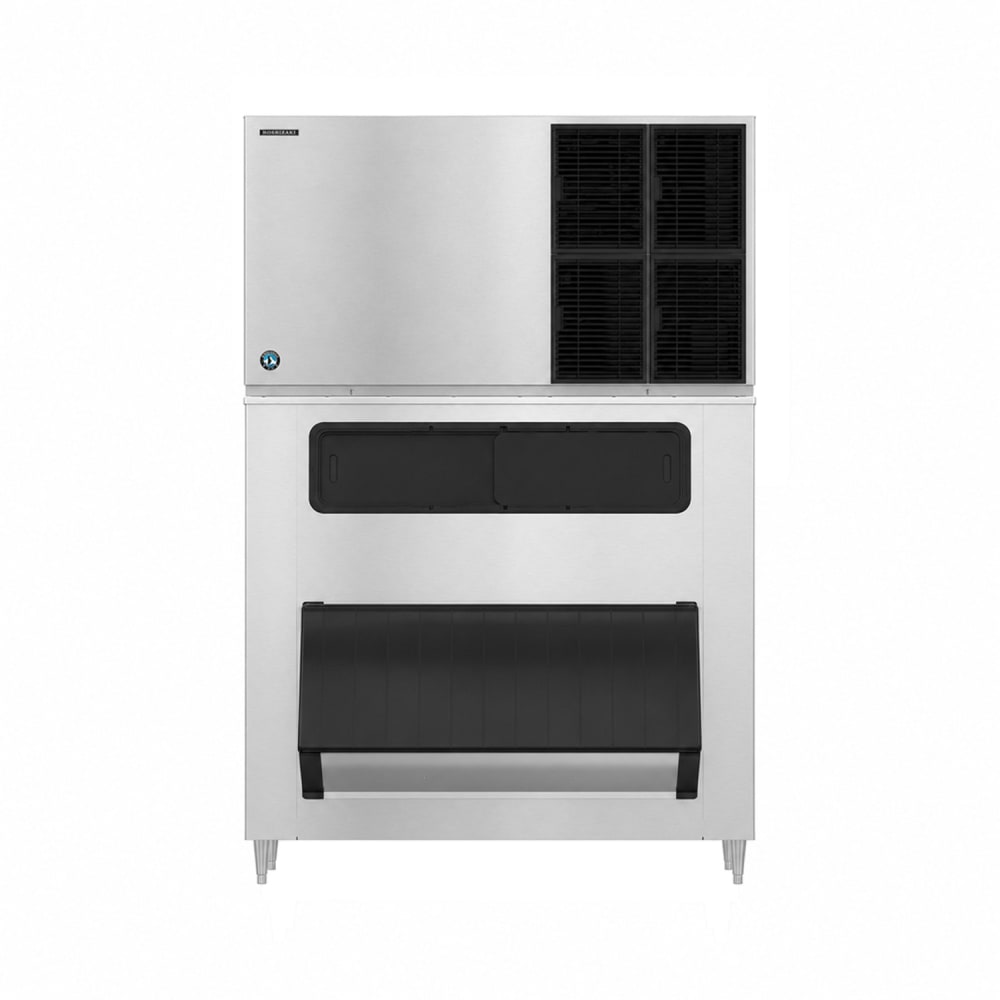

Hoshizaki KM-1601SAJ3/B-1150SS 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 208-230v

Ideal for burger joints, diners, and other casual restaurant establishments, the Hoshizaki KM-1601SAJ3/B-1150SS ice machine produces crescent cubes, which are great for a range of beverage products. It’s air-cooled, which means it relies on drawn air to cool itself instead of plumbed water. To help venues keep up with a steady flow of customers, the ice maker can produce 1,513 pounds of ice a day.

In order to give serving staff plenty of usable material, the Hoshizaki KM-1601SAJ3/B-1150SS crescent ice maker comes with an ice storage bin capable of holding 1,148 pounds of ice. This bin has a polyethylene liner that increases unit sanitation, as well as H-GUARD Plus® antimicrobial protection. So employees can effectively clean underneath and behind the unit, it has 6-inch legs.

Ice Maker

• 1,513-lb. maximum daily ice production
• 1,414-lb. AHRI-certified daily ice production
• Air-cooled condensing unit
• Produces crescent ice cubes
• Crescent cube size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Stackable design facilitates additional ice production
• H-GUARD Plus antimicrobial protection
• Stainless steel exterior is resilient and durable
• Stainless steel evaporator
• CycleSaver™ feature reduces number of cycles needed to make ice
• EverCheck™ alert system notifies users as needed
• R404A refrigerant
• 16,400 BTU heat transfer capacity
• Ideal incoming water pressure: 10-113 PSI
• Ideal incoming water temperature: 45-90 degrees F
• Ideal ambient air temperature: 45-100 degrees F
• Ideal clearances: 9 in. at top, sides, and back

Product Features

Ice Bin

• 36.9-cu.-ft. capacity
• 1,148-lb. bin capacity
• Viewing windows show ice bin contents
• 82-oz. scoop with H-GUARD Plus antimicrobial agent included
• Insulated pouch style door decreases condensation
• H-GUARD Plus protects bin from microbial buildup
• Foamed-in-place polyurethane insulation
• Seamless polyethylene bin liner
• Baffle design maximizes ice accessibility
• Stainless steel construction
• 6-in. stainless steel legs

Dimensions & Utilities

• Ice machine: 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 27³⁄₈ in. H
• Ice bin: 48 in. W x 41 in. D x 60 in. H
• 12.9 A, 4.4 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1601SAJ3/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1414 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 12.9 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
