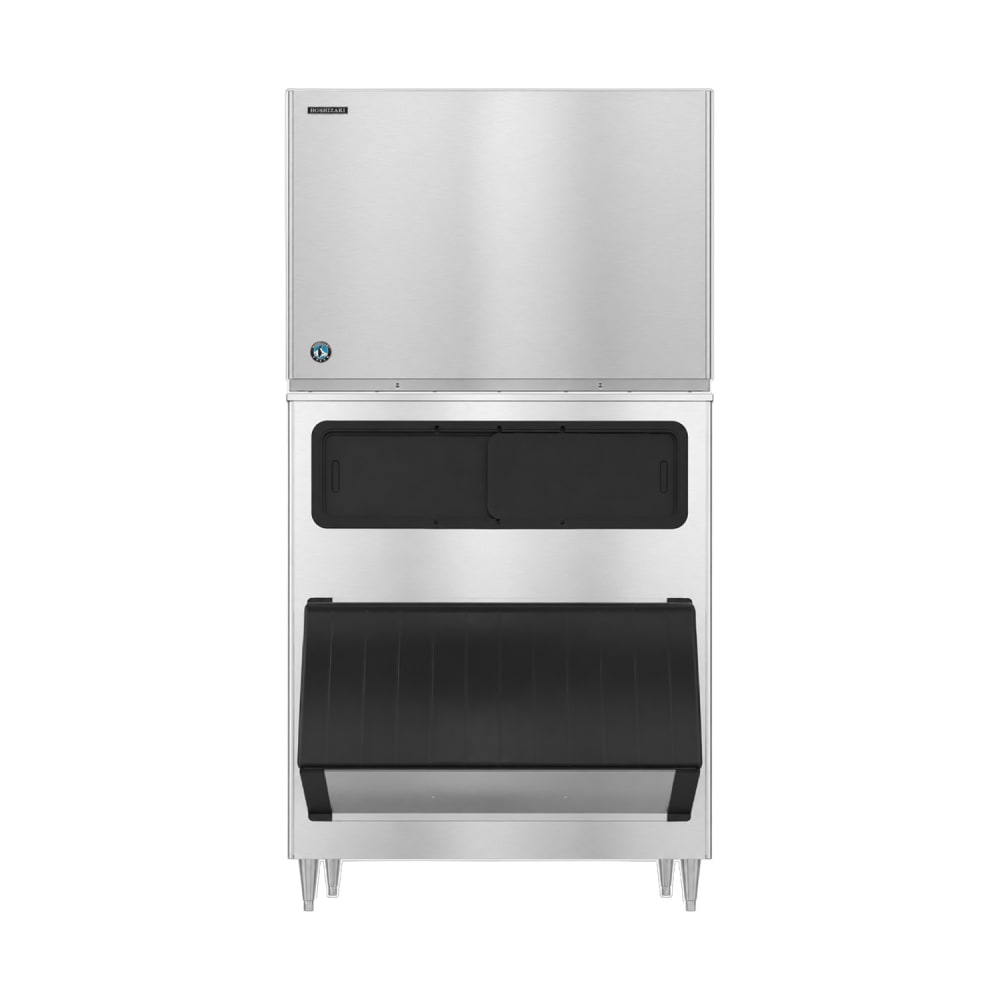

Hoshizaki KM-1601SWJ3/B-1150SS 1671 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,000.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1601SWJ3/B-1150SS Description
Providing high-volume establishments with consistent ice access, the bin portion of the Hoshizaki KM-1601SWJ3/B-1150SS ice machine/bin combo has a capacity of 1,148 pounds. Withstanding everyday use, the exterior of this bin, as well as the ice maker, is constructed of rust-resistant stainless steel. To inhibit the growth of mildew and bacteria, it is protected with antimicrobial H-Guard Plus®.
The Hoshizaki KM-1601SWJ3/B-1150SS ice maker and bin produces crescent-cube ice, a style versatile enough to serve in soft drinks or blend into smoothies. Its energy-efficient CycleSaver™ system reduces energy consumption and lengthens unit lifespan by running fewer cycles. This unit uses R-404A refrigerant with a self-contained, water-cooled system.
- 1,671-lb. daily ice production
- 1,660-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Protected with H-Guard Plus antimicrobial agent
- Self-contained, water-cooled refrigeration system
- Corrosion-resistant stainless steel exterior
- Stainless steel evaporator
- EverCheck™ alert system signals improper operating conditions
- Efficient CycleSaver technology
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSI
- 19,900-BTU heat transfer capacity
- Uses R-404A refrigerant
- 1,148-lb. ice-storage capacity
- Hinged bottom door and top view windows
- Durable stainless steel exterior
- 6-in., adjustable stainless steel legs
- Sealed door gasket reduces contamination risks from airborne bacteria
- Foamed-in-place polyurethane insulation maintains temperature for maximum ice preservation
- Polyethylene interior liner
- Includes 82-oz. ice scoop
- Bin and scoop protected with H-Guard Plus antimicrobial agent
- Ice machine: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- Ice bin: 48 in. W x 41 in. D x 60 3⁄16 in. H
- 8.8 A, 3.32 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ3/B-1150SS within the 48 contiguous states.
From The Manufacturer

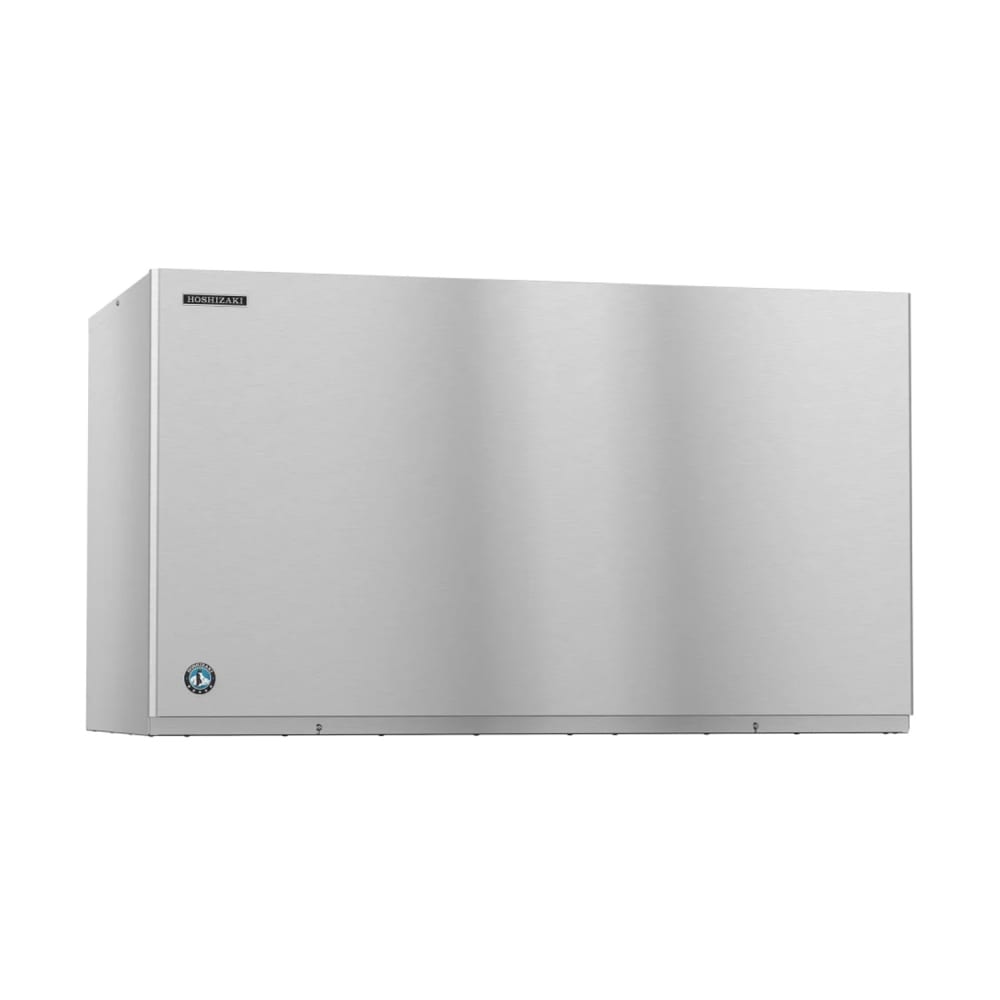

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL

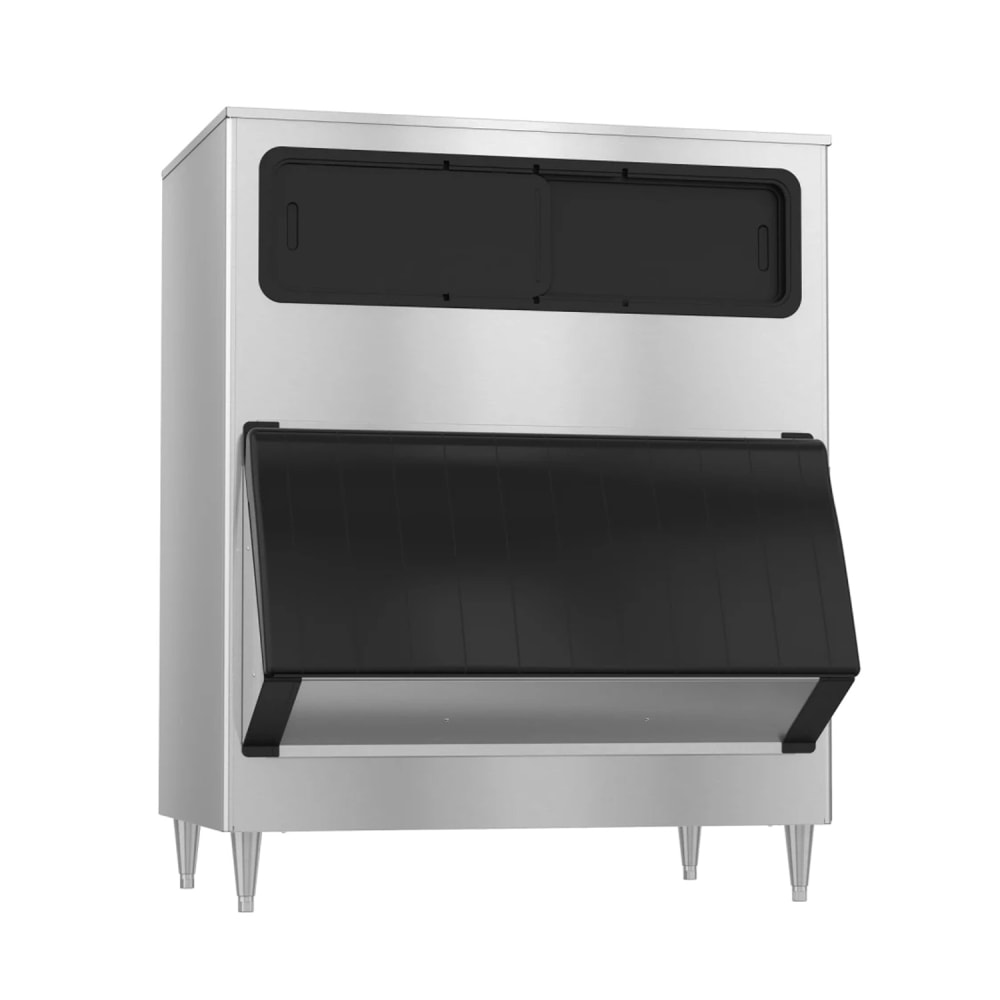

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ3/B-1150SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1671 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1148 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 87.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 705.00 |
