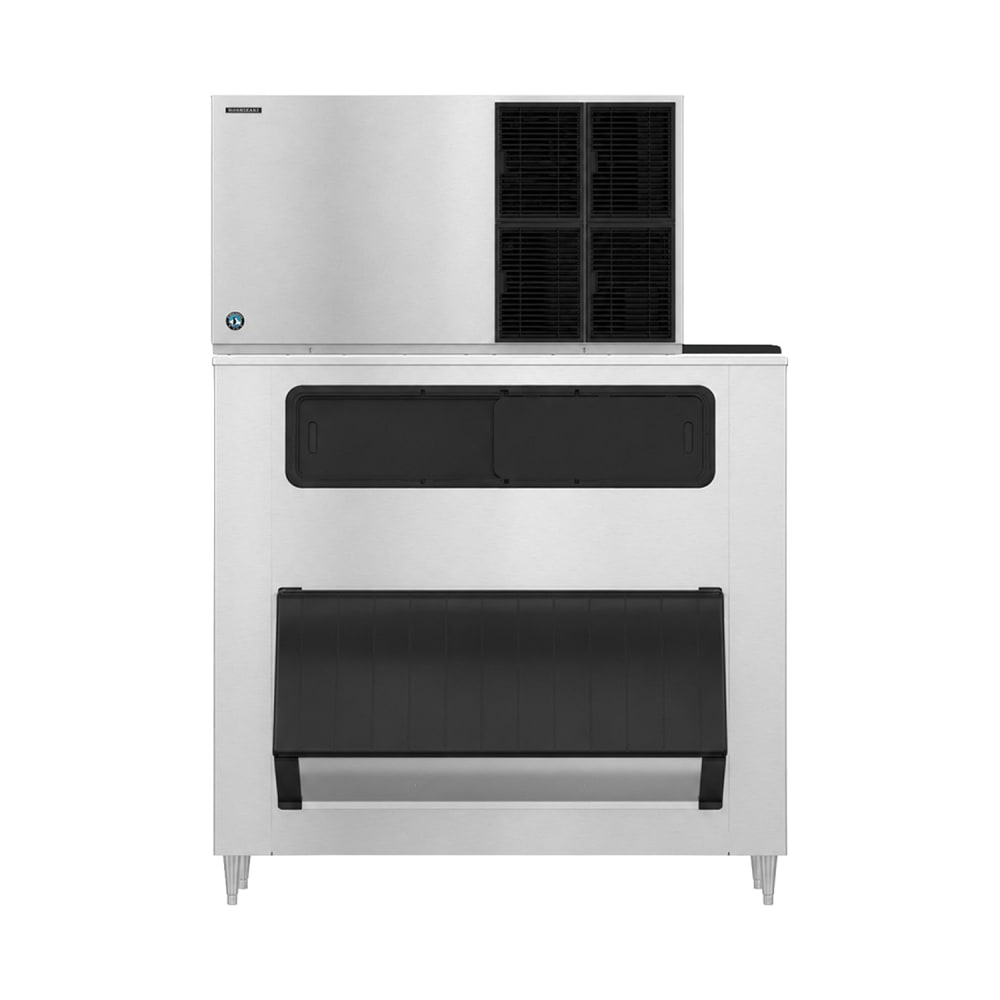

Hoshizaki KM-1601SAJ3/B-1500SS 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 1500 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,835.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Voltage: 208-230V, 3 Phase
| 208-230V, 3 Phase |
| 208-230V, 1 Phase |
Hoshizaki KM-1601SAJ3/B-1500SS Description
Helping restaurants keep up with high volumes of customer traffic, the Hoshizaki KM-1601SAJ3/B-1500SS ice maker can produce 1,513 pounds of ice a day. It’s an air-cooled unit, which means it employs drawn air to chill internal components instead of plumbed water. Great for burger joints and casual dining venues so it can be paired with common beverages, the maker generates crescent ice.
The Hoshizaki KM-1601SAJ3/B-1500SS crescent ice machine’s storage bin is protected by H-GUARD Plus®, which provides antimicrobial protection to help reduce bin contaminants. To increase strength and maintain temperature, its polyurethane insulation is foamed into the bin, while the unit comes with an 82-ounce scoop for ice retrieval.
- 1,513-lb. maximum daily ice production
- 1,414-lb. AHRI-certified daily ice production
- Air-cooled condensing unit
- Crescent cube ice is ideal for soft drinks and blended frozen drinks
- Crescent cube size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
- CycleSaver™ reduces cycles needed to produce a high volume of ice
- EverCheck™ alert system
- H-GUARD Plus antimicrobial protection
- Stainless steel evaporator is corrosion resistant
- Stackable design
- Dent- and scratch-resistant stainless steel exterior
- R404A refrigerant
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSI
- Ideal clearances: 9 in. at top, sides, and back
- 16,400 BTU heat transfer capacity
- 47.2-cu.-ft. capacity
- 1,500-lb. bin capacity
- Insulated pouch style door
- H-GUARD Plus combats microbial buildup in bin
- Baffle design eases ice accessibility
- Viewing windows promotes content visibility
- Foamed-in-place polyurethane insulation
- Strong stainless steel construction
- Seamless polyethylene liner enhances bin sanitation
- Includes 82-oz. scoop with H-GUARD Plus antimicrobial agent
- 6-in. stainless steel legs
- Ice machine: 48 1⁄4 in. W x 27 7⁄16 in. D x 27 3⁄8 in. H
- Ice bin: 60 in. W x 41 in. D x 62 in. H
- 12.9 A, 4.4 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SAJ3/B-1500SS within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1414 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 12.9 amps, NSF, UL
Ice Bin, 60"W, hinged bottom door & top view windows, 1500-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SAJ3/B-1500SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1513 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1500 |
| Compressor Type | Air Cooled |
| Depth (in) | 41 |
| Height (in) | 89.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 60 |
| Weight | 710.00 |
