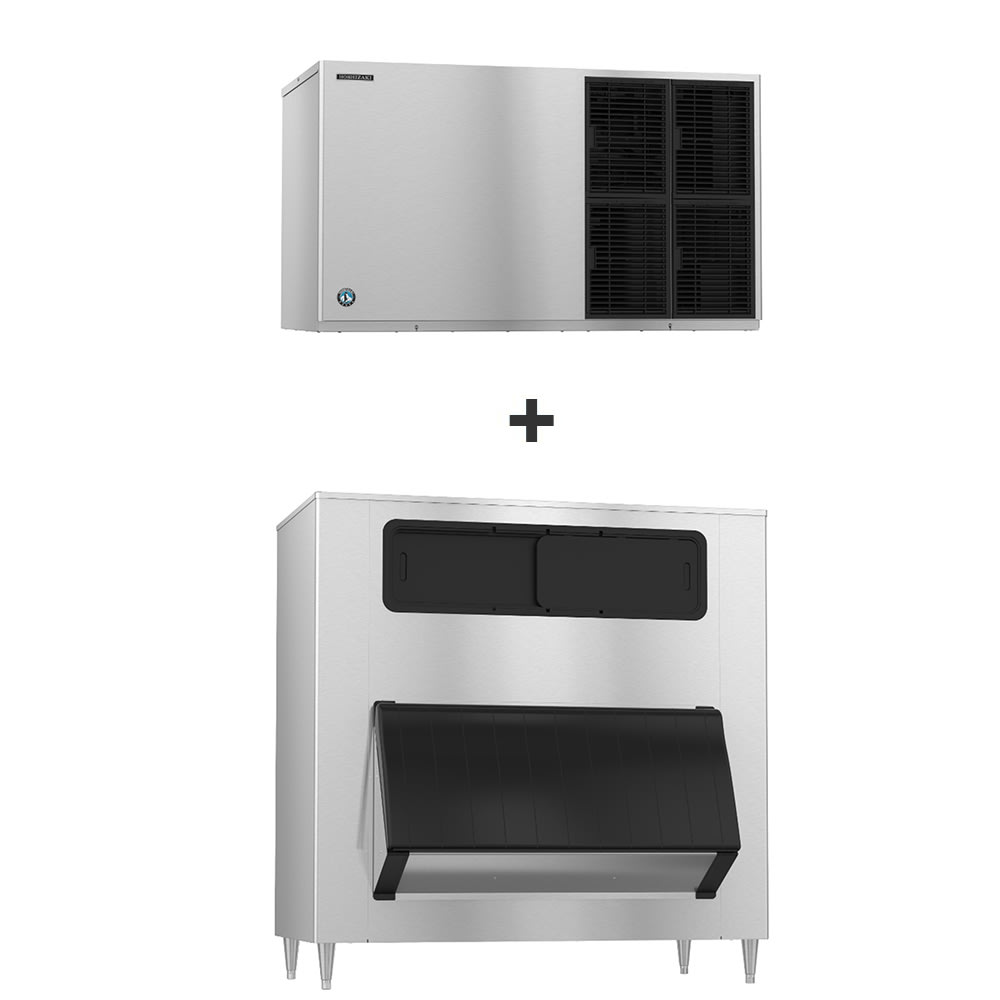

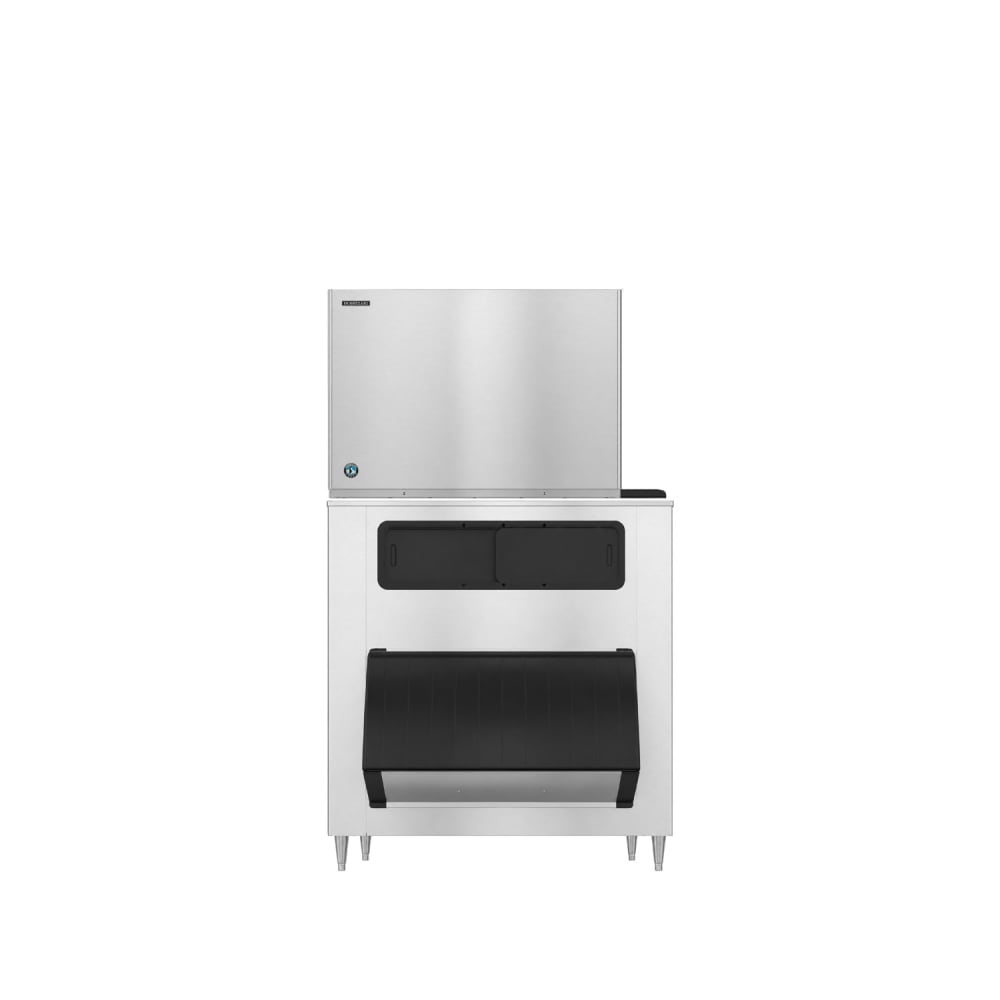

Hoshizaki KM-1601SWJ3/B-1500SS 1671 lb KM Series Crescent Cube Ice Machine w/ Bin - 1500 lb Storage, Water Cooled, 208-230v

For resistance to scratches, dents, and corrosion, the exterior of the Hoshizaki KM-1601SWJ3/B-1500SS ice maker and bin is constructed of resilient stainless steel. Its H-Guard Plus® protection inhibits microbial growth, and the bin's seamless polyethylene liner eliminates crevices that could harbor bacteria. To lengthen the unit's lifespan and reduce energy consumption, it runs fewer cycles with a CycleSaver™ system.

The Hoshizaki KM-1601SWJ3/B-1500SS is designed with a stainless steel evaporator and uses R-404A refrigerant. It can produce as much as 1,671 pounds of ice in a day and has a storage capacity of 1,500 pounds in its bin. To alert users of operational problems, it features a EverCheck™ system.

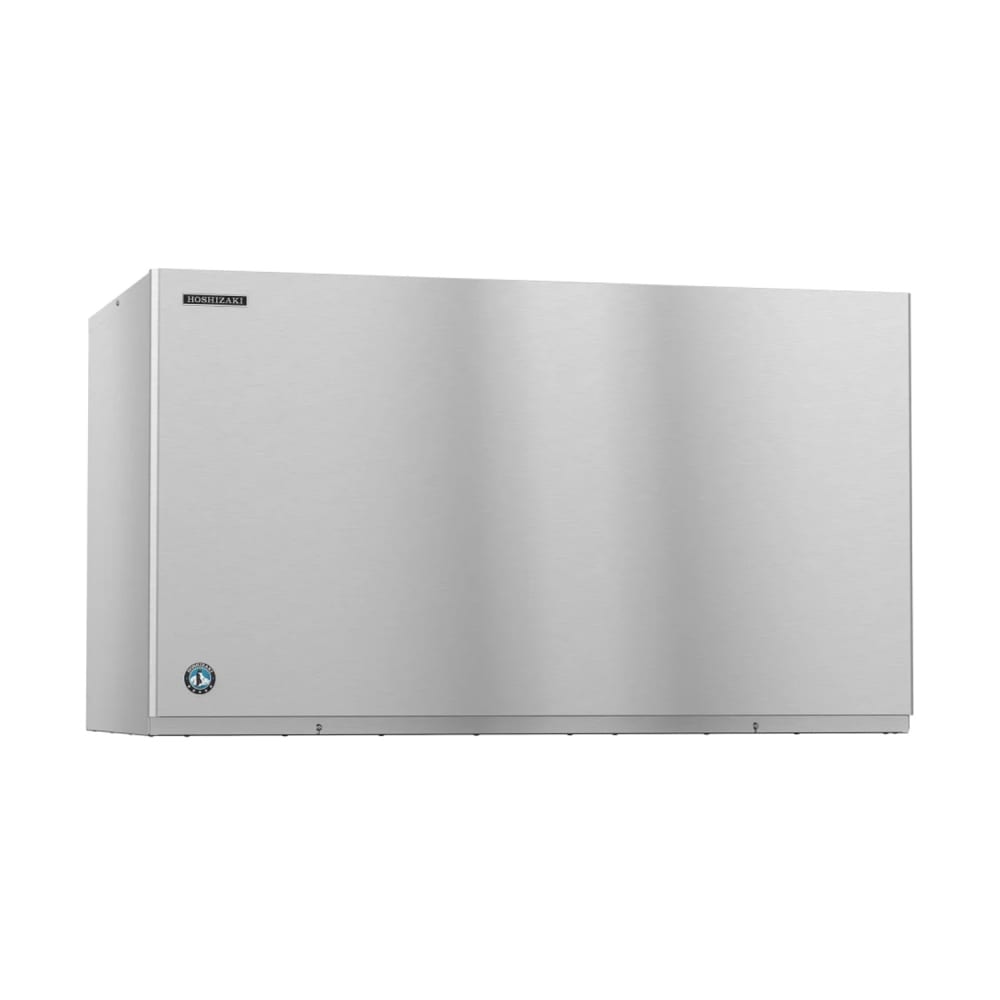

Ice Machine Details

• 1,671-lb. daily ice production
• 1,660-lb. daily AHRI-certified ice production
• Crescent cube ice size: 1¹⁄₂ in. x 1¹⁄₈ in. x ¹⁄₂ in.
• Stainless steel evaporator
• Antimicrobial H-Guard Plus protection
• Self-contained, water-cooled refrigeration system
• Stainless steel exterior resists denting and scratching
• CycleSaver technology runs fewer cycles to conserve energy
• EverCheck system alerts users to operating issues
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• Uses R-404A refrigerant
• 19,900 BTU heat transfer capacity

Product Features

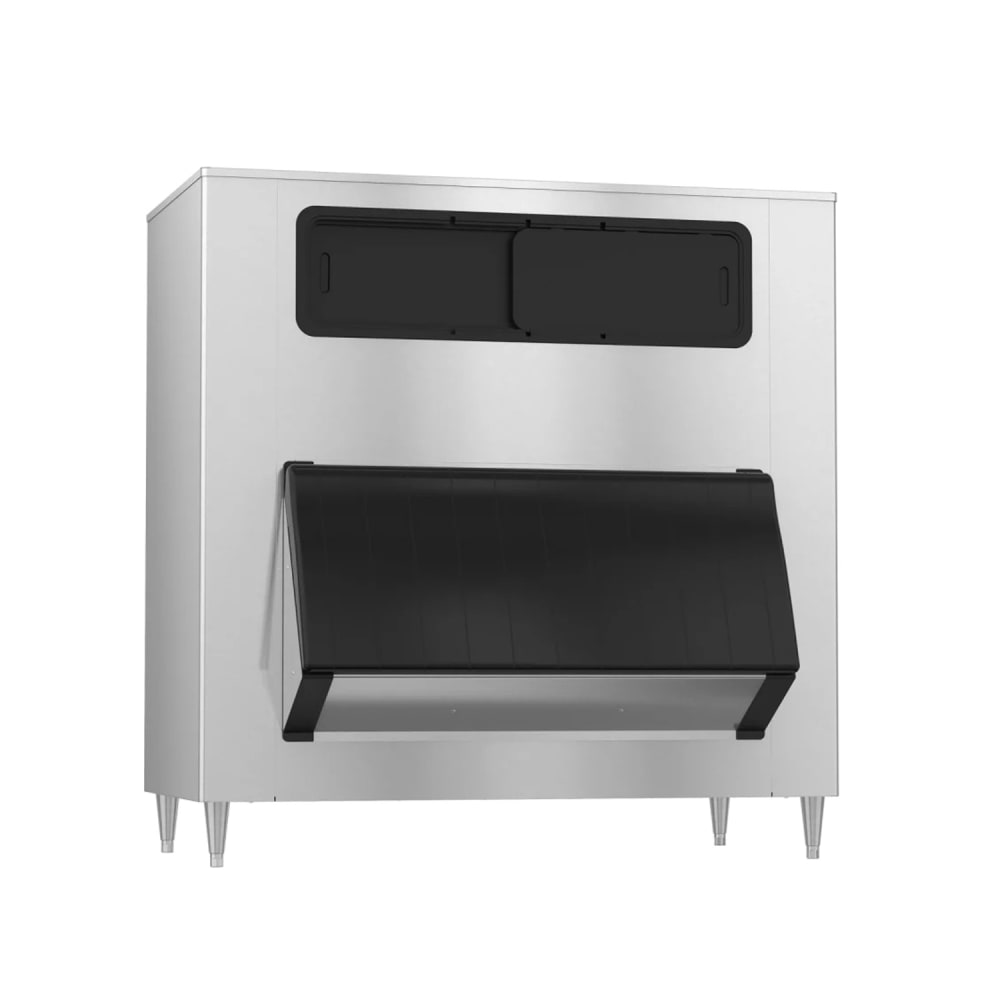

Ice Bin Details

• 1,500-lb. ice storage capacity
• Sanitary polyethylene interior liner
• Top view windows for visibility
• Scratch-resistant stainless steel exterior
• 6-in., adjustable stainless steel legs
• Hinged bottom door
• Sealed door gasket reduces risk of airborne contaminants
• Foamed-in-place polyurethane provides effective insulation
• 82-oz. ice scoop included
• Scoop and bin protected with H-Guard Plus antimicrobial agent

Dimensions & Utilities

• Ice machine: 48 in. W x 27³⁄₈ in. D x 27³⁄₈ in. H
• Ice bin: 60 in. W x 41 in. D x 62³⁄₁₆ in. H
• 8.8 A, 3.32 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1601SWJ3/B-1500SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL

Ice Bin, 60"W, hinged bottom door & top view windows, 1500-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1601SWJ3/B-1500SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
