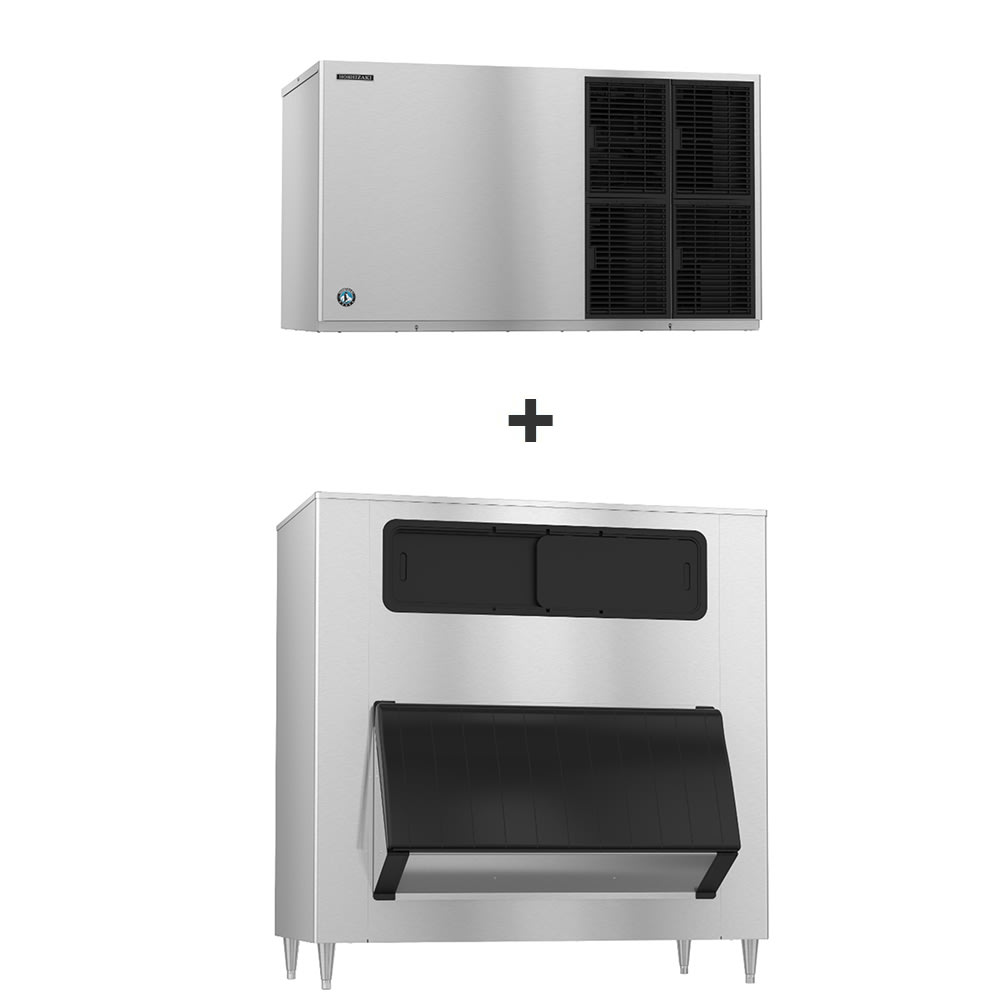

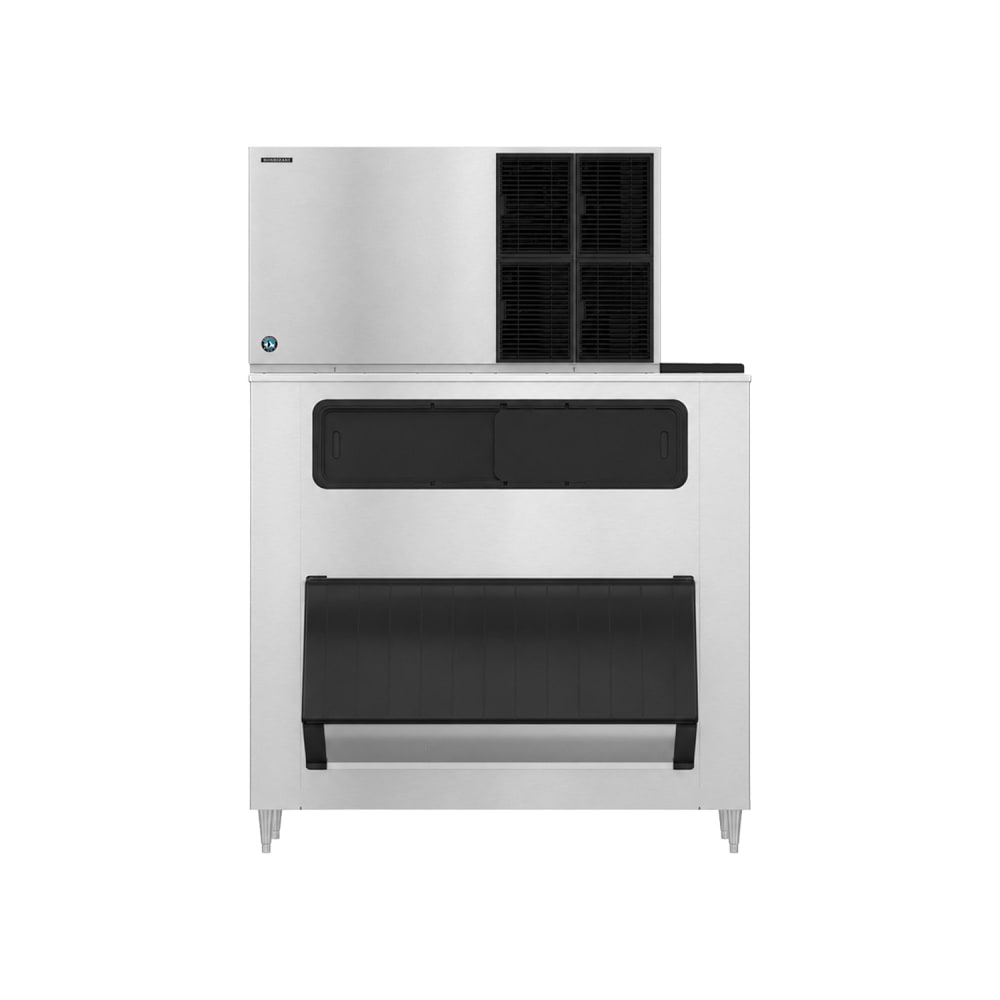

Hoshizaki KM-1601SAJ/B-1500SS 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 1500 lb Storage, Air Cooled, 208-230v

To reduce the unit's overall footprint, the Hoshizaki KM-1601SAJ/B-1500SS ice maker and storage bin is stackable, and in ideal conditions, the ice maker produces 1,513 pounds of crescent cube ice. The ice maker is equipped with an alert system and an interior antimicrobial agent, ensuring that the machine runs smoothly under sanitary conditions. Its self-contained condenser is air cooled and uses R404A refrigerant.

The Hoshizaki KM-1601SAJ/B-1500SS ice machine with bin has a pouch-style door with walls and a bottom that are insulated to retain as much ice as possible and prevent condensation from forming on the door. To streamline cleaning, the bin is lined with seamless polyethylene, and the included ice scoop also repels bacteria.

Ice Maker Details

• 1,513-lb. maximum daily ice production
• 1,433-lb. AHRI-certified daily ice production
• Makes crescent cube ice, which is great for casual restaurants and smoothie bars
• Crescent cube ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Stainless steel construction offers durability
• H-Guard Plus antimicrobial agent inside interior parts slows bacterial growth
• Users are alerted when the unit requires maintenance with the EverCheck™ alert system
• Air-cooled, self-contained condenser
• R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG

Product Features

Ice Bin Details

• 1,500-lb. storage capacity
• Ice loss is prevented by insulation in bin walls and bottom
• Polyurethane seamless bin liner and antimicrobial agent prevents growth of bacteria
• Pouch-style door prevents condensation and spilling
• Employees can retrieve ice with user-friendly baffle design
• Bin interior can be inspected with the view window
• 6-in. stainless steel legs will not corrode when exposed to water or chemicals during mopping
• 82-oz. ice scoop deters bacteria with H-Guard Plus antimicrobial agent

Dimensions & Utilities

• Ice Maker
• 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 27³⁄₈ in. H
• 15.9 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 60 in. W x 41 in. D x 62³⁄₁₆ in. H

*Free shipping on Hoshizaki KM-1601SAJ/B-1500SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1433 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL

Ice Bin, 60"W, hinged bottom door & top view windows, 1500-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1601SAJ/B-1500SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
