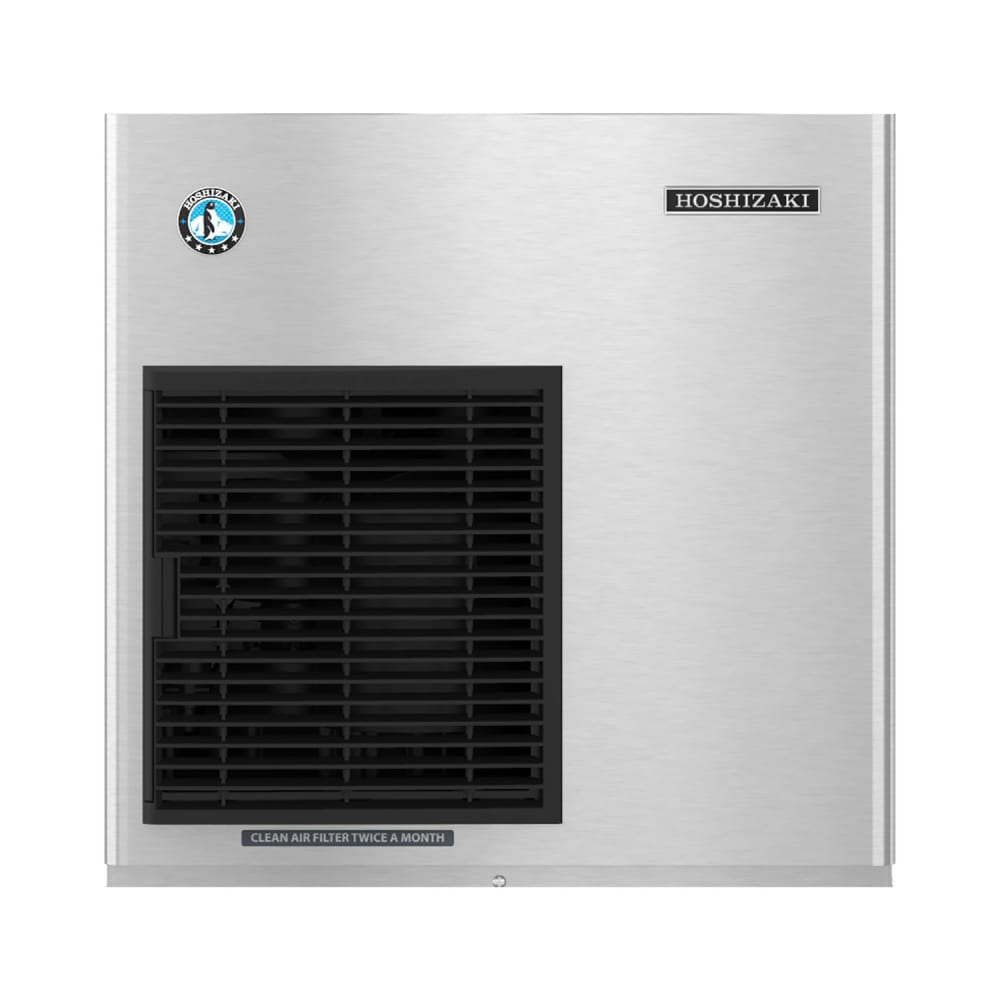

Hoshizaki F-422MAK-C 22" Nugget Ice Machine Head - 476 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,040.00 /Each
Contact us for details!
Hoshizaki F-422MAK-C Description
In a 24-hour period, the Hoshizaki F-422MAK-C ice machine head can produce 476 pounds of ice if ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. It makes cubelet ice—also referred to as nugget ice—which works well in most restaurants since it is a customer favorite. The condenser motor in this unit is air cooled, using fans to cool the components so water can get cold enough to freeze.
Every hour, the unit runs a 2-second flush cycle to remove sediment from the ice and ensure it is clean. A sensor just below the Hoshizaki F-422MAK-C commercial ice maker measures ice in the bin—which is sold separately—with an infrared beam, ensuring there is always ice available without overflow. The components in this unit are accessible behind a panel for cleaning and servicing, while the air filter can be removed and cleaned thoroughly to prevent issues from arising.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 476-lb. daily ice production capacity
- 360-lb. AHRI-certified daily ice production capacity
- Makes chewable nugget ice
- Nugget ice size: 1⁄4-5⁄8 in. x 1⁄2 in. x 3⁄8 in.
- Air-cooled condenser
- CleanCycle24™ technology uses a 2-sec. flush cycle every hour to remove sediment, ensuring ice is clean and clear
- Infrared bin control measures how much ice is in the bin to maintain an ideal level without overflow
- Stainless steel exterior construction provides strength and eases cleaning
- Panels can be removed for component access and maintenance
- Removable, cleanable air filter
- Uses R290 refrigerant
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water temperature: 10-113 PSI
- Ideal clearances: 6 in. at rear and sides; 24 in. at top
- Ice storage bin is sold separately (not compatible with dispensers)
- 22 in. W x 27 3⁄8 in. D x 22 in. H
- 10.8 A, 6.1 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki F-422MAK-C within the 48 contiguous states.
From The Manufacturer
Ice Maker, cubelet-style, 22"W, air-cooled, self-contained condenser, production capacity up to 476 lb/24 hours at 70°/50° (360 lb AHRI certified at 90°/70°), stainless steel finish, compressed cubelet style ice, Advanced CleanCycle24™, R290 refrigerant, 115v/60/1-ph, 8.8 amps, NSF, UL
Watch a video about this product
Hoshizaki F-422MAK-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 476 |
| Also Known As | F-450MAJ-C |
| Compressor Type | Air Cooled |
| Depth (in) | 27.38 |
| Height (in) | 22 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Slim-Line |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight | 205.00 |
Important Prop 65 information for California residents.
- Hoshizaki F450MAHC
Compare to Similar Items
| Attributes |
Hoshizaki F-422MAK-C Hoshizaki F-422MAK-C 22" Nugget Ice Machine Head - 476 lb/24 hr, Air Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $6,040.00 / Each | $4,904.00 / Each | $5,179.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 476 | 375 | 415 |
| Ice Type | Nugget | Nugget | Nugget |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 21 |
| Rating | Best | Best | Better |
| Voltage | 115 | 115 | 115 |
| Series | Slim-Line | Prodigy Plus® | Pearl Ice® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor Parts |
