Hoshizaki AM-50BAJ Undercounter Top Hat Ice Maker - 51-lbs/day, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 440-AM50BAJ • MPN: AM-50BAJ

Ships Free

Typically ships within 1 - 3 business days

(1 review)Write a Review
Retail Price: $1,845.00

Image may not depict product color, inclusions or accessories.

Hoshizaki AM-50BAJ Description

Hoshizaki

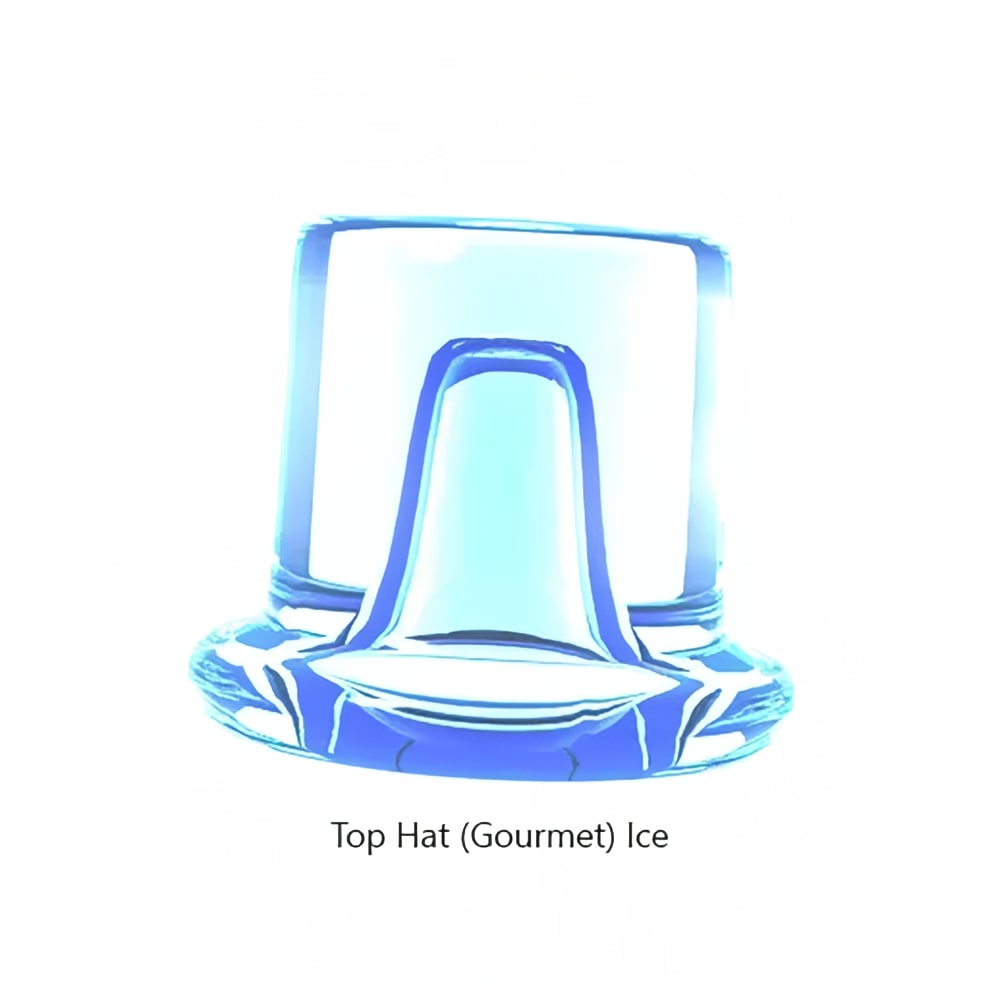

In 24 hours, the Hoshizaki AM-50BAJ undercounter top hat ice maker can produce 51 pounds of ice in ideal settings. It makes gourmet top hat cubes that measure 78 inch diameter by 1 inch tall. R-134A refrigerant maintains cold temperatures and cools the condensing unit, providing the user with convenient installation and maintenance. The Hoshizaki AM-50BAJ undercounter top hat ice maker’s bin has a 22-pound storage capacity. The power switch can be accessed without removing the panel.

Product Details

  • Produces as much as 51 lbs. of ice in 24 hours
  • Ideal air temperature: 70 degrees F
  • Ideal water temperature: 50 degrees F

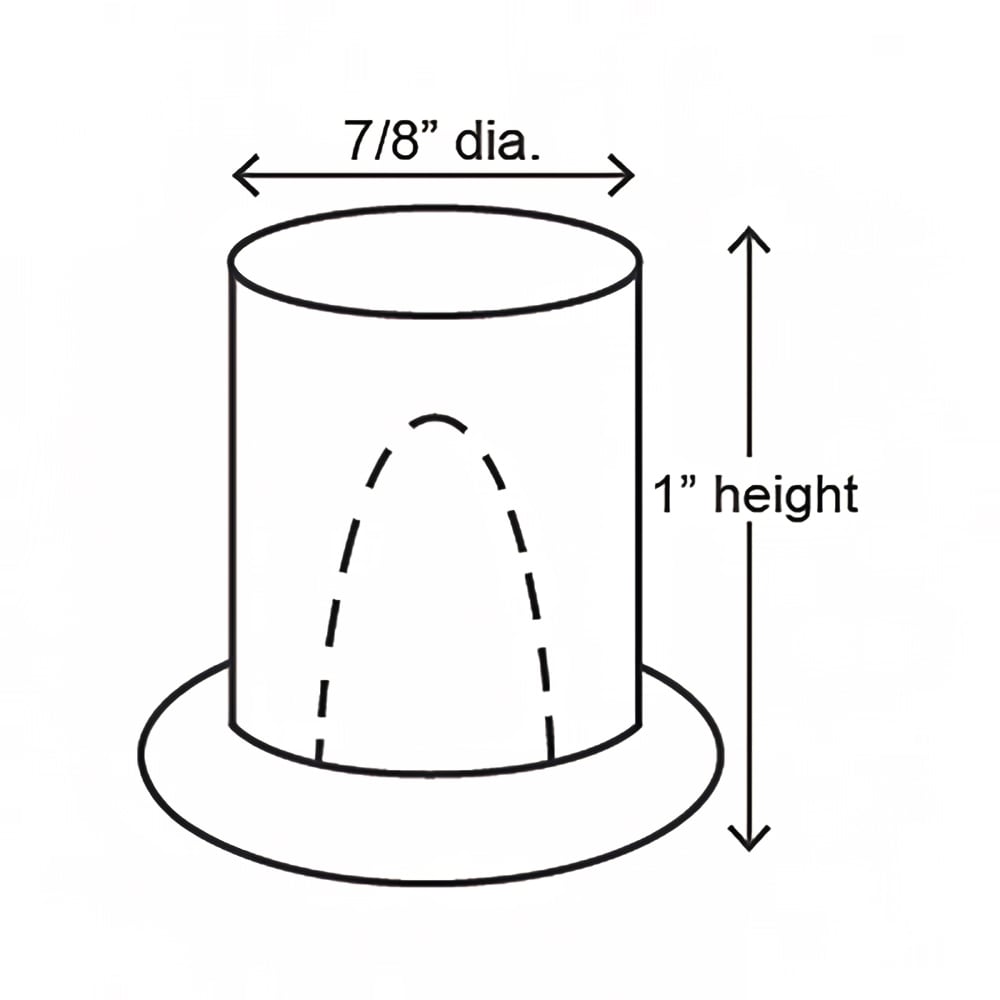

  • Top hat style cubes measure 78 in. dia. x 1 in. H
  • Uses R-134A refrigerant to keep the temperatures cold
  • Air-cooled condensing unit provides user-friendly installation and service
  • 22-lb. bin storage capacity
  • Users can access power switch without removing the panel
  • Small amount of moving parts creates a long life span
  • Water circuit can be disassembled and cleaned with little effort
  • UL approved for use in outdoor applications
  • 115 V/60 Hz/1 ph, 3.8 A, 6-ft. cord with a NEMA 5-15P plug
  • Overall dimensions: 14.9 in. W x 22.63 in. D x 33.4 in. H
  • UL listed; NSF certified

Operating Requirements

  • Ambient temperature range: 45-100 degrees F
  • Water temperature range: 45-90 degrees F
  • Water pressure range: 7-113 PSIG
  • Requires a 15-in. clearance at the front and space at the rear for water supply and drain connections
  • Should not be installed near equipment that produces high heat

Product Features

Hoshizaki am50baj Features

Ice Maker With Bin, Cube-Style, air-cooled, self-contained condenser, production capacity up to 51 lb/24 hours at 70°/50° (35 lb AHRI certified at 90°/70°), 22 lb. storage bin capacity, full-length stainless steel handle, Top Hat style full cube, 115v/60/1-ph, 3.8 amps, NSF, UL

warning-small Important Prop 65 information for California residents.

Hoshizaki AM-50BAJ Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 51 lbs
Height (in) 33.5
Ice Type Top Hat
Width (in) 15
Bin Capacity 22 lbs
Warranty 2-yr. Parts & Labor
Compressor Type Air Cooled
Drain Type Gravity
Capacity Range 20-69 lb
Production Range 50-119 lb
Phase 1
Hertz 60
Voltage 115
Weight 97.00
Hoshizaki AM-50BAJ Certifications
  • UL
  • NSF
