Scotsman CU50GAX-1 14 7/8"W Top Hat Undercounter Ice Machine w/ Filter - 65 lbs/day, Air Cooled, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $7,921.00
$3,247.00 /Each
Selected Drain Type: Gravity Drain
Scotsman CU50GAX-1 Description

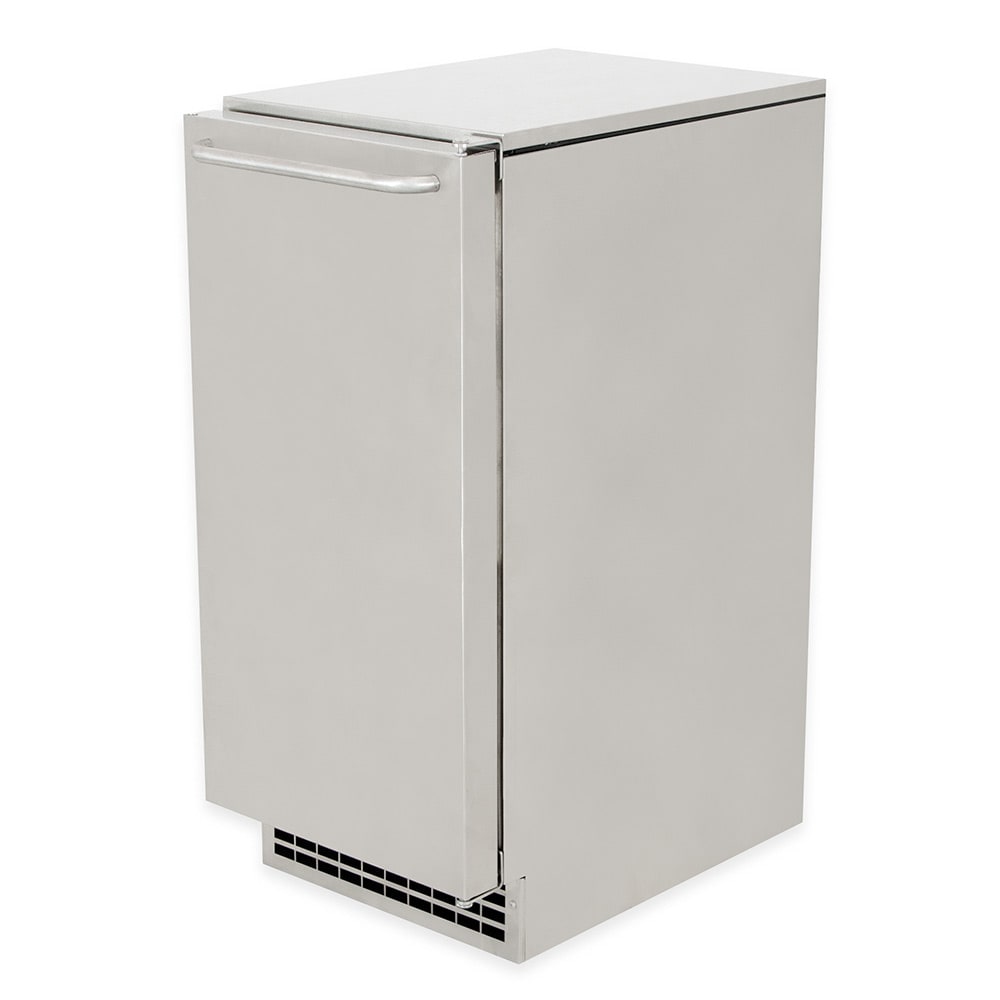

With its 15-inch width, the Scotsman CU50GAX-1/AP1-P undercounter ice machine fits in tight spaces and can make 65 pounds of gourmet ice in 24 hours. Gourmet cubes are much larger than standard cubes, so they melt slower, making them the perfect addition to glasses with high-end liquors. Each crystal-clear cube has a unique shape with no odor or taste. The bin has a 26-pound storage capacity. The AP1-P water filter is included with this unit.
The Scotsman CU50GAX-1/AP1-P undercounter ice maker's user-friendly control panel shows its power status and provides cleaning reminders. If water does not flow to the unit, the panel alerts the operator. This unit operates with a gravity drain, meaning drain water moves into a floor drain naturally. If a floor drain is unavailable where this unit is to be installed, a unit with a drain pump would be needed.
- 65-lb. maximum daily ice production
- 26-lb. storage bin capacity
- Produces crystal-clear gourmet ice
- Gourmet ice size: 1 in. x 1 1⁄8 in. x 1 1⁄4 in.
- Air-cooled condenser
- User-friendly control panel shows the power status, water status, and cleaning reminders
- Water sensor detects hard water conditions and purges mineral-laden water, extending the time between cleanings
- Durable, stainless steel exterior
- Includes an ice scoop
- Uses R290 refrigerant
- AP1-P water filter included
- Gravity drain moves water with particulates to a floor drain
- 1,965-BTU heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 14 7⁄8 in. W x 23 89⁄100 in. D x 34 3⁄8 in. H
- 5 A, 16.44 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman CU50GAX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, Gourmet Cube, 1" x 1.13" x 1.25" cube size, air-cooled, 15" width, self-contained condenser, production capacity up to 65 lb/24 hours at 70°/50° (49 lb certified at 90°/70°), 26 lb ice storage capacity, horizontal evaporator, unit specific QR code, gravity drain, reversible door, stainless steel exterior, 1" adjustable legs, R290 refrigerant, includes power cord with NEMA 5-15P plug, 115v/60/1-ph, 5.0 amps, NSF, cULus
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman CU50GAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 65 |
| Also Known As | CU50GA-1 |
| Bin Capacity (lb) | 26 |
| Compressor Type | Air Cooled |
| Depth (in) | 22 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Stainless Door |
| Height (in) | 34.38 |
| Hertz | 60 |
| Ice Type | Top Hat |
| Includes | AP1-P Filtration |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Special Features | Alert System |
| Special Features | Inline Water Filter Included |
| Special Features | Outdoor Rated |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | Commercial: 1-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Width (in) | 14.88 |
| Weight | 100.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
This ice maker is so loud. Makes great ice but way too loud
This ice maker is crazy loud. Makes great ice but way too loud
Worked for a little while
When it was first installed, it worked well. After a year it ceased making ice, even with regular cleanings. Ice was never clear, but always tasted good. I've had it apart four times trying to figure out what is wrong. Each time it will make ice for a few days, then just make lots of noise, heat, and few cubes. It's been extremely noisey from day one and when you walk by it, you can feel the heat radiating from it. I'm going to chuck it and get something else.
This unit operates on 115 volts, 60 Hz, single phase, and includes a power cord; it requires a 15-amp circuit.
The cabinet measures 15 in. wide and fits under standard counters but needs space at the rear and sides for air circulation.
The machine connects to a 1/4-in. compression fitting potable water line; a supply hose is not included.
The gravity model needs a 5/8-in. drain line, while the pump model includes a 10-foot, 3/8-in. flexible drain tube.
Operate the unit in ambient air temperatures between 50 and 100°F, with incoming water temperatures between 40 and 100°F, and pressure from 20 to 80 PSIG.
The control panel alerts when cleaning is needed; frequency depends on water quality and operating conditions.
It can produce up to 65 lb. of ice per 24 hours.
Its storage bin holds 26 lb. of ice.
It makes top hat ice.
It measures 14 7/8 in. W x 22 in. D x 34 3/8 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Its exterior is made of stainless steel.
Yes, it includes a storage bin with a 26-lb. capacity.
Its listed certifications include cULus Classified, C-UL US, cULus Listed, NSF, and UL.
Yes, it includes a water filter.
Yes, it has adjustable feet.
It requires 5 A.
It uses a NEMA 5-15P plug.
Yes, it includes a power cord and plug.
Yes, it is approved for outdoor installation.
Yes, the door swing can be reversed.
