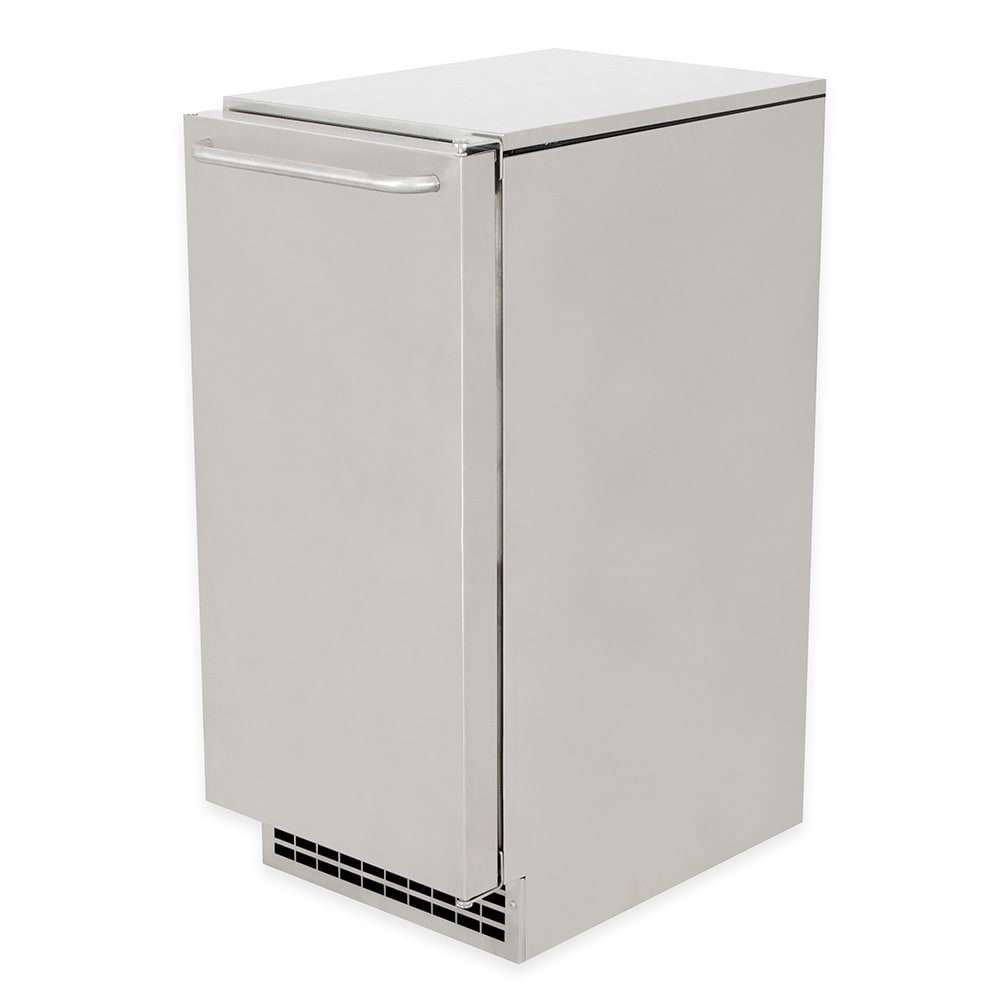

Scotsman CU50PA-1 Undercounter Ice Maker - Top Hat, 65 lb, Drain Pump

Image may not depict product color, inclusions or accessories.

KaTom #: 044-CU50PA1A • MPN: CU50PA-1
Ships Free

Typically ships within 1 - 3 business days

(1 review)Write a Review
Price Increase Warning
Retail Price: $5,045.00
$2,018.00 / Each

Selected Drain Type: Drain Pump

Drain Pump
Gravity Drain

Image may not depict product color, inclusions or accessories.

Scotsman CU50PA-1 Description

Scotsman

The Scotsman CU50PA-1 undercounter ice maker produces gourmet ice that melts slowly and is perfect for unique cocktails. Ice forms into top-hat shapes measuring 1.125 inches long, 1 inch wide, and 1.25 inches tall. Depending on the ambient air and water temperatures, it produces 49 to 65 pounds of ice in a 24-hour period, and its bin stores as much as 26 pounds. Since it enables the ice maker to have inactive periods, the bin helps keep up with demand during peak hours and reduces stress on the system.

Since it is 15 inches wide, the Scotsman CU50PA-1 undercounter ice machine fits in compact spaces. Its control panel alerts users when cleanings are needed, helping keep ice fresh. Extending the time between cleanings, a water quality sensor detects hard water conditions and helps remove heavy minerals with each harvest cycle. For cleanup, drain water is removed by a 10-inch drain tube through the built-in pump.

Product Details

  • 49- to 65-lb. daily ice production capacity
  • Stores as much as 26 lbs. of ice at a time
  • Fits in compact areas
  • Gourmet ice melts slowly and is ideal for mixed drinks
  • Hat-shaped ice size: 1 in. x 1.125 in. x 1.25 in.
  • Hard water conditions are detected by the water quality sensor
  • Control system removes mineral-filled water each harvest cycle to extend time between cleanings

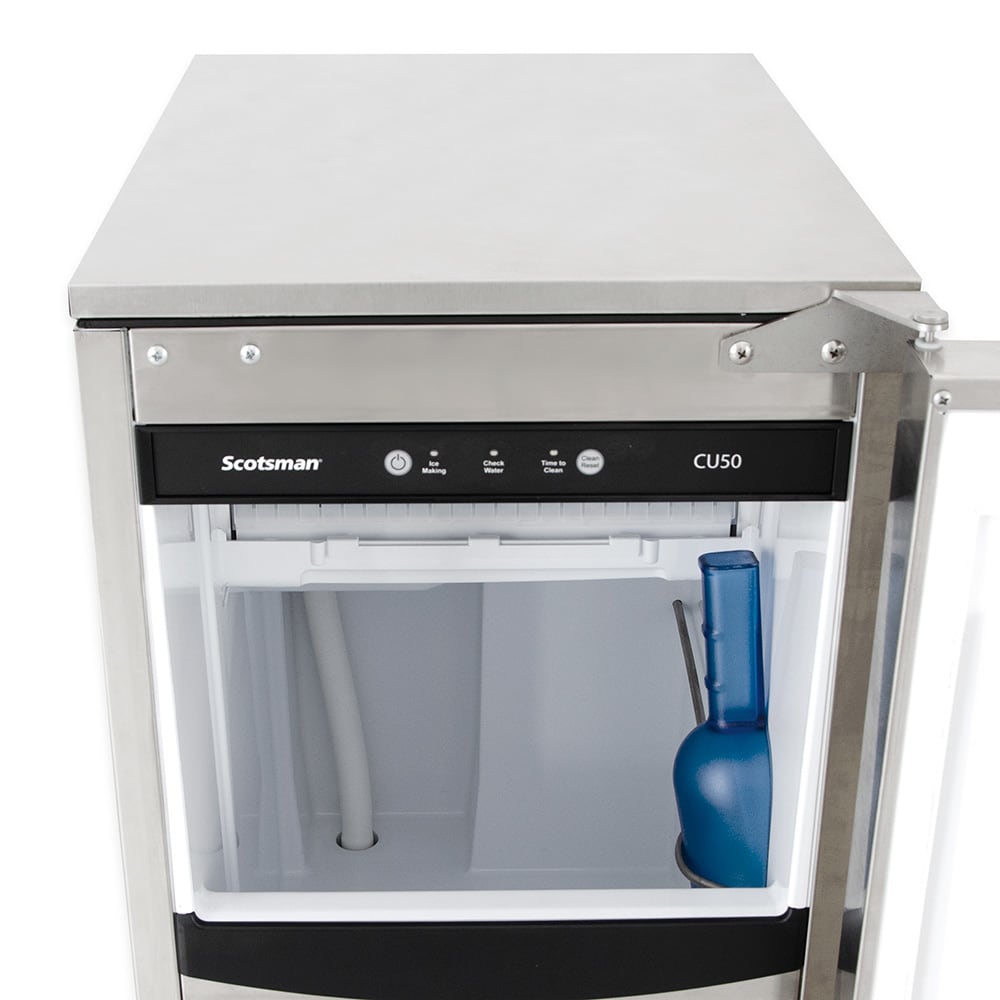

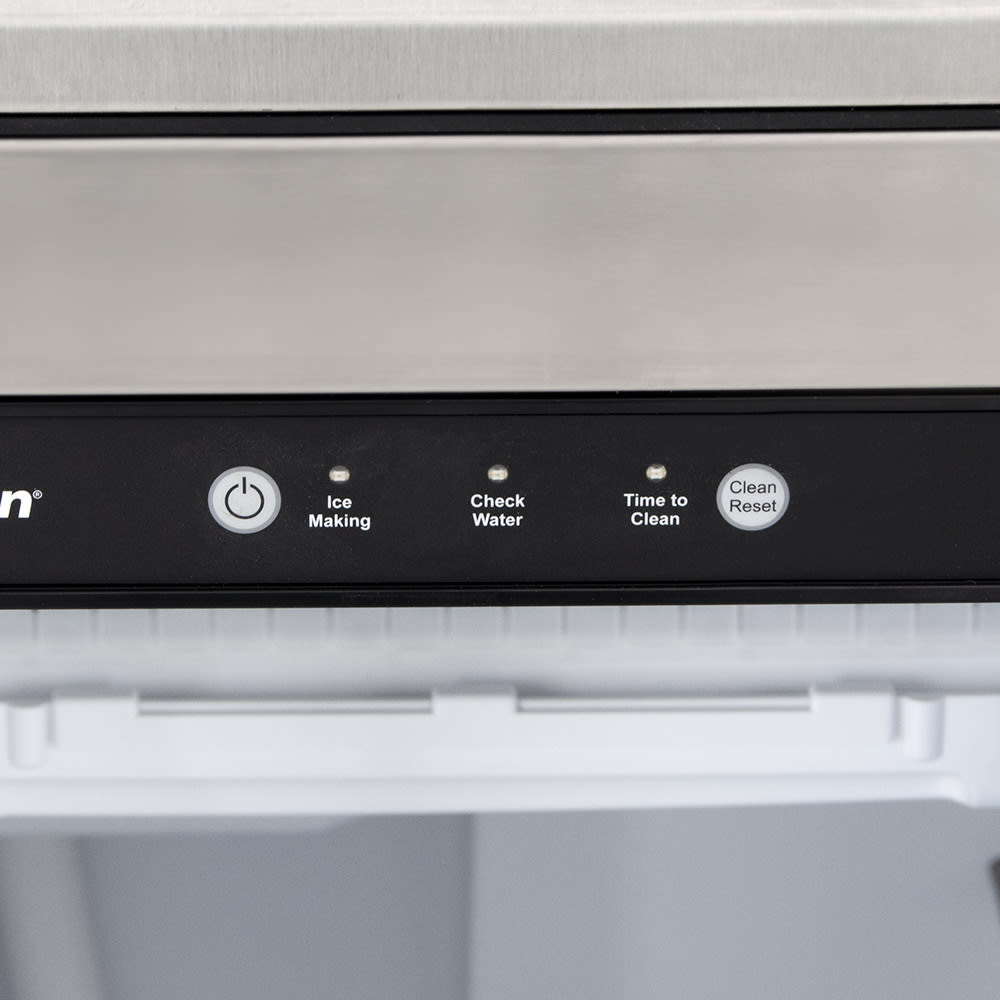

  • Power on, no water condition, and clean time signals on the control panel
  • Approved for outdoor use
  • Built-in pump removes drain water with its 10-in. drain tube
  • R134A refrigerant
  • 1-in. adjustable legs
  • 1,965 hourly BTU
  • cULus listed; ISO 9001:2015 and NSF certified
  • Designed, engineered, and assembled in the U.S.

Product Features

Scotman CU50PA1A Features

Required Operating Conditions

  • Surrounding air temperature: 50-100 degrees F
  • Incoming water temperature: 40-100 degrees F
  • Water pressure: 20-80 PSIG

Dimensions & Utilities

  • 14.875 in. W x 22 in. D x 34.375 in. H
  • 5 A, 14.4 kW
  • 115 V/60 Hz/1 ph

Not sure what kind of gourmet ice maker you want? Get more information from our gourmet ice machine guide.

Undercounter Ice Maker With Bin, Gourmet Cube, air-cooled, self-contained condenser, production capacity up to 65 lb/24 hours at 70°/50° (49 lb certified at 90°/70°), 26 lb ice storage capacity, stainless steel exterior with built in pump drain, 1" adjustable legs, 115v/60/1-ph, 5.0 amps, NSF, cULus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Scotsman CU50PA-1 Specifications

PDF Spec Sheet
Manufacturer Scotsman
24 Hr. Production (lb) 65
Drain Type Pump
Height (in) 34.5
Ice Type Top Hat
Width (in) 15
Bin Capacity (lb) 26
Warranty Commercial: 1-yr. Parts & Labor; Add'l 4 yrs. Parts Compressor; Residential: 1 year parts & labor
Compressor Type Air Cooled
Production Range (lb/day) 1 - 99 lbs
Voltage 115
Phase 1
Suggested Use Home/Office
Suggested Use Commercial
Suggested Use Outdoor
Bin Capacity Range (lb) 1 - 49
Made in USA Yes
Product Undercounter Ice Maker
Product Type Ice Makers & Bins
Special Features Alert System
Special Features Outdoor Rated
Weight 105.00
Scotsman CU50PA-1 Certifications
  • UL
  • NSF

Scotsman CU50PA-1 Customer Reviews

  • 4 out of 5
  • 1 review
  • 5 Stars: (0)
  • 4 Stars: (1)
  • 3 Stars: (0)
  • 2 Stars: (0)
  • 1 Stars: (0)
See all 1 customer reviews
Write A Review

Happy Ice said...
"I've had this machine for about a month now and it's working great, but it's brand new, so it's suppose to. No problems as of yet and it was real..."

See All Scotsman CU50PA-1 Customer Reviews
  • 4 out of 5
  • 1 review
  • 5 Stars: (0)
  • 4 Stars: (1)
  • 3 Stars: (0)
  • 2 Stars: (0)
  • 1 Stars: (0)
  • So far so good

    By on August 31, 2018

    "I've had this machine for about a month now and it's working great, but it's brand new, so it's suppose to. No problems as of yet and it was really easy to hook up. It is loud compared to the previous model machine I had. In fact, you can hear the ice cubes falling into the bin from the other end of the house. Not a problem for me though b/c after a while you get use to it. I did add a filter to my water line as our city tends to have bad water. The real test is going to be at cleaning time b/c I was looking for a machine that was easy to clean and was assured this model was. We'll see!!! As of now, I'm really pleased and would buy again. Also, the best part, hats off to KaTom for having the best price of everyone. $600 cheaper than what my local dealer could get one."
