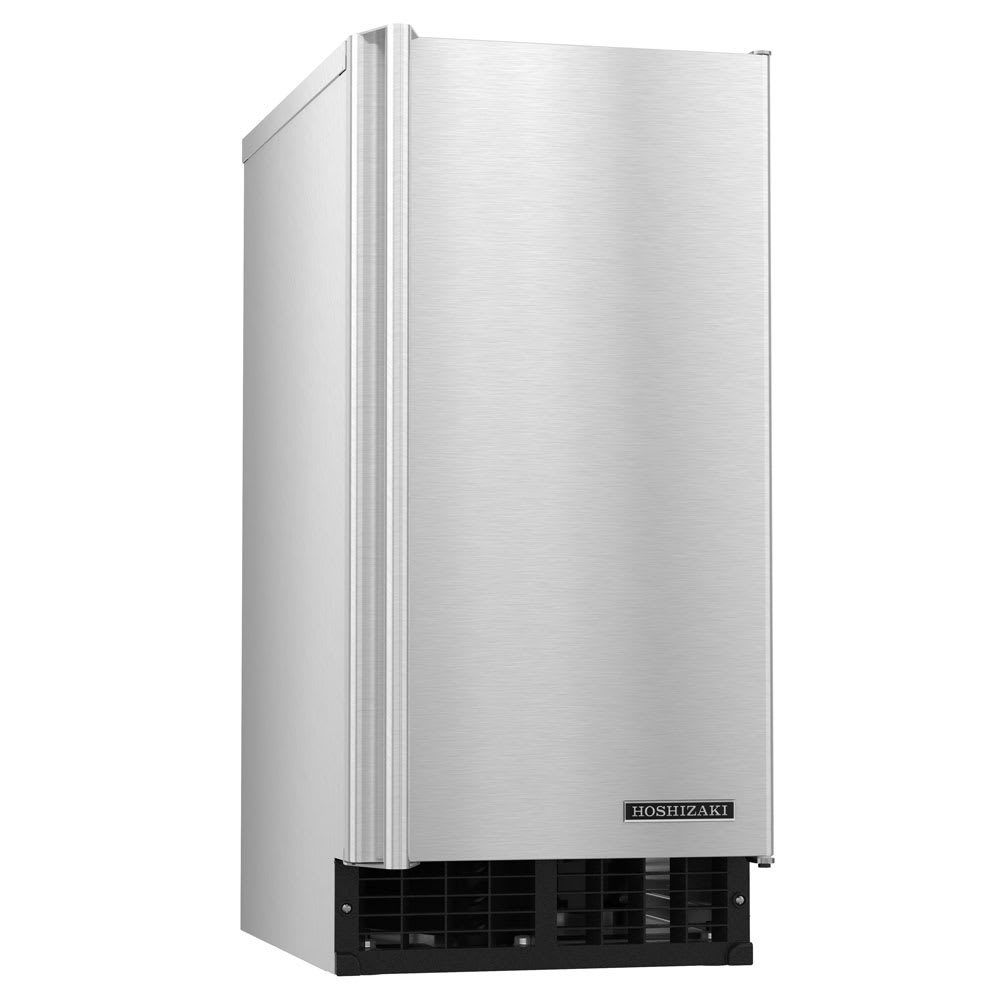

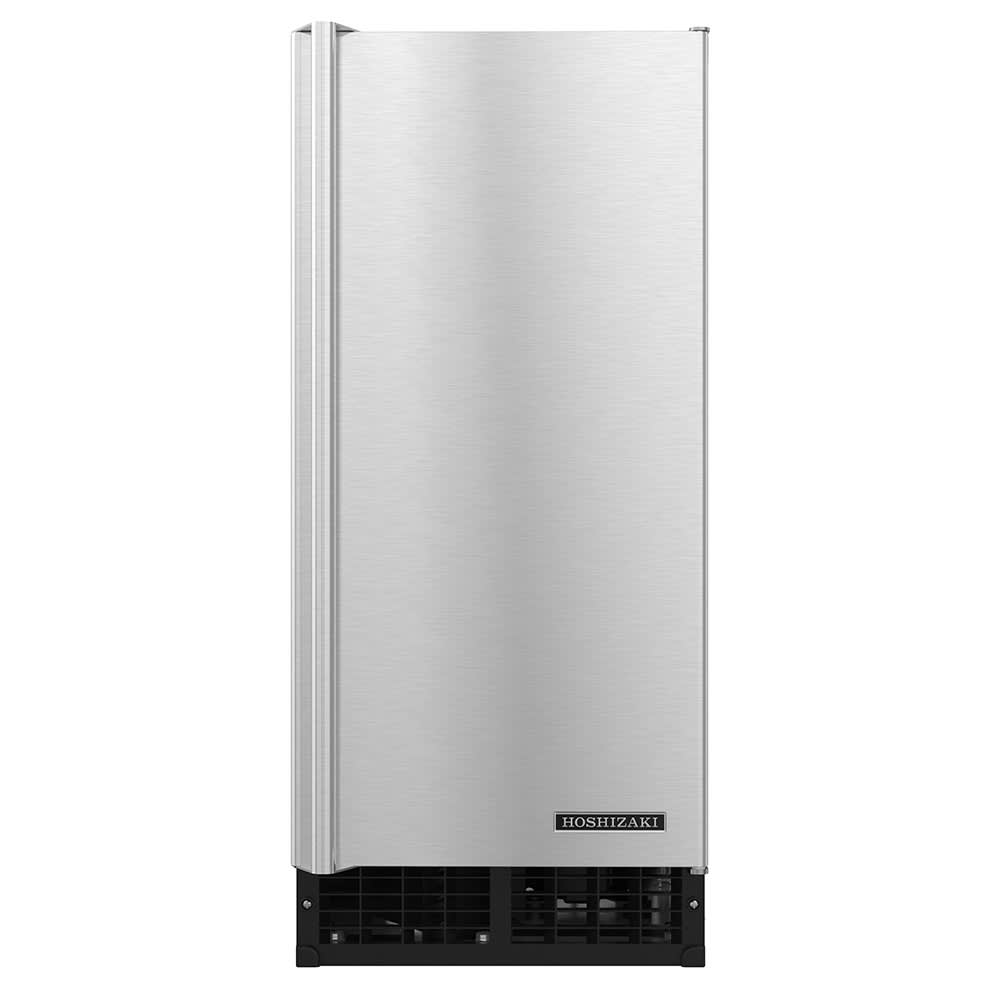

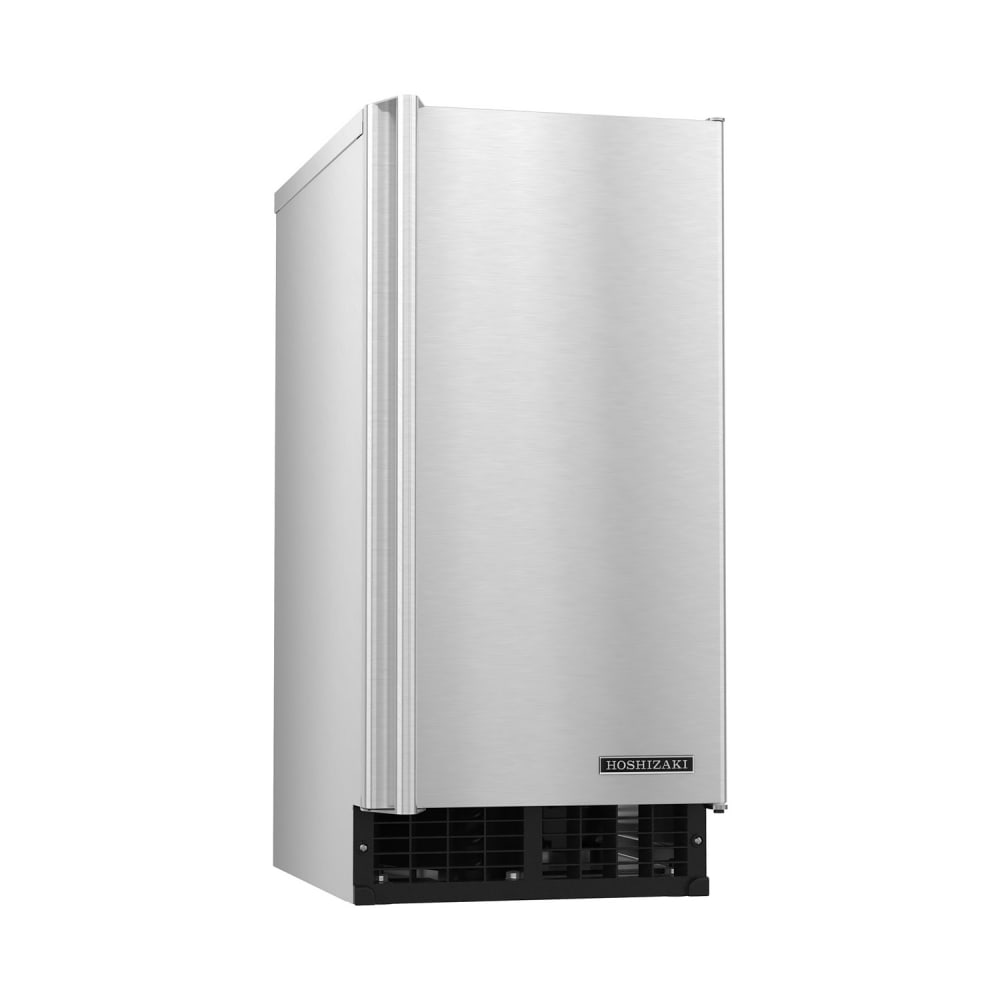

Hoshizaki AM-50BAK-AD 14 7/8"W Top Hat Undercounter Ice Machine - 54 lbs/day, Air Cooled, ADA, Gravity Drain, 115v
Typically ships in 4 - 8 Business Days
$3,095.00 /Each
Contact us for details!
Selected Height: ADA Height
| ADA Height |
| Standard Height |
Attention: Order by 04-01-2026 to save before the price increases!
Hoshizaki AM-50BAK-AD Description
To meet ADA requirements, the Hoshizaki AM-50BAK-AD undercounter ice maker stands less than 32 inches tall. This unit is approved for use outdoors or indoors as long as it is placed on level foundation. Using R290 refrigerant, this ice maker can produce as much as 54 pounds of top hat ice per day. This unit has few moving parts, ensuring a long life and stress-free maintenance.
The Hoshizaki AM-50BAK-AD undercounter ice maker is operated with a power switch that is accessible without removing the panel. For cleaning purposes, the water circuit can be disassembled, and the storage bin can hold as much as 27 pounds of ice. This unit operates with a self-contained refrigeration system and front airflow intake and exhaust. Because it does not expel air from the sides, the machine can be installed right beside other equipment, counters, or walls.
- 54-lb. maximum daily ice production
- 27-lb. storage capacity
- Water circuit can be taken apart for cleaning
- Runs with R290 refrigerant
- Front airflow intake and exhaust
- Operated by a power switch
- Makes top hat ice

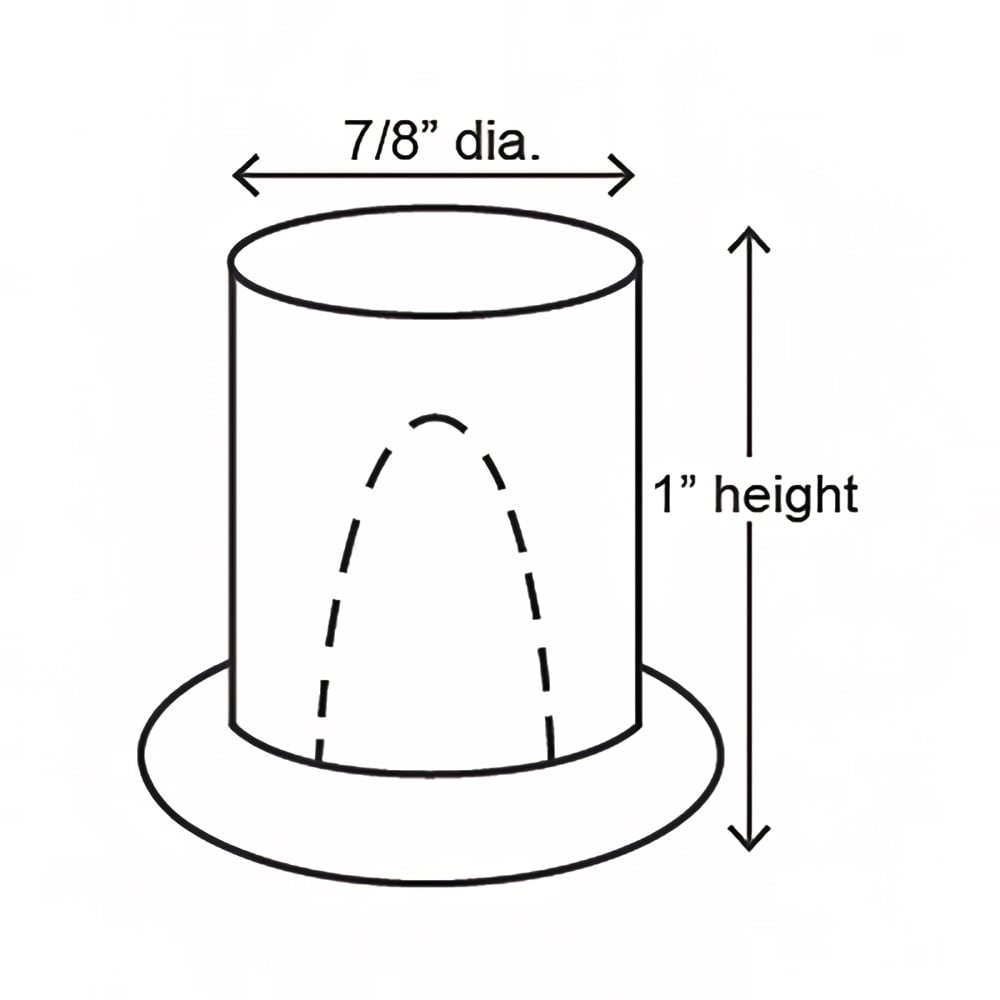

- Top hat ice size: 7⁄8 in. dia. x 1 in. H
- Contains few moving parts that can break down
- Self-contained and air-cooled condenser
- Ideal ambient temperature range: 45-100 degrees F
- Ideal water temperature range: 45-95 degrees F
- 1,900 BTU of heat transfer capacity
- ADA-compliant height
- 14.9 in. W x 24.35 in. D x 31.5 in. H
- 3.8 A, 16.8 kW
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki AM-50BAK-AD within the 48 contiguous states.
From The Manufacturer
Ice Maker with Bin, Cube-Style, air-cooled, self contained, 27 lbs. capacity, production capacity up to 54 lb/24 hours, power switch accessible without panel removal, front in & out airflow, full-length stainless steel door handle, top hat style full cube, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 2 amps, cord & NEMA 5-15P, ADA Compliant, NSF, UL
Watch a video about this product
Hoshizaki AM-50BAK-AD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 54 |
| Also Known As | AM-50BAJ-AD |
| Bin Capacity (lb) | 27 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.63 |
| Design | ADA Height |
| Drain Type | Gravity |
| Front Style | Stainless Door |
| Height (in) | 31.5 |
| Hertz | 60 |
| Ice Type | Top Hat |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | AM Series |
| Special Features | Outdoor Rated |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 2-year Parts & Labor |
| Water Inlet (in) | 0.5 |
| Width (in) | 14.9 |
| Weight | 99.00 |
