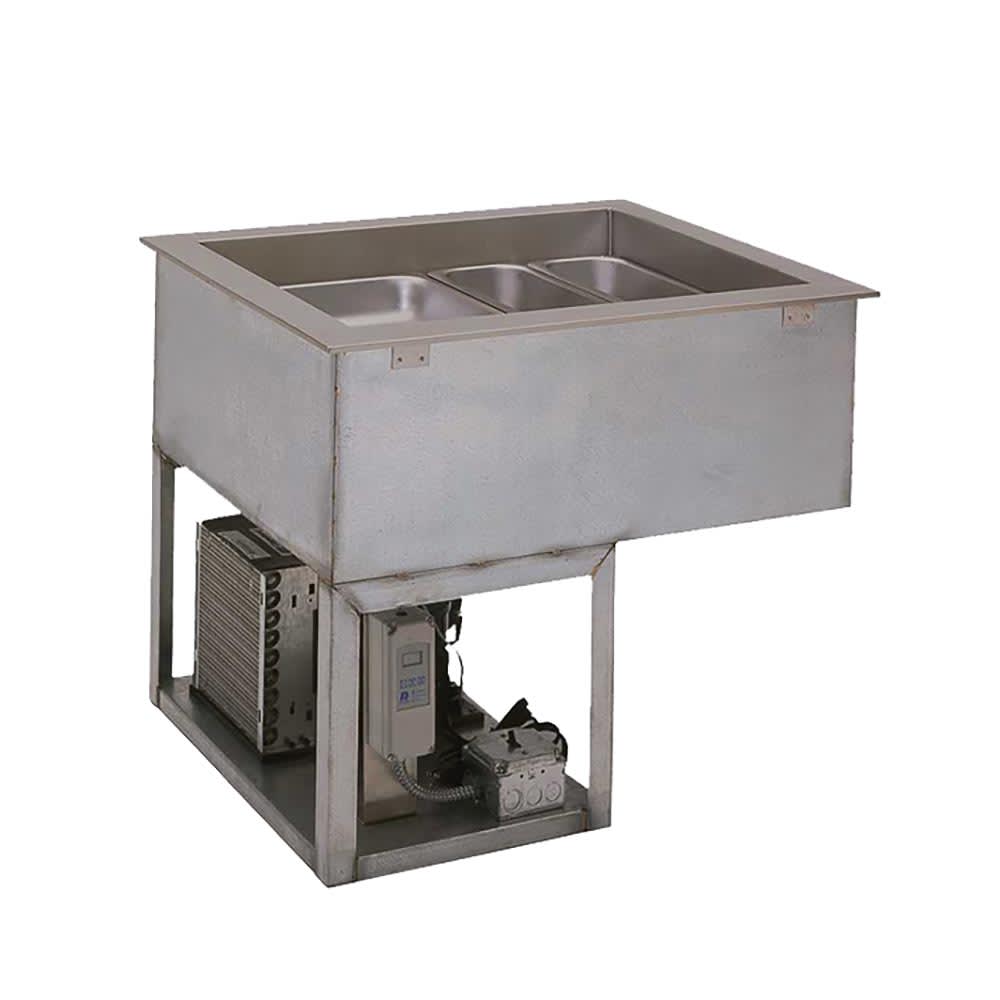

Wells RCP-7500 74" Drop-In Refrigerator w/ (5) Pan Capacity, Cold Wall Cooled, 120v
$11,011.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells RCP-7500 Description
Built with an air-cooled, self-contained refrigeration system, the Wells RCP-7500 cold well can hold prechilled food pans at safe serving temperatures on food bars and buffet tables. This unit uses R-404A refrigerant and features wrapped refrigeration coils along its base and sides for uniform temperature distribution. As menus change, staff can adjust each pan section's temperature with the corresponding thermostatic controls, and to minimize temperature fluctuations in warm environments, it's foamed in place with CFC-free insulation. Operators can perform maintenance with ease as this unit includes a sight glass, service valves, dryer/filter, receiver, and removable condensing unit.
To secure five full-size food pans in place and uphold NSF-7 requirements, the Wells RCP-7500 refrigerated drop-in cold well boasts a 683⁄4-inch-wide by 217⁄8-inch-deep interior with a 3-inch recessed top edge. While its top flange and interior are made of 18-gauge stainless steel, its exterior is made of heavy-gauge steel; both metals provide lasting durability and the rust and corrosion resistance needed to withstand high-volume use. For a cohesive look alongside other food wells, this 74-inch-wide by 271⁄8-inch-deep by 261⁄8-inch-tall unit can be dropped in a 723⁄4-inch-wide by 257⁄8-inch-deep cutout. For simple cleanup between uses, residue can be expelled through the 1-inch drains.
Product Details
- Accommodates (5) 12-in. x 20-in. food pans
- Air-cooled, self-contained refrigeration system
- Cold-wall construction
- R-404A refrigerant
- Each pan section has individual thermostatic controls
- On/off switch
- Sight glass, easy-service valves, dryer/filter, and receiver
- Removable condensing unit
- Drop-in unit
- Required cutout size: 723⁄4 in. W x 257⁄8 in. D
- 18-ga. stainless steel top flange and coved-corner interior
- Heavy-gauge steel exterior
- 3-in. recessed top edge complies with NSF-7 requirements
- Foamed-in-place, CFC-free insulation
- 1-in. drains
Dimensions & Utilities
- Interior: 683⁄4 in. W x 217⁄8 in. D
- Overall: 74 in. W x 271⁄8 in. D x 261⁄8 in. H
- 15.2 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Free shipping on Wells RCP-7500 within the 48 contiguous states.
From The Manufacturer
Cold Food Well Unit, drop-in, self-contained refrigeration, (5) 12" x 20" pan capacity, on/off switch with individual thermostatic controls, insulated pan, 3" recessed top edge, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-404A refrigerant, 3/4 HP, 115v/60/1-ph, 15.2 amps, NEMA 5-20P, NSF, cULus
*Image may not depict product color, inclusions or accessories.

Wells RCP-7500 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Wells |
Access | Top |
Height (in) | 27 |
Hertz | 60 |
Length (in) | 74 |
Pan Capacity | 5 |
Refrigeration Type | Refrigerated |
Type | Cold Wall |
Voltage | 115 |
Warranty | 1-year Limited Parts & Labor |
Width (in) | 28 |
Phase | 1 |
Product | Cold Wells |
Product Type | Food Bars & Buffets |
Includes | Drain |
Certifications | NSF |
Certifications | C UL Us Classified |
Weight | 325.00 |
