Wells RCP-500 73" Drop-In Refrigerator w/ (5) Pan Capacity, Cold Wall Cooled, 120v
$10,808.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Wells RCP-500 Description
By using the Wells RCP-500 cold pan's individual thermostatic controls, operators can set each pan section's temperatures to ensure a variety of contents are held in safe conditions. Its self-contained refrigeration system uses R-404A refrigerant and features wrapped coils on its sides and base for even temperature distribution. To preserve generated temperatures in warm settings, it's foamed in place with CFC-free insulation. Operators can quickly service this unit because of its included sight glass, service valves, receiver, filter/dryer, and removable condensing unit.
Great for diversifying menu options, the Wells RCP-500 refrigerated cold pan accommodates five 12-inch by 20-inch food pans or the fractional pan size equivalent. Its 663⁄4-inch-wide by 197⁄8-inch-deep interior is built with a recessed ledge that lowers inset pans to shield them from ambient air, preserving temperatures and freshness. To create a built-in appearance on food bars, this 721⁄4-inch-wide by 253⁄8-inch-deep by 241⁄2-inch-tall unit can be dropped in a 703⁄4-inch-wide by 237⁄8-inch-deep cutout. To complement other serving equipment and prolong service life in fast-paced eateries, its interior, exterior, and top are made of durable, rust- and corrosion-resistant stainless steel.
Product Details
- Capacity: (5) 12-in. x 20-in. food pans
- Drop-in configuration
- Required cutout size: 703⁄4 in. W x 237⁄8 in. D
- Rugged, corrosion- and rust-resistant stainless steel construction
- Recessed ledge supports food pans
- CFC-free foamed-in-place insulation
- 1-in. center drain
- Self-contained refrigeration system
- Sides and base built with wrapped coils
- R-404A refrigerant
- Condensing unit positioned on corrosion-resistant frame beneath cold pan
- Individual thermostatic controls for each pan section
- On/off switch
- Sight glass, easy-service valves, dryer/filter, and receiver simplify servicing
- Condensing unit is removable
Dimensions & Utilities
- Interior: 663⁄4 in. W x 197⁄8 in. D
- Overall: 721⁄4 in. W x 253⁄8 in. D x 241⁄2 in. H
- 6.4 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

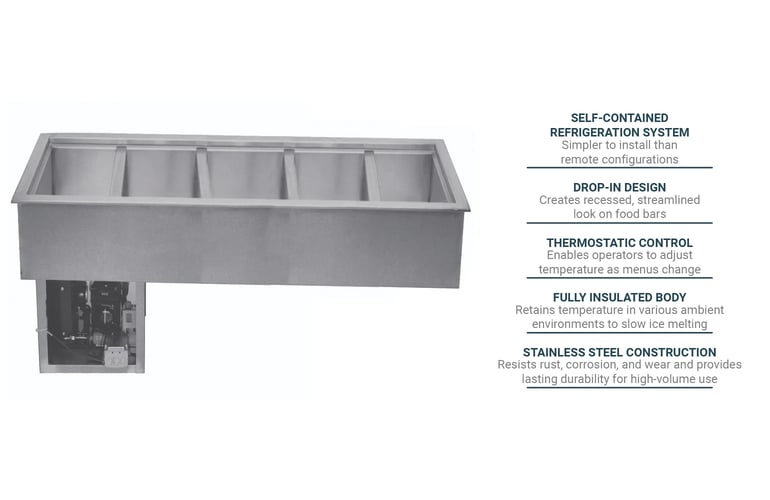

Product Features
*Free shipping on Wells RCP-500 within the 48 contiguous states.
From The Manufacturer
Cold Food Well Unit, drop-in, self-contained refrigeration, (5) 12" x 20" pan capacity, on/off switch with individual thermostatic controls, insulated pan, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-404A refrigerant, 1/2 HP, 115v/60/1-ph, 6.4 amps, NEMA 5-15P, NSF, cULus
*Image may not depict product color, inclusions or accessories.
Wells RCP-500 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Access | Top |
| Height (in) | 25 |
| Hertz | 60 |
| Includes | Drain |
| Length (in) | 73 |
| Pan Capacity | 5 |
| Phase | 1 |
| Product | Cold Wells |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Type | Cold Wall |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 26 |
| Weight | 278.00 |
