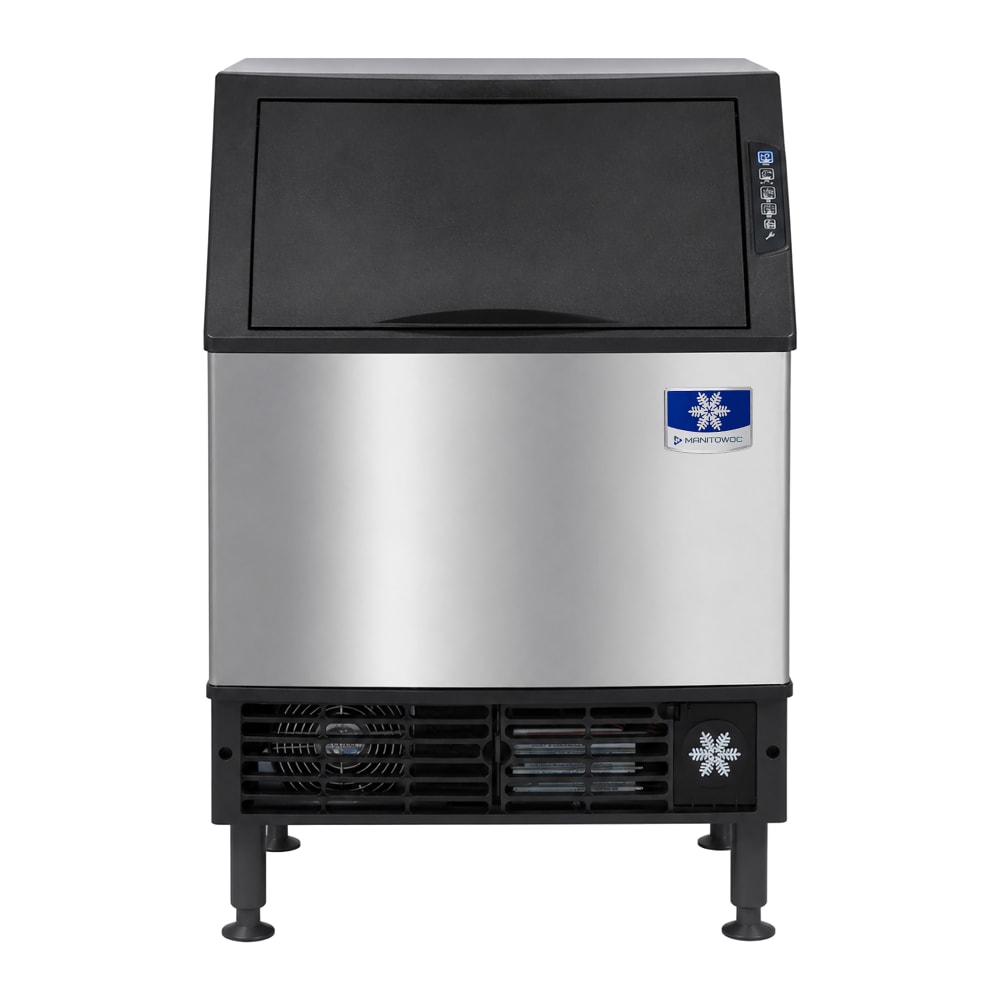

Manitowoc Ice UYP0240W 26"W NEO® Half Cube Undercounter Ice Machine - 235 lbs/day, Water Cooled, Integrated Water Filter
$3,573.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Water Cooled
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Manitowoc Ice UYP0240W Description
Built for smooth drink service, the angled door on the Manitowoc Ice UYP0240W NEO® undercounter ice machine lifts upward to expose a generous bin opening, allowing bartenders to scoop half-dice cubes without awkward bending or blind grabs. Clear sightlines reduce spills, and the smooth interior wipes clean, keeping bar traffic moving and patrons refreshed through evening rushes. The forward-sliding bin helps provide quick access to key components, while the integrated filtration system helps ensure clean-tasting ice.
To streamline installation in tight kitchen lines, the Manitowoc Ice UYP0240W NEO undercounter ice machine features front-ventilated airflow that draws cool air in and pushes warm air forward without side clearance for reliable performance during peak hours. This arrangement shields internal components from heat buildup, distinguishing it from water-cooled units that demand extra plumbing and higher water costs.
- NEO series
- 235-lb. daily production capacity
- 90-lb. storage bin capacity
- Undercounter configuration
- Makes half-dice ice cubes
- Forward-sliding insulated storage
- Front-ventilated design
- Integrated 5-micron onboard water filtration system

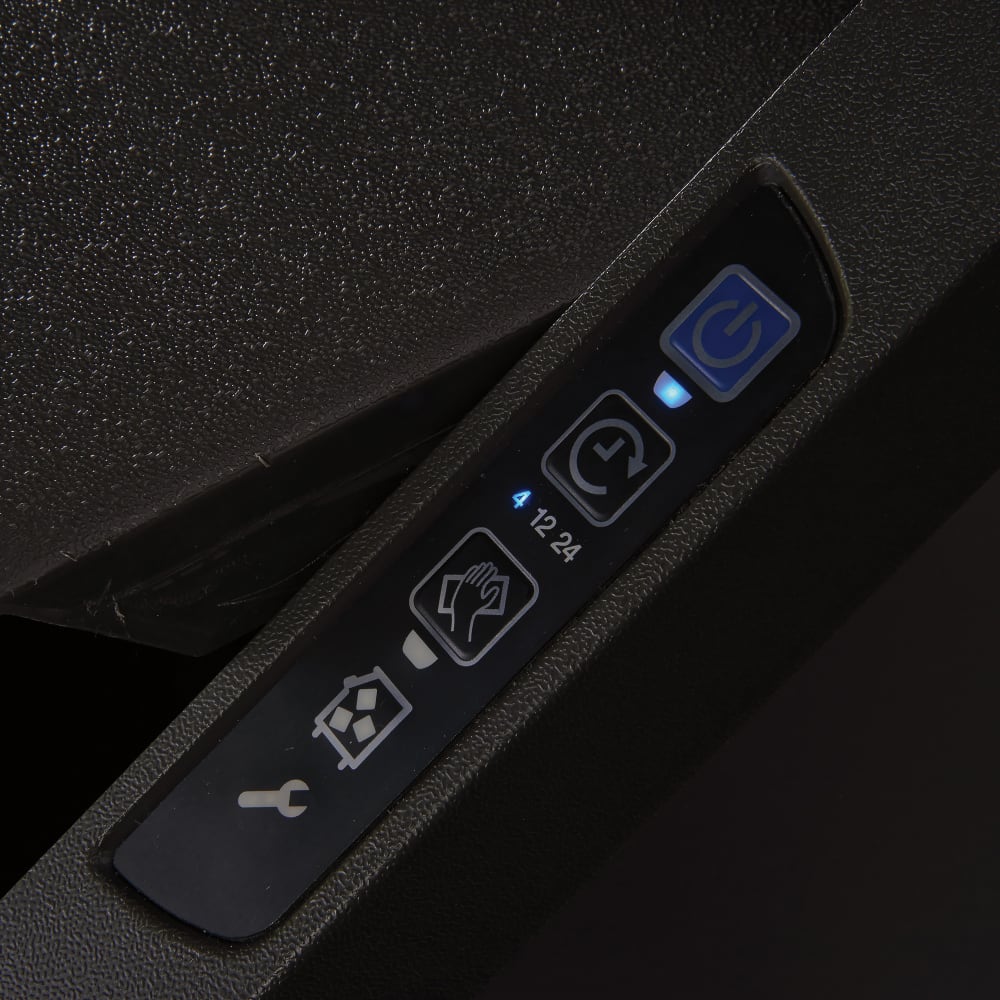

- Touchpad controls
- 6-in. adjustable leveling legs
- R290 hydrocarbon refrigerant
- Water-cooled, self-contained condenser
- Cupra-nickel condenser
- Average heat rejection: 4,500 BTU/hr
- Peak heat rejection: 5,200 BTU/hr
- Ambient temperature range: 50-100 degrees F
- Incoming water temperature range: 45-90 degrees F
- Water inlet pressure range: 20-80 psi
- Condenser inlet pressure: 20-150 psi
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 6.5 A
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYP0240W within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, half-dice size ice, water-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 235 lbs./24 hours at 70/50 (214 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UYP0240W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 235 |
| Also Known As | UYF0240W |
| Bin Capacity (lb) | 90 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 165.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Manitowoc Ice UYP0240W Manitowoc Ice UYP0240W 26"W NEO® Half Cube Undercounter Ice Machine - 235 lbs/day, Water Cooled, Integrated Water Filter Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,573.00 / Each | $3,128.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Ice Type | Half Cube | Half Cube |
| 24 Hr. Production (lb) | 235 | 266 |
| Bin Capacity (lb) | 90 | 80 |
| Width (in) | 26 | 24 |
| Compressor Type | Water Cooled | Water Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Adjustable Leveling Feet | Removable Air Filter |
| Series | NEO® | |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | Lift Door |
| Depth (in) | 28.5 | 28.5 |
| Height (in) | 38.5 | 39 |
| Design | Standard Height | Standard Height |
| Refrigerant | R290 (Hydrocarbon) | R134a |
| Voltage | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
