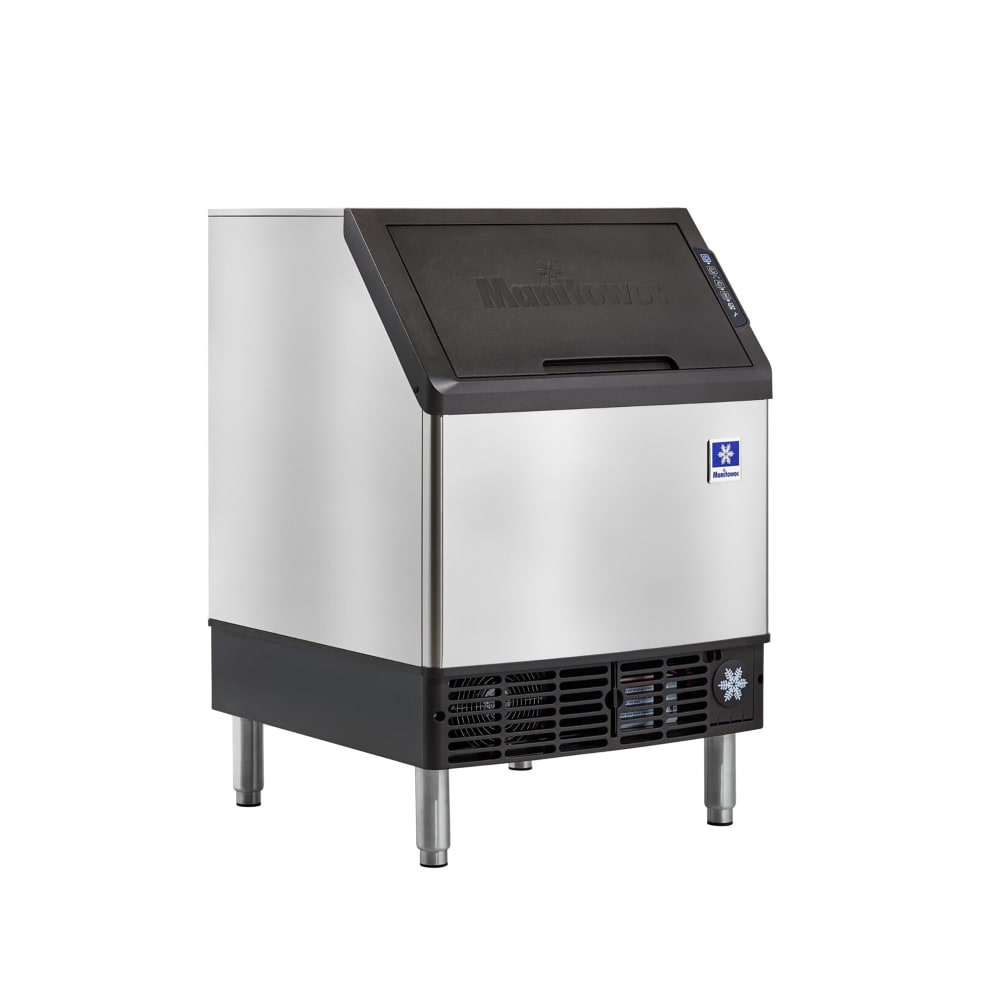

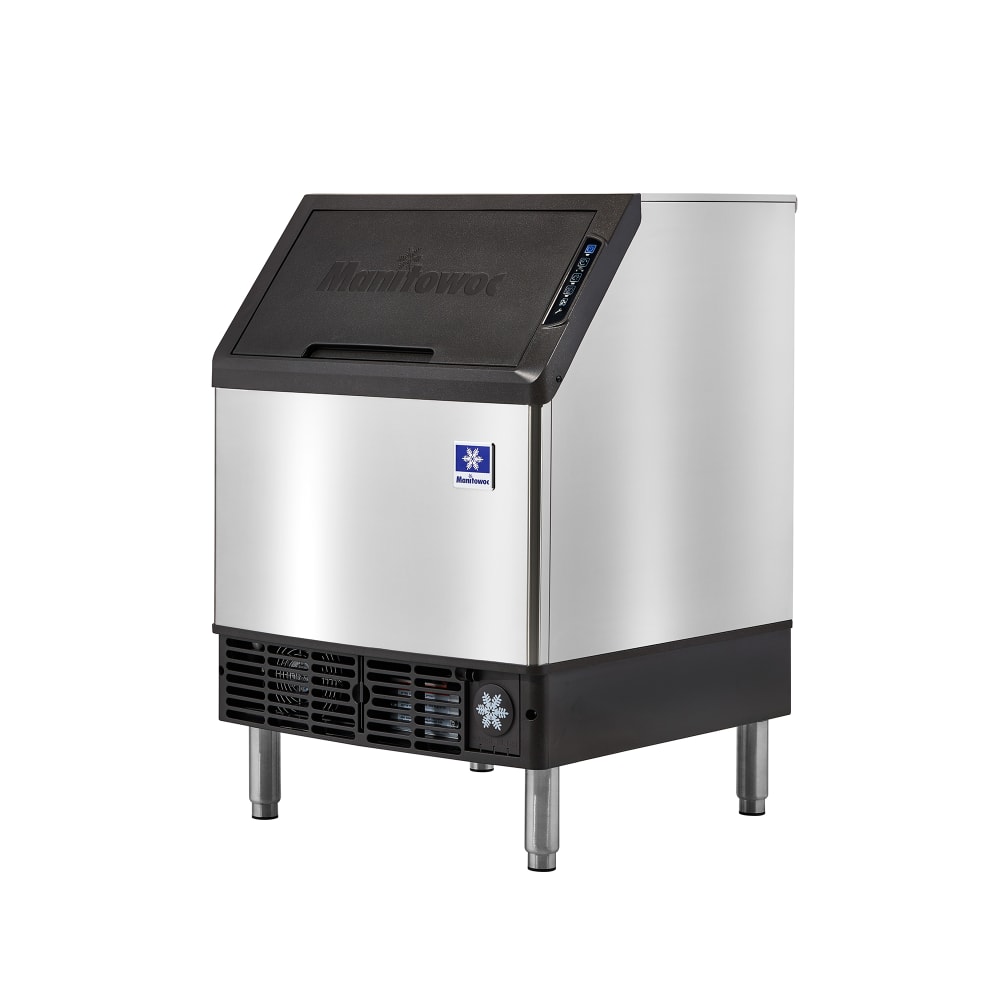

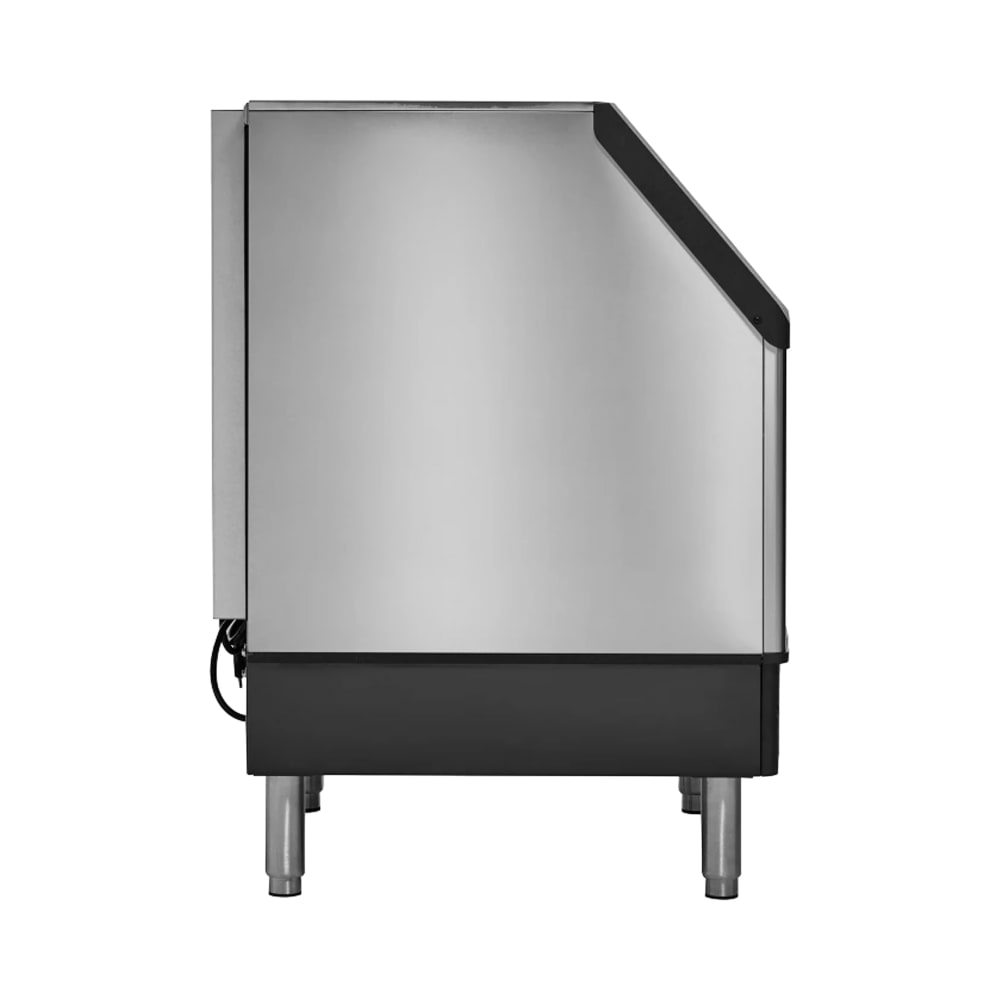

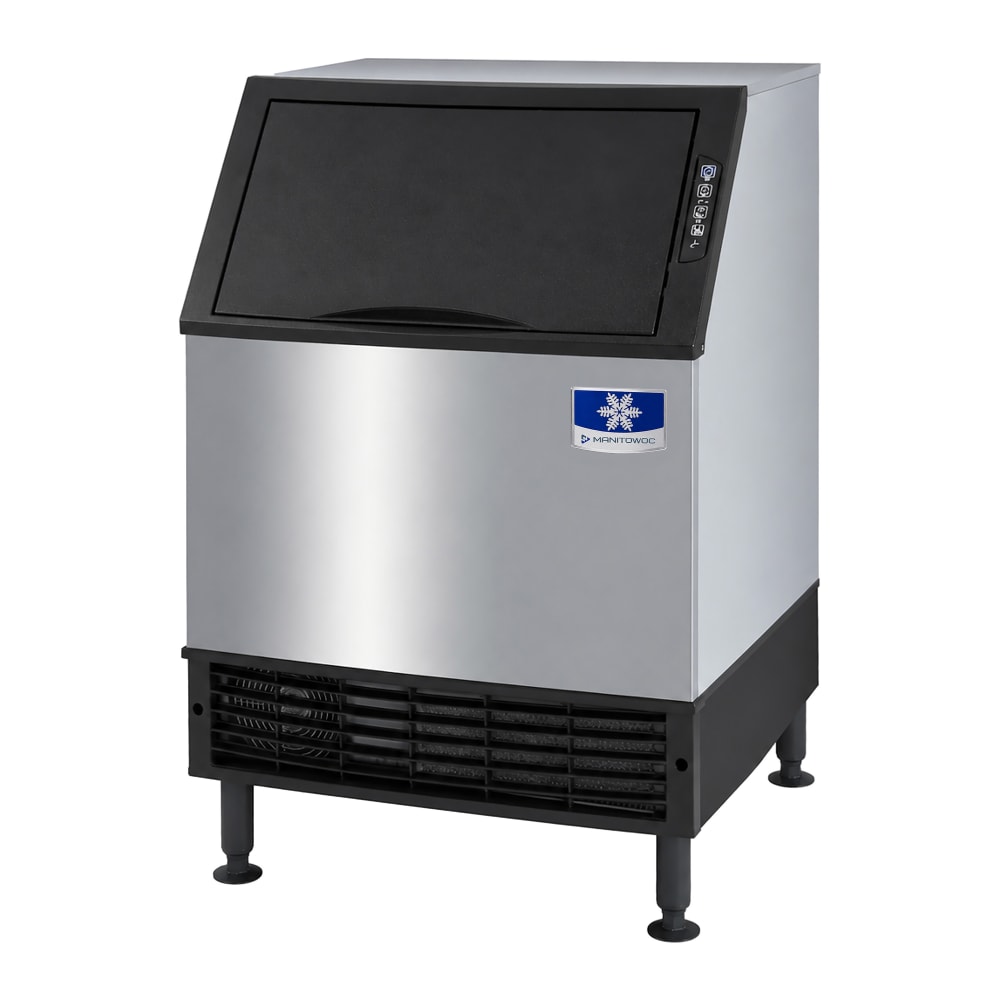

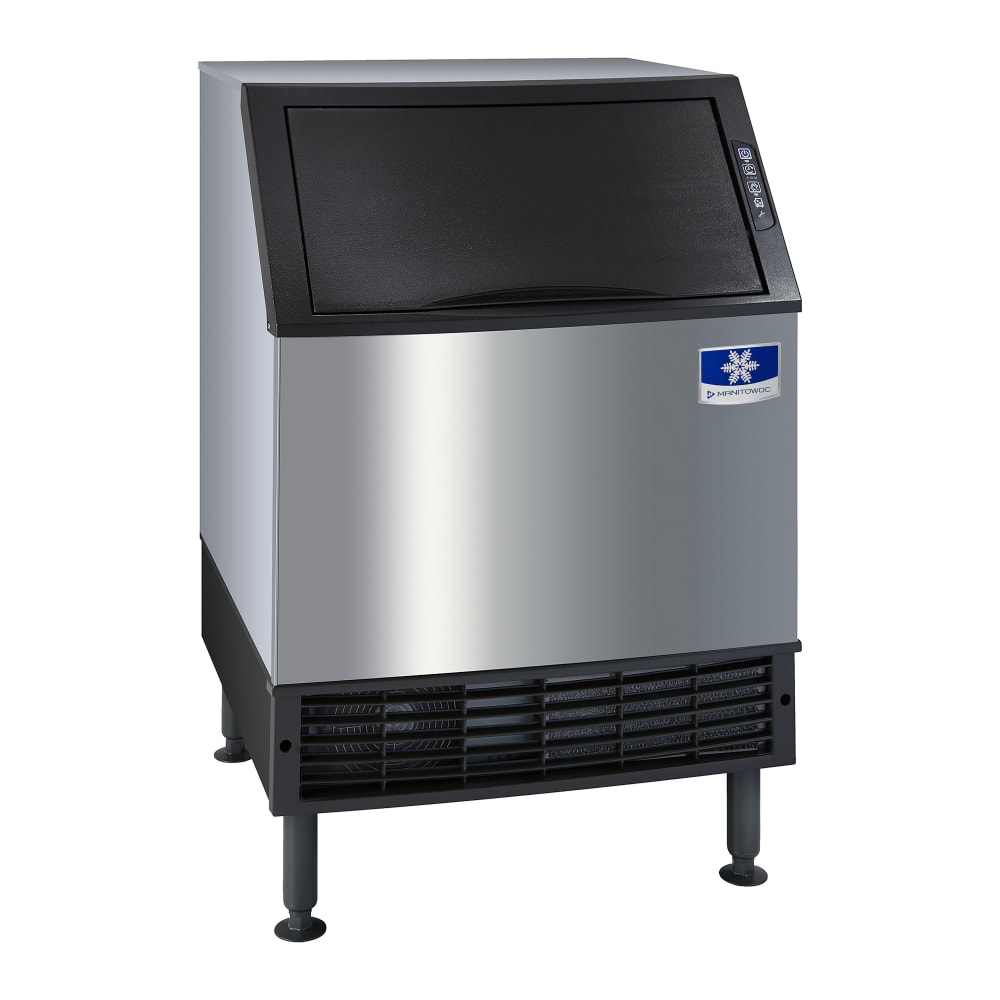

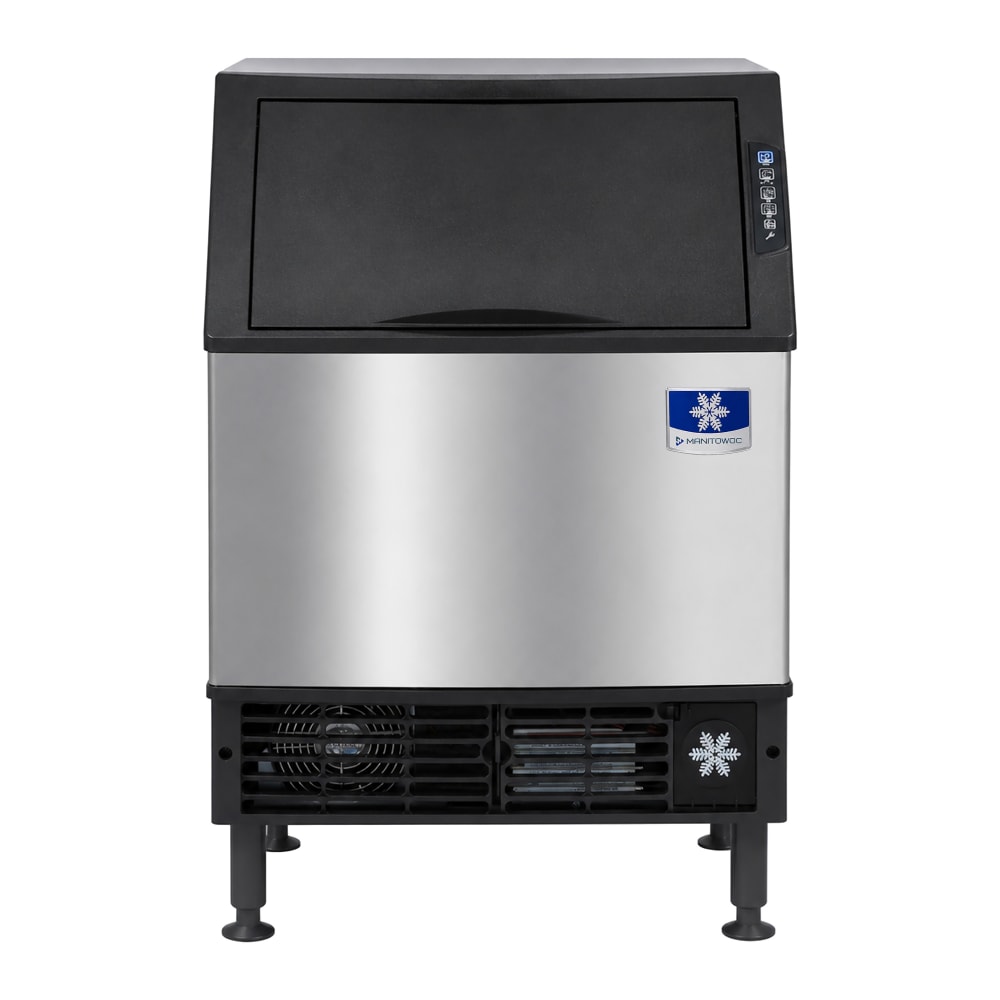

Manitowoc Ice UYP0240A 26"W NEO® Half Cube Undercounter Ice Machine - 250 lbs/day, Air Cooled, Integrated Water Filter
QUICK SHIP: Ships in 1 Business Day
$3,369.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Air Cooled
Manitowoc Ice UYP0240A Description
Powered by eco-friendly R290 refrigerant, the Manitowoc Ice UYP0240A NEO® undercounter ice machine keeps its half-dice cubes cold without using ozone-depleting gases. The sealed system reduces energy waste, and an air-cooled condenser vents heat forward, protecting nearby equipment. Integrated filtration also guards internal surfaces, helping operators maintain consistent ice output through long, demanding service shifts.
With capacity tailored to midsize bars, daily production reaches 250 pounds, while a 90-pound storage bin keeps service on pace. Inside the cabinet, the Manitowoc Ice UYP0240A NEO undercounter ice machine uses a forward-sliding design for tool-free maintenance, and its angled door improves visibility, allowing bartenders to scoop cubes quickly during peak orders each shift.
- NEO series
- 250-lb. daily production capacity
- 90-lb. storage bin capacity
- Undercounter configuration
- Half-dice cube ice
- Forward-sliding insulated storage
- Front-ventilated design
- Integrated 5-micron onboard water filtration system

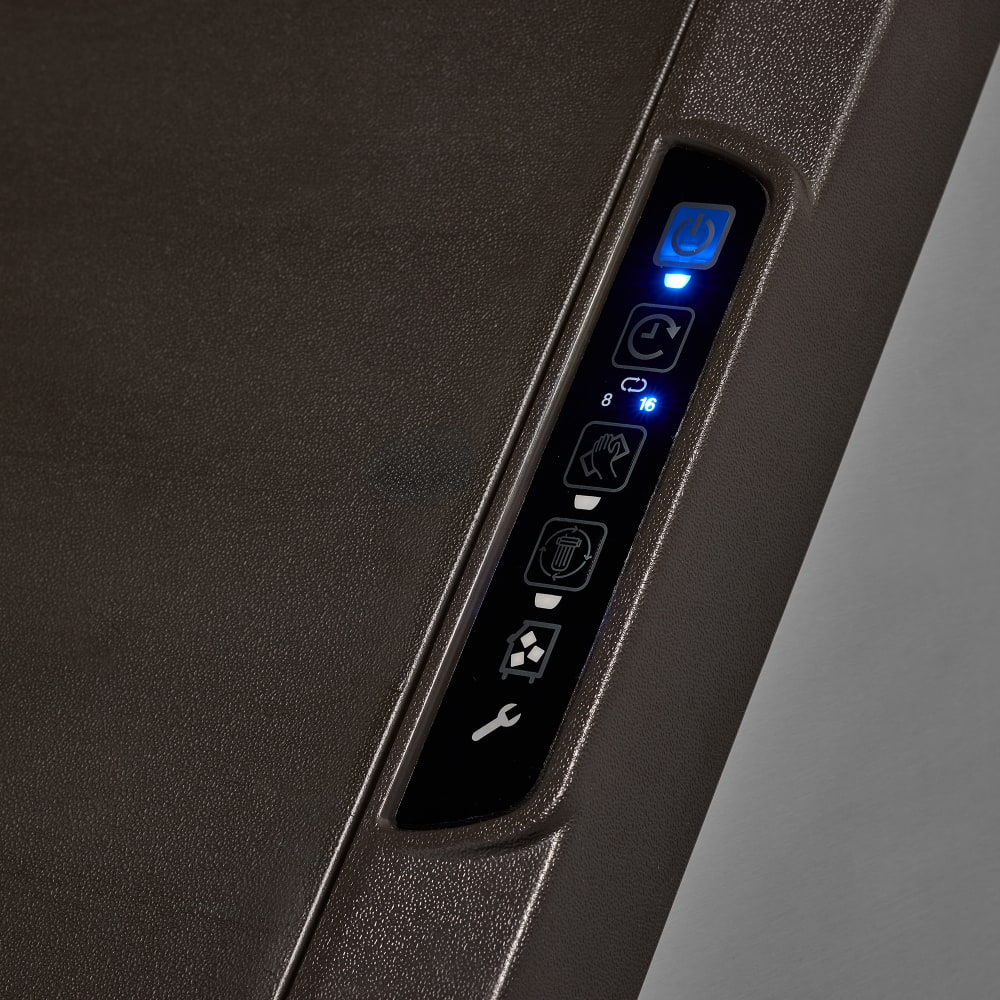

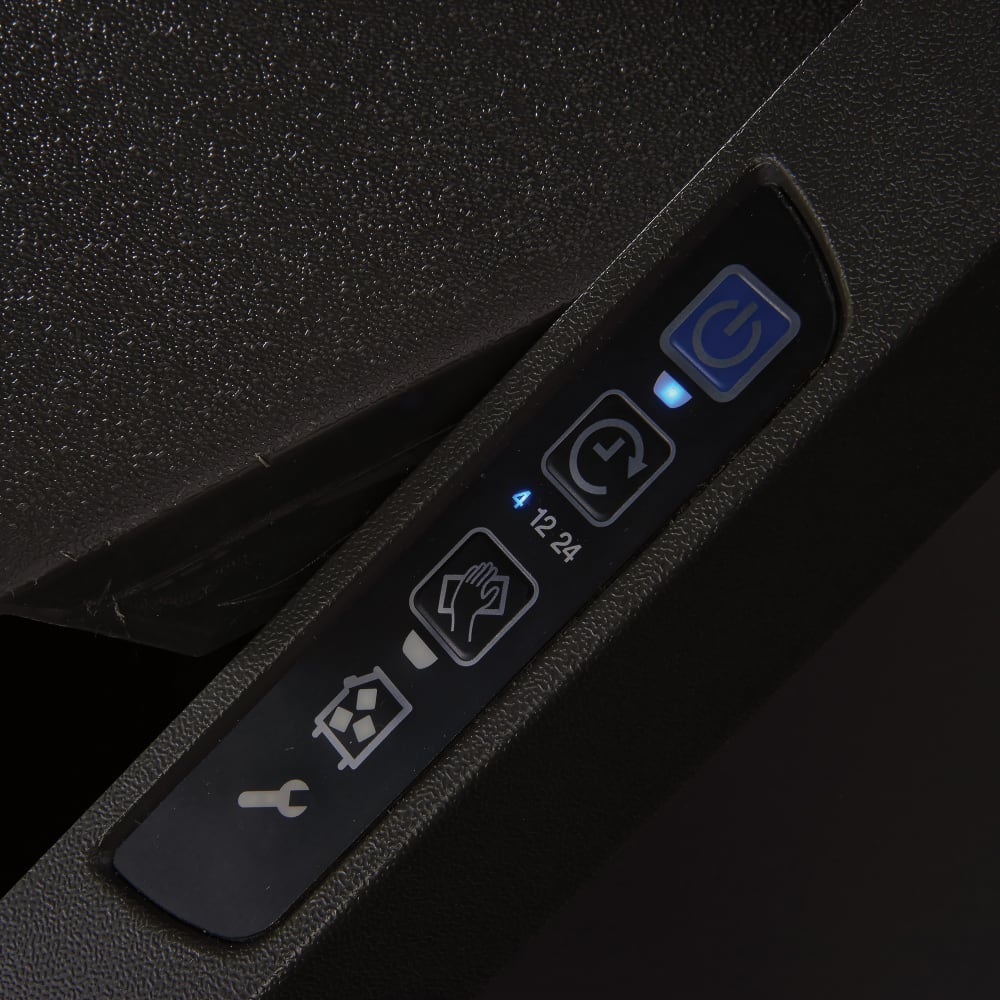

- Touchpad controls
- 6-in. adjustable leveling legs
- R290 hydrocarbon refrigerant
- Air-cooled, self-contained condenser
- Average heat rejection: 3,700 BTU/hr
- Peak heat rejection: 4,400 BTU/hr
- Ambient temperature range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- Water inlet pressure range: 20-80 psi
- Condenser inlet pressure: 20-150 psi
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 7 A
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYP0240A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, half-dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 250 lbs./24 hours at 70/50 (200 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UYP0240A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 250 |
| Also Known As | UYF0240A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 165.00 |
