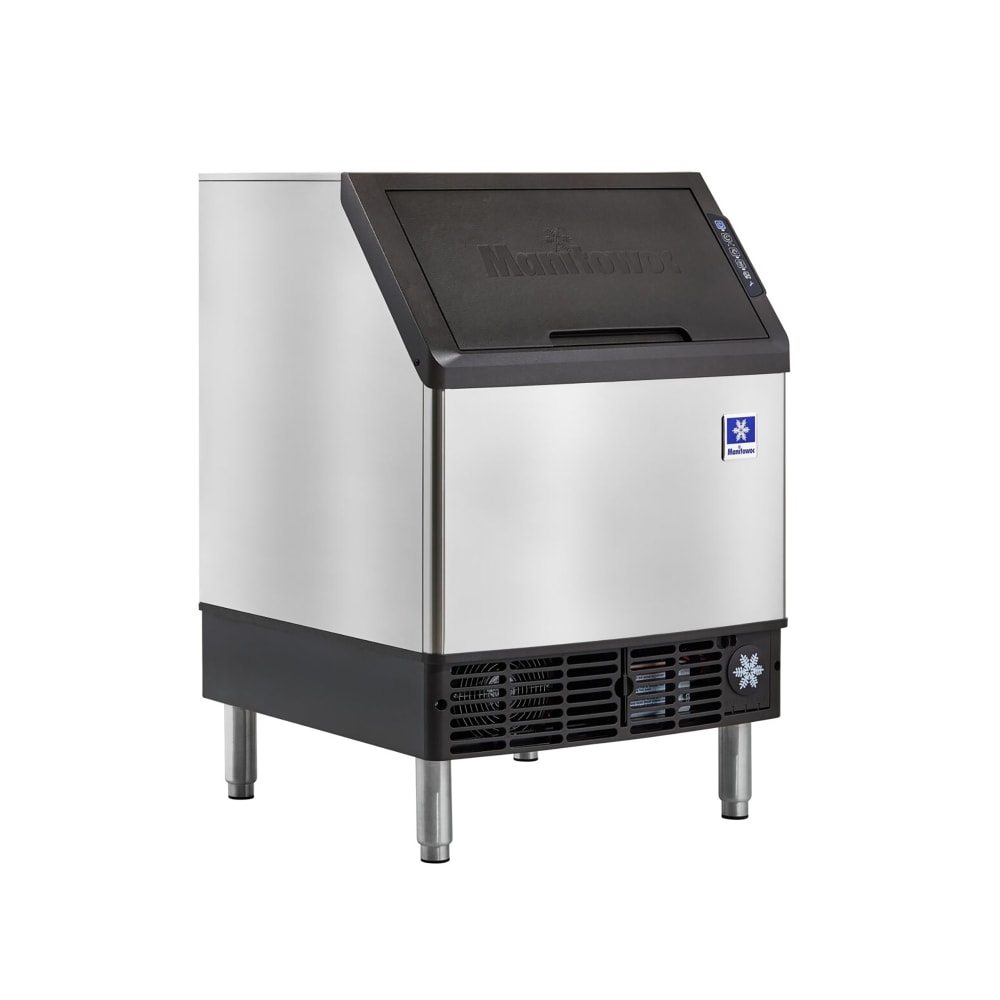

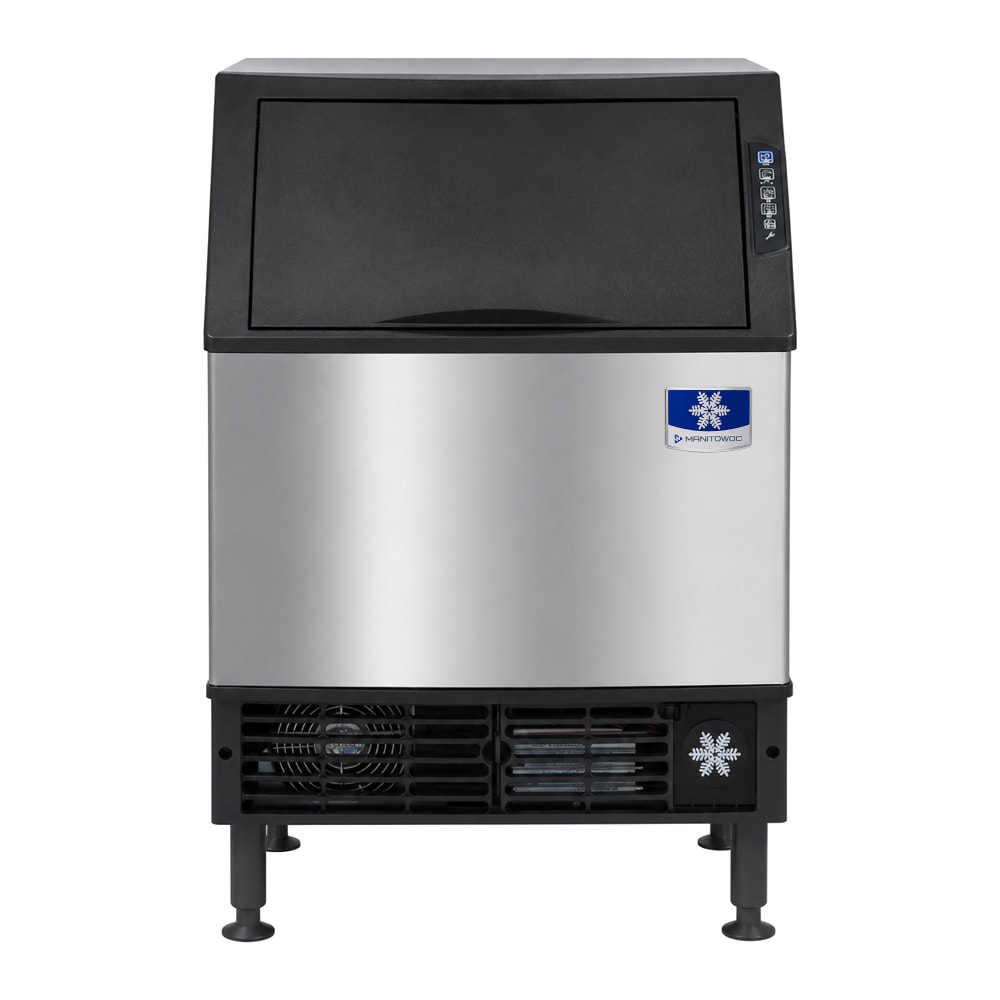

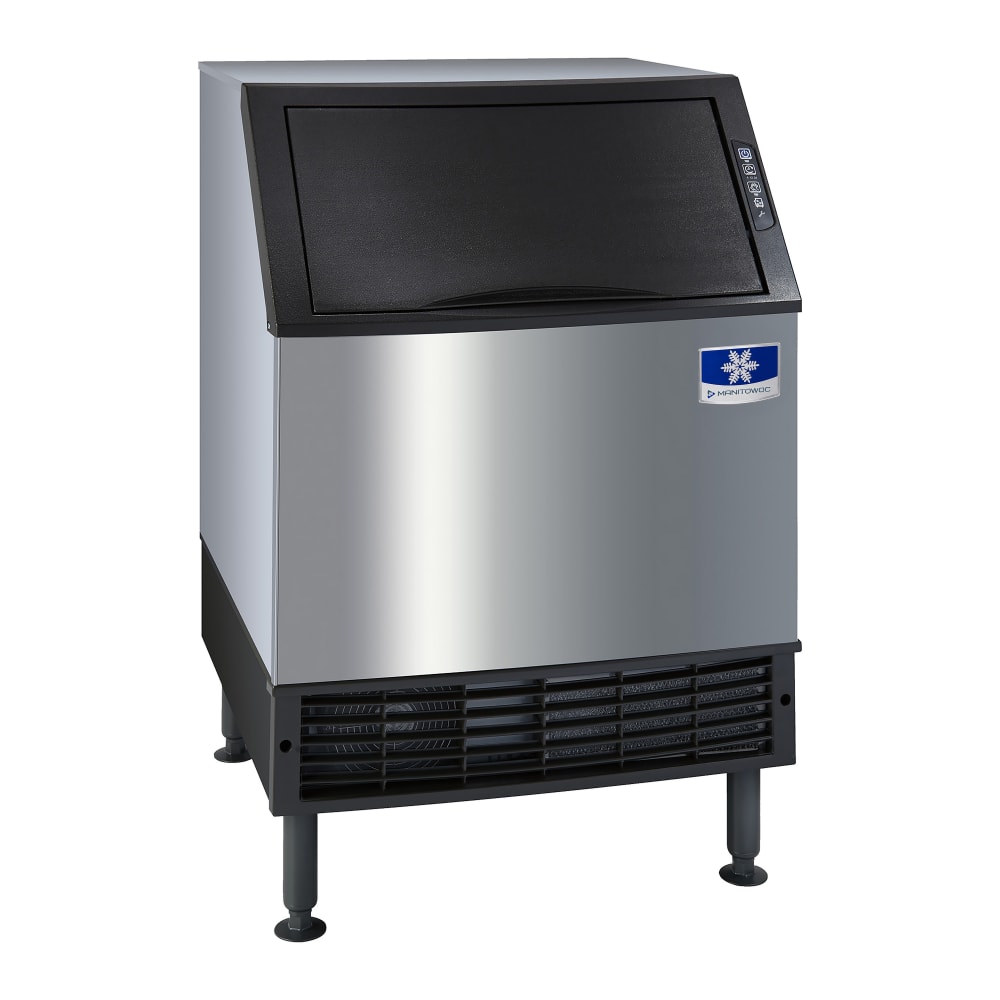

Manitowoc Ice UDP0240W 26"W NEO® Full Cube Undercounter Ice Machine - 240 lbs/day, Water Cooled, Integrated Water Filter
QUICK SHIP: Ships in 1 Business Day
$3,573.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice UDP0240W Description
With a compact footprint and front-breathing ventilation, the Manitowoc Ice UDP0240W NEO® full cube undercounter ice machine produces up to 240 pounds of dice-style ice every 24 hours and stores 90 pounds in its built-in bin. Designed for tight installation spaces, this 26-inch-wide model fits beneath most countertops and vents from the front to maximize usable space. This ice machine features a lift-up front door that provides access to the insulated bin, while its integrated 5-micron water filter reduces sediment and scale buildup to help extend the life of internal components and improve overall ice clarity.

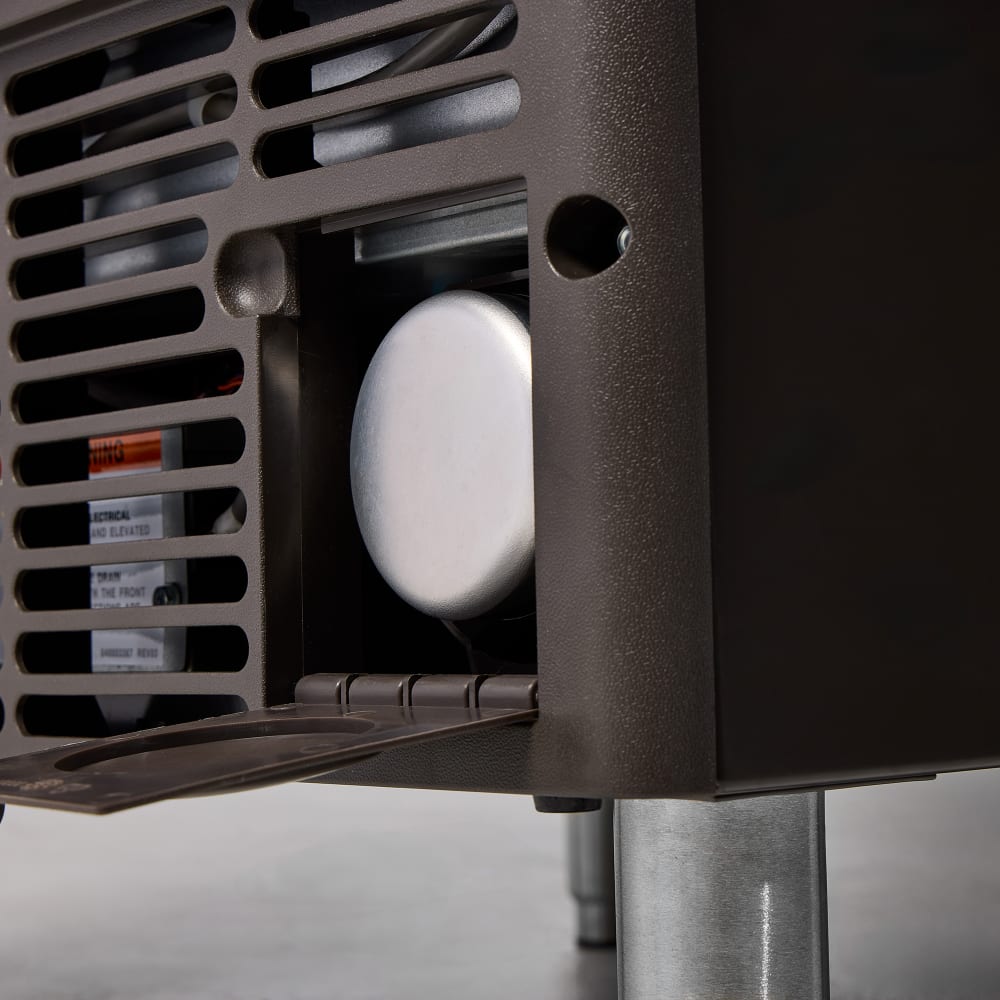

Outfitted with a water-cooled, self-contained refrigeration system, the Manitowoc Ice UDP0240W NEO full cube undercounter ice machine runs on environmentally friendly R290 refrigerant. Its cupro-nickel condenser helps maintain efficiency in areas with hard or aggressive water. For maintenance, the forward-sliding bin grants access to refrigeration parts without requiring full disassembly. The unit connects via a gravity drain and includes 6-inch adjustable legs to support leveling during setup.
- NEO series
- Undercounter configuration
- Produces full cube (dice-style) ice
- Up to 240 lbs. ice production per 24 hours
- 212 lbs. AHRI-certified production at 90 degrees/70 degrees F

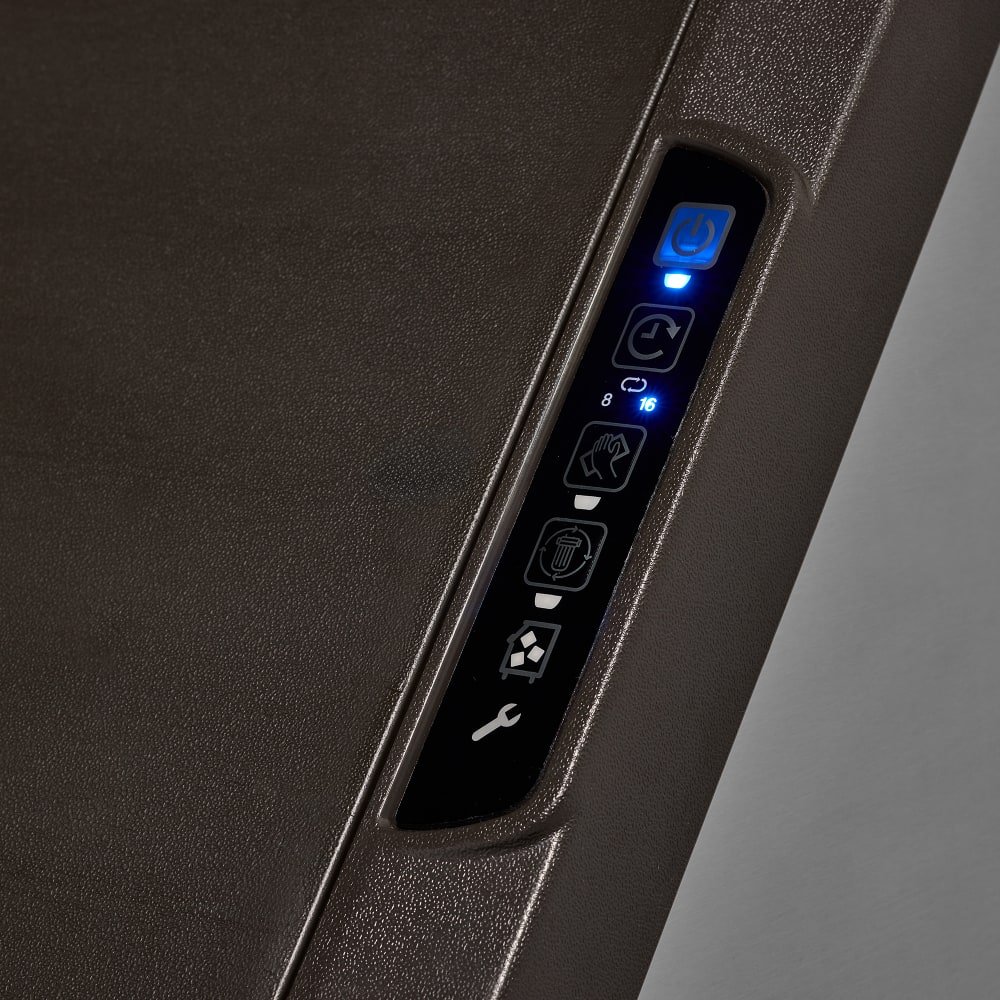

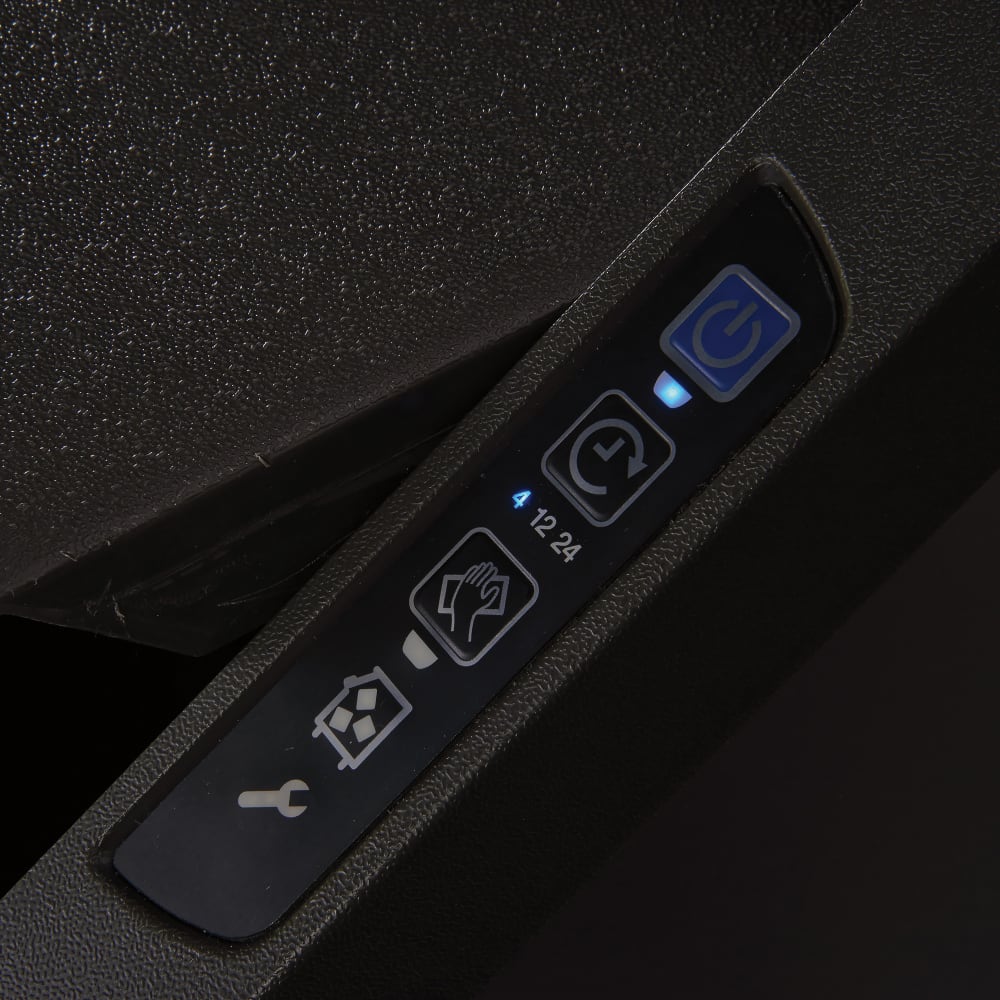

- Touchpad control panel with on/off button
- Delay mode
- Clean cycle button
- Full bin indicator light
- Filter change indicator
- Integrated 5-micron water filtration system
- Gravity drain connection
- Includes 6-in. adjustable legs
- 90-lb. storage capacity
- Insulated interior
- Removable bin
- Forward-sliding access
- Lift-up front bin door
- Water-cooled condenser
- Self-contained
- R290 hydrocarbon refrigerant
- Cupro-nickel condenser
- Ambient operating range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 6 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDP0240W within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, water-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 240 lbs./24 hours at 70/50 (212 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UDP0240W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 240 |
| Also Known As | UDF0240W |
| Bin Capacity (lb) | 90 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 165.00 |
