With its forward-sliding removable bin, technicians can reach refrigeration components in the Manitowoc Ice UYP0190A NEO® undercounter ice machine without moving the cabinet. This unit glides open smo...

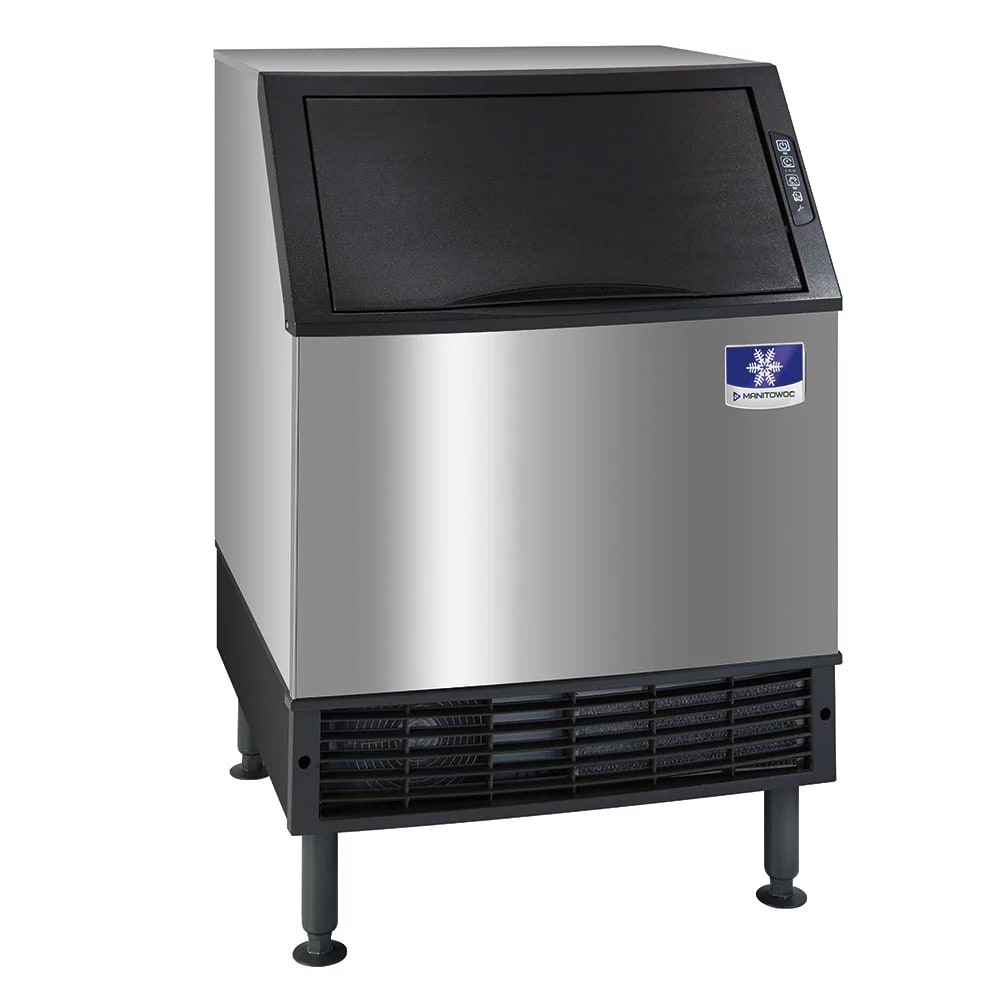

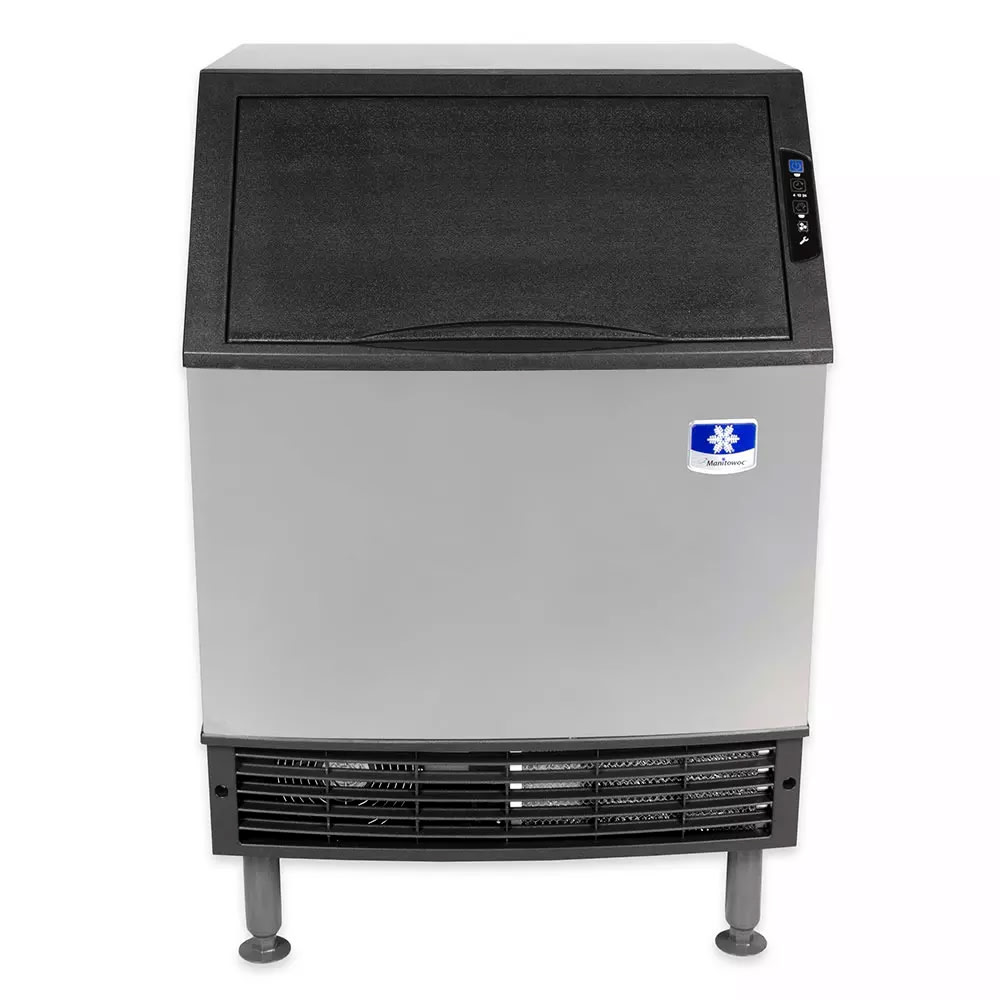

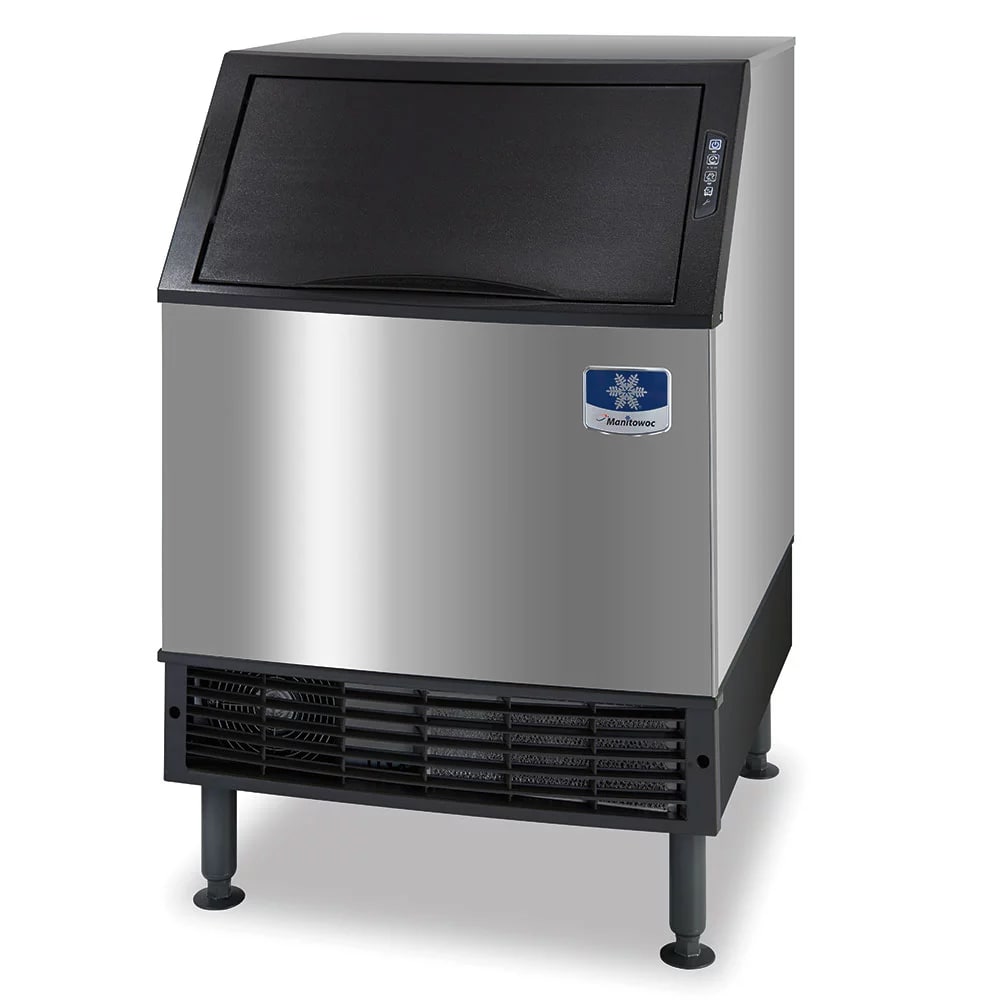

Manitowoc Ice UYF0190A 26"W Half Cube NEO Undercounter Ice Machine - 193 lbs/day, Air Cooled
Manitowoc Ice UYF0190A Description
If the ambient air is 70 degrees Fahrenheit and the incoming water is 50 degrees Fahrenheit, the Manitowoc Ice UYF0190A NEO® undercounter ice machine makes 193 pounds of ice in 24 hours, though at higher temperatures, it will produce less. With the half-dice ice, small cubes that pack together tightly, operators can displace a lot of water so glasses require less beverage to fill. However, this kind of ice also melts quicker than larger, full-size options.
Throughout the day, ice collects in the built-in, 90-pound-capcity storage bin, which helps keep ice cold and ready for use during busy hours. For slow hours, operators can either let ice pile up in the bin, or use the delay function to pause ice production, reducing water usage. When the Manitowoc Ice UYF0190A undercounter ice maker needs cleaning or servicing, components can be accessed through the storage bin, which slides off the front. Several parts contain the antimicrobial agent AlphaSan® to slow bacterial growth, while other parts can be removed for thorough cleaning.
Product Details
- Part of the NEO ice maker series
- 193-lb. maximum daily ice production
- 140-lb. AHRI-certified daily ice production

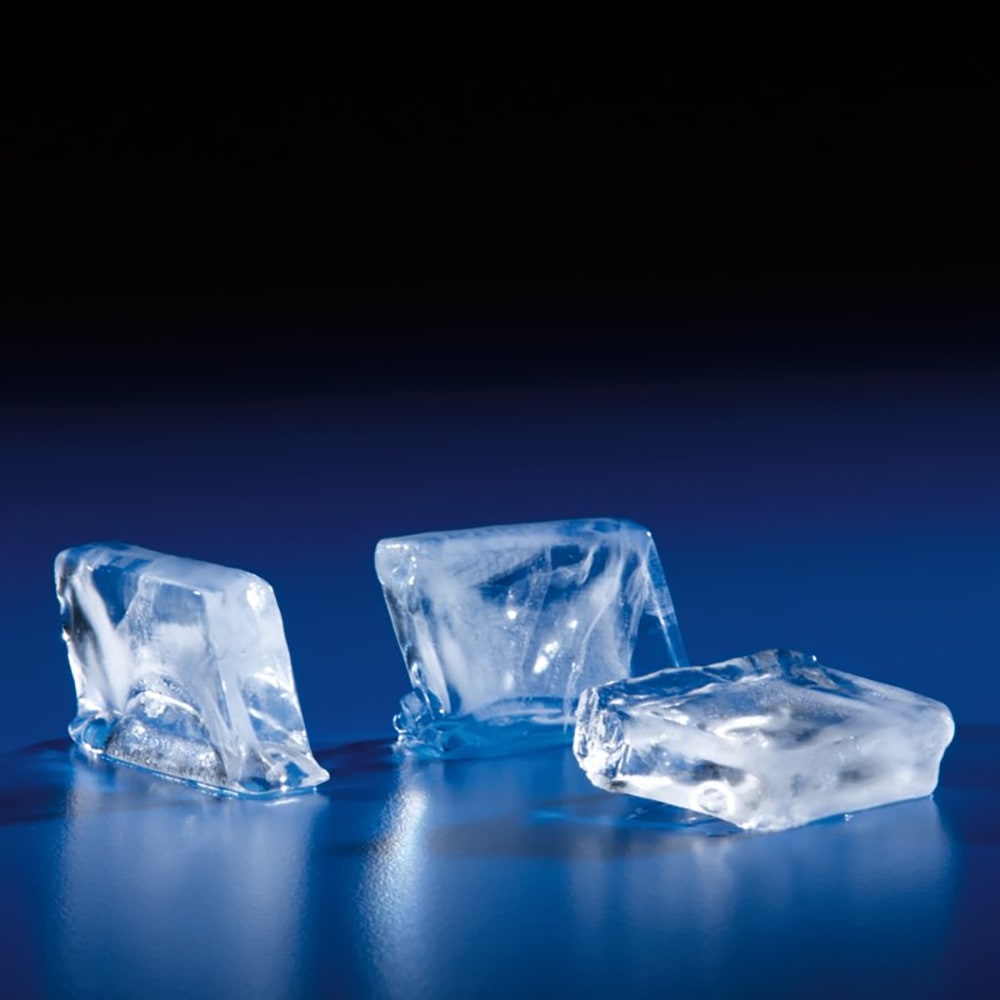

- Makes half-dice ice cubes

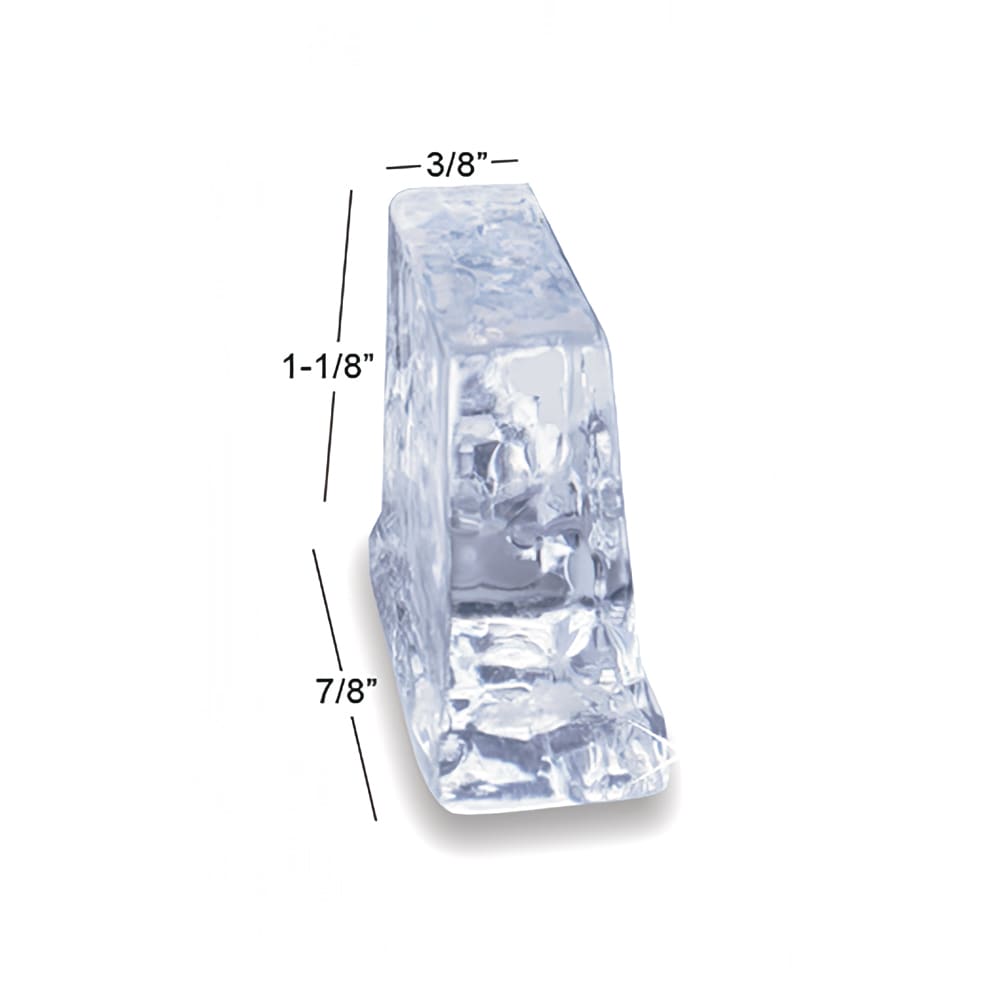

- Half dice ice size: 3⁄8 in. x 7⁄8 in. x 1 1⁄8 in.
- Produces more ice than previous models while using less water and energy
- Delay function pauses operation during slow or closed periods
- 90-lb. storage bin with full-bin indicator
- Service indicator warns operators of maintenance needs
- Refrigeration components are front accessible behind the sliding bin
- Sealed food zone’s removable water trough, damper door, and distribution tube facilitate cleaning
- Integrated AlphaSan agent slows bacteria growth in key components
- 6-in. adjustable legs with flanged feet
- Replaces the UY-0190A
- 2,150 average BTU; 2,600 peak BTU
Product Features
Ideal Operating Conditions
- Ambient air temperature: 40-110 degrees F
- Incoming water temperature: 45-90 degrees F
- Incoming water pressure: 20-80 PSI
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 6 A, 8.3 kW, 0.42 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYF0190A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 193 lb/24 hours at 70°/50° (140 lb AHRI certified at 90°70°), 90 lb ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph
Manitowoc Ice UYF0190A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 193 |
| Also Known As | UY-0190A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 153.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice UYP0190A (Replacement)
- Koolaire KYF-0250A
- Hoshizaki KM-161BAJ
Compare to Similar Items
| Attributes |
Manitowoc Ice UYF0190A Manitowoc Ice UYF0190A 26"W Half Cube NEO Undercounter Ice Machine - 193 lbs/day, Air Cooled Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,925.00 / Each | $3,320.00 / Each | $3,810.00 / Each | |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | |
| Ice Type | Half Cube | Half Cube | Crescent Cube | Half Cube |
| 24 Hr. Production (lb) | 193 | 200 | 163 | 258 |
| Bin Capacity (lb) | 90 | 90 | 78 | 134 |
| Width (in) | 26 | 26 | 23.75 | 30 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity | Gravity |
| Rating | Best | Best | Best | Better |
| Special Features | Antimicrobial | Adjustable Leveling Feet | Alert System | Removable Air Filter |
| Series | NEO® | NEO® | KM Series | KYF Series |
| Suggested Use | Commercial | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door | Lift Door |
| Depth (in) | 28.5 | 28.5 | 28 | 28.15 |
| Height (in) | 38.5 | 38.5 | 39 | 38.5 |
| Design | Standard Height | Standard Height | ADA Height | Standard Height |
| Refrigerant | R404A | R290 (Hydrocarbon) | R134a | R404A |
| Voltage | 115 | 115 | 115 | 115 |
| Warranty | 3-year; 5-year Compressor Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It does what it is supposed to do. It makes ice!
This ice maker is one of three in a very large church. It was purchased because the previous one failed and could not be repaired. An older model of the same brand had also failed, but was fixed and praised by the repair man as a good machine. Nuff said, I'm buying a Manitowoc. Installation was easy, just some different fittings from the old machine. The instructions weren't quite clear on the drain setup, 2 on this unit, compared to 1 on other machine. But, as soon as it was plugged in, it started making ice.
