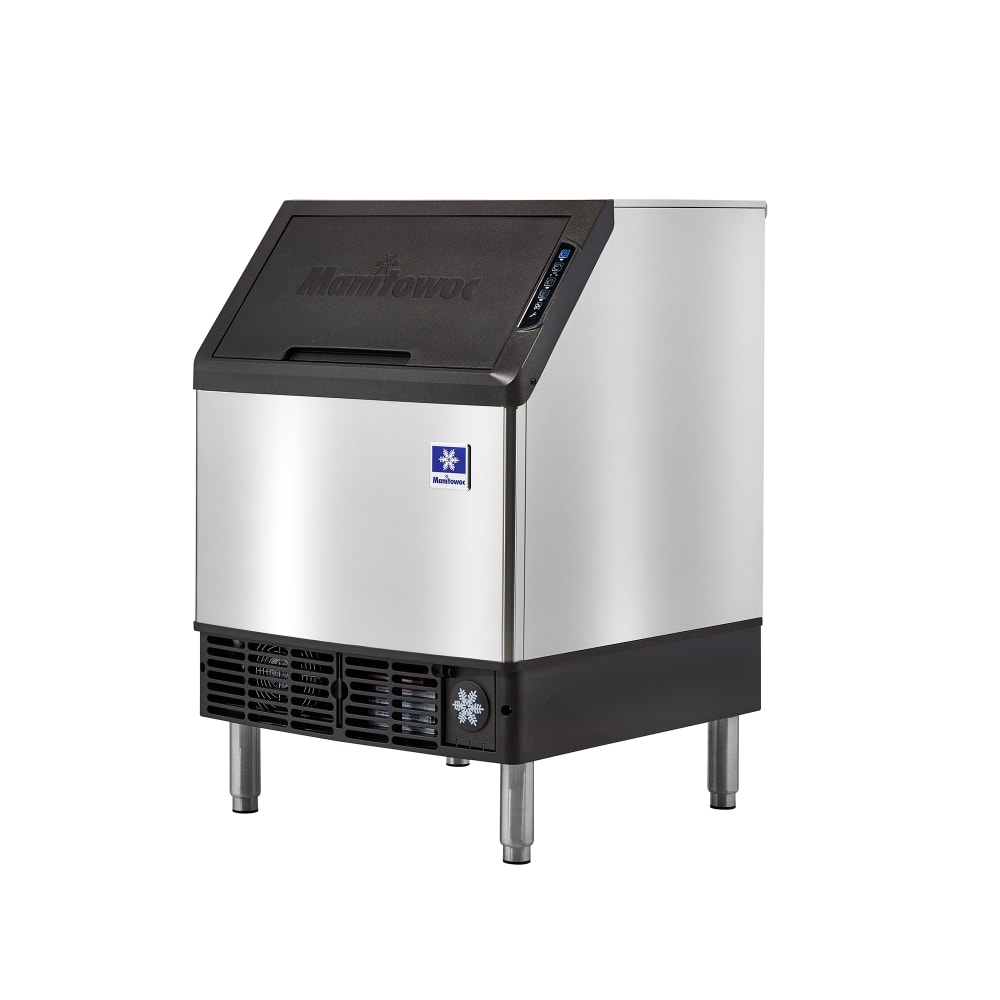

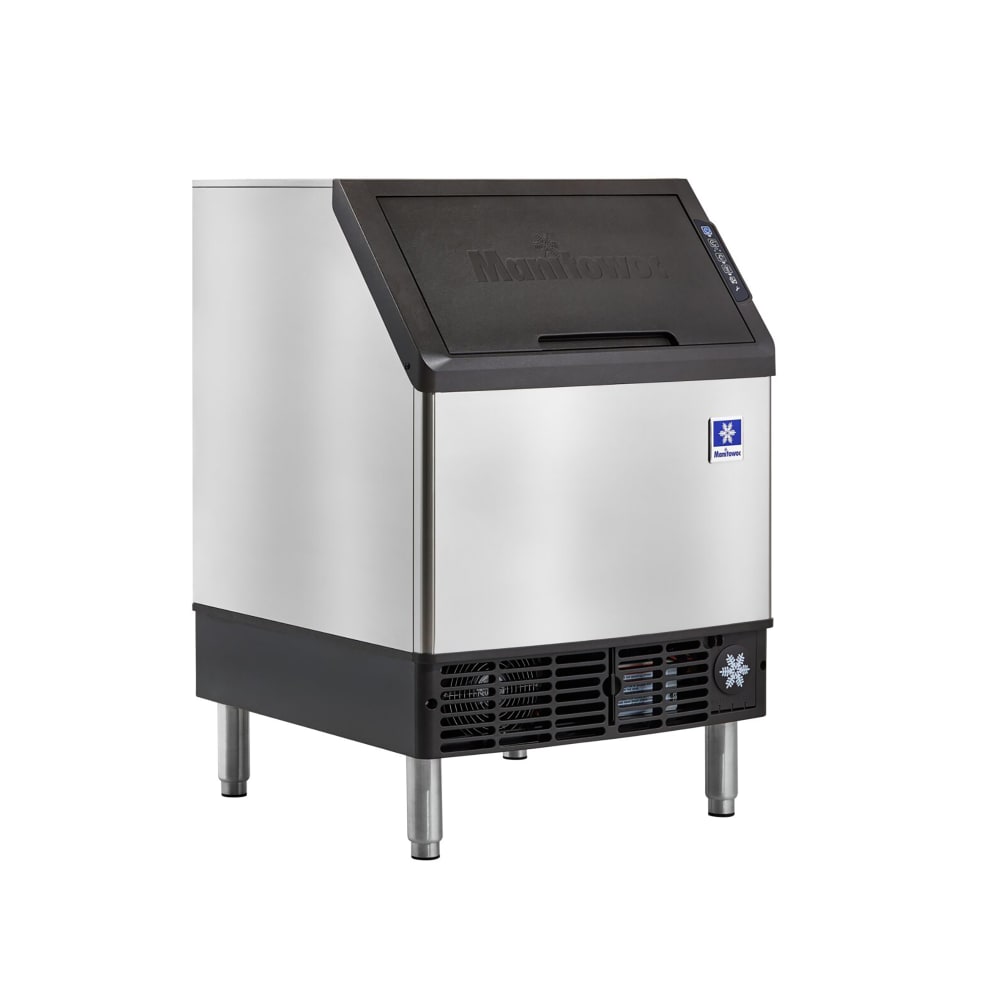

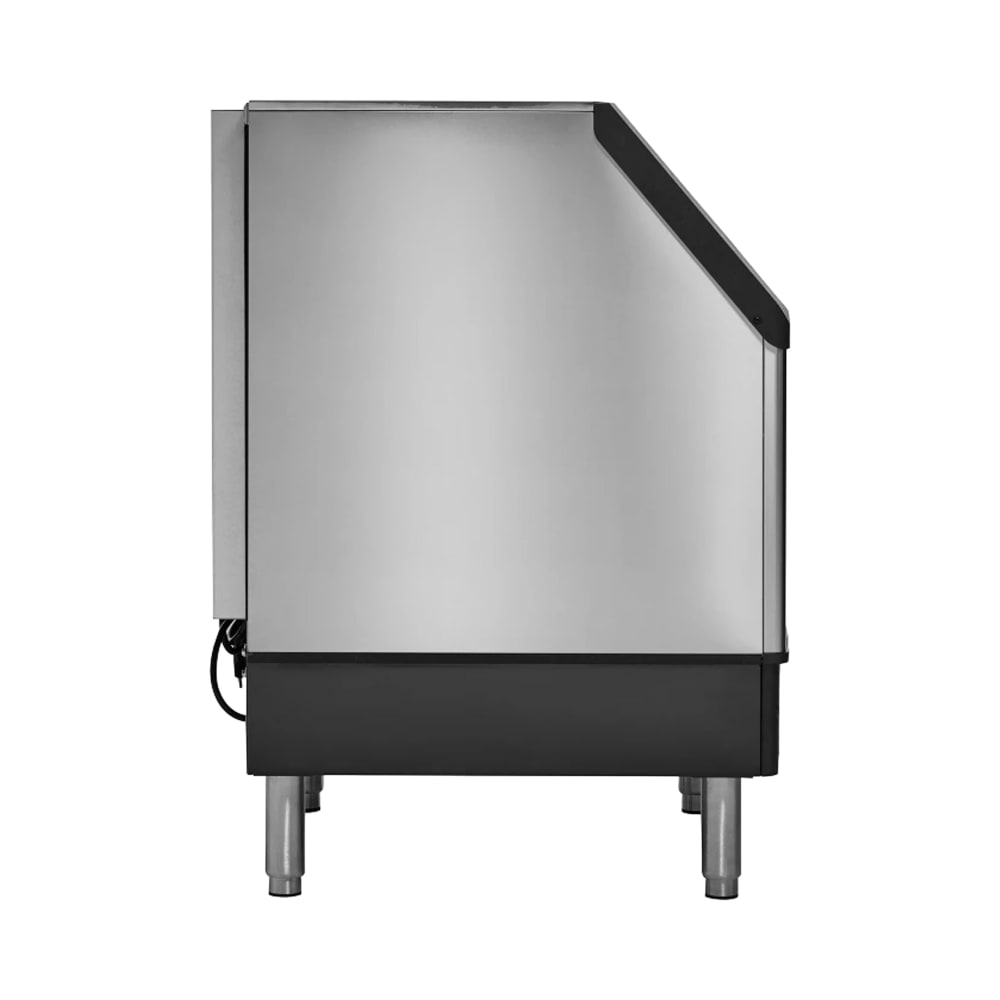

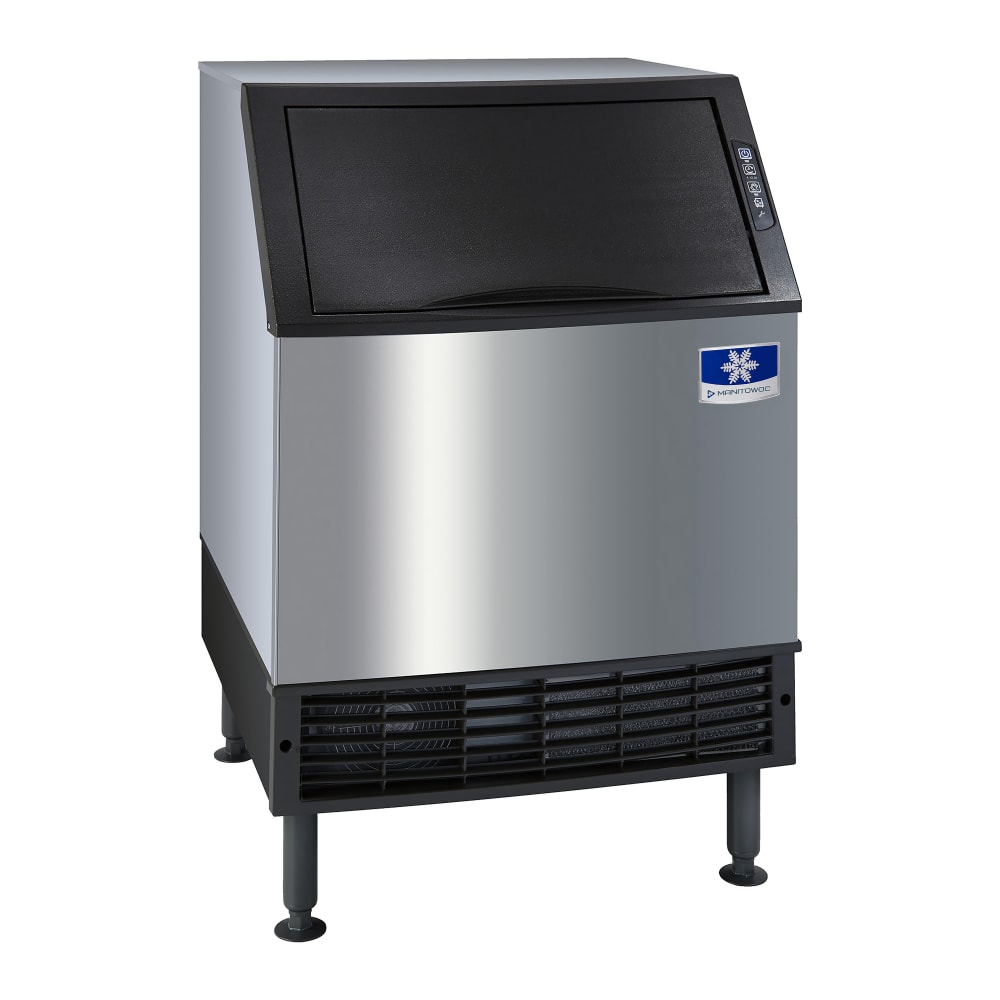

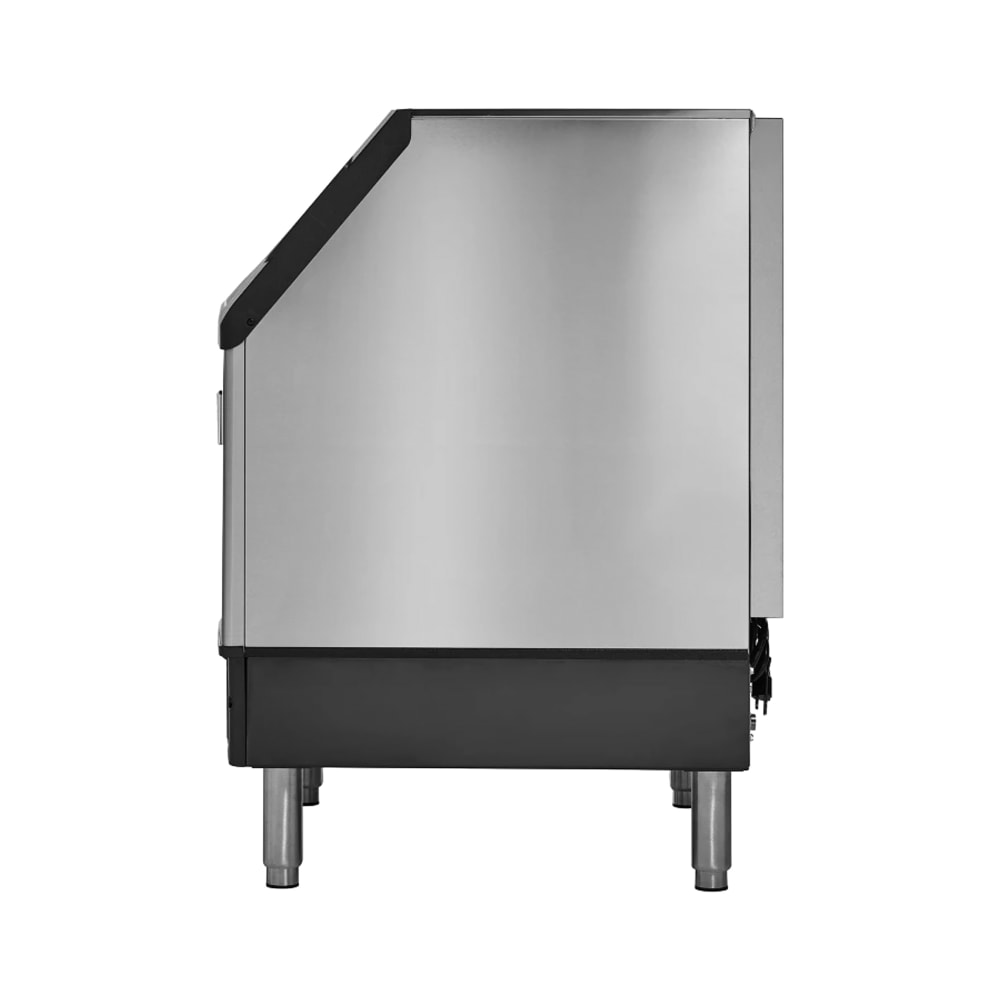

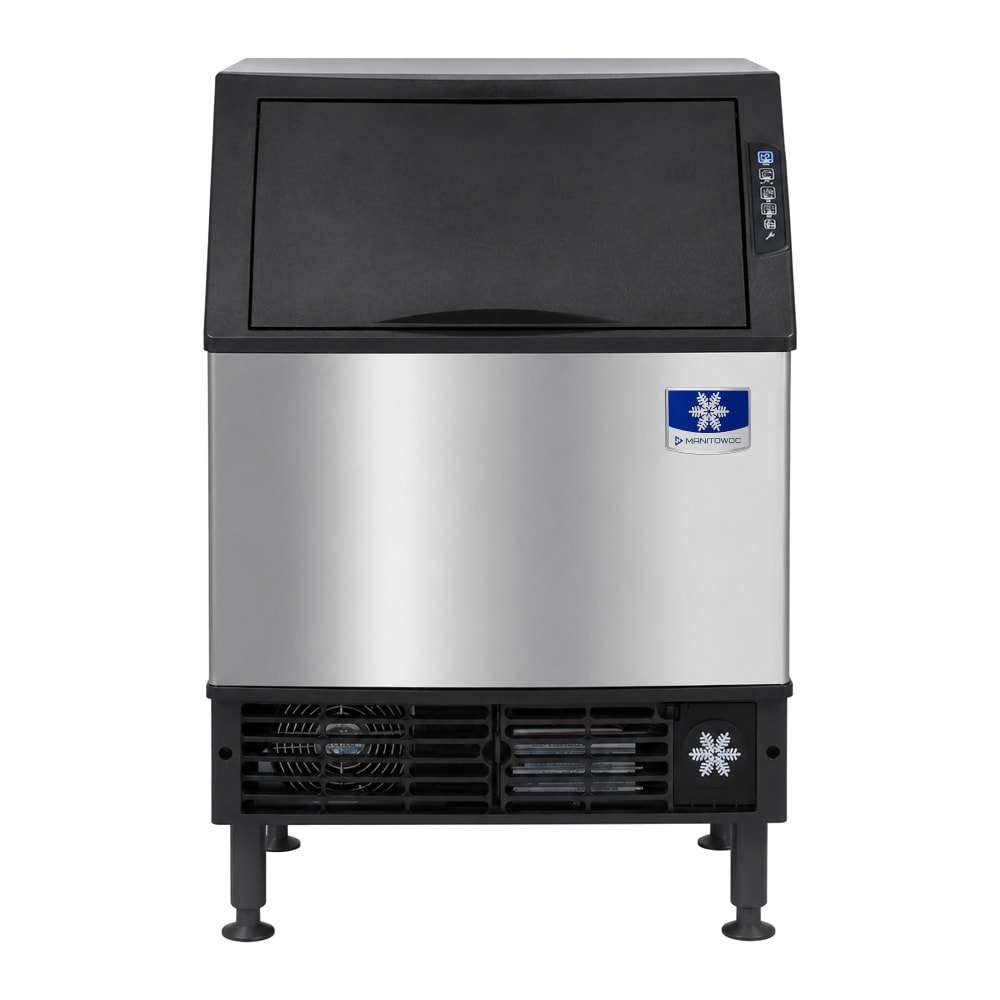

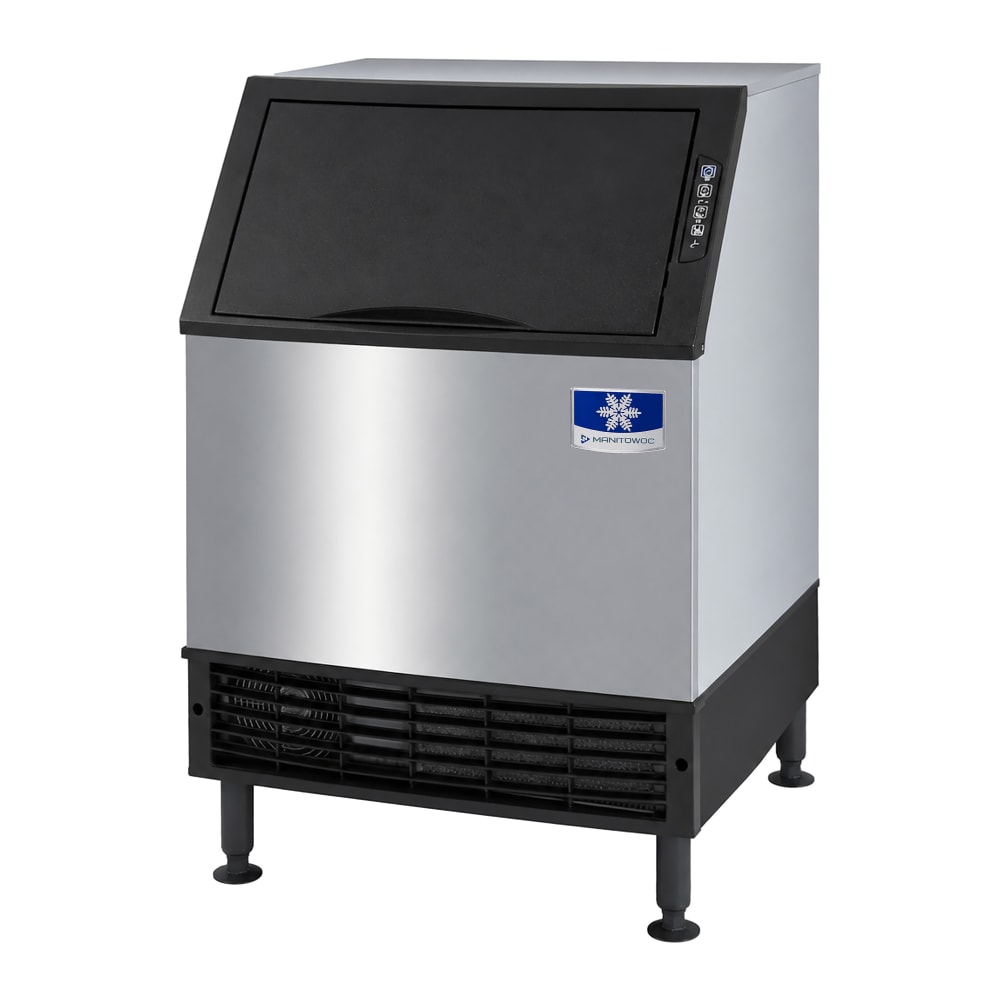

Manitowoc Ice UYP0190A 26"W NEO® Half Cube Undercounter Ice Machine - 200 lbs/day, Air Cooled, Integrated Water Filter
QUICK SHIP: Ships in 1 Business Day
$2,925.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Manitowoc Ice UYP0190A Description

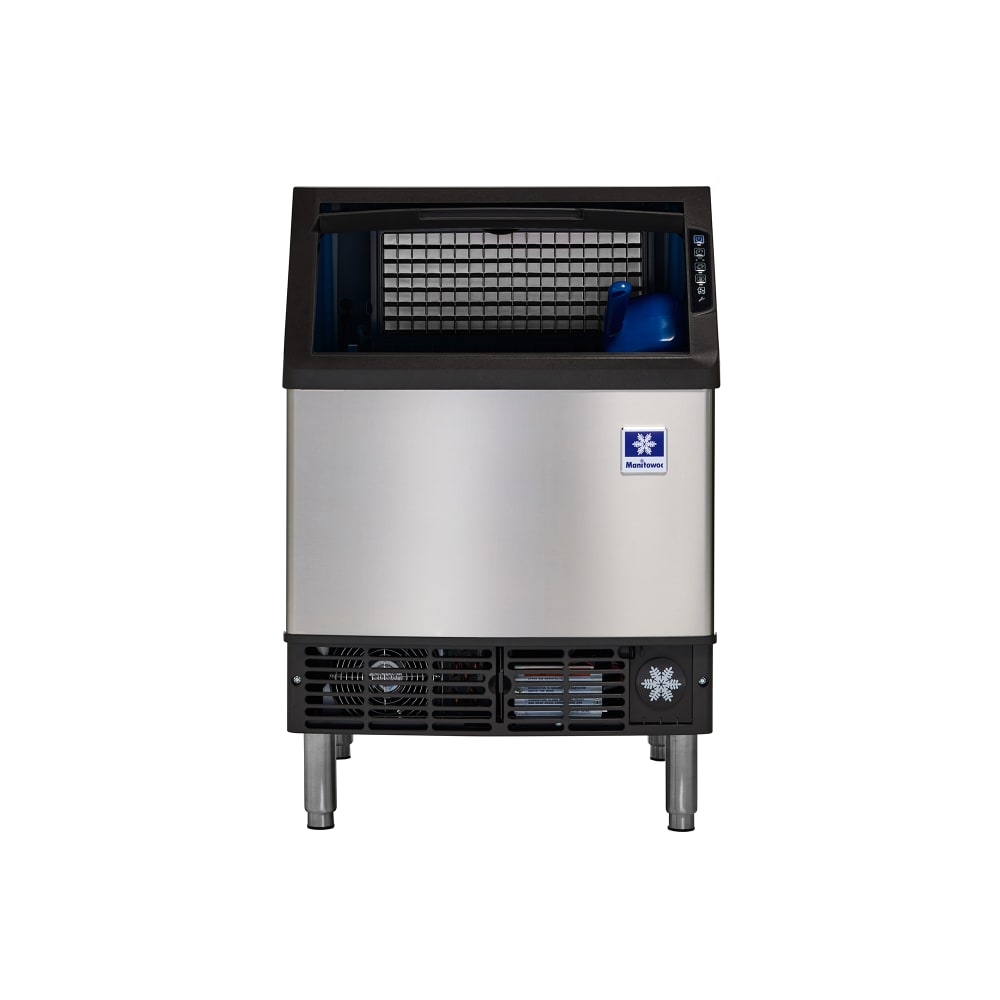

With its forward-sliding removable bin, technicians can reach refrigeration components in the Manitowoc Ice UYP0190A NEO® undercounter ice machine without moving the cabinet. This unit glides open smoothly, reducing service time and cutting downtime. An angled door and wide opening improve scooping visibility, helping bartenders maintain steady half-dice output during evening drink rushes and busy service.
Behind the front panel, the Manitowoc Ice UYP0190A NEO undercounter ice machine includes an integrated 5-micron filter that screens sediment before freezing, preserving beverage clarity and protecting internal parts. This onboard safeguard helps it run consistently even where water quality varies, minimizing scale buildup, reducing maintenance calls, and keeping its 200-pound daily output dependable for busy cafes.
- NEO series
- 200-lb. daily production capacity
- 90-lb. storage bin capacity
- Undercounter configuration
- Makes half-dice cube ice
- Forward-sliding insulated storage

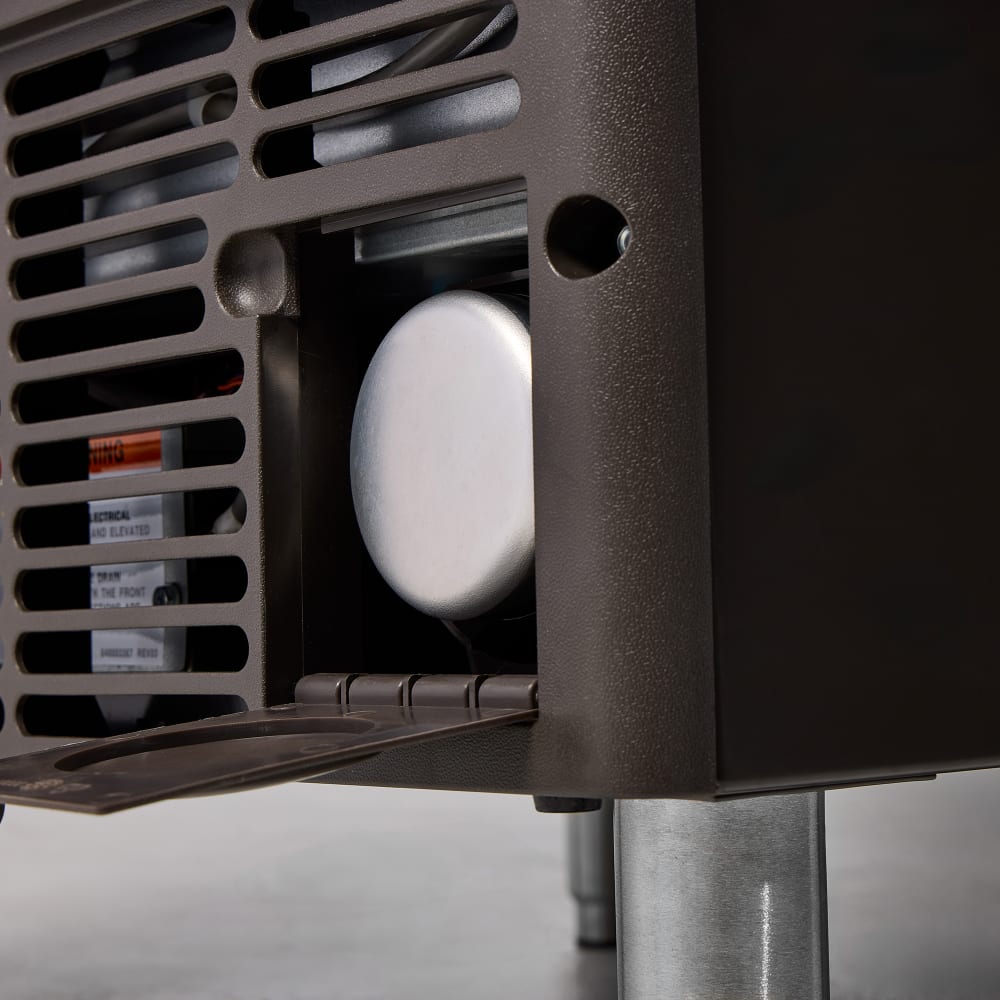

- Front-ventilated design
- Integrated 5-micron onboard water filtration system

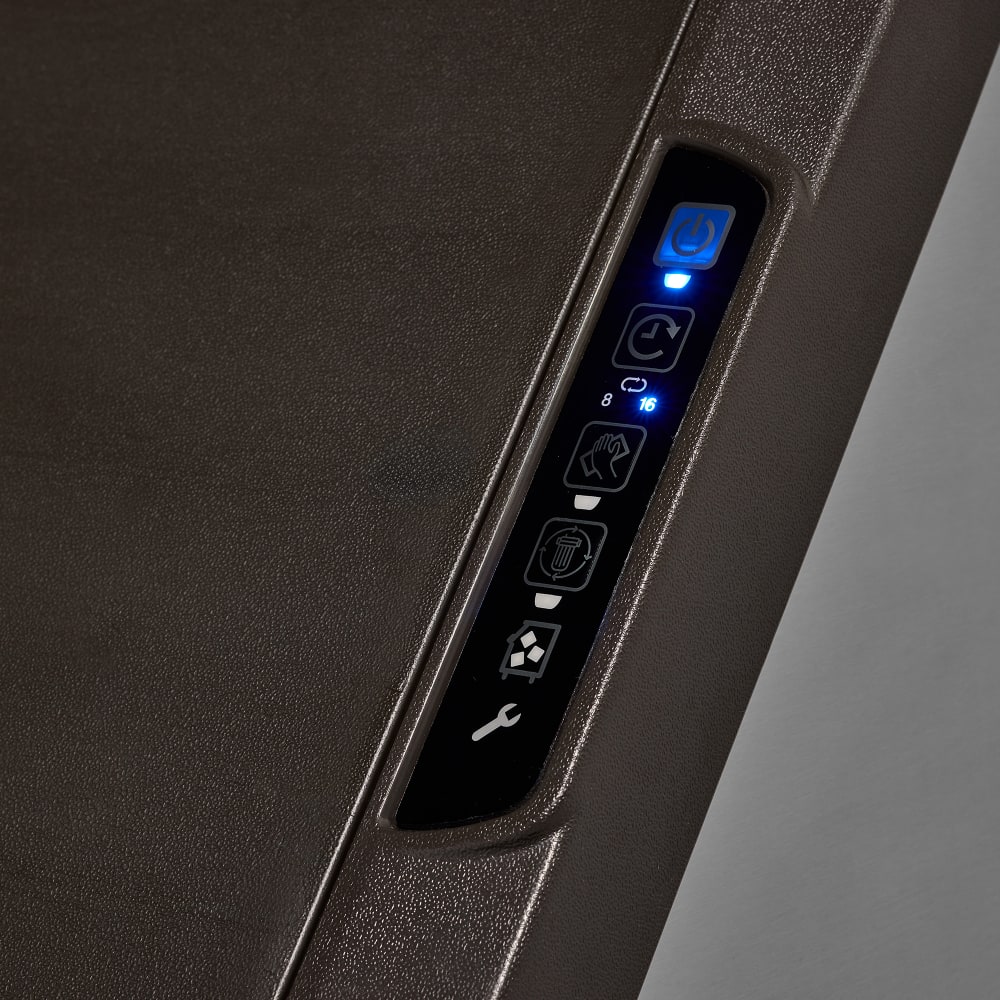

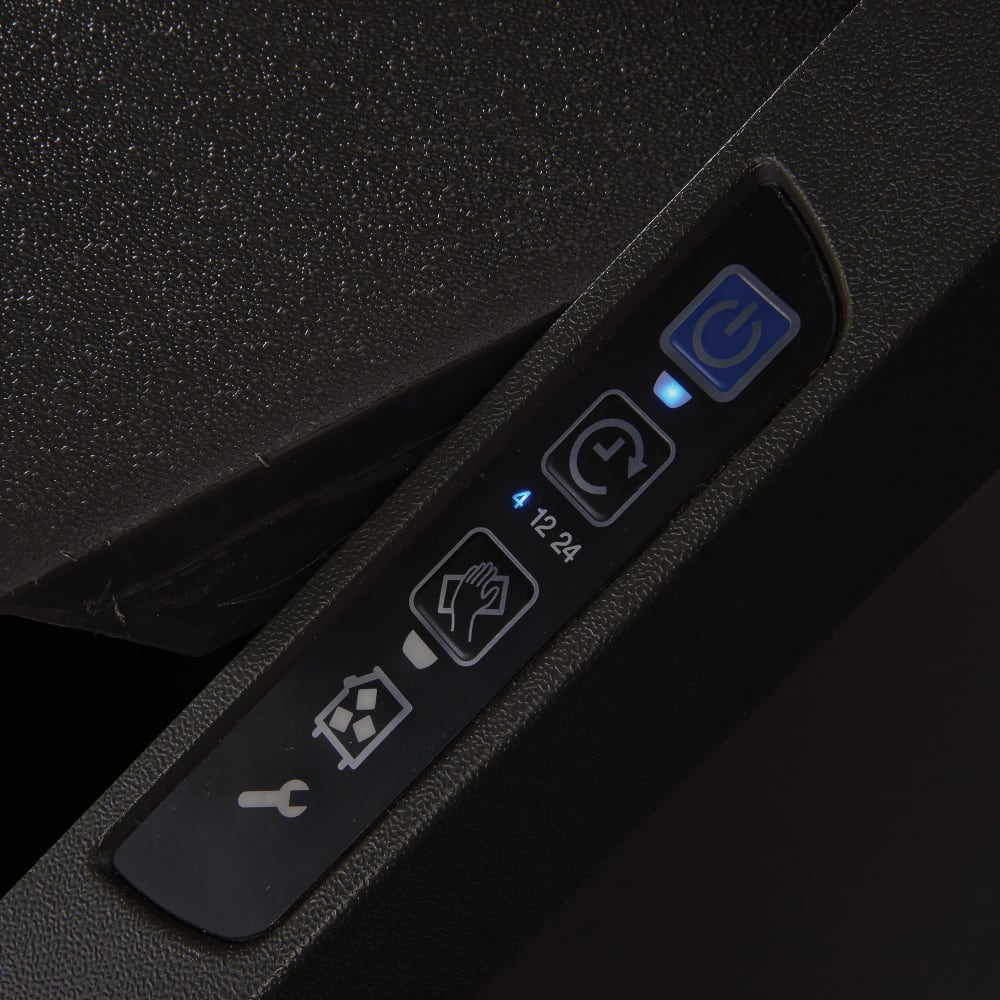

- Touchpad controls
- 6-in. adjustable leveling legs
- R290 hydrocarbon refrigerant
- Air-cooled, self-contained condenser
- Average heat rejection: 3,200 BTU/hr
- Peak heat rejection: 3,800 BTU/hr
- Ambient temperature range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- Water inlet pressure range: 20-80 psi
- Condenser inlet pressure: 20-150 psi

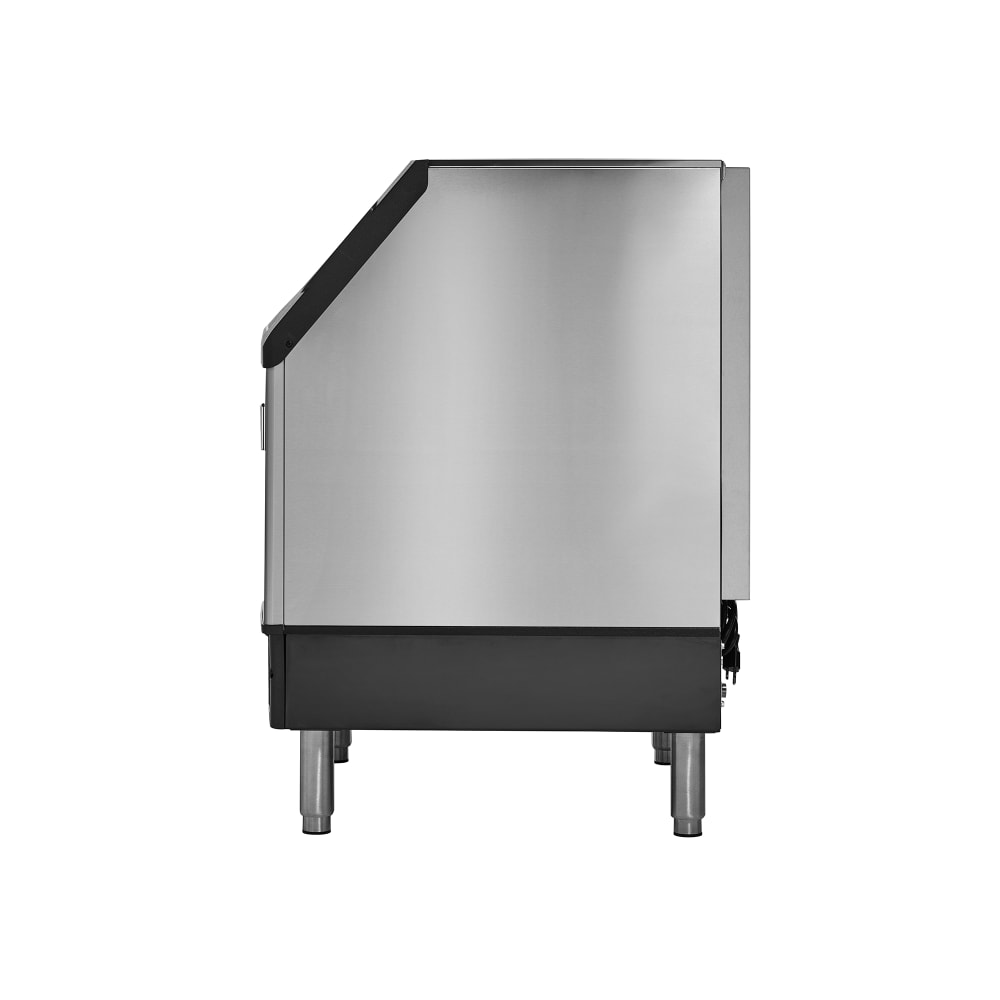

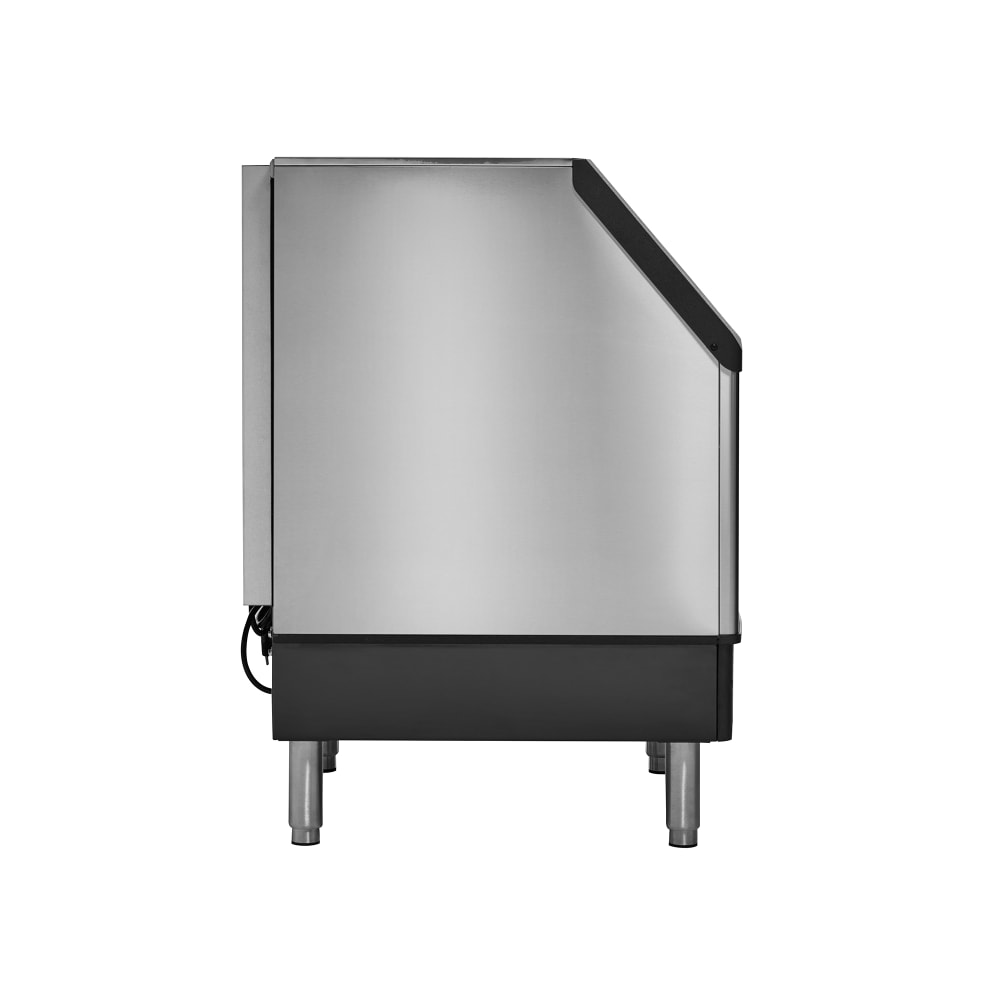

- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 6 A
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYP0190A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, half-dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 200 lbs./24 hours at 70/50 (180 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UYP0190A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 200 |
| Also Known As | UYF0190A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 160.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice UYF0190A161
Compare to Similar Items
| Attributes |
Manitowoc Ice UYP0190A Manitowoc Ice UYP0190A 26"W NEO® Half Cube Undercounter Ice Machine - 200 lbs/day, Air Cooled, Integrated Water Filter Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $2,925.00 / Each | $3,320.00 / Each | $3,810.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Half Cube | Crescent Cube | Half Cube |
| 24 Hr. Production (lb) | 200 | 163 | 258 |
| Bin Capacity (lb) | 90 | 78 | 134 |
| Width (in) | 26 | 23.75 | 30 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity |
| Rating | Best | Best | Better |
| Special Features | Adjustable Leveling Feet | Alert System | Removable Air Filter |
| Series | NEO® | KM Series | KYF Series |
| Suggested Use | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door |
| Depth (in) | 28.5 | 28 | 28.15 |
| Height (in) | 38.5 | 39 | 38.5 |
| Design | Standard Height | ADA Height | Standard Height |
| Refrigerant | R290 (Hydrocarbon) | R134a | R404A |
| Voltage | 115 | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
