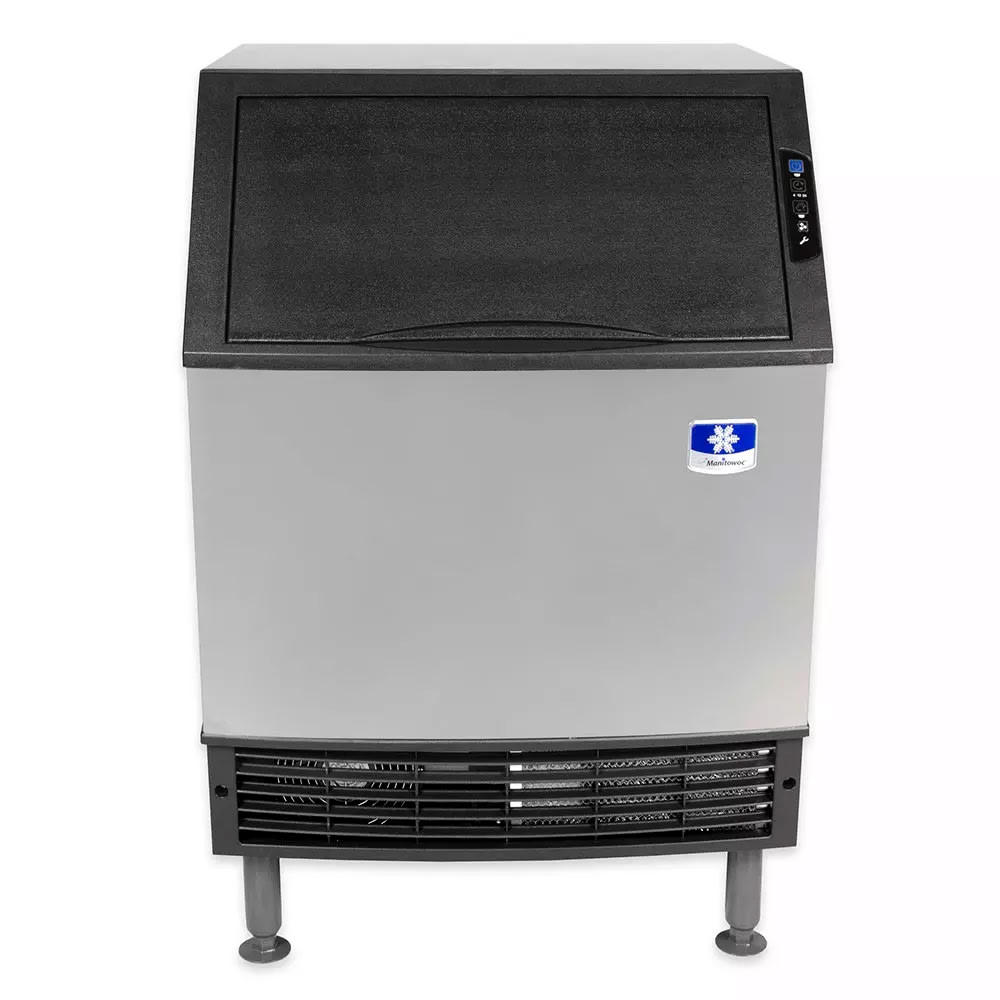

The Manitowoc UYF-0140A Neo® undercounter ice maker produces half-dice ice that measures 3⁄8 inch by 11⁄8 inch by 7⁄8 inch. In a 24-hour period, the unit makes 137 pounds of half-dice ice if the ambient temperature is 70 degrees Fahrenheit. The delay function allows operators to pause ice production during closed or slow business hours. The storage bin holds up to 90 pounds, and an ergonomic scoop is included to prevent ice from being contaminated by bare hand contact.
Installation and maintenance are simple since the air-cooled condenser is self-contained, and servicing the Manitowoc UYF-0140A Neo undercounter ice maker is easy thanks to the accessible refrigeration components. The plastic food zone has a removable damper door, water trough, and distribution tube so they can be quickly cleaned. The feedback program uses indicator lights to let operators know about full bin conditions and service needs.
- 137-lb. ice production in 70 degrees F air temperature and 50 degrees F water temperature
- 100-lb. ice production in 90 degrees F air temperature and 70 degrees F water temperature

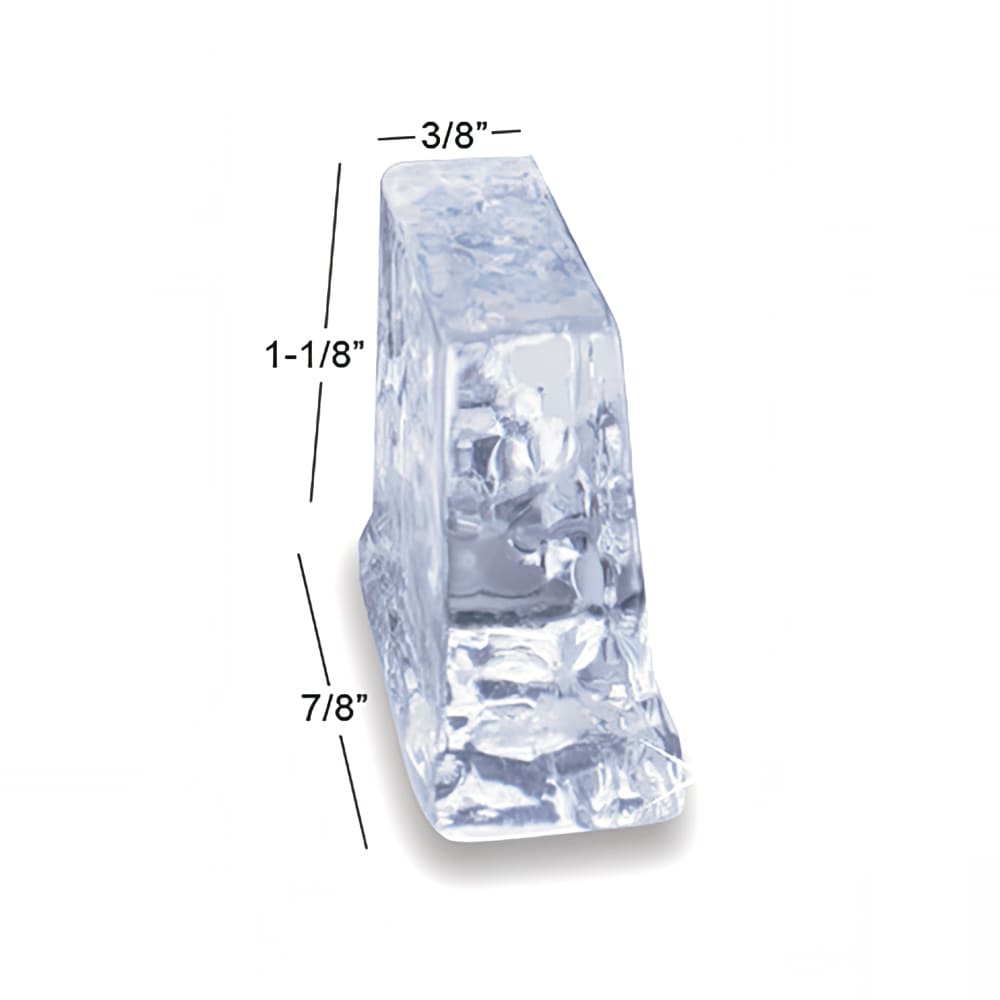

- Half-dice ice measures 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- Full bin and service indicators provide convenient feedback
- Delay function pauses ice production for slow periods
- Easy installation and maintenance thanks to the air-cooled condensing unit
- Refrigeration components are accessible for quick service
- Smooth, sealed food zone has a removable distribution tube, damper door, and water trough for simple cleanup
- AlphaSan® antimicrobial protection on the integral components slows bacteria growth
- 90-lb. storage bin capacity
- Ergonomically designed plastic scoop is included
- 2,150 BTU
- 115 V/60 Hz/1 ph, 5 A, 0.42 HP, 9.2 kW, 6-ft. cord with a NEMA 5-15P plug
- Overall Dimensions: 26 in. W x 281⁄2 in. D x 381⁄2 in. H
- California Low Lead qualified; CE and cULus listed; AHRI and NSF certified
NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 137 lb/24 hours at 70°/50° (100 lb AHRI certified at 90°70°), 90 lb ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Manitowoc Ice UYF-0140A SpecificationsPDF Spec Sheet
|24 Hr. Production (lbs)||137|
|Also Known As||UY-0140A|
|Ice Type||Half Cube|
|Bin Capacity (lb)||90|
|Warranty||3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor|
|Compressor Type||Air Cooled|
|Production Range (lbs/day)||100 - 199 lbs|
|Bin Capacity Range (lbs)||50 - 99|
|Width (in) Range||25 - 29|
|Product||Undercounter Ice Maker|
|Product Type||Ice Makers & Bins|
|Special Features||Digital Controls|
