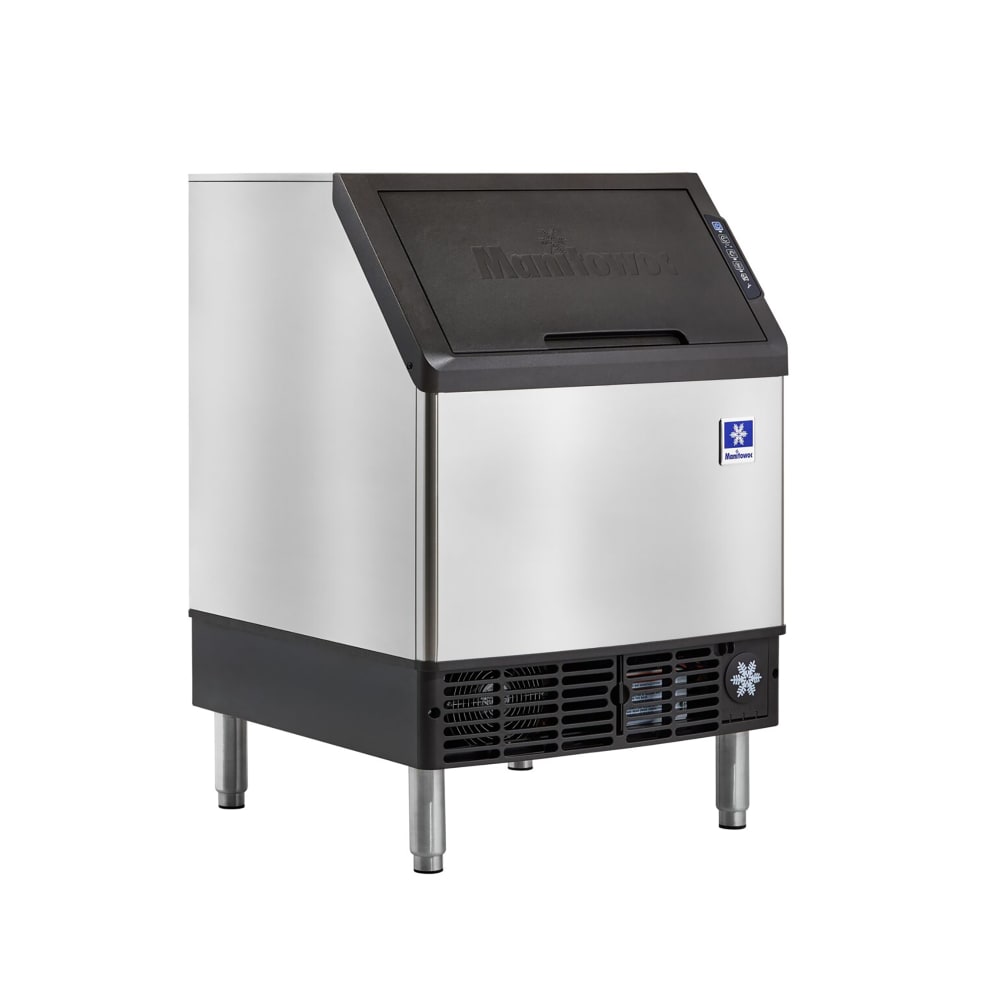

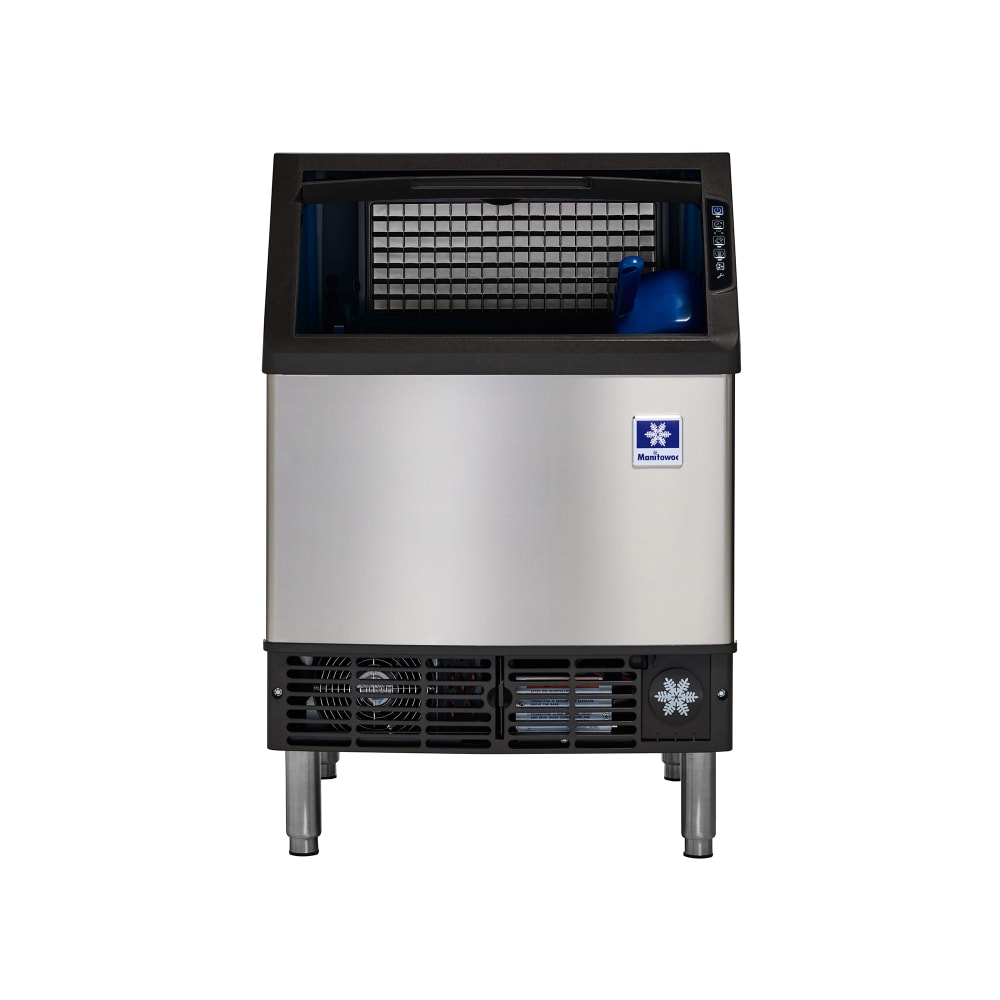

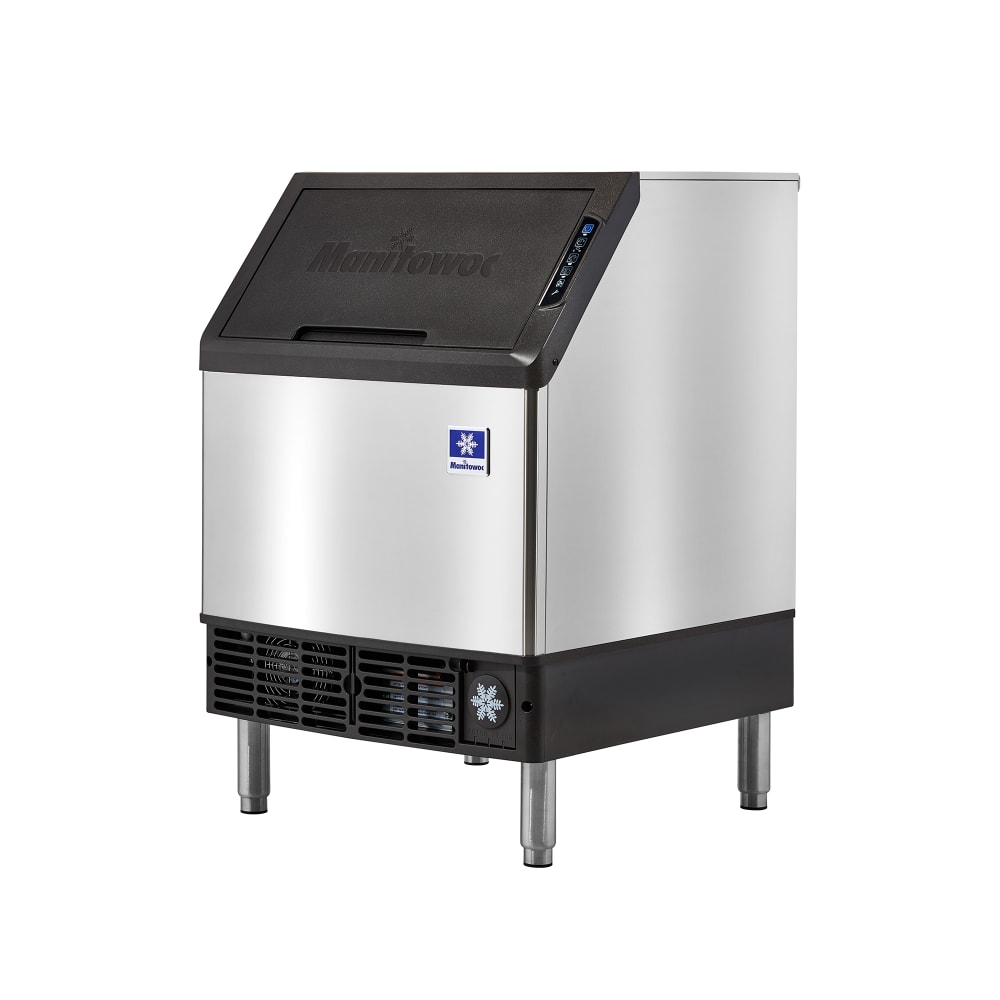

Manitowoc Ice UDP0190A 26"W NEO® Full Cube Undercounter Ice Machine - 200 lbs/day, Air Cooled, Integrated Water Filter
QUICK SHIP: Ships in 1 Business Day
$2,925.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Manitowoc Ice UDP0190A Description
Engineered for compact spaces, the Manitowoc Ice UDP0190A NEO® full cube undercounter ice machine fits beneath standard countertops while producing up to 200 pounds of dice-style ice in 24 hours. This 26-inch-wide unit includes a 90-pound insulated bin with a lift-up front door and a forward-sliding design for quick access to internal components. This ice machine features an onboard 5-micron water filtration system to help reduce sediment buildup and improve ice clarity.
The Manitowoc Ice UDP0190A NEO full cube undercounter ice machine uses an air-cooled, self-contained refrigeration system. Its front-breathing design supports zero-clearance installation next to other equipment. A user-friendly touchpad includes cycle indicators for cleaning, filter status, and service alerts. The unit connects via a gravity drain and includes 6-inch adjustable legs for leveling.
- Part of the NEO series
- Undercounter configuration
- Produces full cube (dice-style) ice
- Up to 200 lbs. ice production per 24 hours
- 175 lbs. AHRI-certified production at 90 degrees/70 degrees F

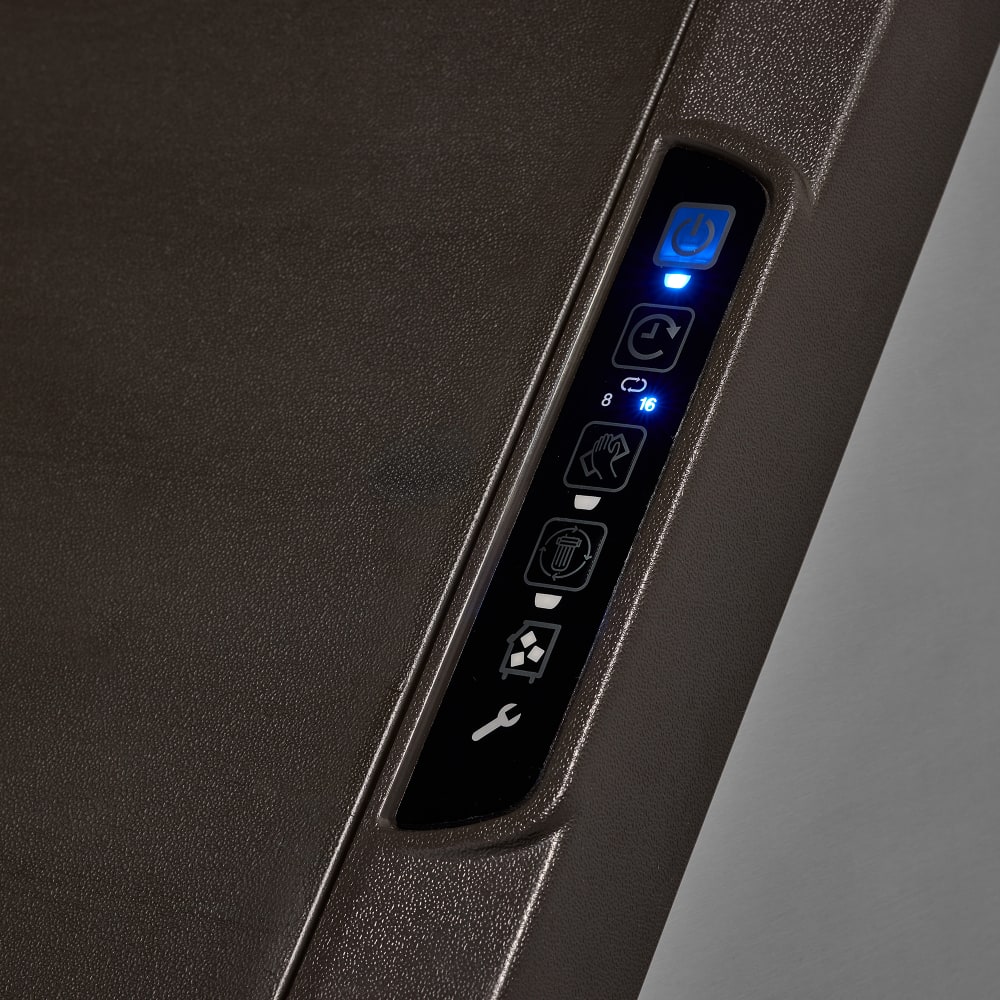

- Touchpad control panel with on/off button
- Delay mode
- Clean cycle button
- Full bin indicator light
- Filter change indicator
- Integrated 5-micron water filtration system
- Gravity drain connection
- Includes 6-in. adjustable legs
- 90-lb. storage capacity
- Insulated interior
- Removable
- Forward-sliding access
- Lift-up front bin door
- Air-cooled condenser
- Self-contained
- R290 hydrocarbon refrigerant
- Ambient operating range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 6 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDP0190A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 200 lbs./24 hours at 70/50 (175 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UDP0190A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 200 |
| Also Known As | UDF0190A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 160.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice UDF0190A161
Compare to Similar Items
| Attributes |
Manitowoc Ice UDP0190A Manitowoc Ice UDP0190A 26"W NEO® Full Cube Undercounter Ice Machine - 200 lbs/day, Air Cooled, Integrated Water Filter Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,925.00 / Each | $3,810.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Full Cube | Full Cube |
| 24 Hr. Production (lb) | 200 | 256 |
| Bin Capacity (lb) | 90 | 134 |
| Width (in) | 26 | 30 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Better |
| Special Features | Adjustable Leveling Feet | Removable Air Filter |
| Series | NEO® | KDF Series |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | Lift Door |
| Depth (in) | 28.5 | 28.15 |
| Height (in) | 38.5 | 38.5 |
| Design | Standard Height | Standard Height |
| Refrigerant | R290 (Hydrocarbon) | R404A |
| Voltage | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
