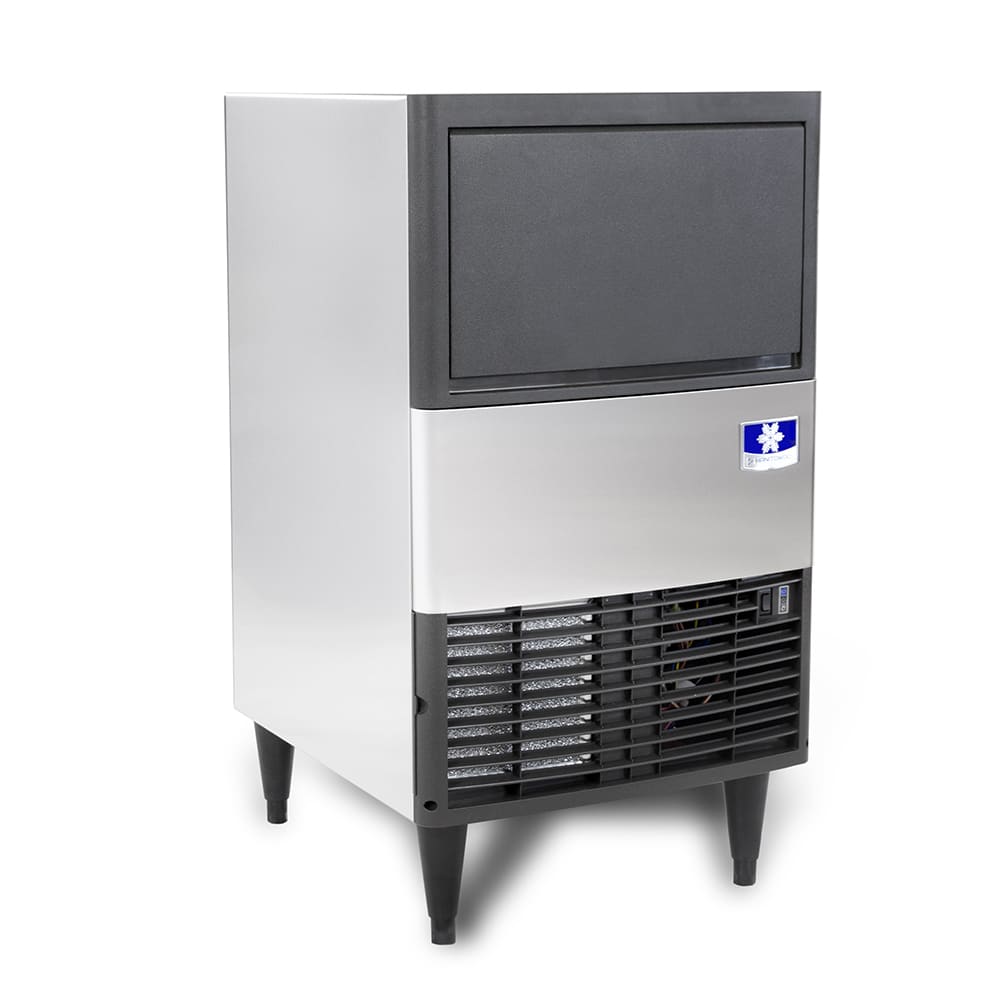

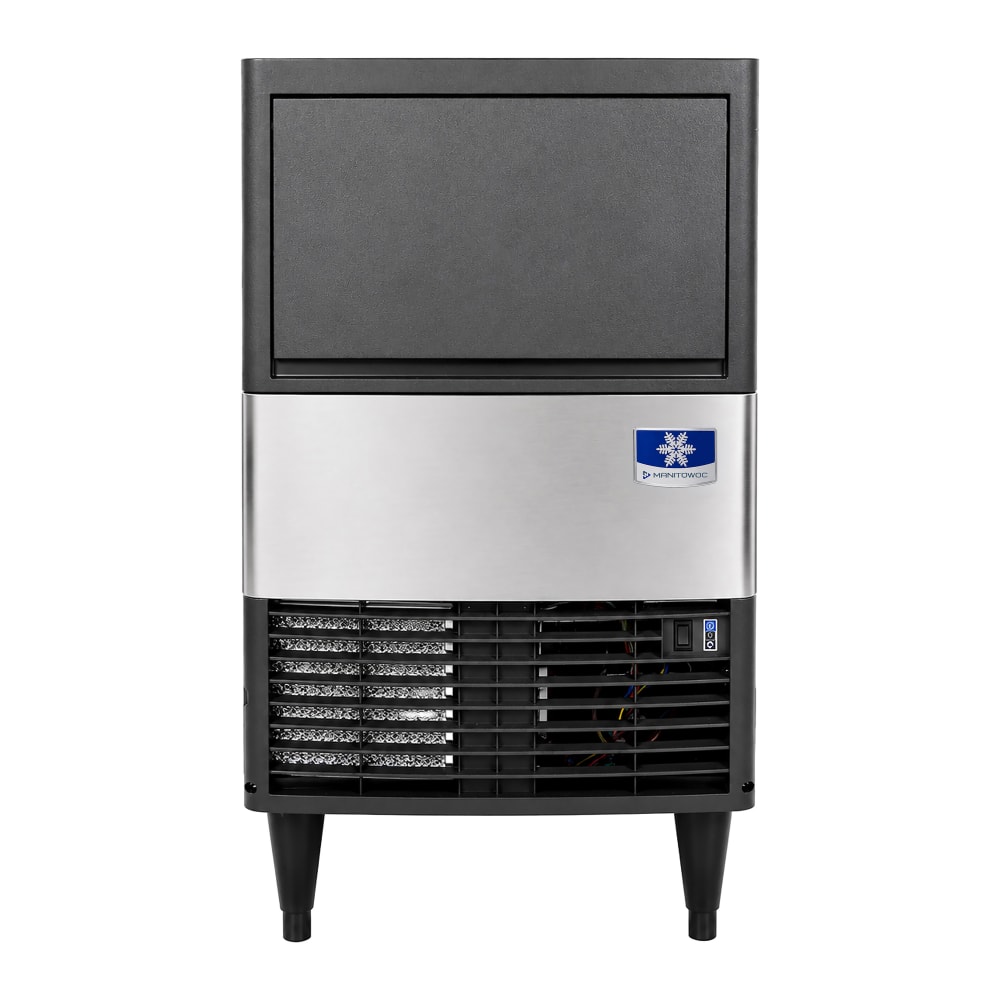

Manitowoc Ice UDP0065A 19 11/16" W Full Cube NEO Undercounter Ice Machine - 62 lbs/day, Air Cooled
Typically ships in 1 - 3 Business Days
$2,319.00 /Each
Contact us for details!
Manitowoc Ice UDP0065A Description
In ideal operating conditions, the Manitowoc Ice UDP0065A 161 NEO® undercounter ice maker produces 57 pounds of full-cube ice in 24 hours, however, this amount depends on the water and air temperature. Users can operate the unit with the selector switch on its front, and to make cleanup easy, AlphaSan®, an antimicrobial agent, is integrated into key components. This slows bacteria and mold growth.

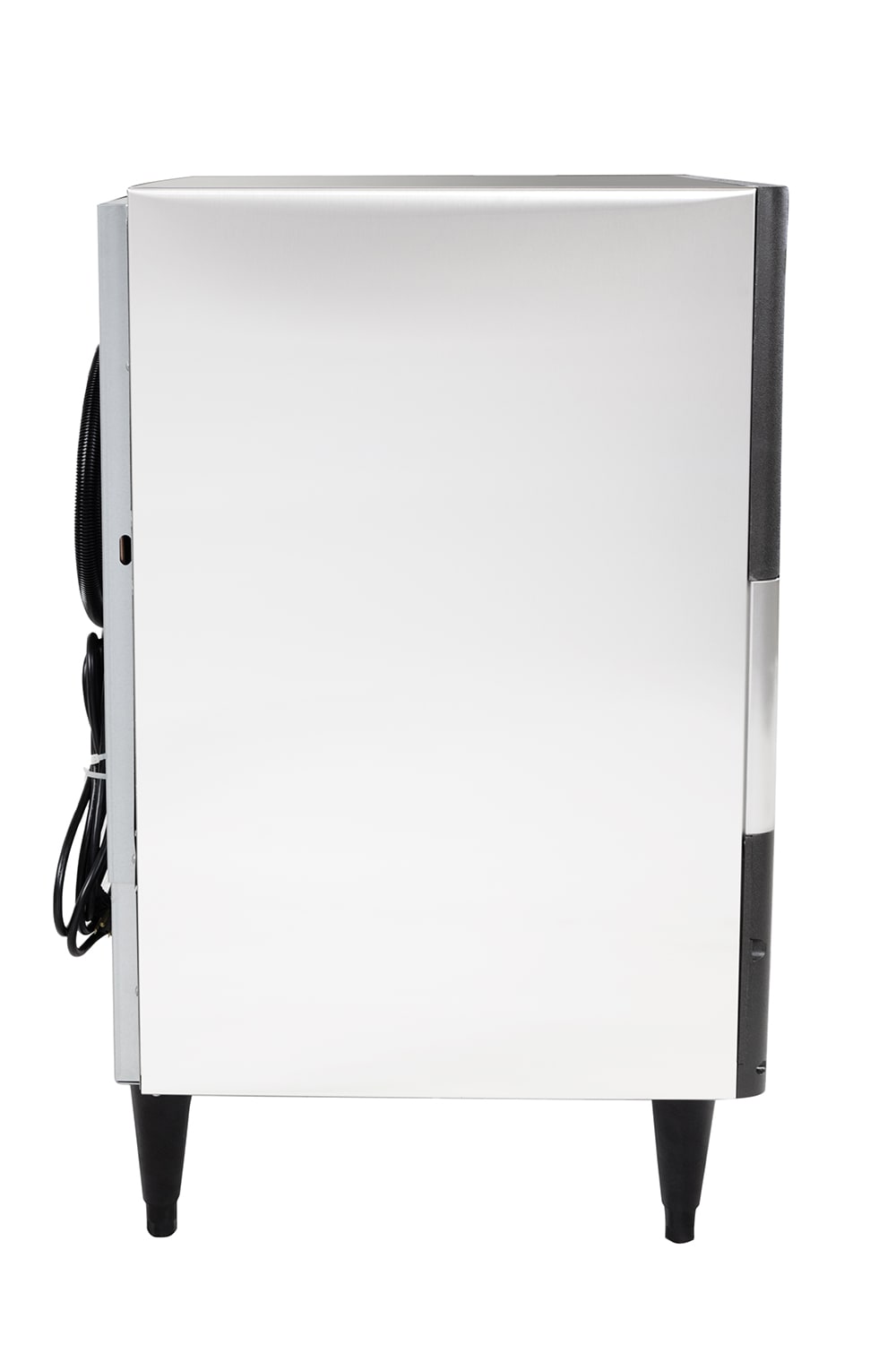

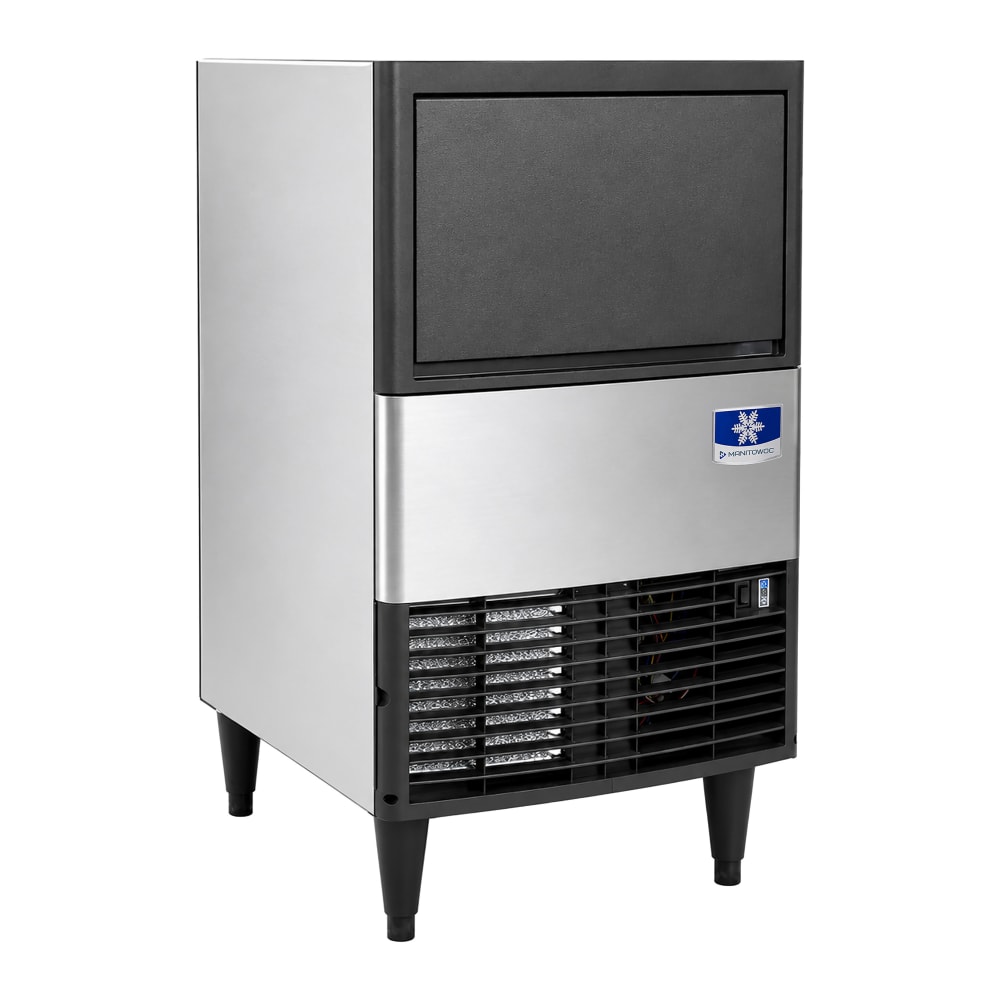

The Manitowoc Ice UDP0065A 161 ice machine storage bin holds 31 pounds, and its liner is designed without crevices that can make cleaning more difficult. Sliding up and out of the way, the bin door provides convenient access to ice and the interior. Strong stainless steel constructs the unit’s exterior, and its compact design enables it to be used as an undercounter or standalone unit.
Product Details
- Part of the NEO ice maker series
- 57-lb. maximum daily ice production
- Makes dice ice

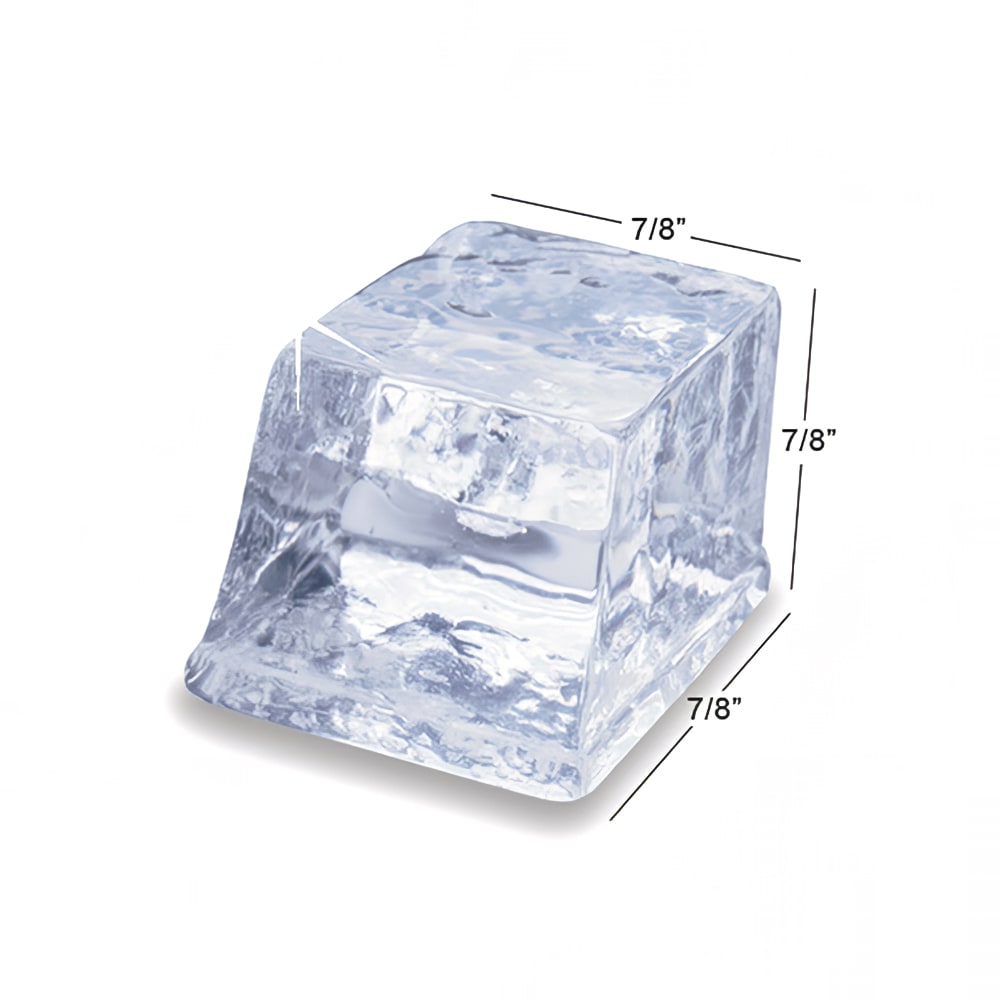

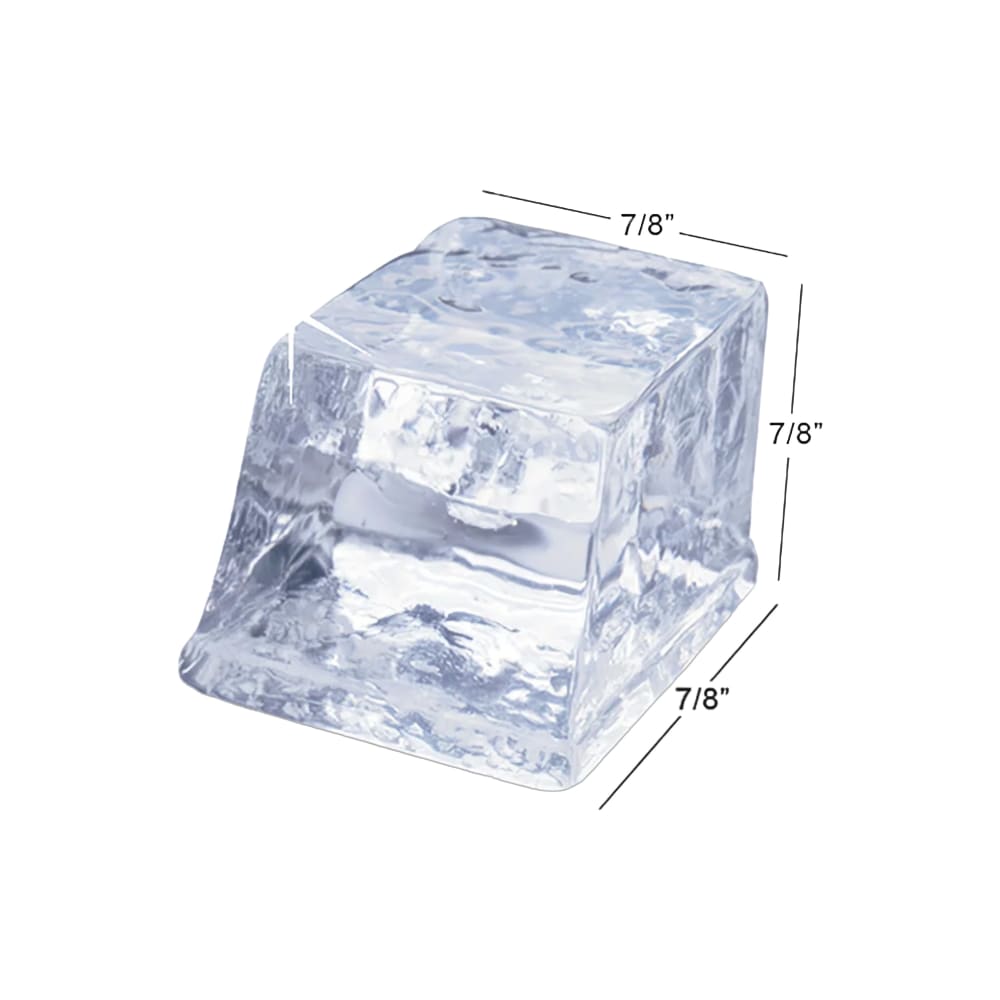

- Dice ice size: 7⁄8-in. x 7⁄8 in. x 7⁄8 in.
- 31-lb. storage bin saves ice for high-volume business hours
- Seamless, polyethylene bin liner eases cleaning

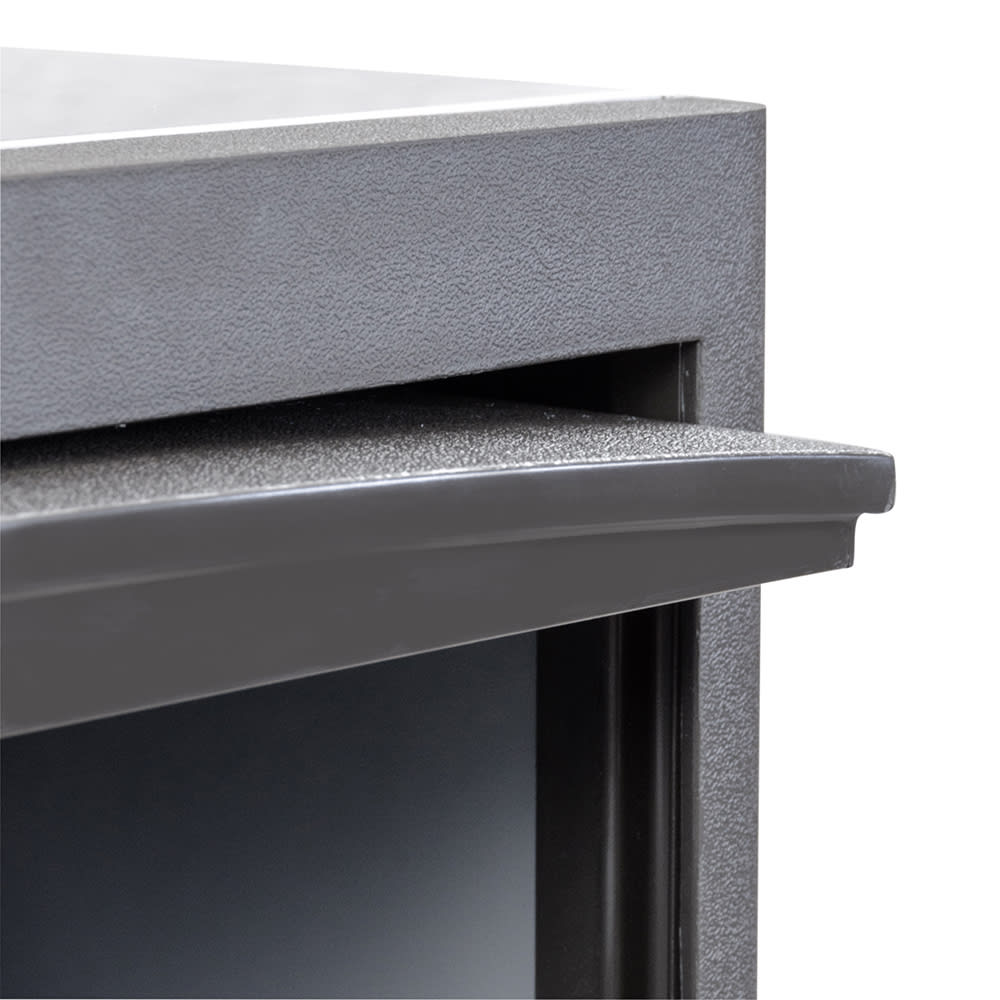

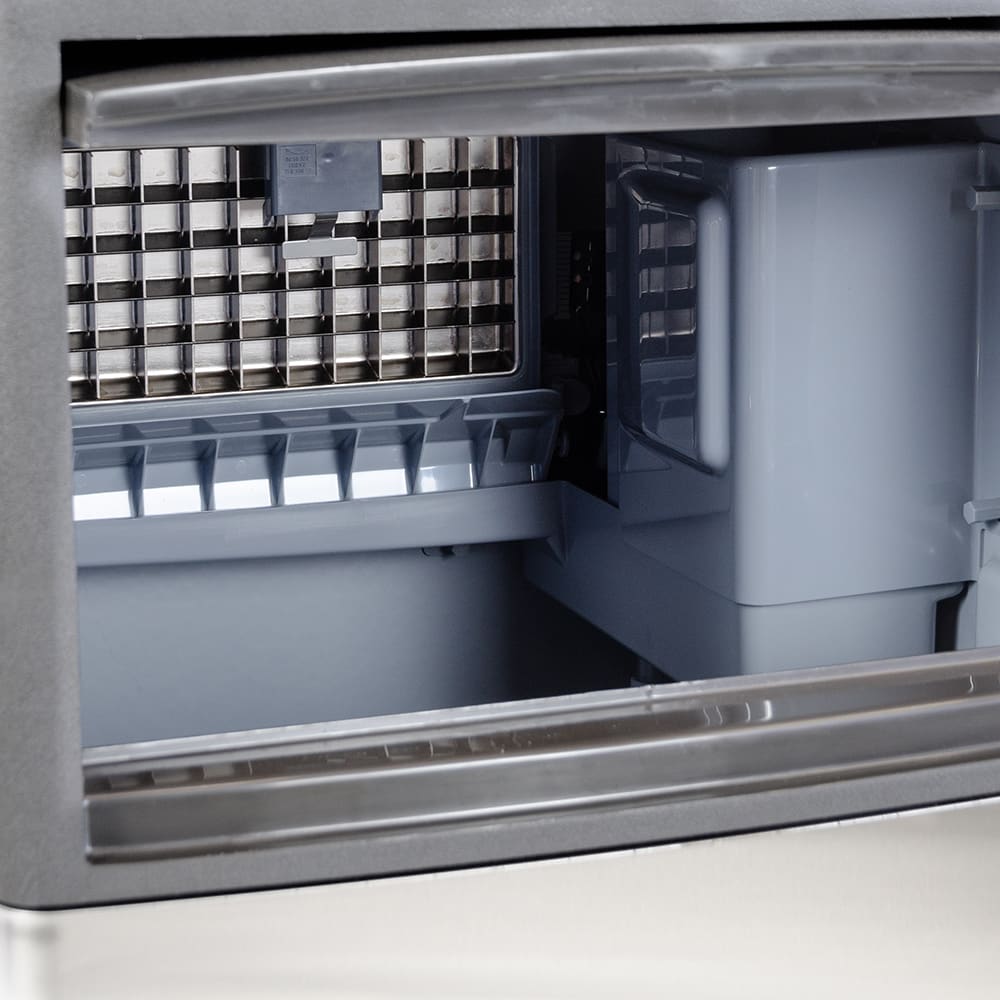

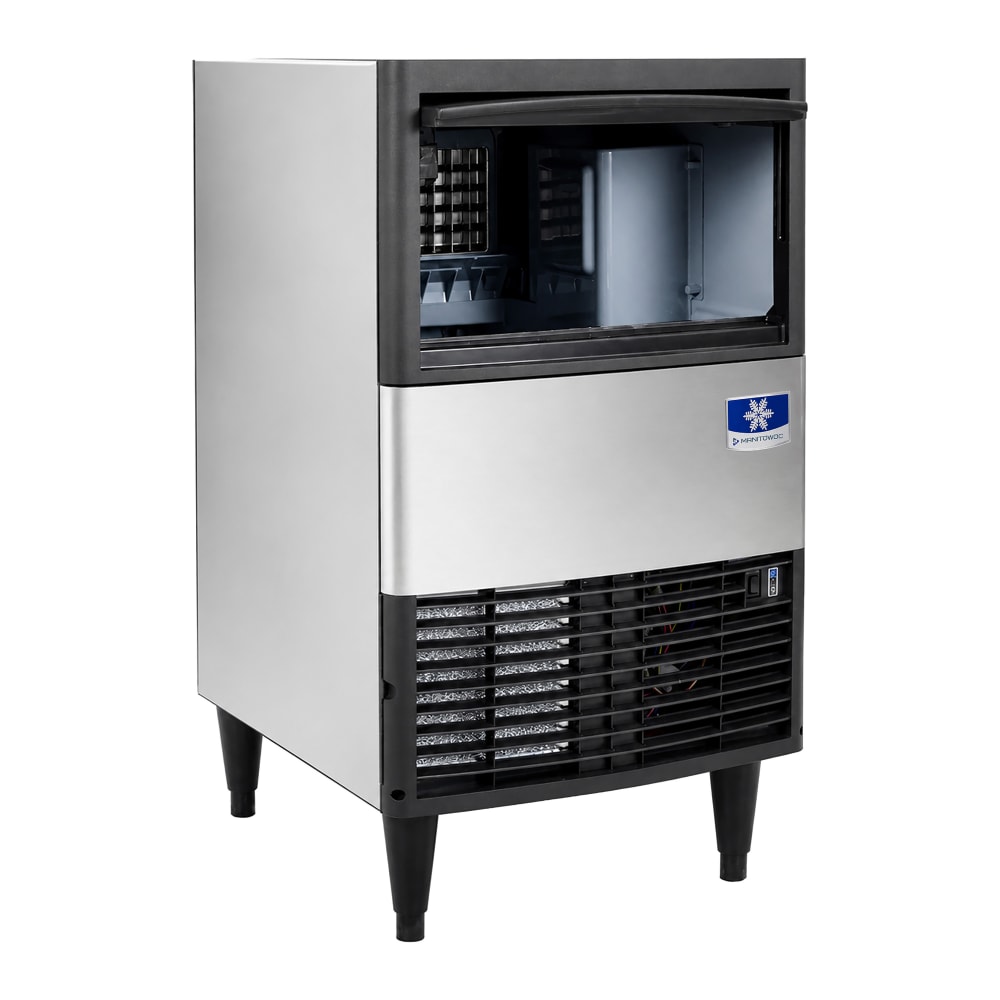

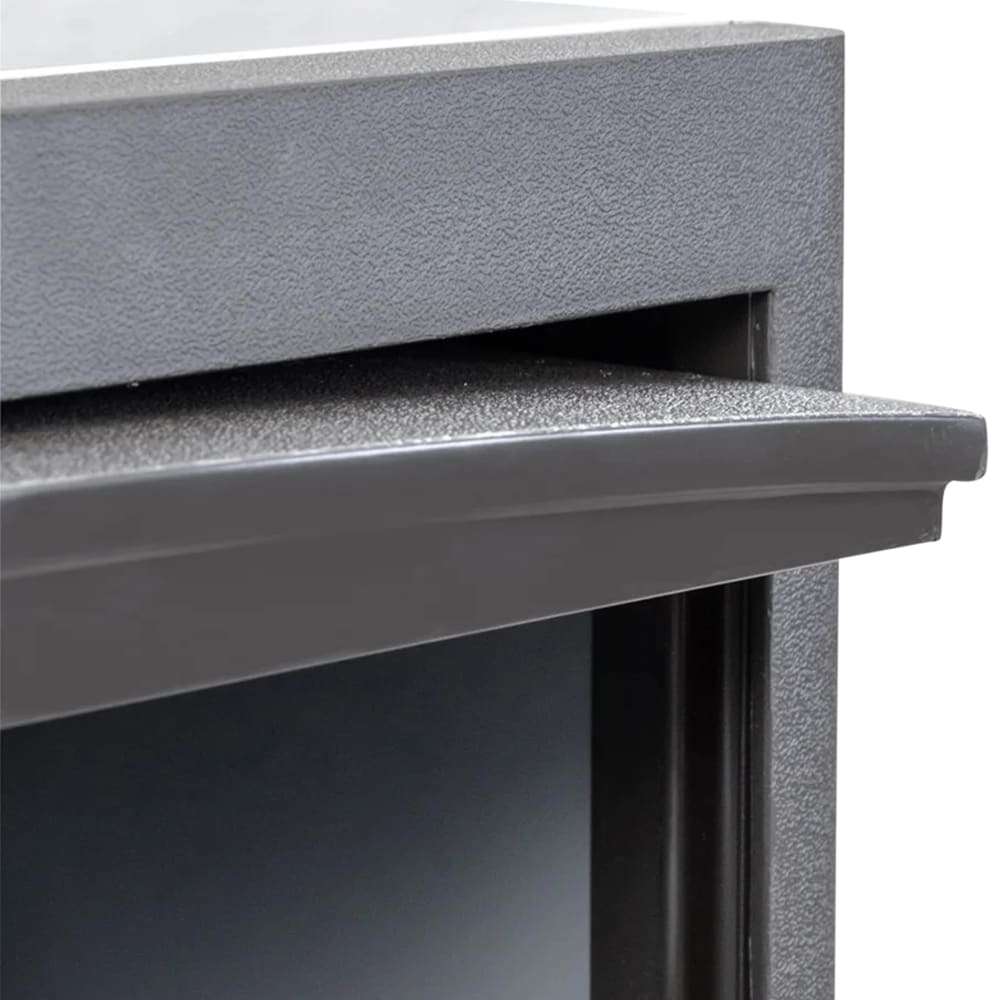

- Bin access door slides out of the way for convenient access
- AlphaSan antimicrobial agent is built into integral components to slow bacteria growth between cleanings
- Stainless steel cabinet is strong and rust resistant
- Foamed-in-place, CFC-free insulation
- Adjustable legs
- Compact footprint fits under counters and works as a standalone unit
- Flat, right-angle plug for installation in tight areas
- Air-cooled R290 refrigeration system

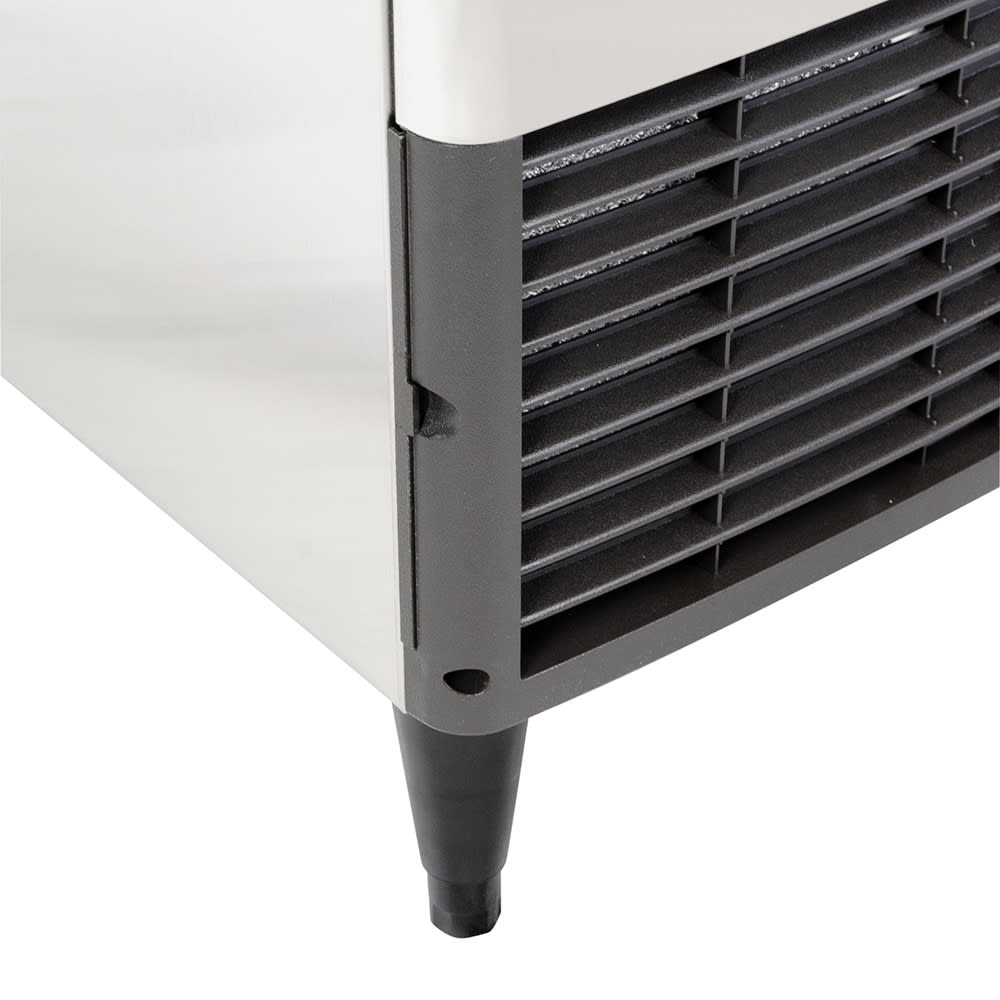

- Front-breathing design with an accessible, reusable air filter
- Replaces the QM-30A
- 1,600 average BTU; 2,350 peak BTU
Ideal Operating Conditions
- Incoming water pressure: 34-90 PSI
- Incoming water temperature: 50-86 degrees F
- Surrounding temperature: 50-110 degrees F
- Clearances: 5 in. on top, sides, and back
Dimensions & Utilities
- 19.69 in. W x 22.34 in. D x 36 in. H
- 5.3 A, 19.1 kW, 1⁄4 HP

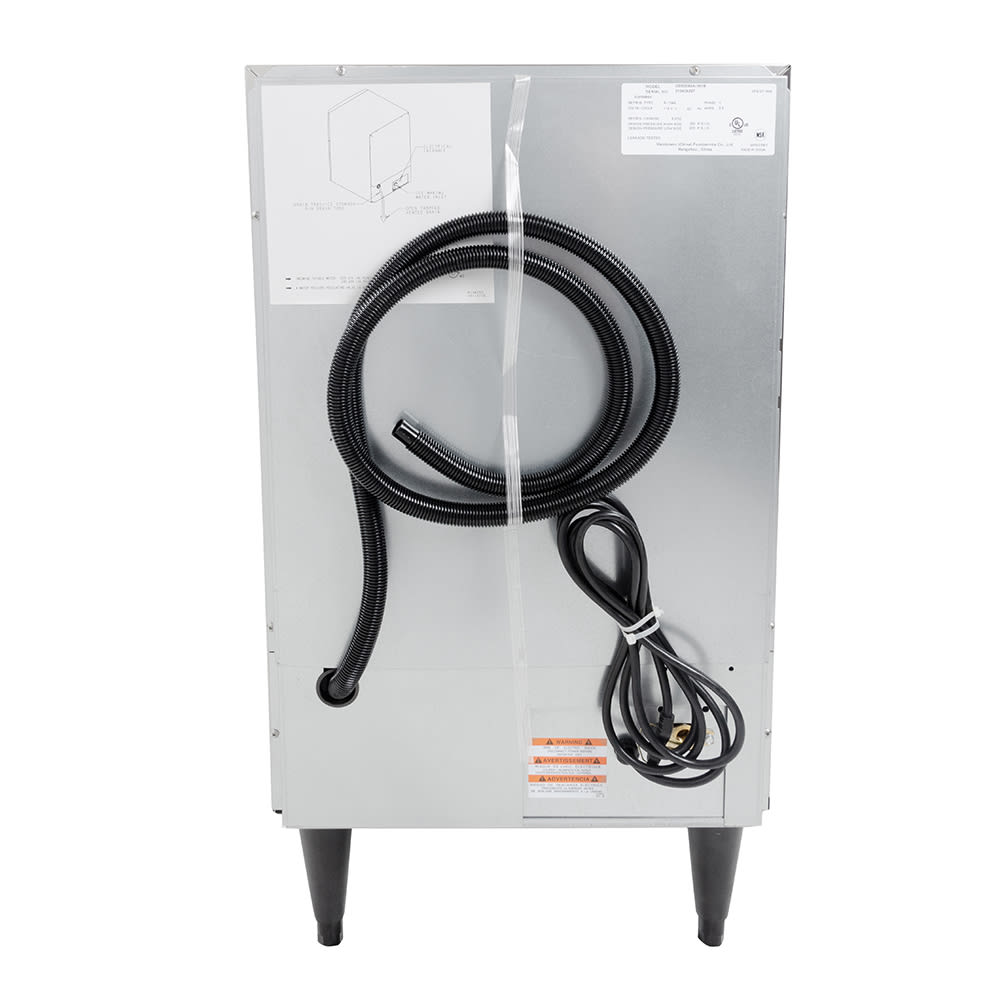

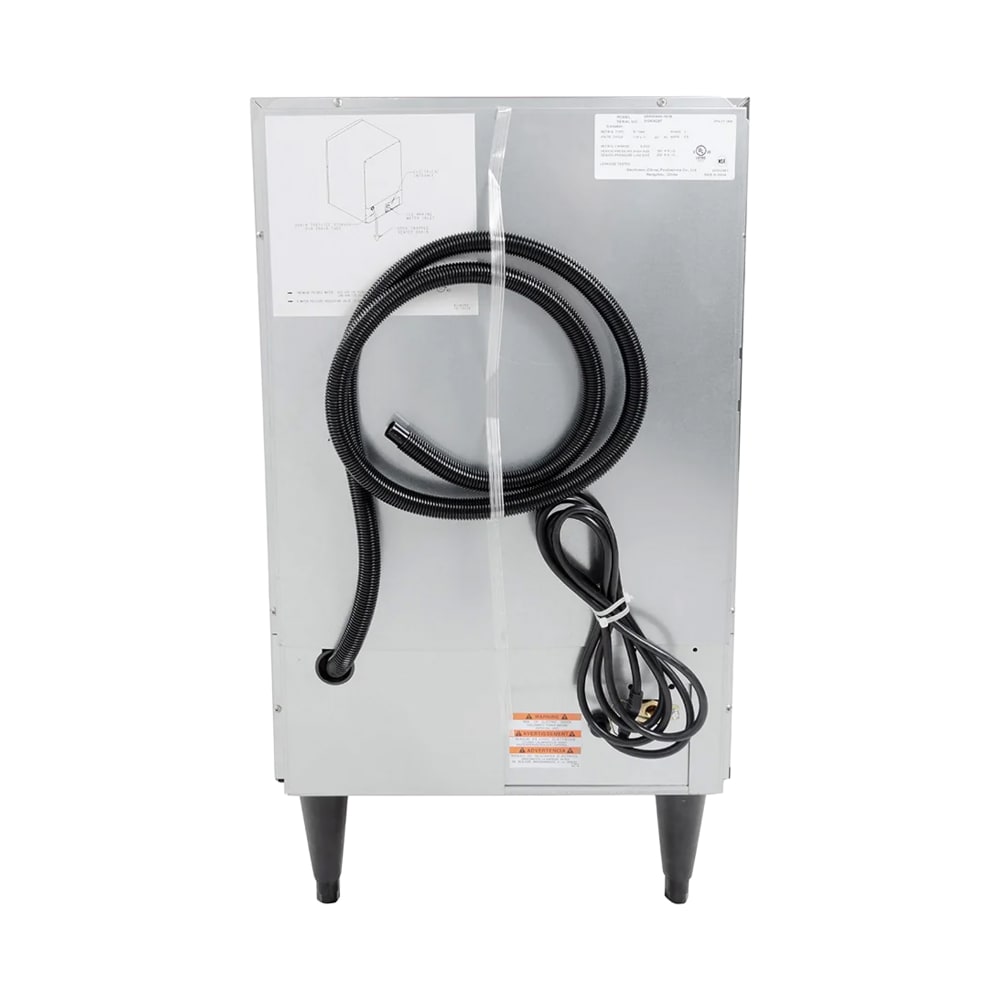

- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDP0065A within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Manitowoc Ice UDP0065A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 62 |
| Also Known As | UDE0065A |
| Bin Capacity (lb) | 31 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.34 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 36 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 19.69 |
| Weight | 109.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Manitowoc Ice UDP0065A Manitowoc Ice UDP0065A 19 11/16" W Full Cube NEO Undercounter Ice Machine - 62 lbs/day, Air Cooled Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $2,319.00 / Each | $2,482.00 / Each | $2,955.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Full Cube | Full Cube | Crescent Cube |
| 24 Hr. Production (lb) | 62 | 80 | 78 |
| Bin Capacity (lb) | 31 | 36 | 38 |
| Width (in) | 19.69 | 15 | 17.75 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity |
| Rating | Best | Best | Best |
| Special Features | Antimicrobial | Inline Water Filter Included | Alert System |
| Series | NEO® | Essential Ice™ | KM Series |
| Suggested Use | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door |
| Depth (in) | 22.34 | 24 | 24 |
| Height (in) | 36 | 38 | 39 |
| Design | Standard Height | Standard Height | ADA Height |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 | 115 |
| Warranty | 3-year; 5-year Compressor Parts | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Sticking with a reliable product.
This ice maker replaced an almost identical ice maker that has served us well for over 20 years in our church kitchen. It was a quick delivery and installation was simple. It didn't produce ice at first, but the warranty serviceman quickly found that the water pump plug had come loose during shipment.
The reusable filter slides out without tools.
Yes. The front ventilation supports flexible placement.
This unit includes AlphaSan® antimicrobial protection.
Yes. It has a seamless polyethylene liner.

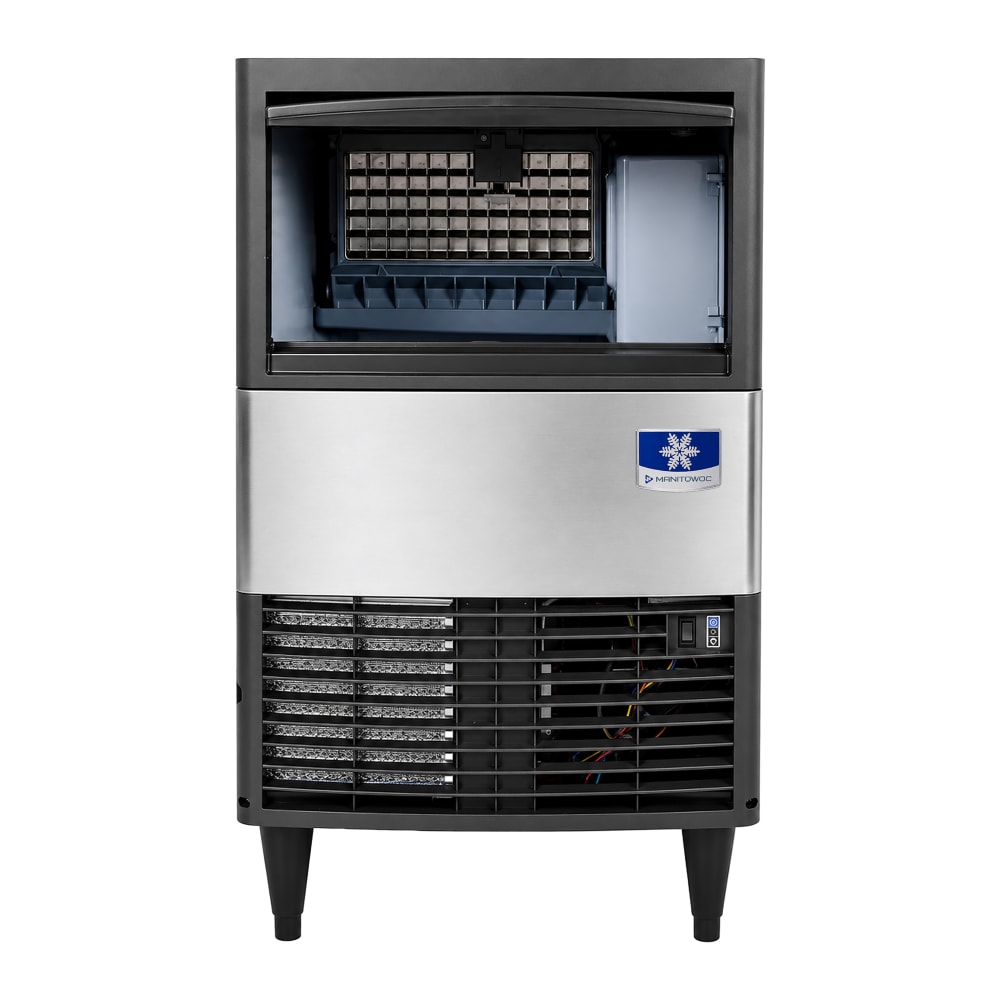

An access door slides upward and out.

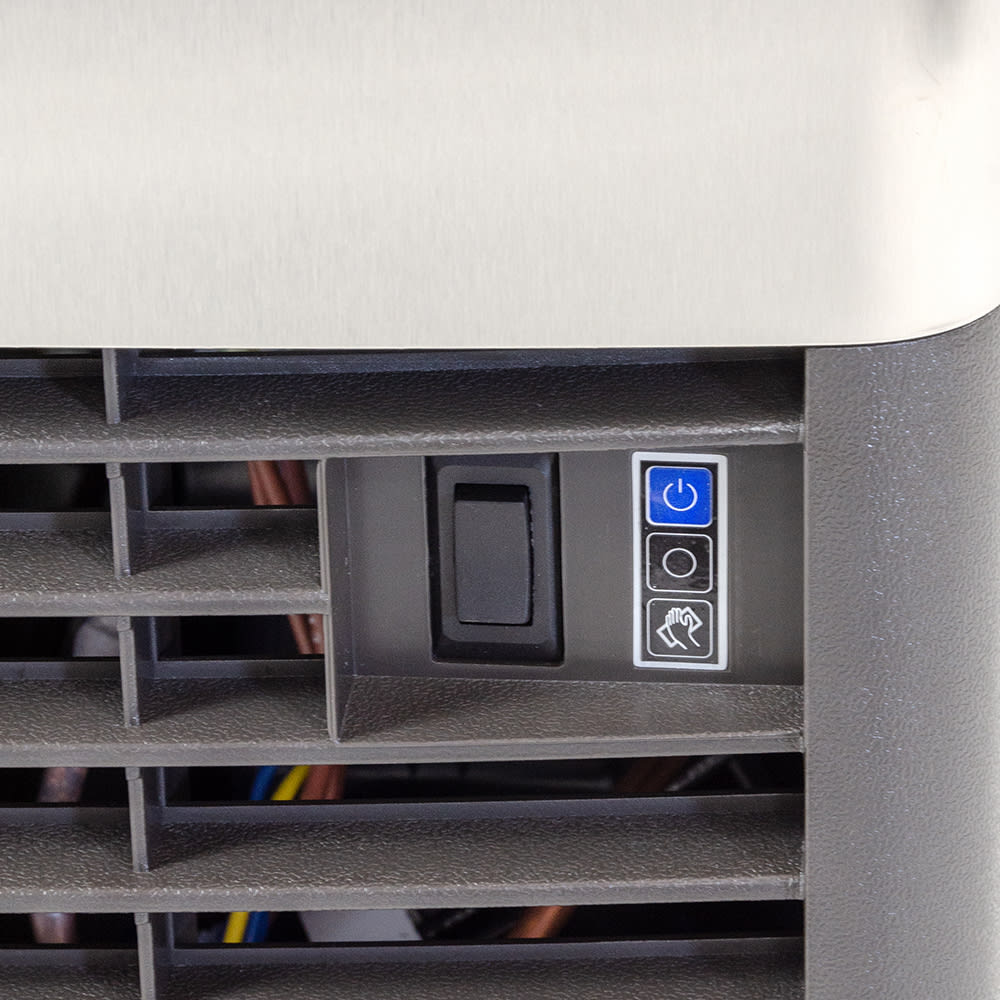

Yes. It operates from an upfront selector switch.
It can produce up to 62 lb. of ice per 24 hours.
Its storage bin holds 31 lb. of ice.
It makes full cube ice.
It measures 19 11/16 in. W x 22 5/16 in. D x 36 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Its exterior is made of stainless steel.
Yes, it includes a storage bin with a 31-lb. capacity.
Its listed certifications include cULus Listed, CE, and NSF.
Yes, it has adjustable feet.
It uses a NEMA 5-15P plug.
It requires a 3/8-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
