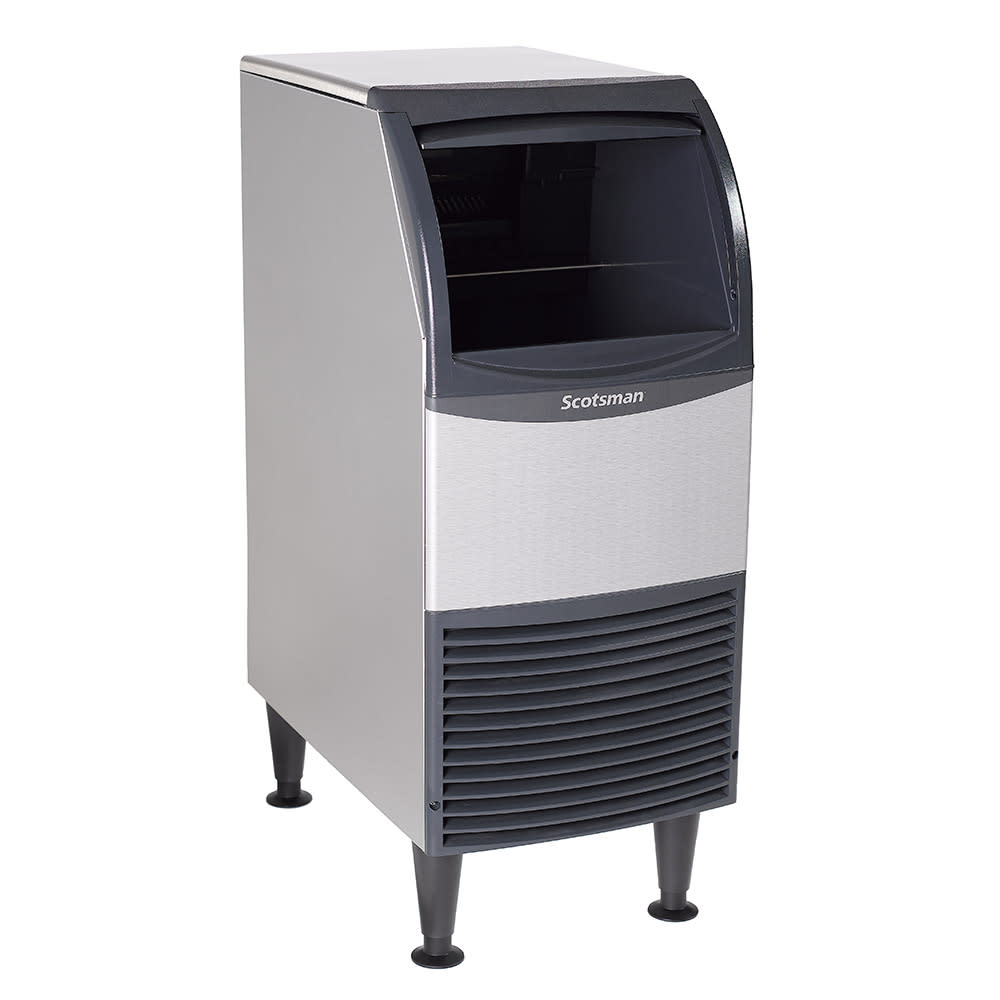

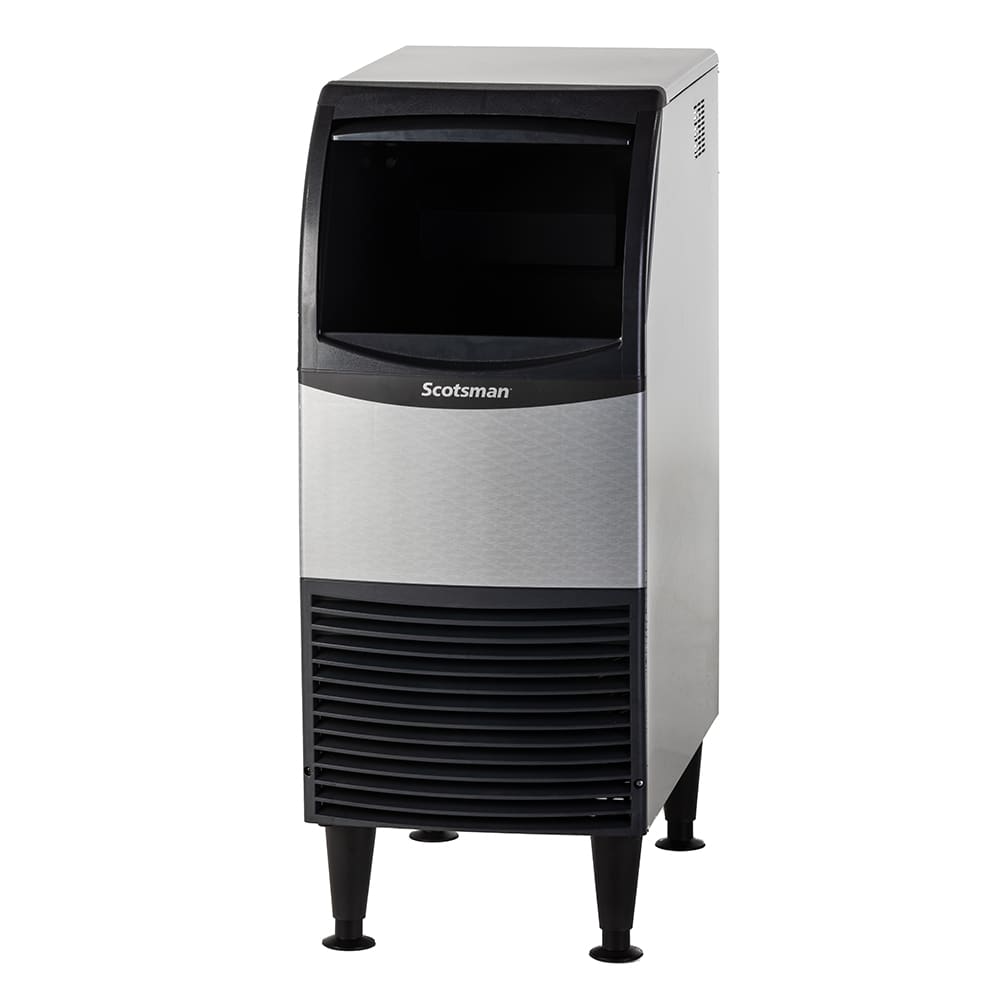

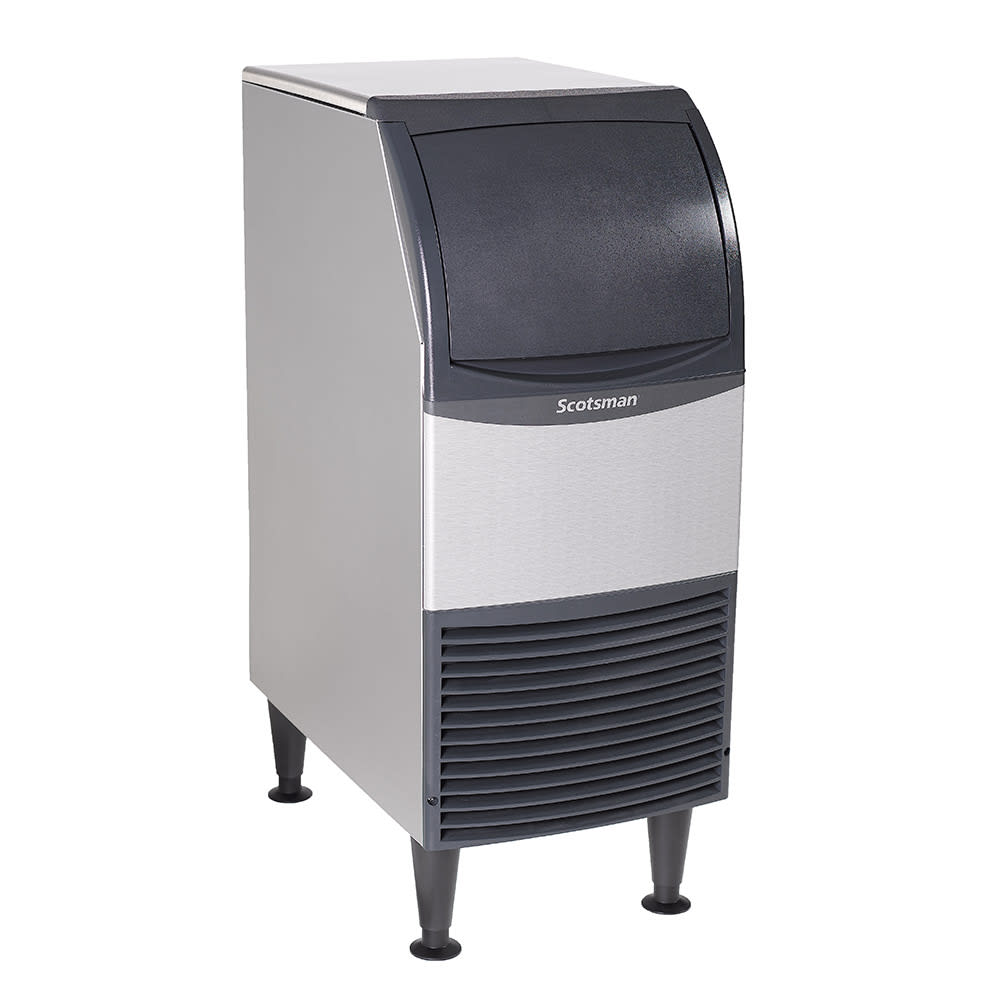

Scotsman CU0715MAX-1 15"W Full Cube Undercounter Ice Machine w/ Filter - 80 lbs/day, Air Cooled, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $6,055.00
$2,482.00 /Each
Scotsman CU0715MAX-1 Description
The Scotsman CU0715MAX-1/AP1-P undercounter full-cube ice maker creates clear ice that is ideal for different types of beverages since it melts slowly. The full-cube produced by this unit measures 7⁄8-inches wide by 7⁄8-inches deep by 7⁄8-inches tall. Water is poured over an evaporator that molds the ice's shape, then falls off into the storage bin so you can easily scoop it out for drinks or other applications. The bin can hold as much as 36 pounds at a time, while the head produces as much as 80 pounds per day in ideal ambient air and water conditions. This unit comes with the AP1-P water filter.

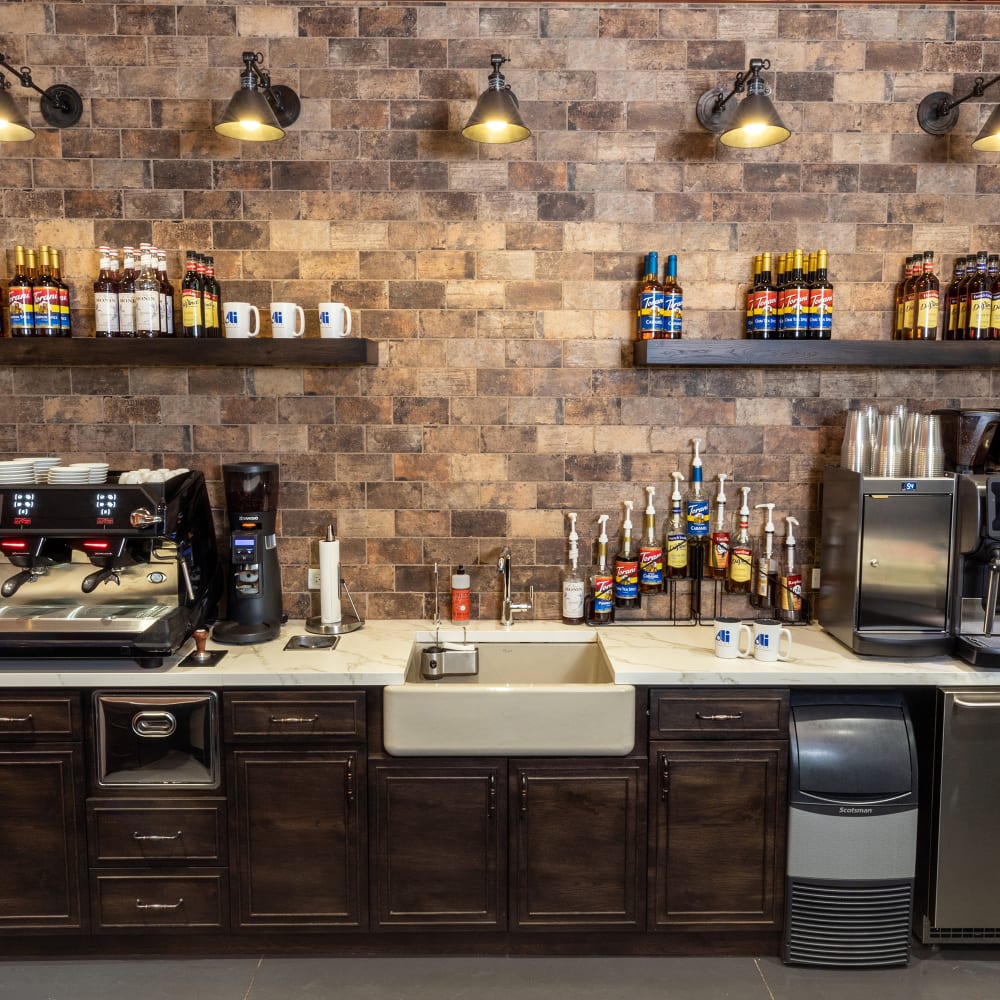

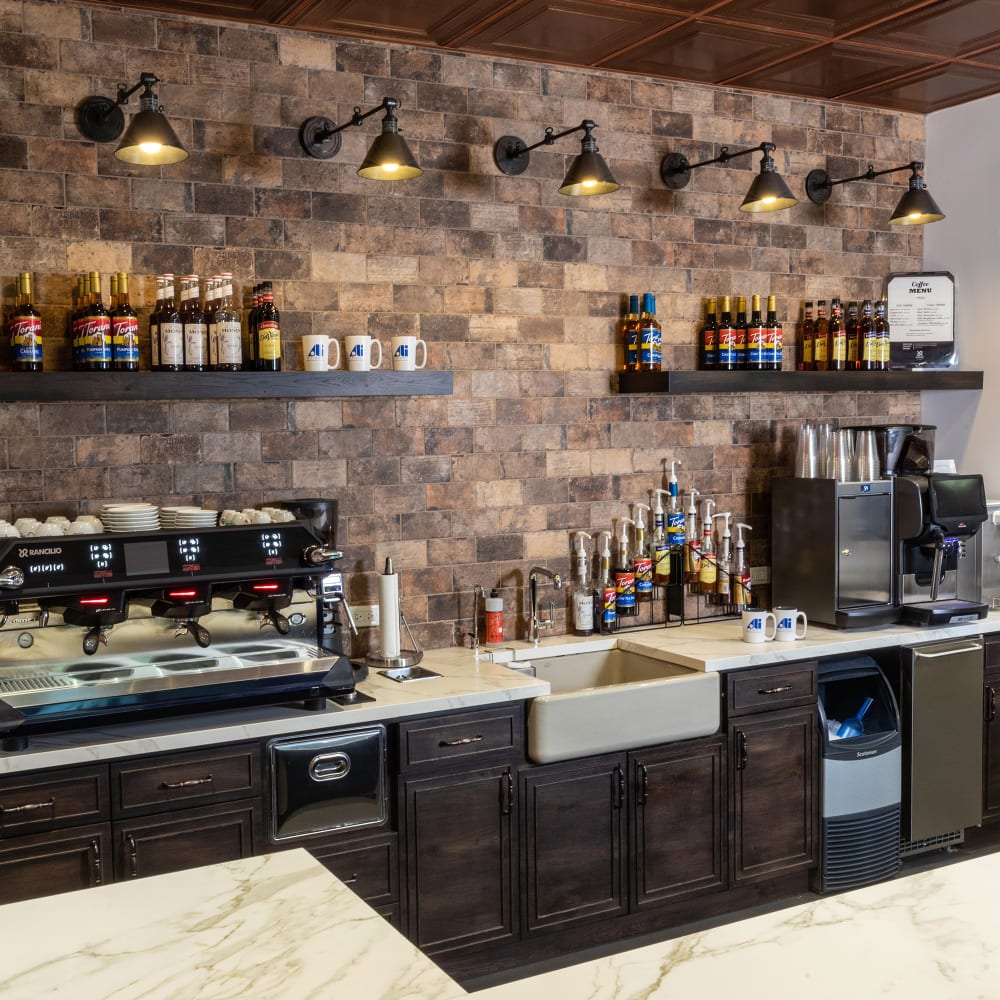

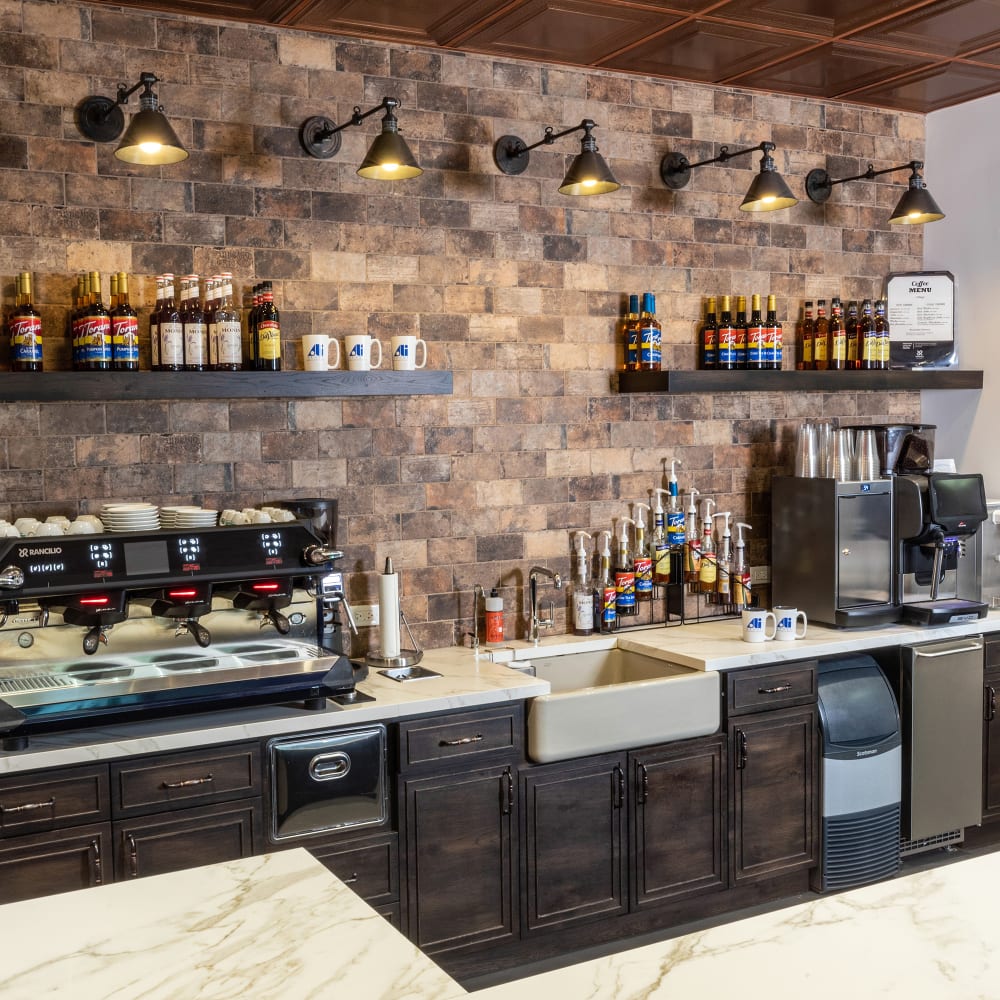

The easy-to-use control panel ensures operation is simple with a switch to power the unit on and off or start a cleaning cycle. The exterior is easy to keep clean and is resistant to corrosion. The door to the storage bin slides back to ensure is ice is accessible without blocking access in the aisle. With a width of 15 inches, the Scotsman CU0715MAX-1/AP1-P undercounter full-cube ice maker easily fits into compact spaces, making it ideal for kitchens that have a limited amount of space. With this production amount and compact size, the unit can be installed in restaurants and bars, cafes and coffee shops, and breakrooms and other office spaces. To help prevent overheating, the unit sits on adjustable 6-inch legs.
- Part of the Essential Ice™ series
- 80-lb. maximum daily ice production
- 58-lb. storage bin capacity
- Air-cooled unit
- Full-cube ice
- Cube ice size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Cube ice is ideal for a variety of beverages since the ice melts slowly
- Evaporator produces clear, full-cube ice
- Compact design allows the unit to be placed in small spaces

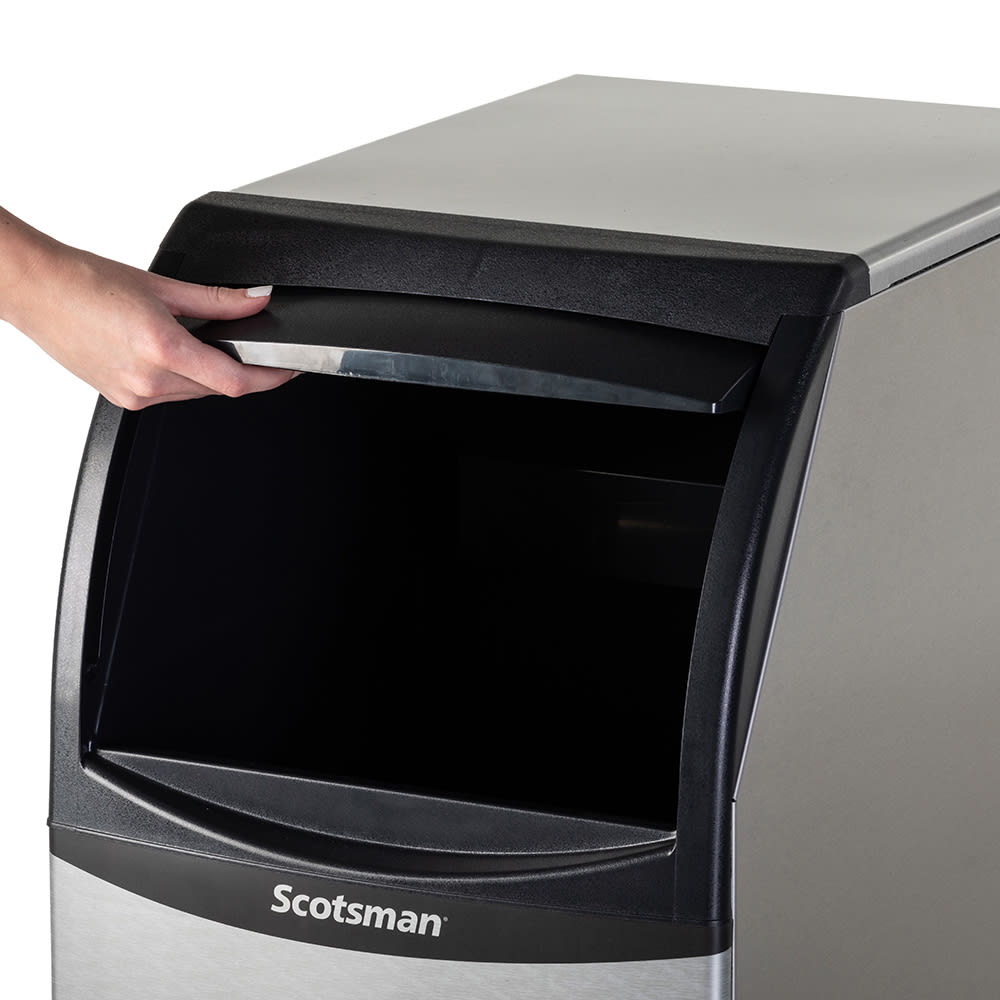

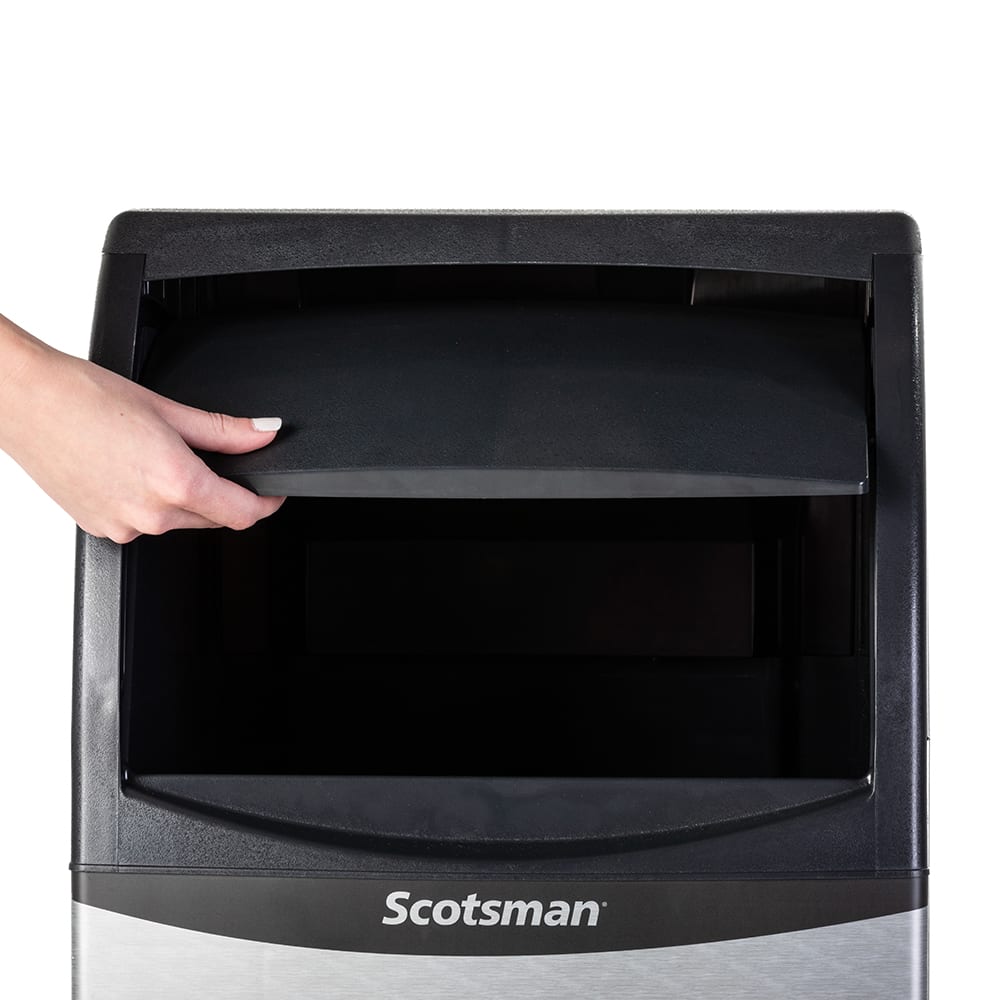

- Door slides back for convenient ice access
- Large ice scoop is dishwasher safe
- Uses R290 refrigerant
- AP1-P water filter included
- Corrosion-resistant exterior
- 6-in. adjustable legs
- 2,300-BTU heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 15-80 PSIG
- Simple on/off/clean switch
- Harvest time setting
- Ice bridge thickness setting
- Freeze mode and timer-on lights
- 15 in. W x 24 in. D x 38 in. H
- 11 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman CU0715MAX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, cube style, air cooled, 15" width, self contained condenser, production capacity up to 80 lb/24 hours at 70°/50° (53 lb AHRI certified at 90°/70°), 36 lb bin storage capacity, clear medium cube, horizontal evaporator, ADA compliant with floor mount kit, no side clearance required, unit specific QR code, 6" adjustable legs included, ice scoop included, R290 refrigerant, includes power cord with NEMA 5-15P plug, 115v/60/1-ph, cETLus, ETL-Sanitation, engineered and assembled in USA
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman CU0715MAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 80 |
| Also Known As | CU0715MA-1 |
| Bin Capacity (lb) | 36 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Essential Ice™ |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor |
| Width (in) | 15 |
| Weight | 96.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman CU0715MAX-1 Scotsman CU0715MAX-1 15"W Full Cube Undercounter Ice Machine w/ Filter - 80 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,482.00 / Each | $2,955.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Full Cube | Crescent Cube |
| 24 Hr. Production (lb) | 80 | 78 |
| Bin Capacity (lb) | 36 | 38 |
| Width (in) | 15 | 17.75 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Inline Water Filter Included | Alert System |
| Series | Essential Ice™ | KM Series |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | Lift Door |
| Depth (in) | 24 | 24 |
| Height (in) | 38 | 39 |
| Design | Standard Height | ADA Height |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!

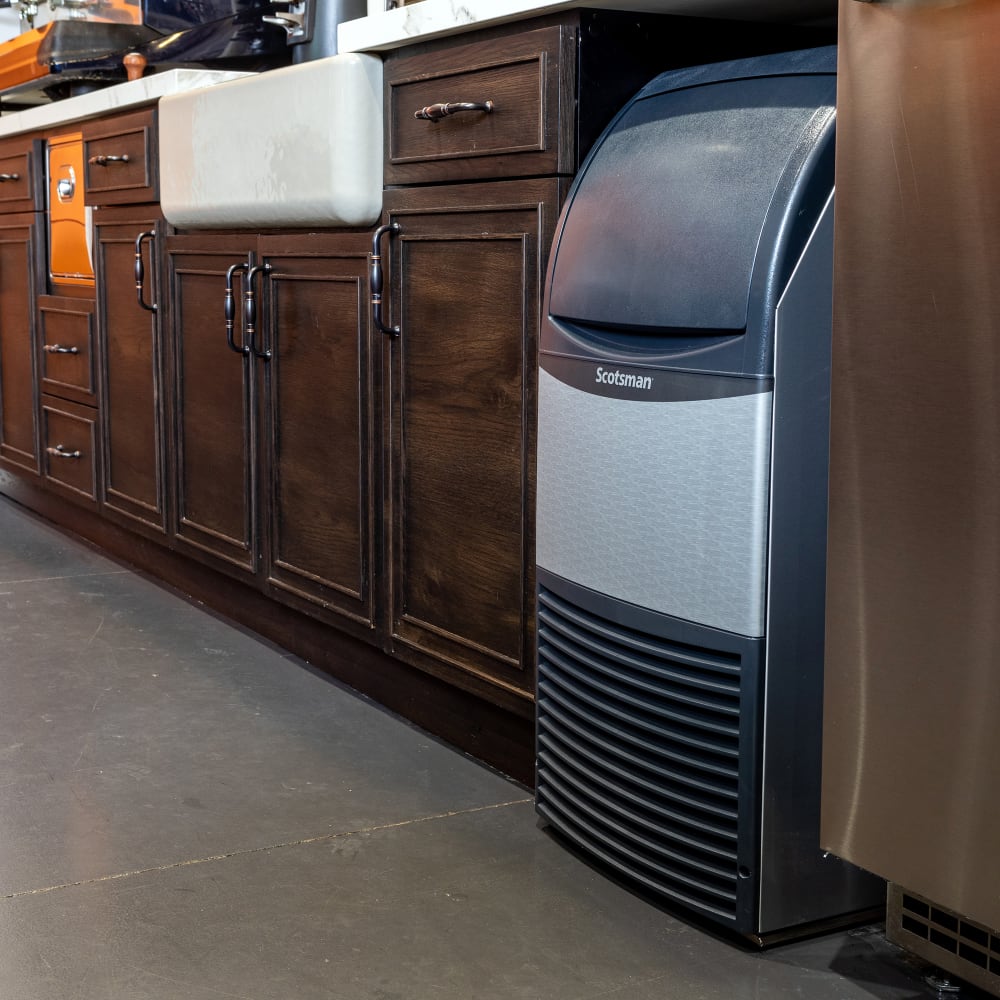

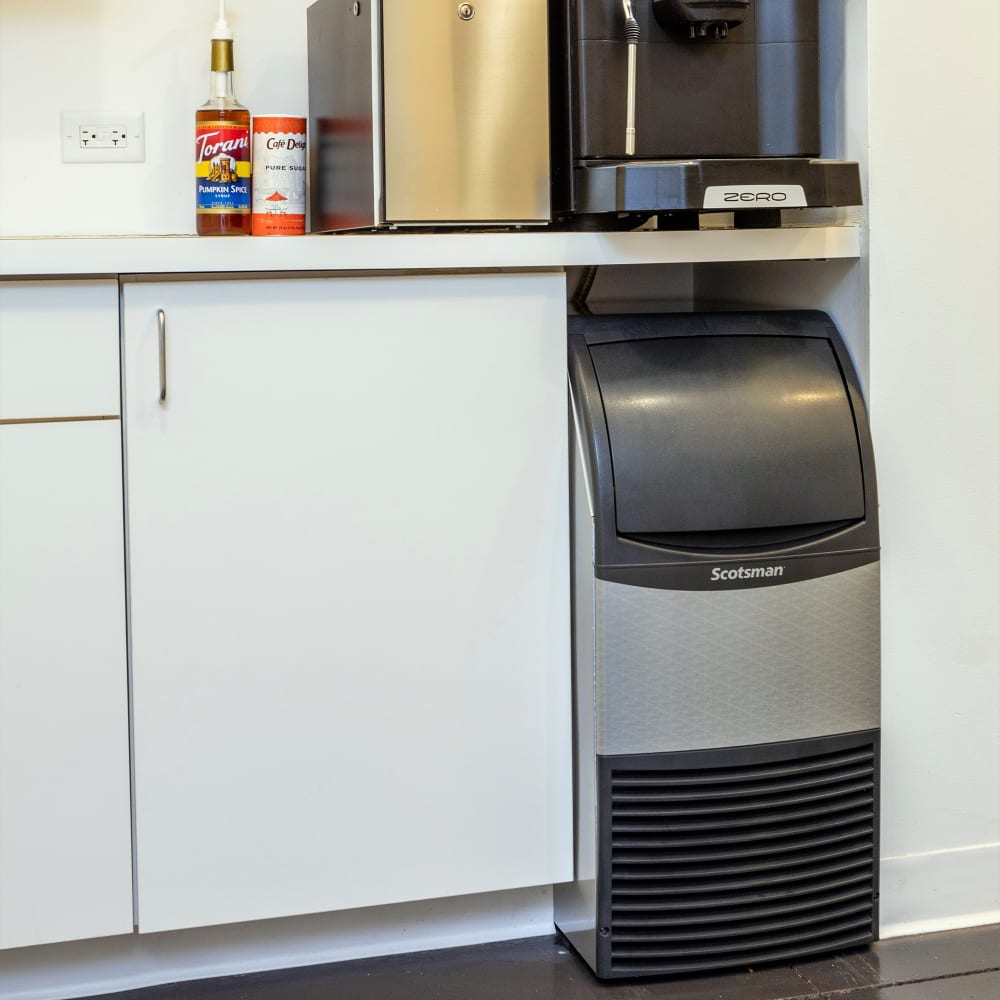

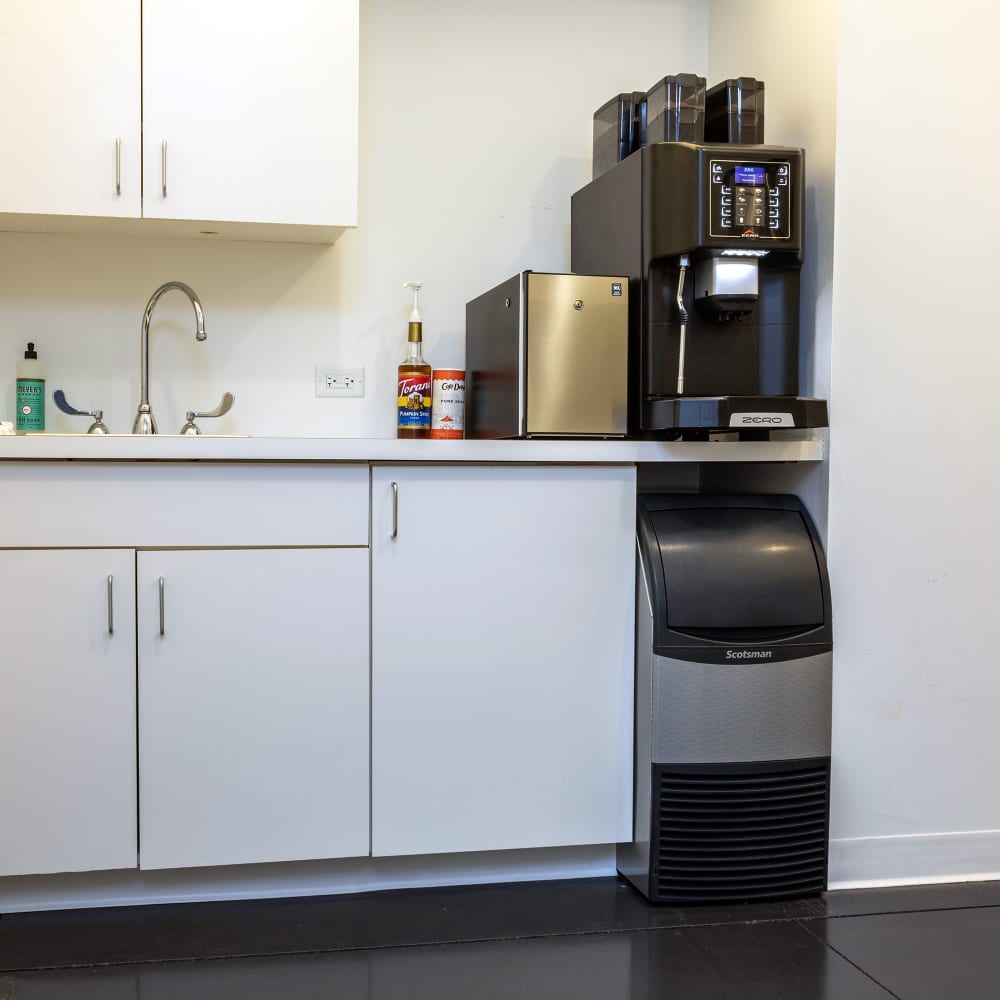

The unit is designed for undercounter installation and fits beneath standard counters, with optional mounting options available for lower ADA-height applications.
Minimum clearance requirements are 1⁄8 in. on the sides, 1/4 in. on the top, and 4 in. at the back.
The unit uses front-breathing ventilation, eliminating the need for side clearance and supporting flexible placement.
It operates on with 115 V, 60 Hz, and 1 ph.
A drain connection is required to remove meltwater during normal operation.
A potable water supply connection is required to support ice production.
The unit is self-contained, producing ice and storing it in an integrated storage bin.
The unit produces up to 100 lbs. of ice in a 24-hour period under standard operating conditions.
The integrated storage bin holds up to 57 lbs. of ice.
It produces large, slow-melting cube ice suitable for beverage service.
Adjustable legs are included to help level the unit during undercounter installation.
It can produce up to 80 lb. of ice per 24 hours.
Its storage bin holds 36 lb. of ice.
It makes full cube ice.
It measures 15 in. W x 24 in. D x 38 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with a 36-lb. capacity.
Its listed certifications include AHRI, cULus Classified, C-UL US, cULus Listed, ETL, NSF, and UL.
Yes, it includes a water filter.
Yes, it has adjustable feet.
It uses a NEMA 5-15P plug.
Yes, it includes a power cord and plug.
