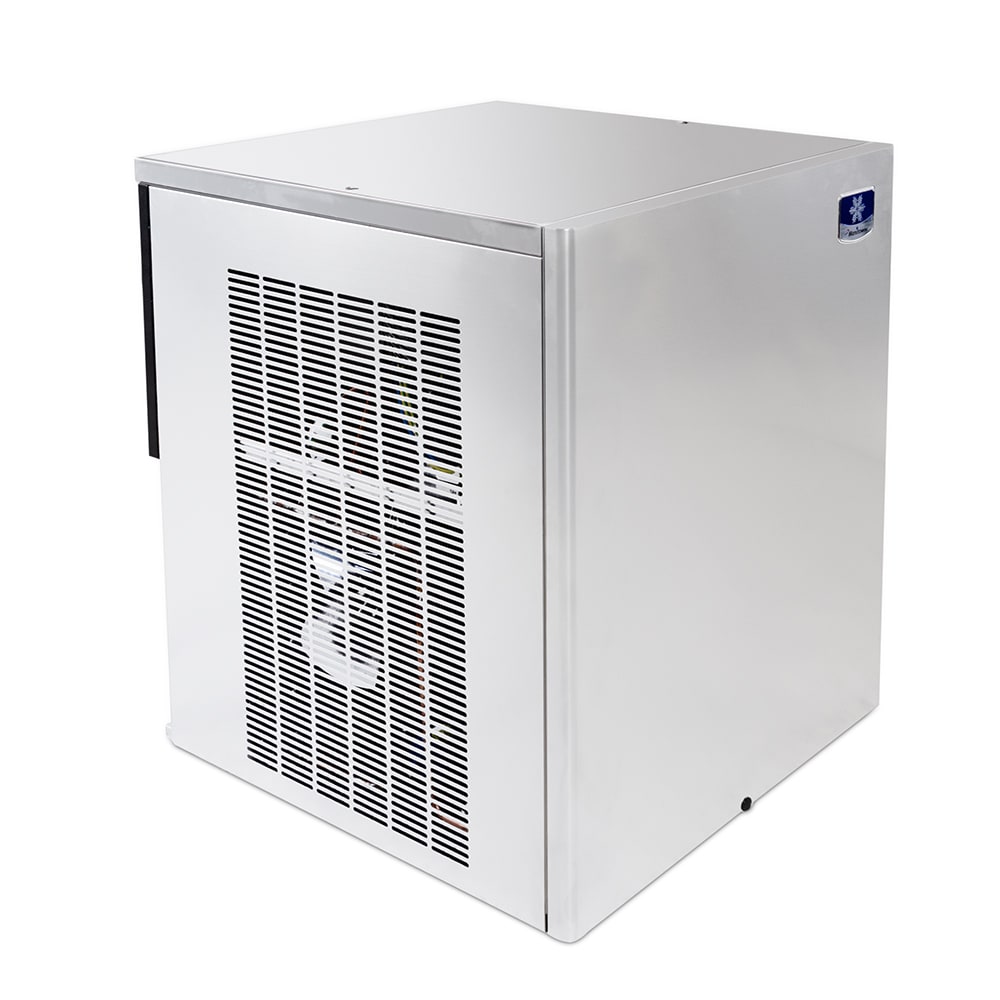

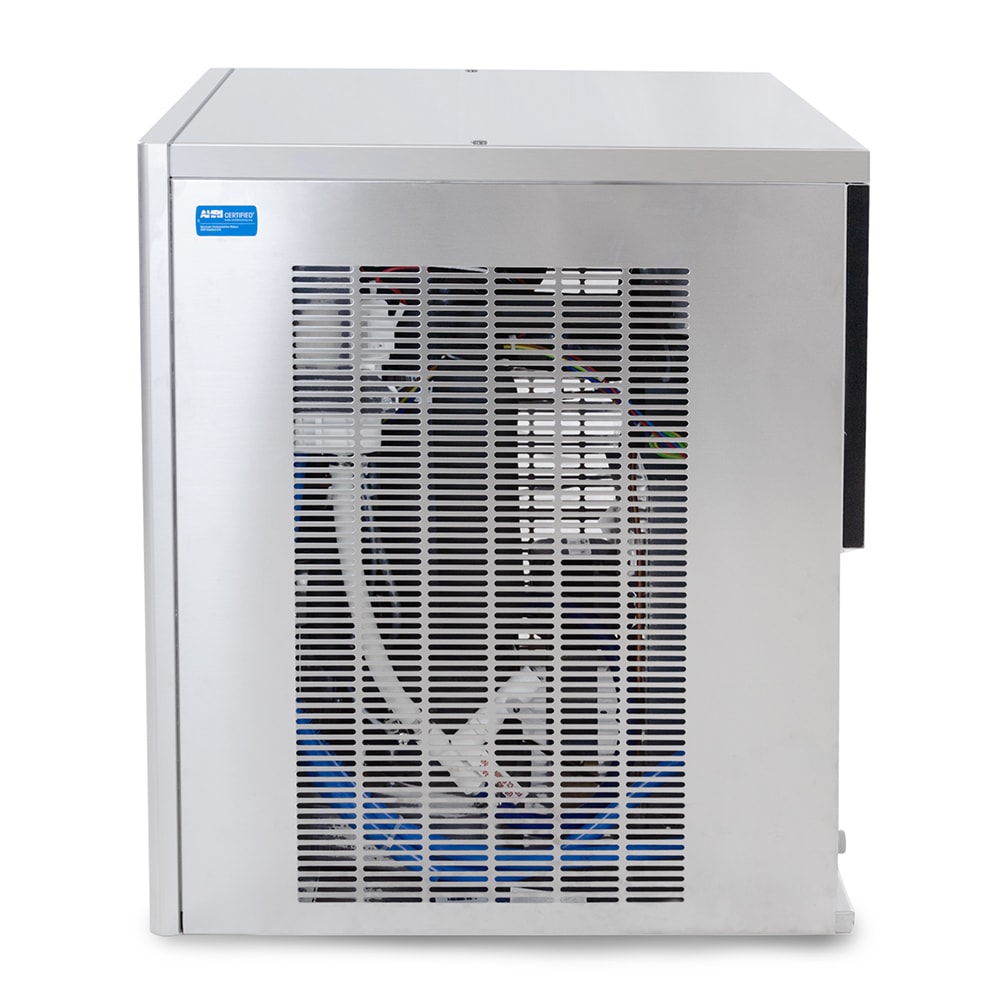

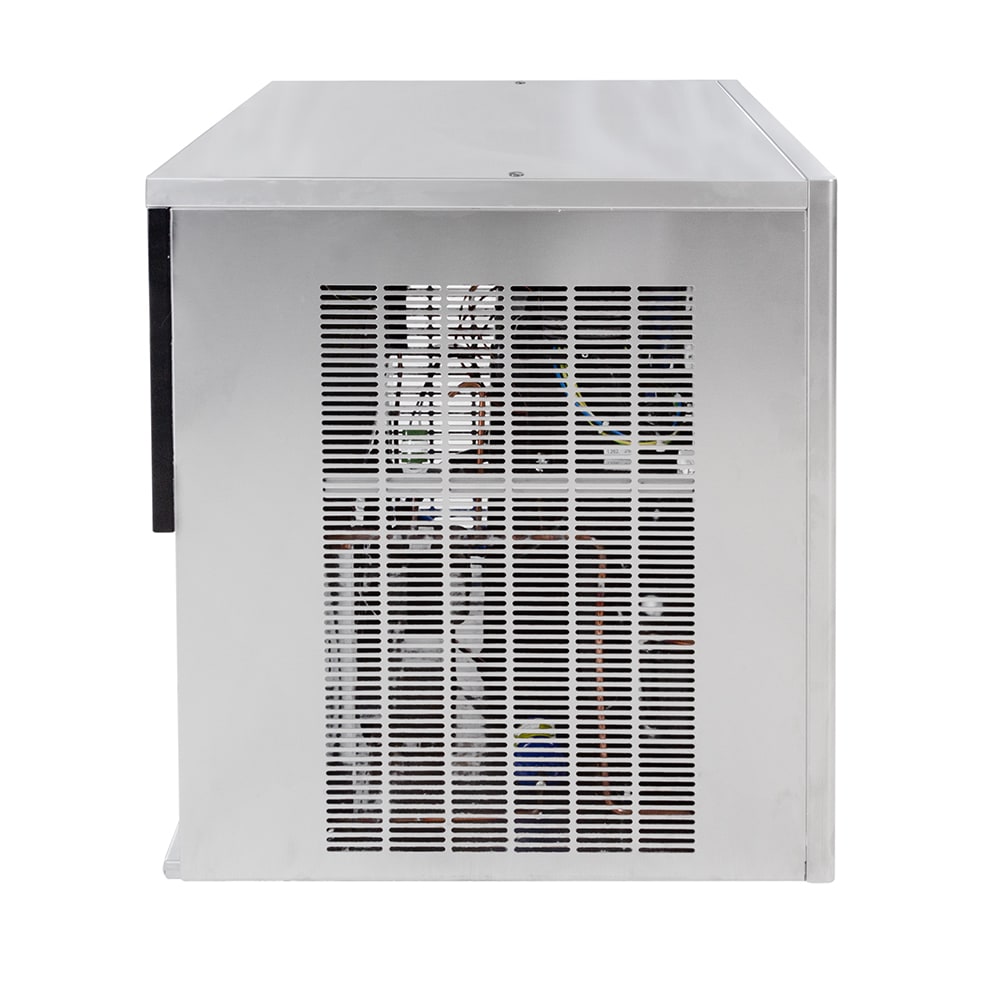

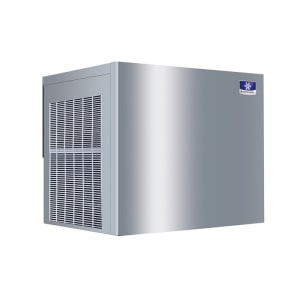

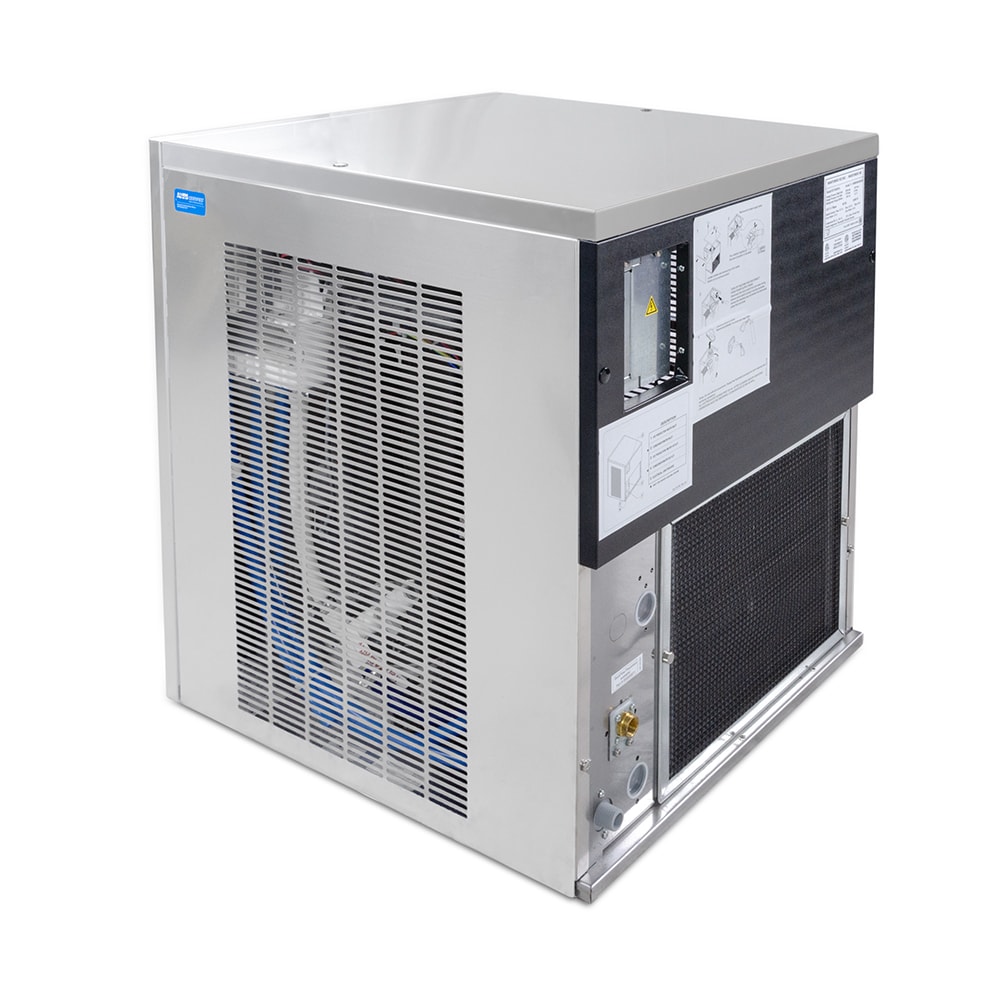

Manitowoc Ice RNF1020C 22" QuietQube® Nugget Ice Machine Head - 1025 lb/24 hr, Remote Cooled, 115v/1ph

In 24 hours, the Manitowoc Ice RNF1020C QuietQube® ice machine head can make 1,025 pounds of ice. Ice production depends on the ambient air and incoming water temperatures, with higher temperatures resulting in less ice per cycle. The unit makes nugget ice—small pellets that cool drinks and absorb their flavor. Because these ice pieces are chewable, they are preferred among customers.

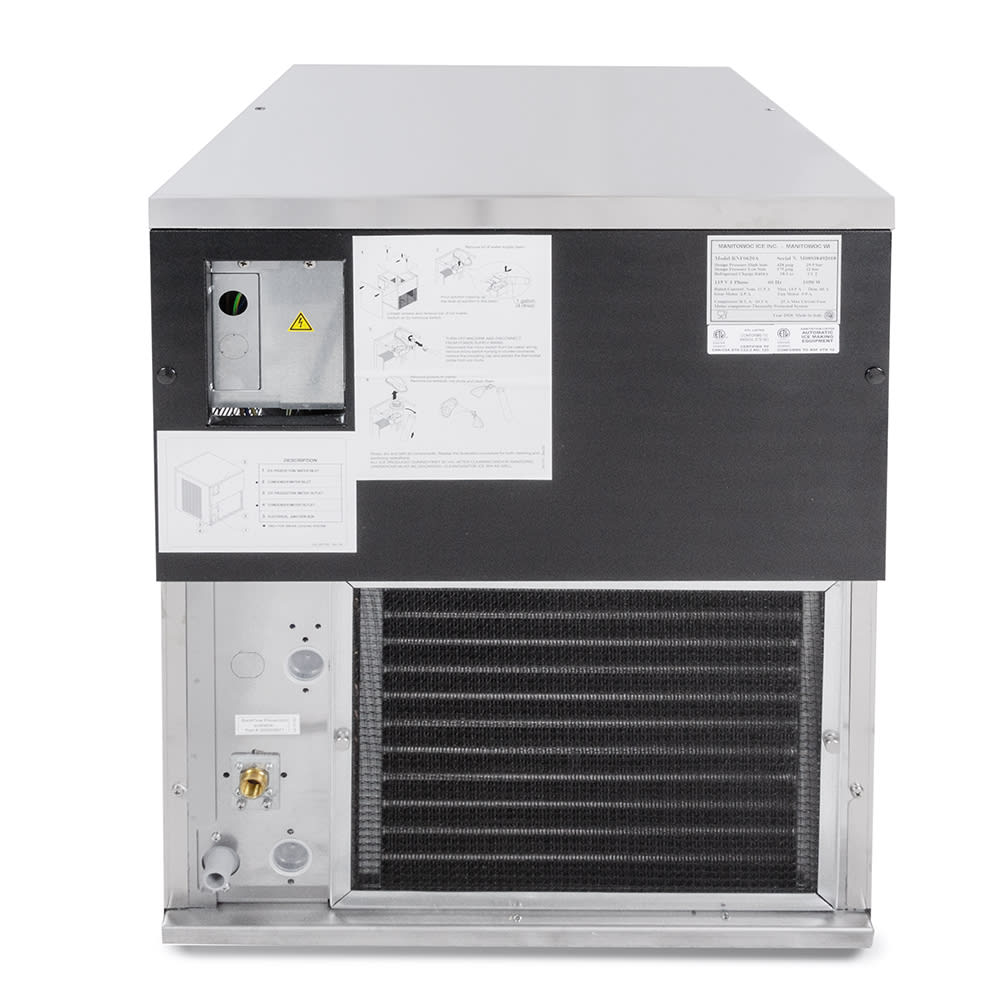

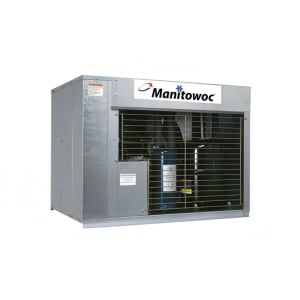

This Manitowoc Ice RNF1020C ice maker is designed to operate with a separately sold remote condenser connected to the unit with R404A refrigerant lines. The operator will install the condenser in a separate location, enabling heat and noise to dissipate. After ice is produced, it will fall into a bin or dispenser, which is not included.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the QuietQube series
• 1,025-lb. maximum ice production capacity
• Makes chewable nugget ice
• Operates with a remote condensing unit that is designed to be installed in a separate location (sold separately)
• Remote operation displaces heat and noise in trafficked areas

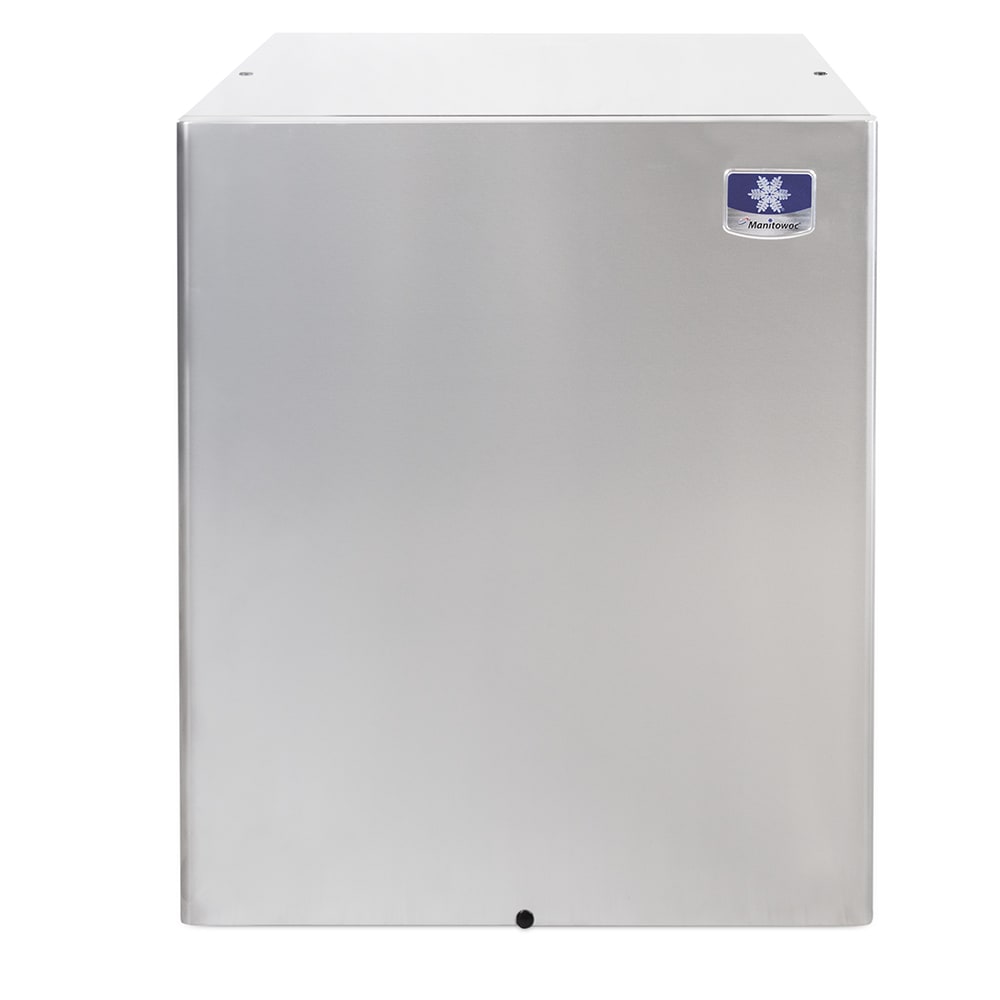

• Durable stainless steel exterior can be wiped down
• Uses R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 20-70 PSI
• Ice bin or dispenser is sold separately
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Product Features

Dimensions & Utilities

• 22 in. W x 23.63 in. D x 27.36 in. H
• 2.9 A, 4.53 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice RNF1020C within the 48 contiguous states.

From The Manufacturer

QuietQube® Series Ice Maker, nugget style, designed for remote refrigeration, 22"W x 23-5/8"D x 27-3/8"H, production capacity up to 1025 lb/24 hours at 70°/50° (840 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, ETL-Sanitation, cETLus

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice RNF1020C Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
