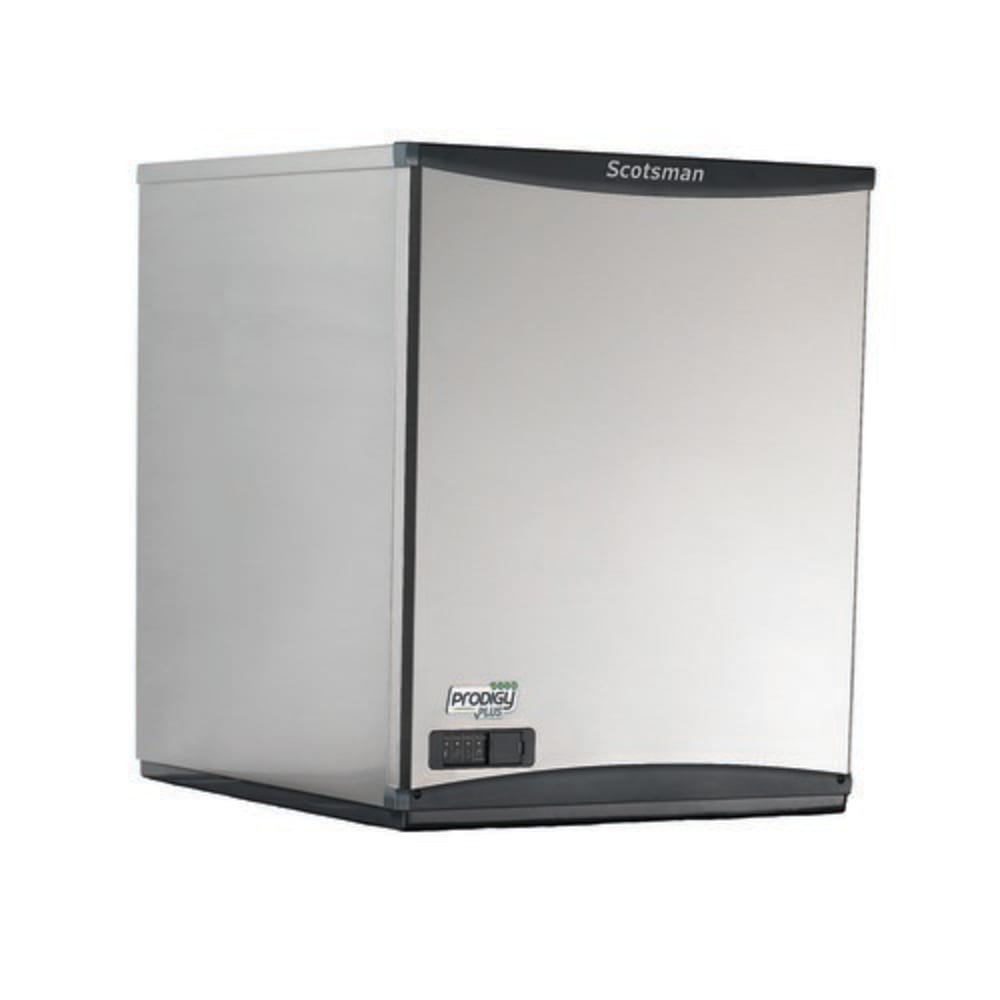

Scotsman NH0922L-1 22" Prodigy Plus® Nugget Ice Machine Head - 889 lb/24 hr, Remote Cooled, 115v/1ph

Equipped with all the Prodigy Plus® series features, the Scotsman NH0922L-1 nugget ice machine head can produce as much as 889 pounds of H² nugget ice a day in ideal conditions. To streamline maintenance, the air filter is in the front and the head has a self-aligning front panel, providing improved access to its internal components. Its auger, exterior, and evaporator are all constructed of stainless steel for improved durability, and the sealed refrigeration system minimizes contamination from airborne particles. Antimicrobial materials are used to construct the food zone and slow the growth of mold.

To help diagnose malfunctions, the Scotsman NH0922L-1 ice machine head has a panel of AutoAlert™ indicators that light up and provide increased visibility to operators while the unit-specific QR code enables users to swiftly gain access to warranty information, user manuals, and parts lists. The unit uses R-404A refrigerant, reducing its impact on the environment. Neither an ice bin nor a remote condenser are included with the machine head and must be purchased separately.

Product Details

• Part of the Prodigy Plus series
• Requires separate remote condenser to function (sold separately)
• 889-lb. maximum daily ice production
• 766-lb. AHRI-certified daily ice production
• Produces H² nugget ice
• Nugget ice size: ³/₄ in. x ⁵/₁₆ in. x ³/₈ in.
• Stainless steel finish

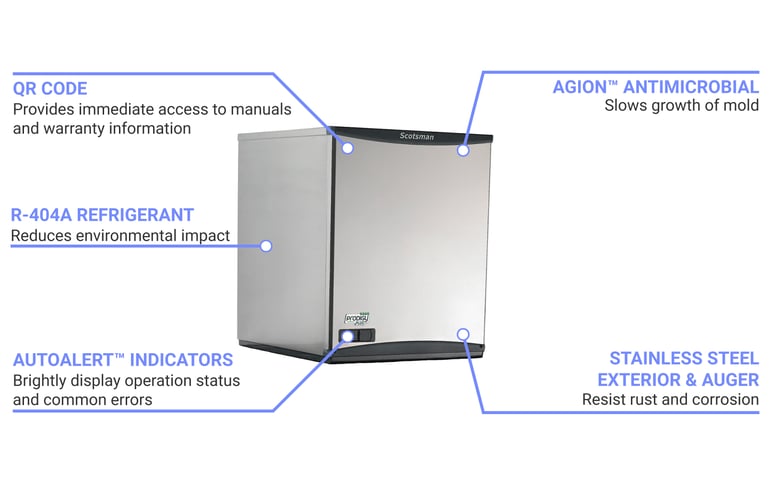

• AutoAlert indicator lights for increased visibility
• QR code provides instant access to unit documents
• Front-facing air filter for improved access
• Simple access to internal components with self-aligning front panel
• Smart-Board™ improves diagnostic capabilities
• AgION™ antimicrobial guards
• Sealed refrigeration system
• R-404A refrigerant must be added at initial startup

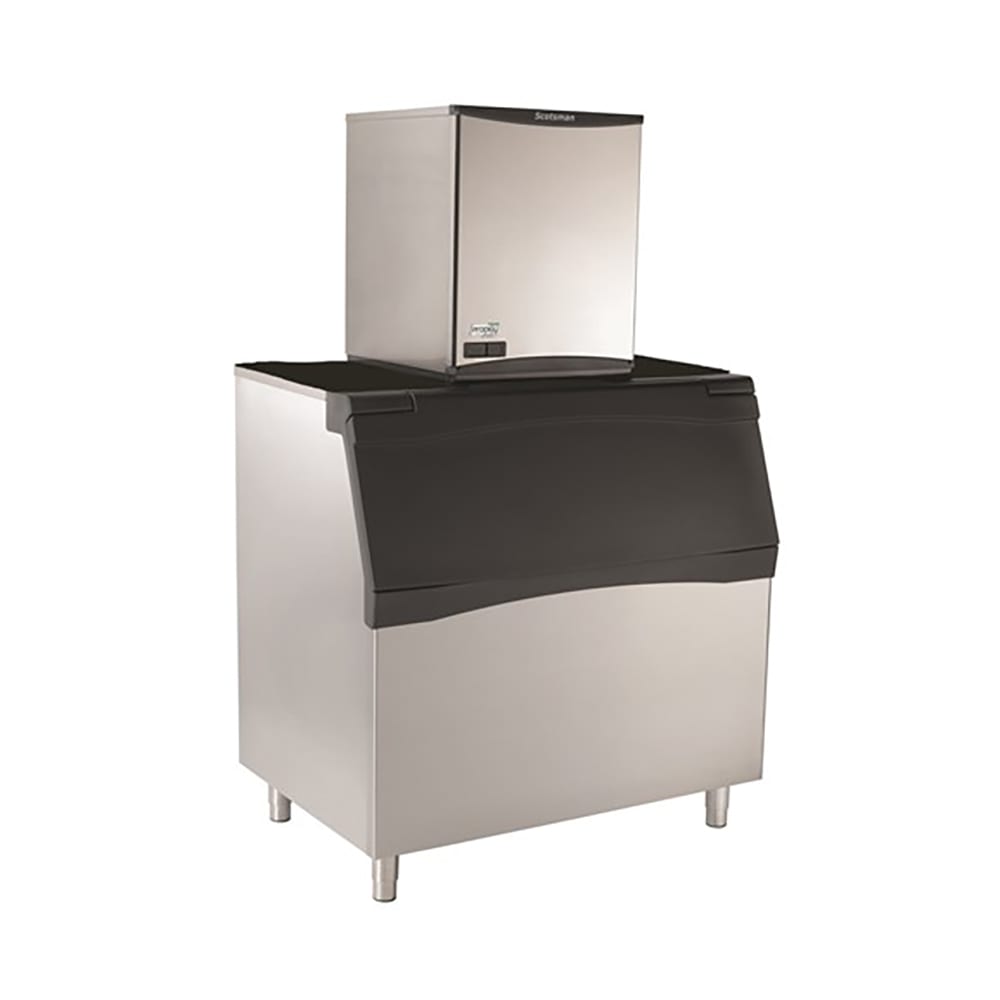

• Ice bin sold separately

Operating Requirements

• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 6,000-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 22⁷/₁₀ in. W x 24 in. D x 27 in. H
• 0.87 kW
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NH0922L-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, remote low side (condenser & compressor separate), production capacity up to 889 lb/24 hours at 70°/50° (766 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, heat and noise reduced via remote low side configuration, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Scotsman NH0922L-1 Specifications

Spec Attribute	Spec Value
Manufacturer	Scotsman
24 Hr. Production (lb)	889
Compressor Type	Remote Cooled
Depth (in)	24
Height (in)	27
Ice Type	Nugget
Phase	1
Product	Ice Machine Heads
Product Type	Ice Makers & Bins
Rating	Best
Refrigerant	R404A
Series	Prodigy Plus®
Voltage	115
Warranty	Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor
Width (in)	22
Weight	225.00
