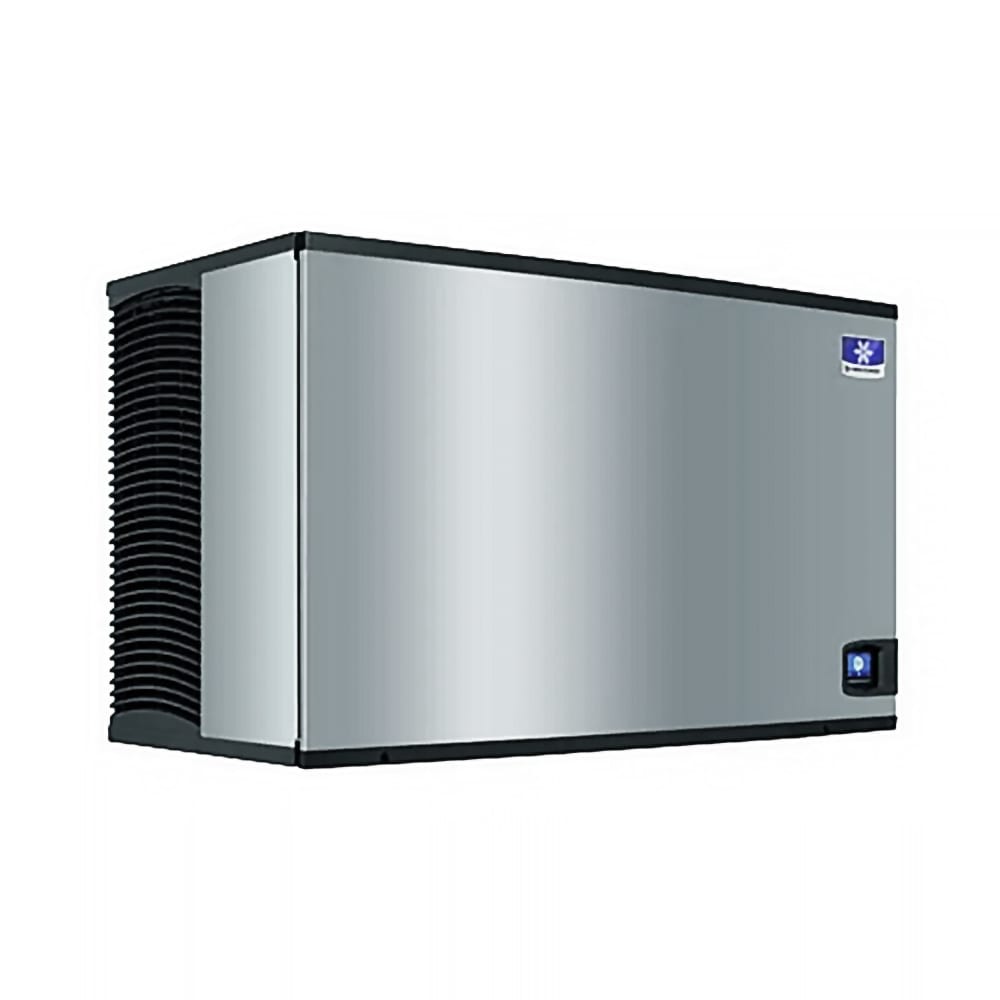

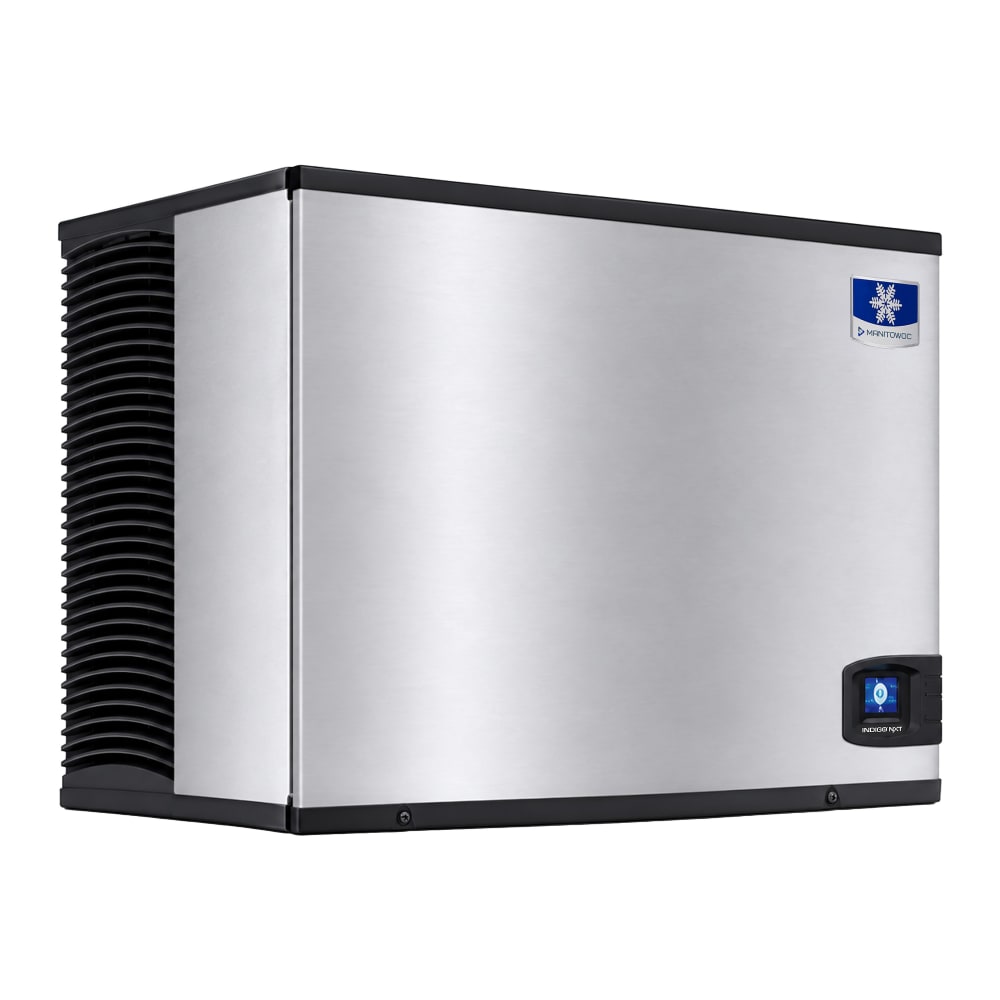

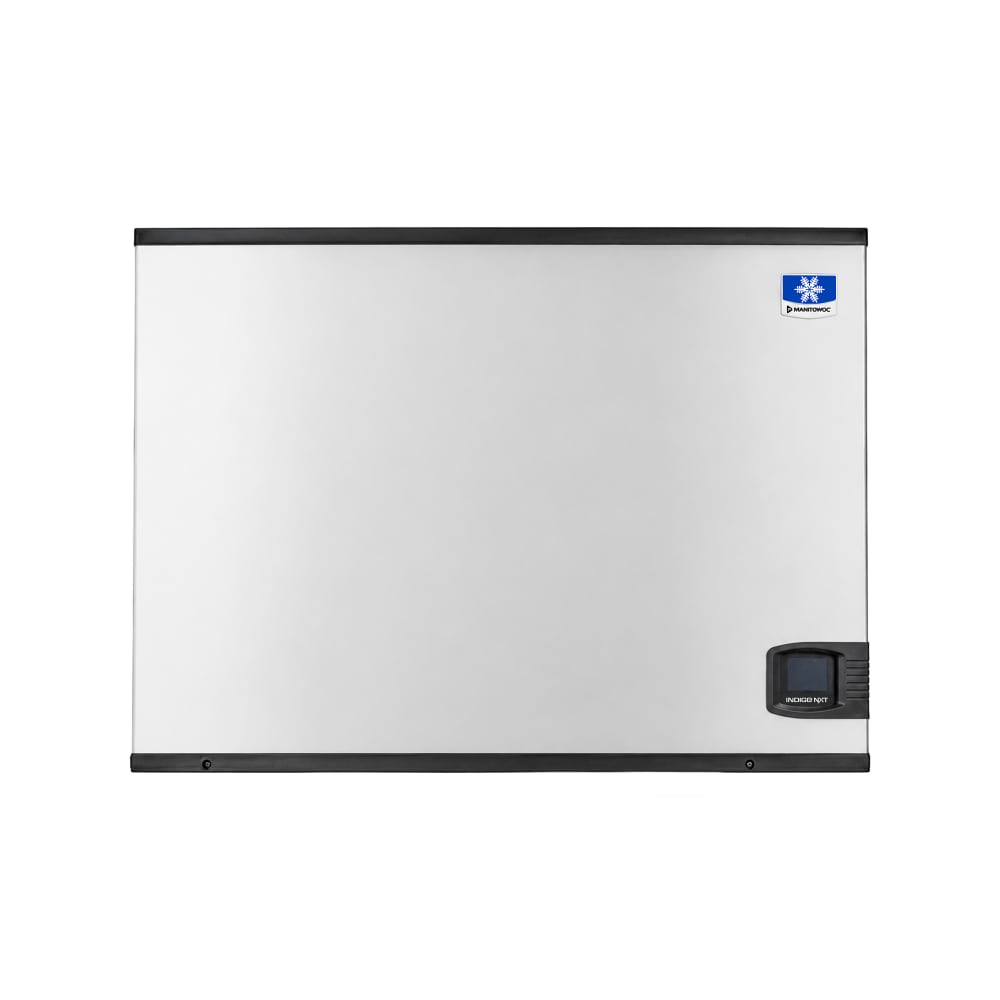

Manitowoc Ice IYT1900A 48" Indigo NXT™ Half Cube Ice Machine Head - 1965 lb/24 hr, Air Cooled, 208-230v/3ph

Excellent for high-volume locations such as quick-serve restaurants, food courts, and corner stores, the Manitowoc Ice IYT1900A half cube ice machine head can produce 1,965 pounds of ice daily when ambient conditions are favorable. To prevent the overuse of beverage products, the half-dice ice cubes are small enough to fit together tightly inside beverage containers. Finished with DuraTech™ coating, the exterior of the unit withstands heavy use and resists corrosion for an extended lifetime of service.

The Manitowoc Ice IYT1900A half cube ice maker streamlines use and maintenance. Giving users precise control over the unit’s settings, the control panel is icon based and operated through a responsive touchscreen. To perform cleaning procedures and preventative maintenance, a hinged door opens outward from the unit’s front to give the user access to serviceable parts. Inside, several components are removable for thorough cleaning and some are treated with an antimicrobial substance to resist the growth of bacteria, mildew, and fungus.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

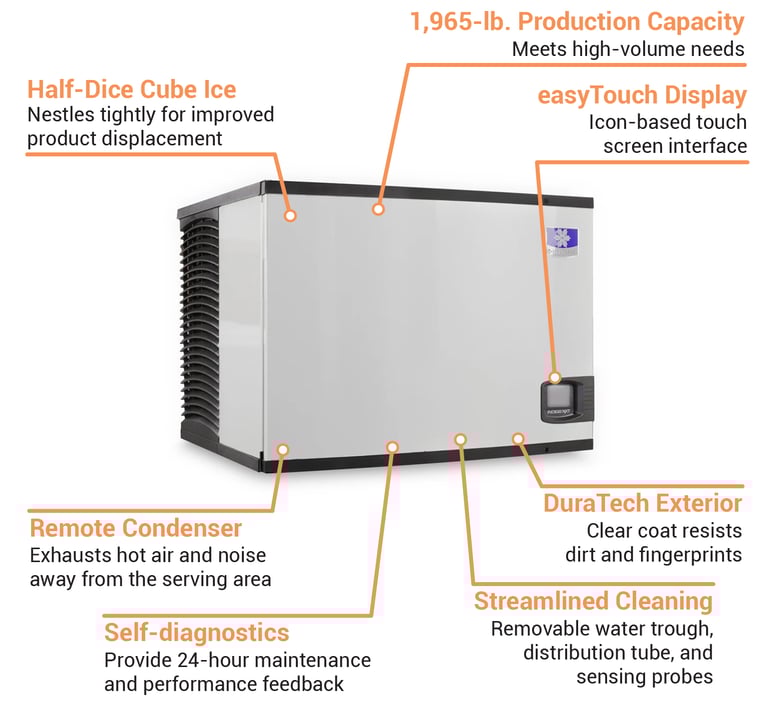

• Part of the Indigo NXT™ series
• Half-dice cube style ice

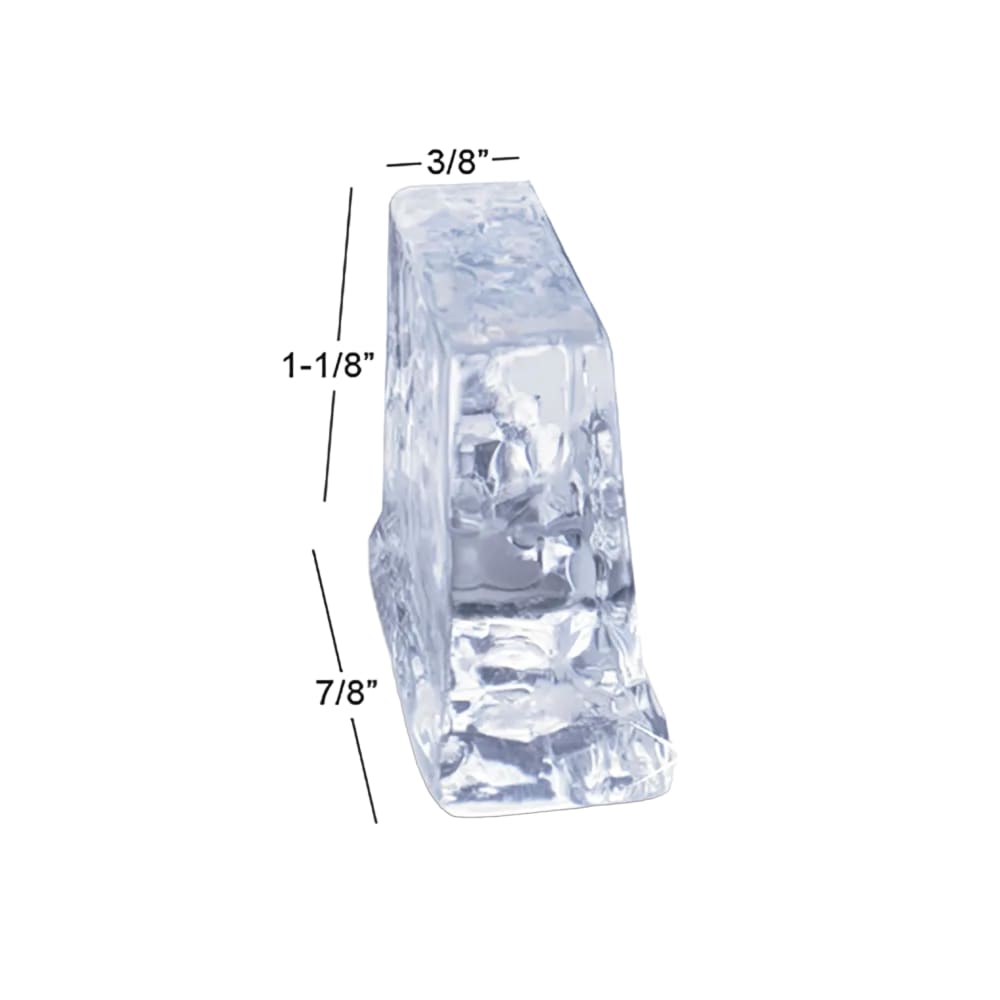

• Half cube size: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• 1,965-lb. maximum daily ice production
• 1,535-lb. AHRI-certified daily ice production
• DuraTech™ exterior clear coat resists rust and fingerprints

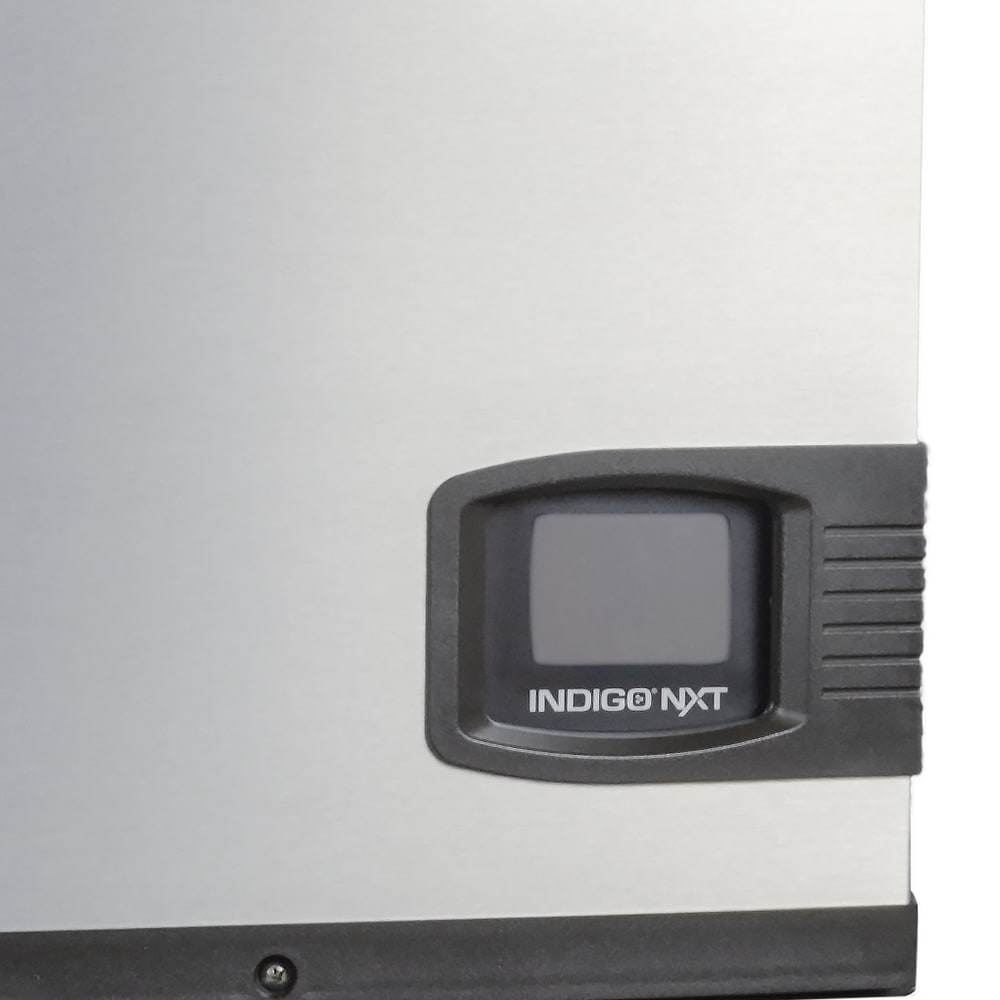

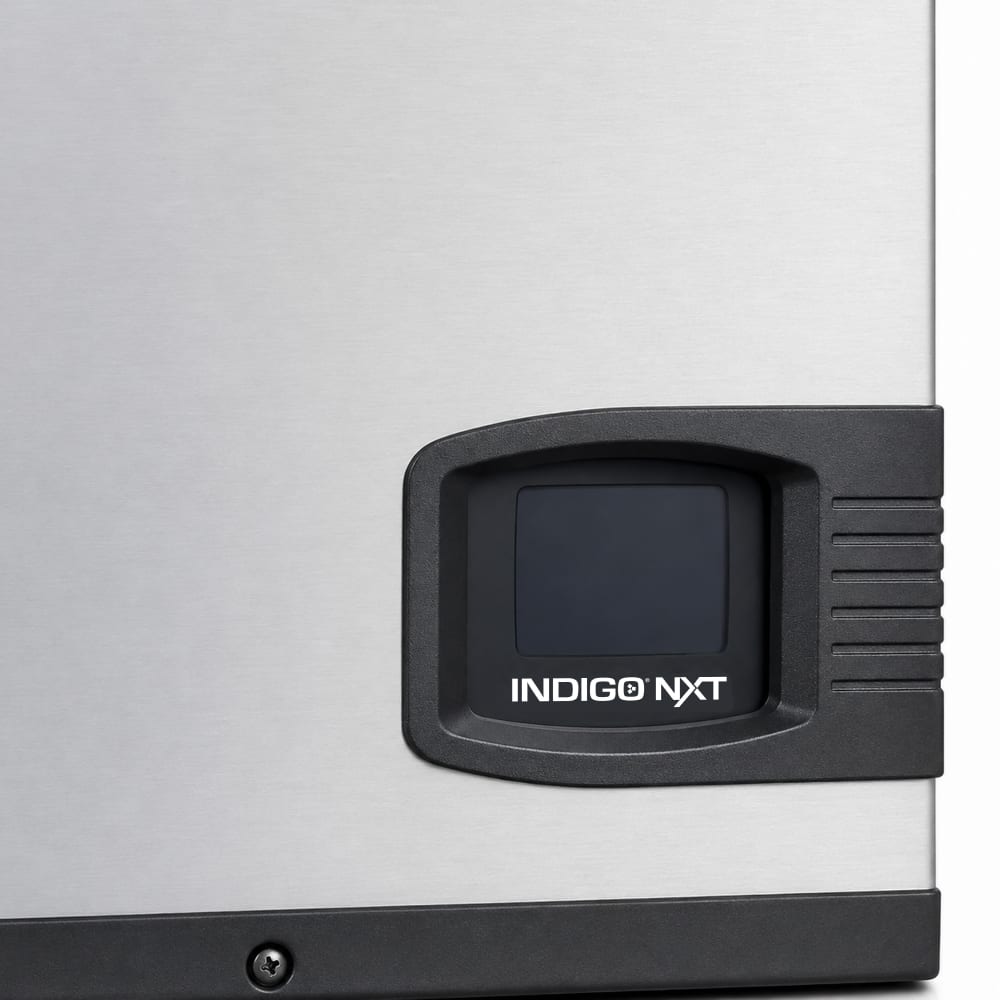

• easyTouch® touchscreen has icons to simplify navigation
• Programmable production moderates energy use

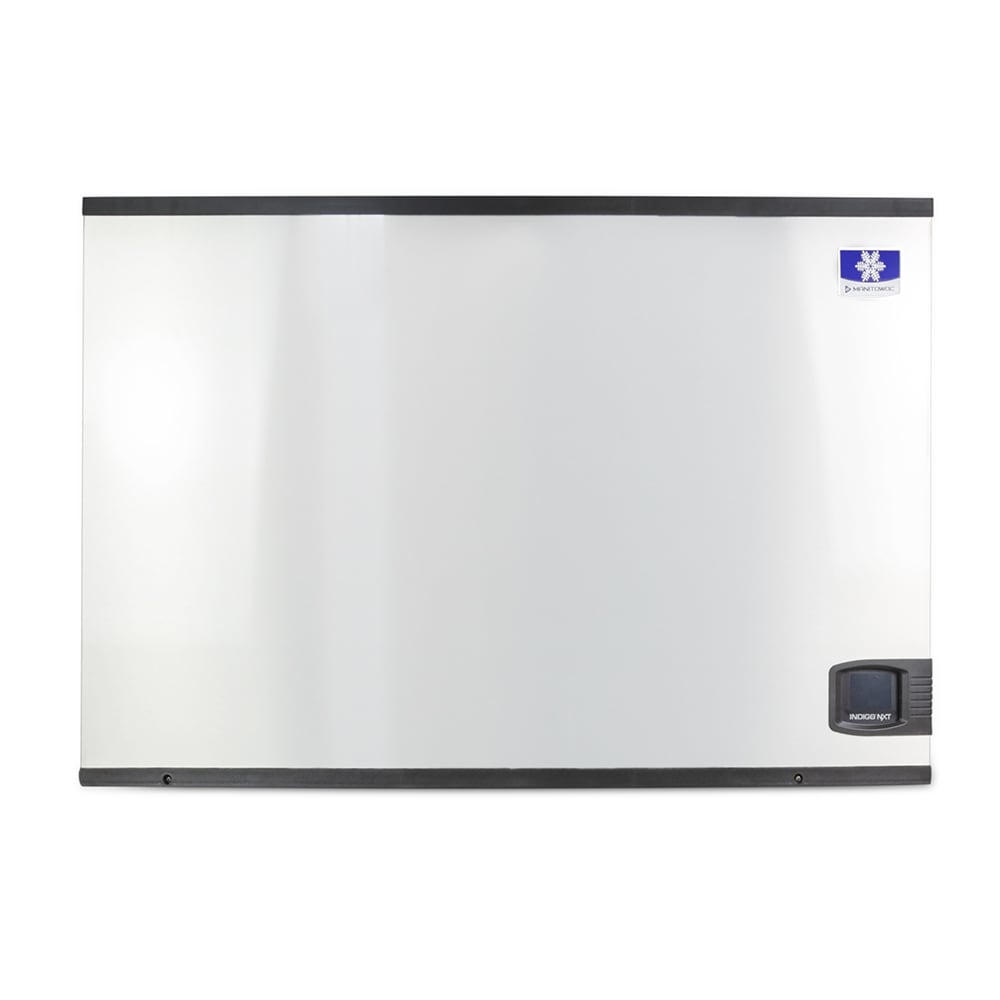

• Front door panel opens for component access
• Removable sensing probes, water trough, distribution tube, and curtain
• AlphaSan® antimicrobial treatment enhances select components
• Intelligent diagnostics provide feedback
• Acoustical ice-sensing probe

Refrigeration and Condenser Requirements

• Air-cooled system
• Self-contained condenser
• 30,500-BTU maximum heat transfer capacity
• R410A refrigerant is CFC free
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F

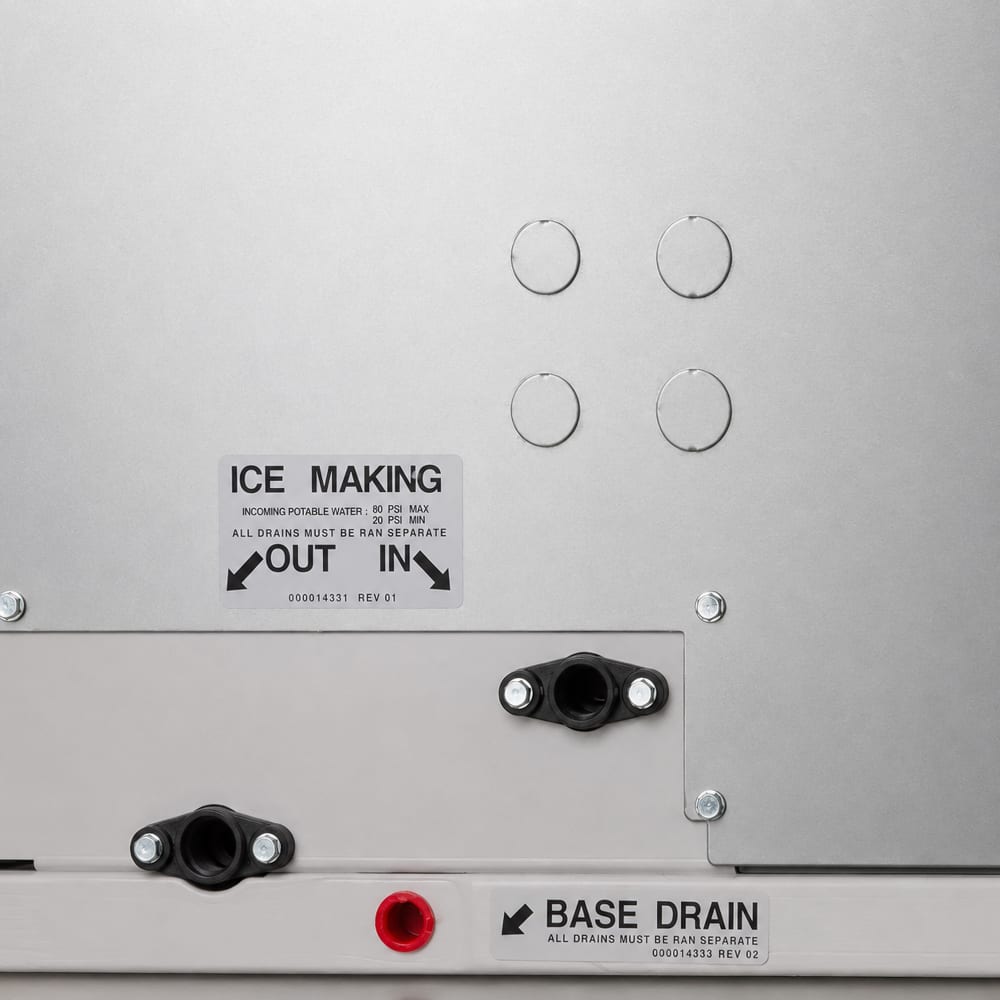

• Ideal incoming water pressure: 20-80 PSIG

Dimensions & Utilities

• 48 in. W x 24 in. D x 29.5 in. H
• 14.4 A, 4.6 kW
• 208-230 V/60 Hz/3 ph

Product Features

*Free shipping on Manitowoc Ice IYT1900A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1965 lb/24 hours at 70°/50° (1535 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor
