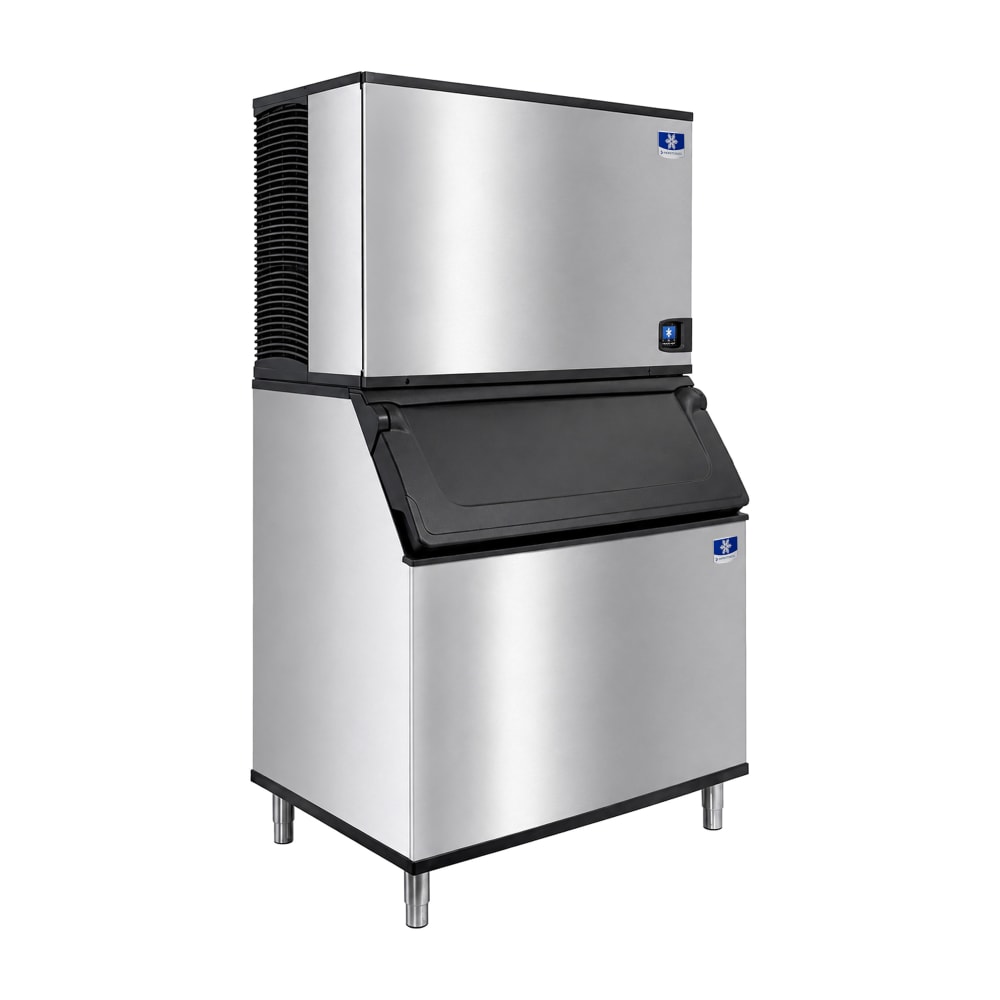

Manitowoc Ice IYT1500N/JCT1500/D970/RL50R410A 1700 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 882 lb Storage, Remote Cooled, 208-230v
QUICK SHIP: Ships in 1 Business Day
$13,283.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Manitowoc Ice IYT1500N/JCT1500/D970/RL50R410A Description
The Manitowoc IYT1500N//D970 cube ice maker with bin can produce 1,770 pounds of ice in a day. Production can be set to match the amount of ice in the bin or the time of day. Using the head is facilitated by its icon-based easyTouch® control panel, which runs 24-hour diagnostics to find maintenance issues and alert the operator. Some of the internal components are removable for cleaning, and some have antimicrobial protection built in to slow bacteria growth between each cleaning.
This unit is designed to operate with a remote condenser (sold separately), which can be installed a distance from the ice machine, usually on the roof or in another room, to move noise and heat away from the ice maker. This unit uses air to cool the refrigerant that chills the evaporator plate, over which water is run that freezes progressively to form ice cubes.
Ice is stored in the bin, which can hold 882 pounds. An included 5.3-pound-capacity ice scoop with knuckle and thumb guards protects ice from contaminants. To open the bin from a variety of angles, side grips are molded into the door. A cammed latch prevents the door from closing to aid staff in serving ice, and it is angled 53 degrees so that ice can be scooped out comfortably. The Manitowoc IYT1500N/D970 remote-condenser ice maker with bin has a DuraTech® finish over its stainless steel exterior to protect it from smudges and scuffs.
- 1,770-lb. ice production capacity
- 1,460-lb. AHRI-certified ice production capacity
- Icon-based control panel is user friendly
- Time of day or bin volume can determine the production rate
- Removable water trough, distribution tube, curtain, water probe, and water pump
- Bacteria growth is prevented by an AlphaSan® antimicrobial agent
- 24-hr. preventive diagnostics alert the operator of issues that arise
- Acoustical probe checks the thickness of ice with sound waves before it drops off the evaporator
- Fingerprints and stains are hidden by the DuraTech coating
- Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Uses R410 refrigerant
- 23,000 average BTU; 27,000 maximum BTU
- Required ambient temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 882-lb. storage capacity
- 29.7-cu.-ft. AHRI-certified storage capacity
- Ice scoop has a knuckle and thumb guard to prevent contamination
- 5.3-lb. scoop capacity
- Grips in the side support opening the door
- Door is insulated with foam to retain cold air
- Cammed door latch keeps the door open for scooping
- Door is angled 53 degrees to aid in scooping
- DuraTech clear coat over stainless steel resists smudges
- Blue polyurethane bin liner resists scuffs and dents
-
Ice Maker
-
48 in. W x 24 in. D x 29.5 in. H
-
14 A, 3.9 kW
-
208-230 V/60 Hz/1 ph
-
Bin
-
48 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYT1500N/JCT1500/D970/RL50R410A within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condenser and lines sold separately), 48"W x 24"D x 29-1/2"H, production capacity up to 1700 lb/24 hours at 70°/50° (1450 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (RL50R410A) Remote Tubing Kit, 50 ft. tubing length (p
Watch a video about this product
Manitowoc Ice IYT1500N/JCT1500/D970/RL50R410A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 1700 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 882 |
| Compressor Type | Remote Cooled |
| Depth (in) | 34 |
| Height (in) | 79.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 48 |
| Weight | 540.00 |
