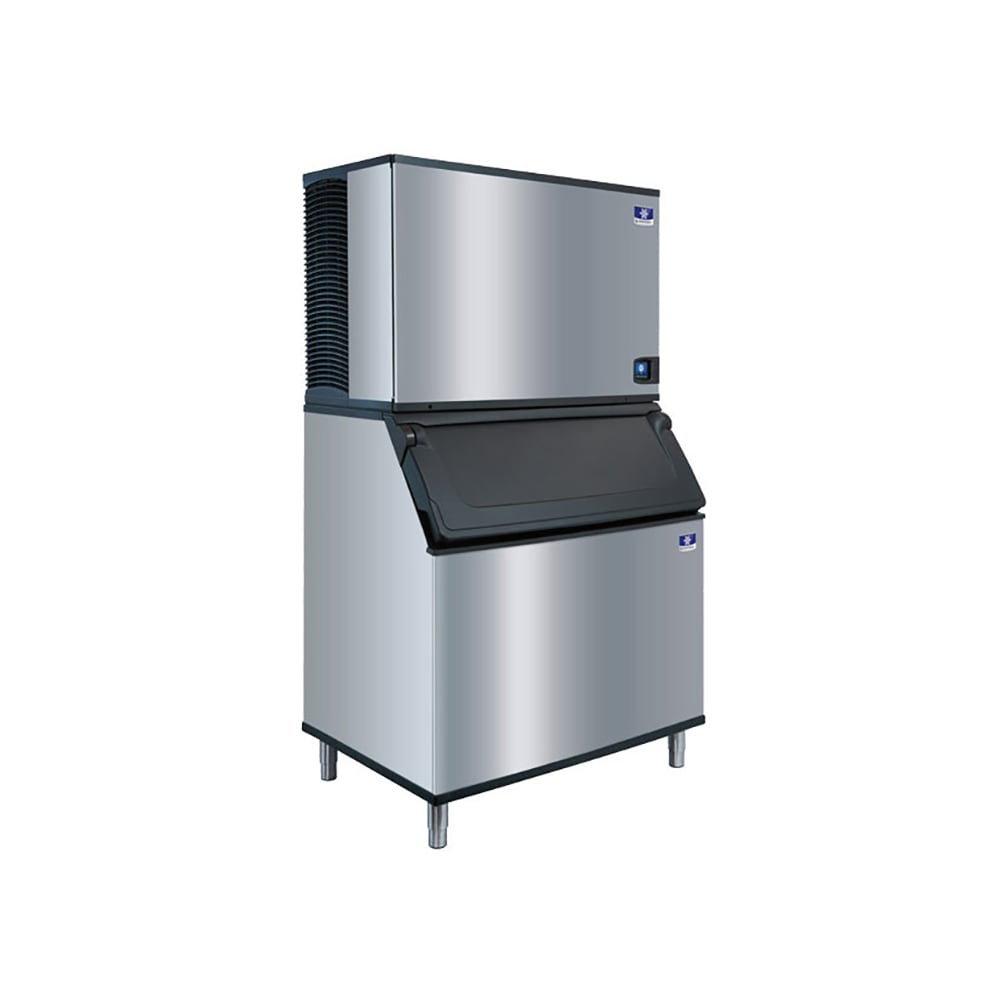

Manitowoc Ice IDT1500N/JCT1500/D970/RL50R410A 1675 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 882 lb Storage, Remote Cooled, 208-230v

The Manitowoc Ice IDT-1500N/D-970 Indigo NXT™ ice maker with bin can produce 1,710 pounds of 0.875-inch-by-0.875-inch-by-0.875-inch ice cubes. This full-cube ice is large and slow melting, making it perfect for beverages. While cube ice keeps drinks cool, it takes longer to chill liquids than small ice types. To ensure ice has a consistent thickness, an acoustical sensing probe checks it before it is moved to the bin. Production can be programmed to fit into a time period or certain daily volume.

The ice maker's touchscreen display simplifies operation by providing information on the operating status and alerts. Since the ice machine head has a swing-out door, operators can easily access the components, some of which are removable and made with an antimicrobial agent. A remote condenser, which is sold separately, dissipates heat away from the ice machine head. This lowers ambient air temperature around the unit to prevent it from working too hard.

As much as 882 pounds of ice fits in the Manitowoc Ice IDT-1500N/D-970 ice machine with bin. Since the bin liner is made of polyurethane, it is durable and corrosion resistant. Grips are integrated into the door on the left side, right side, and center, so operators can open it from different angles. An ice scoop is included with the bin; its built-in knuckle and thumb guards prevent hands from contaminating ice.

Ice Maker Details

• Part of the Indigo NXT series
• 1,710-lb. daily ice production capacity
• 1,425-lb. AHRI-certified daily ice production capacity
• Programmable ice production volume or operation time
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical sensing probe measures ice thickness
• easyTouch® display shows operating status and alerts
• 24-hr. preventive maintenance and diagnostics
• Hinged, swing-out food zone door provides access to the components
• Removable curtain, distribution tube, sensing probes, and water trough
• Some of the components are made with AlphaSan® antimicrobial agent to protect against bacteria growth
• Stainless steel exterior is coated in a clear DuraTech™ finish that resists corrosion
• Uses R410A refrigerant
• 23,000 average BTU; 27,000 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Ice Bin Details

• 882-lb. application capacity
• 29.7-cu.-ft. AHRI-certified capacity
• Blue polyurethane bin liner
• Insulated to retain cold air and prevent quick ice melting
• Door has center, right, and left grips for convenient opening
• Self-latching door hinge keeps door open when users are scooping ice
• DuraTech exterior resists scratches and stains
• 5.3-lb.-capacity ice scoop
• Built-in knuckle and thumb guard on the scoop helps prevent ice contamination from hands

Dimensions and Utilities

• Ice Maker
  • 48 in. W x 24 in. D x 29.5 in. H
  • 14 A, 3.9 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 48 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice IDT1500N/JCT1500/D970/RL50R410A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condensing unit and lines sold separately), 48"W x 24"D x 29-1/2"H, production capacity up to 1675 lb/24 hours at 70°/50° (1450 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (RL50R410A) Remote Tubing Kit, 50 ft. tubing length (
