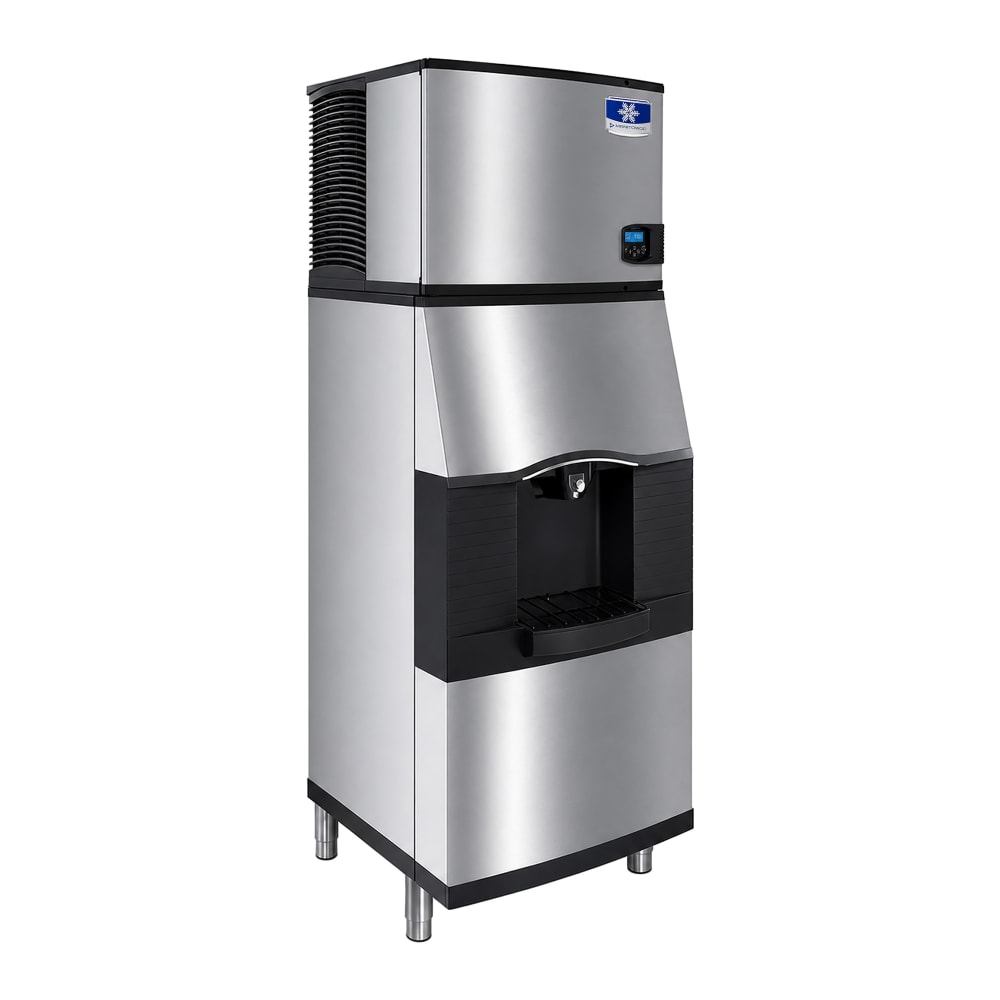

Manitowoc Ice IYP0800W/SFA292 744 lb Indigo NXT™ Half Cube Ice Machine w/ Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1ph
$12,400.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice IYP0800W/SFA292 Description
The Manitowoc Ice IYP0800W-261/SFA292 Indigo® NXT™ ice machine and dispenser makes half-size cubes, which are great for bagging in bulk or cooling drinks. The cubes automatically fall into the dispenser, where they are held until needed. The dispenser base holds as much as 180 pounds, and its touchless lever-activated ice chute eliminates the need for users to dispense ice with their hands; instead, pressing an ice bucket or glass against the lever initiates dispensing. Stray ice collects in the oversized drain pan to reduce the risk of safety hazards. This dispenser base also features a built-in water valve for on-demand water dispensing.
This Manitowoc Ice IYP0800W-261/SFA292 ice maker and dispenser can produce 744 pounds of ice in a day, or it can be programmed to produce a specific amount. For reliable performance in various environmental conditions, it's built with an acoustical ice-sending probe and active-sense technology. Overnight, users can use its delay function to pause production and save energy. The straightforward touchscreen controls are simple to use, and because options are marked with icons, users can operate the machine without referring to the instruction manual each time.
Both the unit's ice maker head and dispenser bottom have a DuraTech™ exterior that resists corrosion, fingerprints, and dirt to ease cleaning. In the head's foodzone, parts are primed with AlphaSan® antimicrobial protection that slows the growth of microbes and harmful bacteria. The water trough, distribution tube, curtain, and sensing probes can be removed so staff can clean the foodzone's hard-to-reach areas.
- Part of the Indigo® NXT™ series
- 744-lb. maximum daily ice production
- Creates half-cube ice
- Half-cube cube size: 3⁄8 in. x 7⁄8 in. x 1 1⁄8 in.
- easyTouch® icon-based interface
- Programmable production level
- Delay function pauses ice production for a few hours
- Removable distribution tube, water trough, probes, and curtain
- AlphaSan antimicrobial protection
- 24-hour diagnostics determine operational issues
- Acoustical ice-sensing probe provides reliability despite harsh water conditions
- DuraTech exterior is more corrosion resistant than stainless steel
- Self-contained, water-cooled condenser
- R290 refrigerant
- Required ambient temperature range: 40-100 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required incoming water pressure range: 20-80 PSI
- Required condenser water pressure range: 20-276 PSI
- 180-lb. AHRI-certified storage capacity
- Dispenses ice and water
- Large dispensing area can accommodate ice buckets, tall containers, and glasses
- Lever-activated ice chute
- Oversized drain pan reduces overflow risk
- Agitator encourages complete dispensing
- DuraTech exterior
- ADA-compliant configuration
-
Ice Machine
-
30 in. W x 24 1⁄2 in. D x 26 1⁄2 in. H
-
8.8 A, 4.02 kW
-
208-230 V/60 Hz/1 ph
-
Ice Dispenser
-
30 in. W x 32 in. D x 60 1⁄2 in. H
-
1.6 A
-
115 V/50 Hz/1 ph, includes 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0800W/SFA292 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24.5"D x 26.5"H, production capacity up to 744 lb/24 hours at 70°/50° (684 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machine
Watch a video about this product
Manitowoc Ice IYP0800W/SFA292 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 744 |
| Also Known As | IYF0900W/SFA292, IYT0900W/SFA292 |
| Amps | 8.8, 1.6 |
| Bin Capacity (lb) | 180 |
| Compressor Type | Water Cooled |
| Depth (in) | 32 |
| Dispenser Type | Lever |
| Dispenses | Ice & Water |
| Height (in) | 87 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 432.00 |
