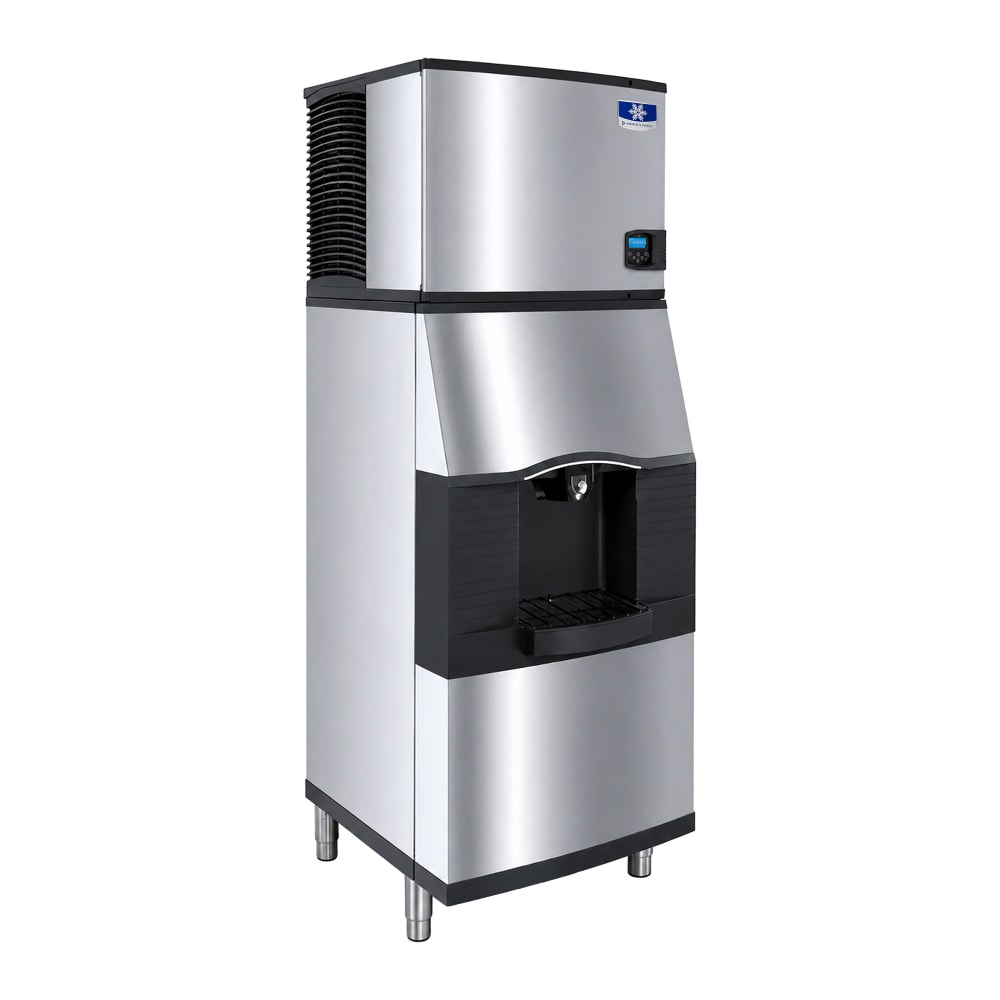

Manitowoc Ice IYP0800A/SFA292 745 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1ph
QUICK SHIP: Ships in 1 Business Day
$11,940.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Air Cooled
Manitowoc Ice IYP0800A/SFA292 Description
Ideal for filling ice buckets in hotels or individual glasses, the Manitowoc Ice IYP0800A-261/SFA292 Indigo® NXT™ ice maker dispenser provides ice and water through separate valves. When ambient air and incoming water temperatures are 70 degrees Fahrenheit and 50 degrees Fahrenheit, respectively, it can produce 745 pounds of half-cube ice in 24 hours. Each cube measures 1 1⁄8 inches by 7⁄8 of an inch by 3⁄8 of an inch, and this type of ice can be used in bagging applications or in sodas and cocktails. Operators can change ice production to suit hourly expectations or daily volume. Users can check the unit's status on the icon-based touchscreen display, and 24-hour preventive maintenance and diagnostics keep the unit running smoothly.
The foodzone—the area containing parts that come in contact with water and ice—is accessible by opening the ice maker's front hinged door. The water trough, distribution tube, curtain, and sensing probes can be removed for thorough cleaning, and because some of these components are built with AlphaSan® antimicrobial, they inhibit bacterial growth between regularly scheduled cleanings. This unit measures 30 inches wide by 24 1⁄2 inches deep by 26 1⁄2 inches tall and flaunts a dirt-, corrosion-, and fingerprint-resistant DuraTech™ exterior that complements existing pieces of equipment.
This Manitowoc Ice IYP0800A-261/SFA292 ice maker with dispenser has a 180-pound storage capacity. To reduce the spread of germs, it features a touchless lever-activated ice chute, meaning the ice bucket or glass is used to dispense ice rather than a user's hand. For efficiency, its integrated agitator dispenses 100 percent of controls. If ice spills over the container, the large drain pan catches messes, keeping floors clean, dry, and safe. To accommodate compact areas, this base measures 30 inches wide by 32 inches deep 60 1⁄2 inches tall, meaning this unit measures 82 inches tall overall. Like the ice machine head, the base features a long-lasting DuraTech exterior.
- Featured in the Indigo NXT series
- 745-lb. maximum daily ice production
- Produces half-cube ice
- Half-cube ice size: 1 1⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Programmable production time and volume
- Icon-based easyTouch® display
- 24-hour. preventive maintenance and diagnostic feedback feature
- Acoustic ice-sensing probe and active-sense technology
- Hinged foodzone door swings out to provide convenient component access
- Removable water trough, distribution tube, curtain, and sensing probes
- AlphaSan antimicrobial built into some components to slow bacteria spreading
- DuraTech clear-coated exterior resists corrosion and smudges
- R290 refrigerant
- Required ambient air temperature range: 40-100 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required incoming water pressure range: 20-80 PSI
- 180-lb. storage capacity
- For filling ice buckets and glasses
- ADA compliant
- Built-in water dispensing valve
- Touchless, lever-activated ice chute
- Oversized drain pan catches ice
- Efficient built-in agitator
- DuraTech exterior with clear coat finish
- Door can be removed for component access
- Clearance from grate to bottom of chute: 9 1⁄2 in.
- Ice Maker
- 30 in. W x 24 1⁄2 in. D x 26 1⁄2 in. H
- 9.5 A, 4.58 kW
- 208-230 V/60 Hz/1 ph
- Ice Dispenser
- 30 in. W x 32 in. D x 60 1⁄2 in. H
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0800A/SFA292 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24.5"D x 26.5"H, production capacity up to 745 lb./24 hours at 70°/50° (669 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, NSF, ADA compliant
Watch a video about this product
Manitowoc Ice IYP0800A/SFA292 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 745 |
| Also Known As | IYF0900A/SFA292 |
| Amps | 9.5, 1.6 |
| Bin Capacity (lb) | 180 |
| Cold Water (in) | 3/8 |
| Compressor Type | Air Cooled |
| Depth (in) | 32 |
| Dispenser Type | Lever |
| Dispenses | Ice & Water |
| Height (in) | 87 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Indirect Waste Size (in) | 1/2 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 432.00 |
