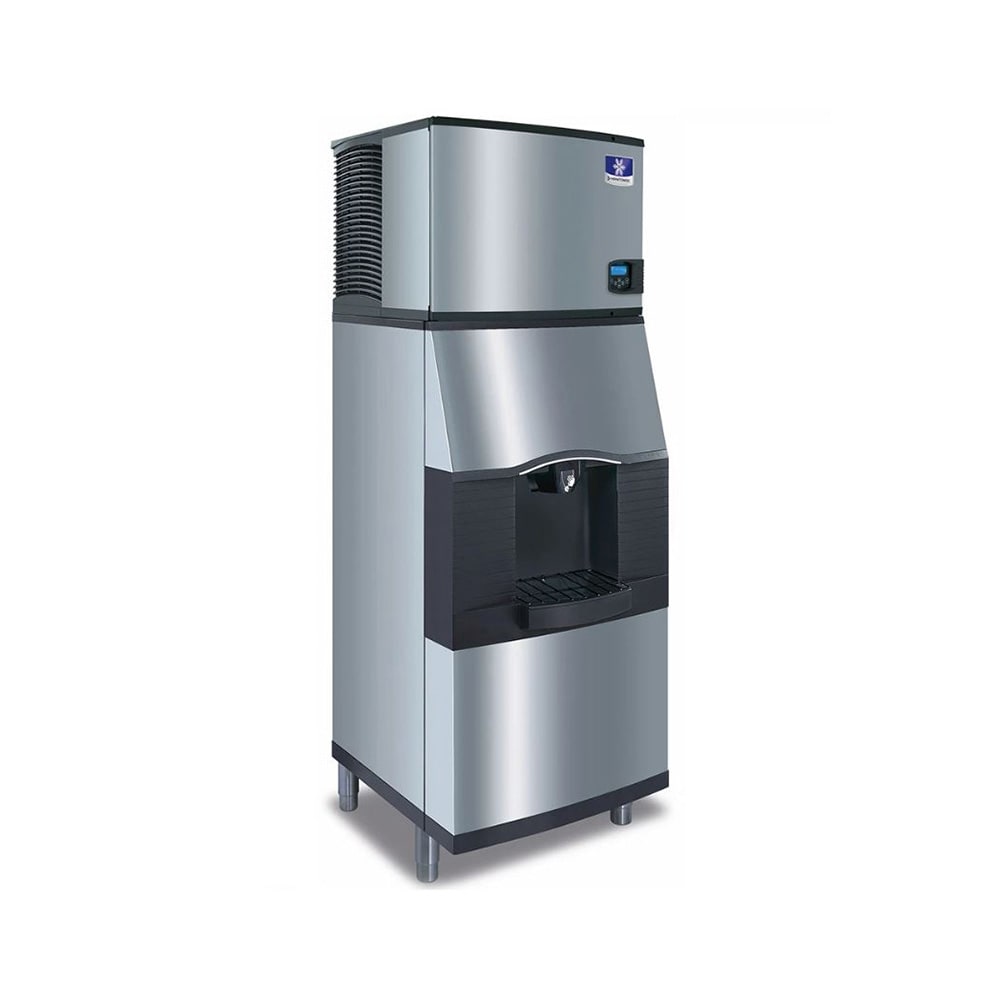

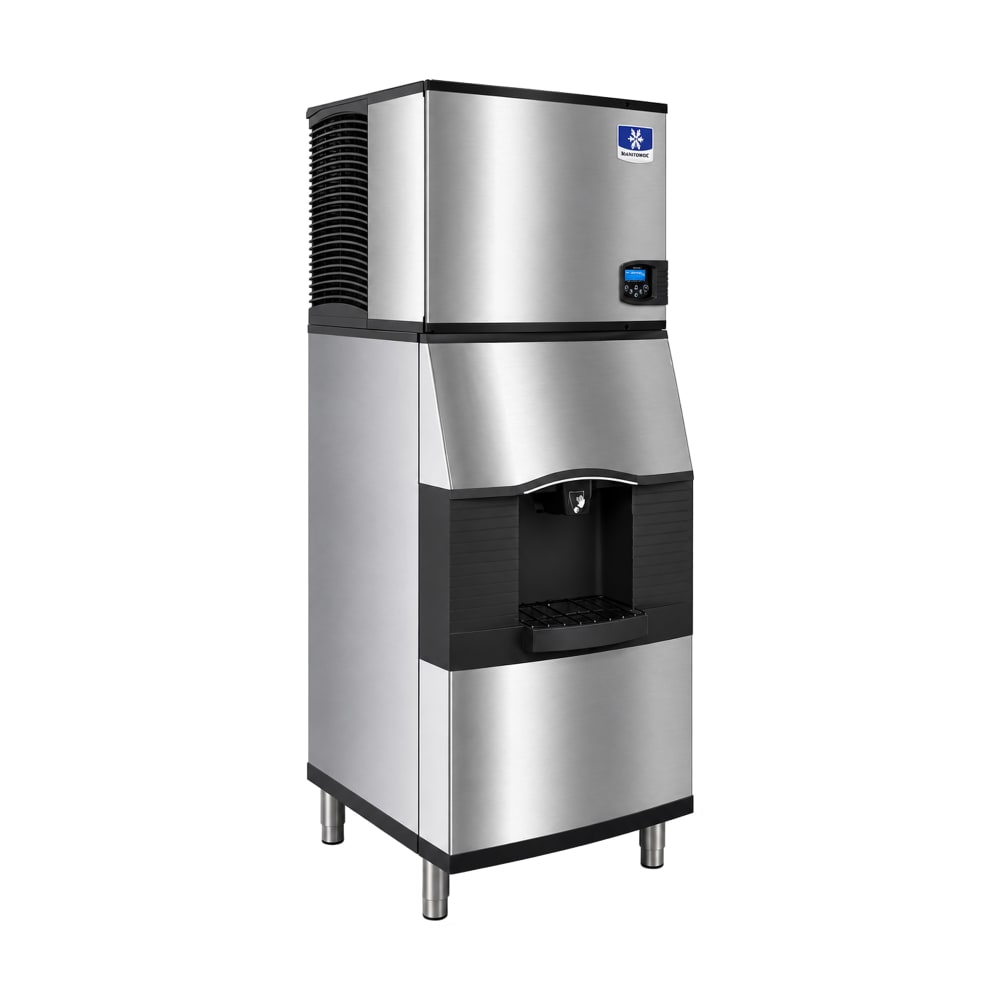

Manitowoc Ice IDT0900A/SFA292 851 lb Indigo NXT™ Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1p

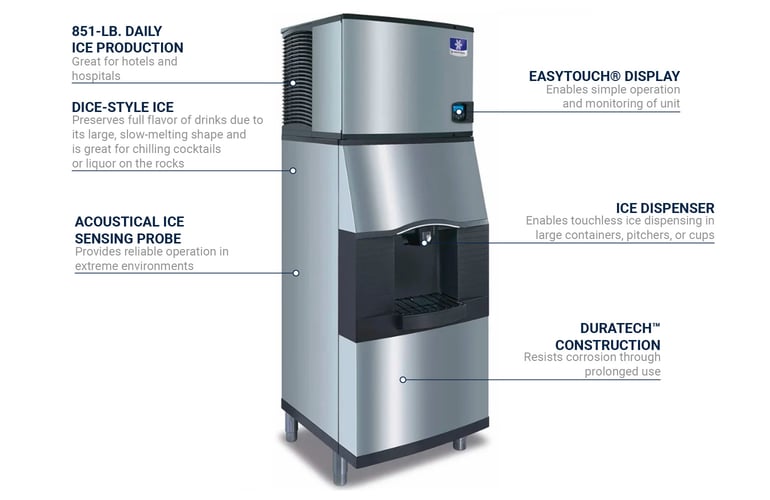

The Manitowoc Ice IDT0900A-261/SFA292-161 Indigo NXT™ commercial ice machine can make 851 pounds of ice a day in ideal conditions and stores 180 pounds of ice in the dispenser, which features a rocking chute mechanism to reduce ice spillage. Its DuraTech™ exterior hides fingerprints for a pristine appearance. Equipped with an icon-based touchscreen display, users can conveniently program the machine based on ice production volume and time, while the Active Sense technology ensures ice is harvested in all environmental conditions.

The Manitowoc Ice IDT0900A-261/SFA292-161 full-cube ice maker with dispenser uses an acoustical ice sensing probe to track ice cube thickness, providing a consistent ice cube throughout the day. Because it's air cooled, the maker requires less setup and expense than a water-cooled or remote-based system. To streamline cleaning, the distribution tube, water trough, curtain, and sensing probes are removable and can be wiped down. Designed with 24-hour diagnostics and preventive maintenance, this unit stays in optimal shape for daily use.

Ice Maker Details

• Part of the Indigo NXT series
• Makes dice ice
• 851-lb. maximum daily ice production
• 695-lb. AHRI-certified daily ice production
• Air-cooled compressor
• Average: 12,700 BTU
• Peak: 14,800 BTU
• Removable water trough, distribution tube, and curtain
• Hinged front door enables quick access
• Acoustical ice sensing probe moves ice to dispenser
• Smudge-resistant exterior
• Active Sense ensures consistent ice harvest
• Dice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Icon-based easyTouch display screen
• Programmable time and volume
• Intelligent diagnostics run 24 hrs.

Ice Dispenser Details

• 180-lb. storage capacity
• Rocking chute dispenser reduces spillage
• On/off activation
• Built-in agitator ensures all ice is dispensed
• Oversized drain pan catches overflowing ice
• Exterior resists fingerprints

Ideal Operating Conditions

• Incoming water temperature: 40-90 degrees F
• Water pressure: 20-80 PSI
• Ambient air temperature: 40-100 degrees F
• Required clearances: 8 in. at top and sides, 5 in. at back

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24¹/₂ in. D x 26¹/₂ in. H
• 9.5 A
• 208-230 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60¹/₂ in. H
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• Overall: 30 in. W x 32 in. D x 87 in. H

Product Features

*Free shipping on Manitowoc Ice IDT0900A/SFA292 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Ice Dispenser, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 851 lb/24 hours at 70°/50° (695 lb AHRI certified at 90°/70°), DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®; Vending Ice Dispenser: Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0900A/SFA292 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
