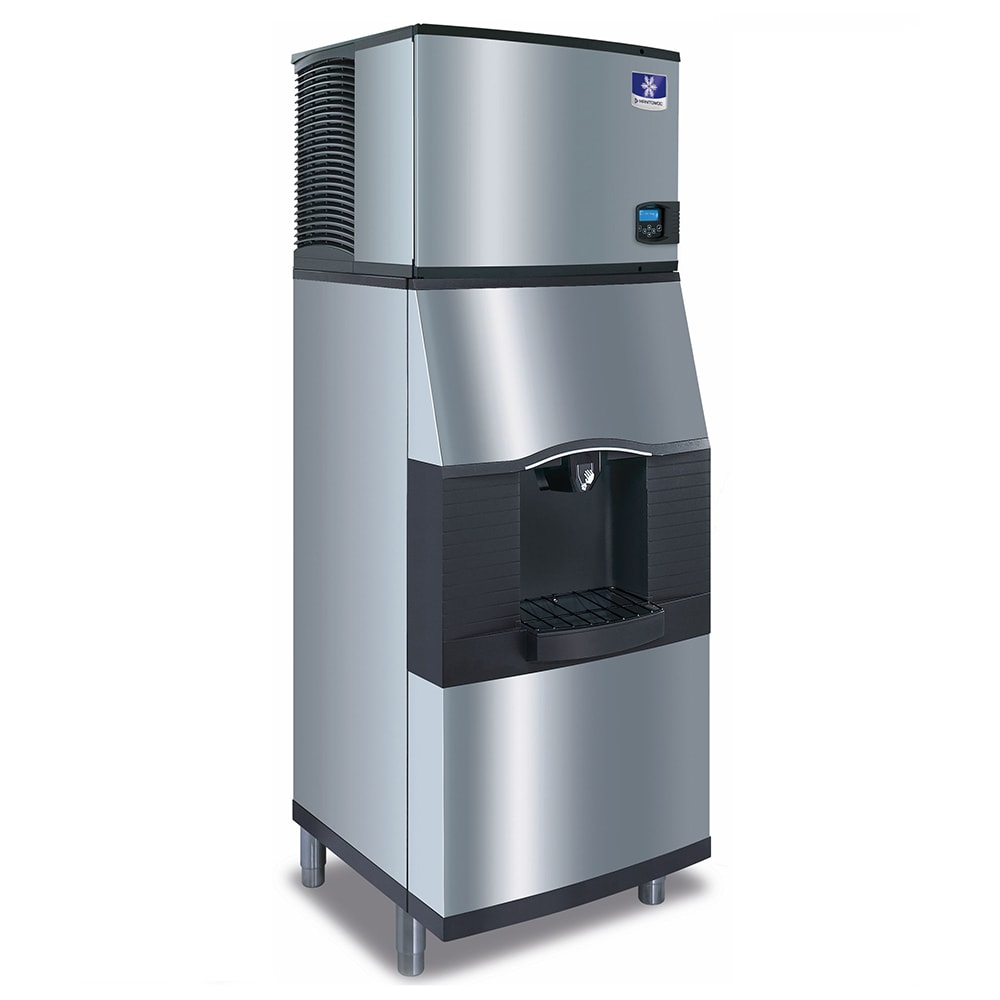

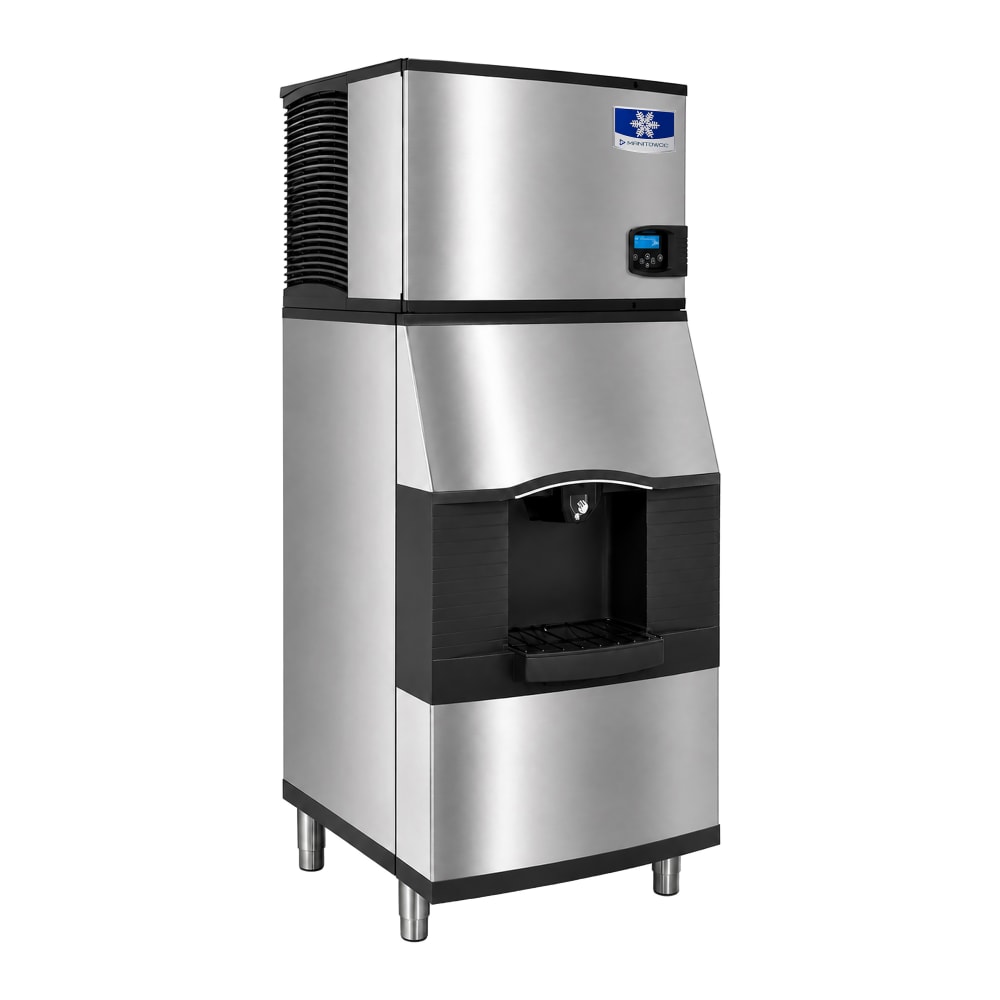

Manitowoc Ice IYT0620W/SPA162 560 lb Half Cube Ice Machine w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0620W-161/SPA162 Indigo NXT™ ice maker and dispenser makes half-dice ice, with thickness that is monitored by a probe using sound waves. It can produce 560 pounds of ice depending on the ambient and incoming water temperatures, and the dispenser holds 120 pounds of ice. A chute dispense mechanism keeps ice from spilling, while the drain pan collects overflow ice. An agitator breaks up ice if it clumps together.

The easyTouch® control panel simplifies use with touch icons. Operators can set how ice is made based on time of day or volume. Major components are removable for cleaning, and some of them have AlphaSan® technology built in to deter scale growth between cleanings. The Manitowoc IYT0620W-161/SPA162 ice maker and dispenser have a DuraTech® coating that protects the stainless steel from stains and dirt.

Ice Machine Head

• 560-lb. ice production capacity
• 485-lb. AHRI-certified production capacity
• Touch icons on the easyTouch panel
• Decide if ice is produced by volume or time of day
• Hinged front door
• Components remove from the head for cleaning
• AlphaSan agent slows bacteria growth between cleanings
• Operating status is monitored by 24-hr. diagnostics
• Probe ensures ice is thick enough to dispense
• DuraTech coating hides smudges and fingerprints
• Produces half dice ice
• Air-cooled motor
• R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 5,400
• Peak BTU per hour: 6,300
• 11.6 A, 3.87 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 22 in. W x 31.19 in. D x 75.5 in. H

Product Features

Ice Dispenser

• 120-lb. ice storage capacity
• Chute dispense mechanism prevents ice spills
• Built-in agitator
• Drain pan collects overflow ice
• DuraTech coating hides dirt and stains
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT0620W/SPA162 within the 48 contiguous states.

From The Manufacturer

IYT-0620W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 560 lb/24 hours at 70°/50° (485 lb AHRI certified at 90°/70°), DuraTech™ exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE

SPA-162: Vending Ice Dispenser, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0620W/SPA162 Specifications
